As no doubt many of you will have read in Ernie's post, Pip passed away last week...
Phillip "Pip-meister" Mock - Kona Guru & Legend
Whilst he struggled with his illness Pip maintained a documentary thread of his own...
Nearly there....
He also regularly contributed to the "Today's Ride" thread which is well worth a look...
Today's Ride
I have added some more photos to this thread showing Pip out enjoying his bikes.
I hope that anyone who is a custodian of one of Pip's frames will build it, ride it and enjoy it. And if/when the time comes for you to move it on, you would kindly keep it on Retrobike and keep me informed so I can update this thread and maintain a bit of a legacy for an RB legend.
2000 Score - 18" Frame
View media item 685
View media item 672
Pip's build thread:
Kona Score
Super rare frame. Pip believed it could be the only 18" one out there!
Serial Number: KS18170.
Frame: 1,780g / 3.92lbs / 3lbs 14 ¾ oz (frame on kitchen)scales
: 1,850g / 4.07lbs / 4lbs 1 ¼ oz (1,850ml of water displays 1,780g on scales)
Seat tube 34.9mm
Seat Post 30.0mm
Seat tube 15” Centre - Centre / 18” Centre - Top.
Top tube: 22.5” actual, 23.5” effective.
Head tube 125mm.
Bottom Bracket Shell 68mm
Top Tube: 34.9 round,
Downtube: top 46mm x 40mm – bottom 48mm x 38mm… verify
Seat Stays: 19mm round,
Chain Stays: 26mm x 18mm – 19mm round,
Headtube O/D: 41.5mm.
New owner: busterkeet0n
busterkeet0n's Build Thread...
2000 Kona Score
1993 Kilauea
View media item 683
View media item 661
Pip's build thread:
Kona Kilauea 1993
Serial number: Very vague owing to thickness of paint F30##712.
Frame: 18” Tange Prestige Concept - Tapered Oval Double Butted.
28.6mm Seat Tube – ovalised at bottom
27.0mm Seatpost
30mm Dog Collar & Seatpost Clamp
New owner: jinjrich
jinjrich's Build Thread...
1993 Kona Kilauea
New owner: miake108
miake108's Build Thread...
93 Kona Kilauea
1995 Kula
View media item 662
Pip's build thread:
1995 Kona Kula
Frame No: 5T-28 F9509 2464 ˂˃ DB
Frame: Easton ProGram 3 Elan
Top Tube actual 22” (Virtual 23”)
Headtube length 110mm
Seat Post 27.0mm
Front Mech Clamp 31.8mm
Bottom Bracket Shell 68mm English thread.
Bottom Bracket Height ”
Colour: Glacier Green Metallic
1,###gr? Quoted at 4.5lbs
New owner: Moosey Moose
Moosey Moose's Build Thread...
Moosey Moose's "Pipmeister" 1995 Kona Kula - Updated
1996 Ku
View media item 676
View media item 663
New owner: busterkeet0n
1997 Explosif
View media item 677
View media item 665
Pip's build thread:
1997 Explosif
Serial Number: H7M2 1499.
Weight: circa 2,000gr / 4.4lbs / 4lbs 6.4ozs.
Constructed entirely of Columbus Nivacrom Max OR tubing.
Tubing wall thickness:
• Top - 0.7/0.4/0.7,
• Down - 0.8/0.5/0.8
• Seat Tube - 1.3/0.6/0.9 custom drawn for Kona by Columbus.
• Columbus drawn, oversized seat stays.
• 27.0mm seat post, 28.6mm front derailleur, 68mm bottom bracket & 110mm Headtube.
New owner: adamgent
1997 King Kahuna
View media item 678
View media item 670
(not?) Pip's build thread:
Ex-model King Kahuna from 2000!
Serial number K19088
88th frame of a probable 100 produced for 1997 in 19” c/w later edition Top Tube cable routing.
Frame: 1,750g
Seat tube 31.8mm
Seat Post 27.0mm
Measurements: Seat tube 16” Centre - Centre / 19” Centre - Top.
Top tube: 22.25” actual, 23” effective.
Head tube 130mm.
Bottom Bracket Shell 68mm
New owner: SNA
SNA's Build Thread...
'97 Kona King Kahuna
New owner: Matttymm
Matttymm's build thread...
1997 Kona King Kahuna
1998 Hot
View media item 682View media item 667
Pip's build thread:
1998 Kona Hot
Serial number H9N1 7857
H=Hodaka, 9=1999, N=#, 1=January, 7857= Batch / Serial - Original price £800
Reynolds 853: Heat Treated • Air Hardened • Butted Main Tubes / Frame & Stays c/w ‘Opposite Oval Tubing' Downtube – or Columbus Stays, or Reynolds 725 Stays?
Frame: 1,950g, 4.29lbs, 4lbs 4.8oz
Head Tube: 110mm.
Down Tube: Centre 35.5mm, Top 37mm x 33.5mm, Bottom 37mm x 33.5mm *
Top Tube: 32mm
Seat Tube: 28.6mm at Mech band / 30mm at Seatpost clamp
Seat Post: 27.0mm
Bottom Bracket Shell: 68mm
Measurements: Seat tube 15” Centre - Centre / 18” Centre - Top.
Top tube: 22” actual, 23” effective.
Weight: 1,950 gr / 4lbs 4.8oz / 4.29lbs
New owner: spacehopper
spacehopper's Build thread:
1998 Kona Hot
1998 Hei Hei
View media item 679View media item 668
Pip's build thread:
Hei Hei – picked up yesterday.
Previous Custodian: wadsy
wadsy's build thread:
1998 "Pipmeister Edition" Hei Hei
New owner: Magpiegifts
Magpiegifts build thread:
1998 Kona Hei Hei
New owner: Ackers
Ackers build thread:
1998 Kona Hei Hei Pipmeister
2000 Explosif
View media item 681View media item 671
Pip's build thread:
Explosif 2000 Scandium
Serial Number: H0A00118.
Hodaka (H0A0011, 2000 (H0A0011, Control (H0A0011, Oct (H0A0011.
Weight:
Tubing wall thickness:
Top - 38/35 x 1.3-0.8-1.1t
Down - 45/41 x 2.0-0.9-1.3t
Seat Tube -31.8 x 2.35 -1.8t.
Seat Stays - 19 x 1.4-1.8-1.3-1.4t.?
Chain Stays RHS 22.2 x 2.0-1.2-1.4t / LHS 22.2 x 2.0t,
Forged dropouts with I.S. disc mounts, forged replaceable "H" style hanger. WM25.
27.0mm seat post, 31.8mm front derailleur, 68mm bottom bracket & 110mm Headtube.
Made with Easton Scandium frame tubing and Easton Elite rear stays.
Available as frame, 3.4lbs
Gear Hanger: Wheels manufacturing No:25
New owner: W.Ford
W.Ford's Build Thread...
2000 Kona Explosif build
2003 Kula Primo
View media item 684View media item 673
Build thread:
Seat Post: 31.6mm (From Kona Forum Tech – 2 prototypes were 30.0mm!)
Front Mech Clamp: 34.9mm
B.B Shell: 68mm
Headset: 44mm I/D, 50mm O/D, 10mm Depth
Headtube length: 120mm
Model Number: F10KL18
Hanger: Type S (Stamped C) Wheels Manufacturing No:61?
Frame & cable outers as shown: Sold
2000 Kula
View media item 675
Pip's build thread:
Kula 2000
New owner: Mikey08
Mikey08's build thread: Y2K 'Pipmeister' Kona Kula
New owner: Ackers
Ackers build thread:
1999 Kona Pahoehoe
New owner: thebenjordan
thebenjordan's build thread:
1999 Kona Pahoehoe
1998 Kona Ku
View media item 680View media item 669
Pip's build thread:
The Mythical 1998 Kona Ku
18” Columbus Altec2 Megatube 7005 – Handmade in U.S.A. – Banana Yellow
Frame Serial No: KK88044 - Possibly Kona Ku 1998 number 8 (August) 044
Seat Post 27.2mm
Seat Tube 31.8mm
Top Tube Ovalised - approx. 34mm/38mm,
Down Tub Bi-Ovalised - approx. 40mm/48mm
Weight: 1485g (frame only) 1505g with seat-post clamp
Gear Hanger: Kona Style H. Wheels Manufacturing No: 25
New owner: BerthaPog
A very rare frame in superb condition, with not much use at all - please see "The Mythical 1998 Kona Ku" thread linked above for more information/details. Please pm me if you are genuinely interested in acquiring this lovely piece of Kona history.
BerthaPog's build thread:
1998 Kona Ku - Pipmeister
1997 Stars and Bars King Kahuna
View media item 689View media item 686View media item 687View media item 688View media item 666
Pip's build thread:
King Kahuna Stars ‘n’ Bars!
wadsy's build thread:
'97 "Pip-meister Edition" King Kahuna Stars ‘n’ Bars
New owner: Matttymm
Matttymm's build thread...
1997 Kona King Kahuna Stars and Stripes Pipmeister Edition
18"
Frame Serial No: K18066.
Weight approx 1,650g
Seat Post 27.0mm
Seat Tube 31.8mm
2010 Kilauea
View media item 674
Frame weight: 1,175 gr. c/w Gear Hanger & Cable Guides. 2.59 lb / 2lbs 9 ½ ounces.
Model: Kilauea 2010 F10KL18
Serial Number: HOAC-0015 (Apparently less than 50 produced worldwide)
Seat Post Clamp: 34.9mm
Seat Post: 31.6mm (From Kona Forum Tech – 2 prototypes were 30.0mm!)
Front Mech Clamp: 34.9mm
B.B Shell: 68mm
Headset: 44mm I/D, 50mm O/D, 10mm Depth
Headtube length: 120mm
Model Number: F10KL18
Hanger: Type S (Stamped C) Wheels Manufacturing No:61?
Current custodian: wadsy
wadsy's build thread:
Pip-meister 2010 Kona carbon Kilauea
1997 Koa
View media item 690View media item 664
Frame: 18" - Kona Double Butted 7005 Aluminium
Top Tube actual 22” (Virtual 23”)
Headtube length 110mm
Seat Post 27.0mm
Front Mech Clamp 31.8mm
Bottom Bracket Shell 68mm English thread.
Frame No: H7A08105
Colour: Matt Metallic Orange
Pip's build thread: NA
wadsy's build thread:
'97 "Pip-meister Edition" Kona Koa
New owner: PedallingPutz
Pip's desire was for the frames to stay within the Retrobike community. As such, if you are the new custodian of a frame it will be on the “gentlemanly” agreement that you honour his wishes by building the bike to ride and doing a build thread to share on Retrobike. Also, if you decide to let the frame go, it would be good, if at all possible for it to go to someone who will do likewise, so we can keep the frames “in the family”.
As you will know Pip is a stalwart of our Retrobike family and has contributed greatly through his build threads, forum posts, many Kona build and advice posts and his Kona register threads. I would like to do the same with his frames and plan to run a “Pipmeister Collection” register; listing the frames with serial numbers, current owners and links to build threads. It is the intention, that this will be updated with new owners names and new build threads.

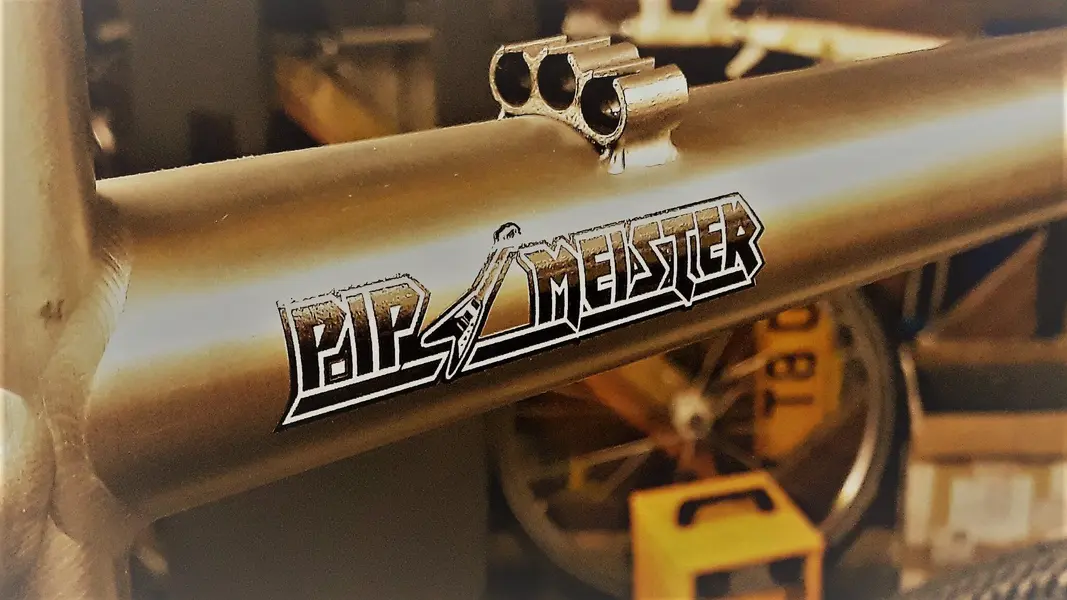

Each one of Pip's frames have a “Pipmeister” decal, designed by me, with Pip's approval and made by Gil. Featuring a "heavy metal" font and a Flying V guitar; if you read Pip's thread you'll see why. Pic at top of page.
