Raleigh SBDU 531SL build thread

gavr

rBotM Winner

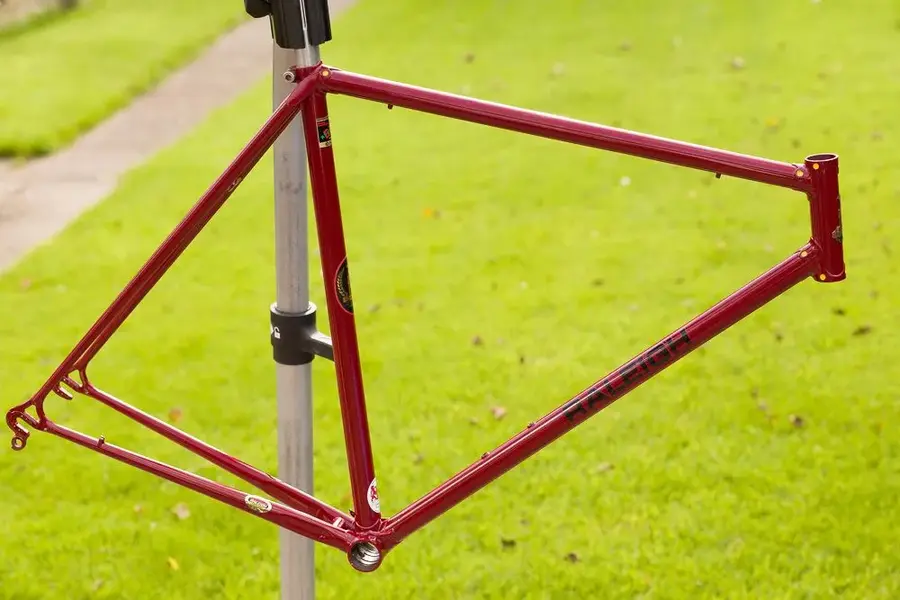

So after a long wait for paint I've got a chance to build up the frame - SBDU SB1452 (H250) in 531SL from late 1976 or very early 77

viewtopic.php?f=12&t=303915

I'm going to build this with a mix of parts, Suntour Superbe gears, Campag bits and pieces, Brooks saddle and some modern parts for good measure.

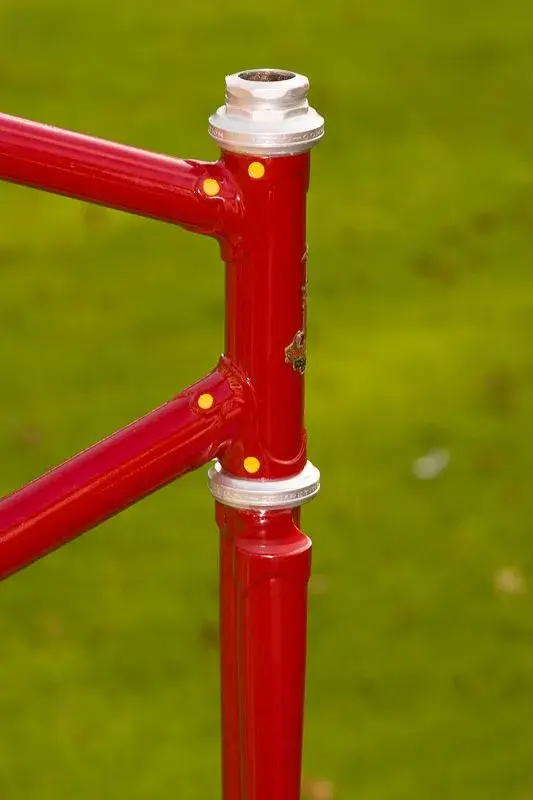

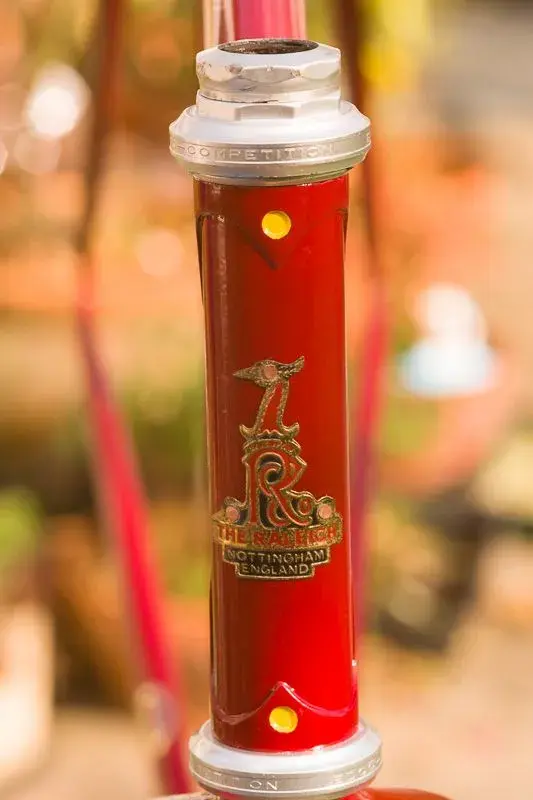

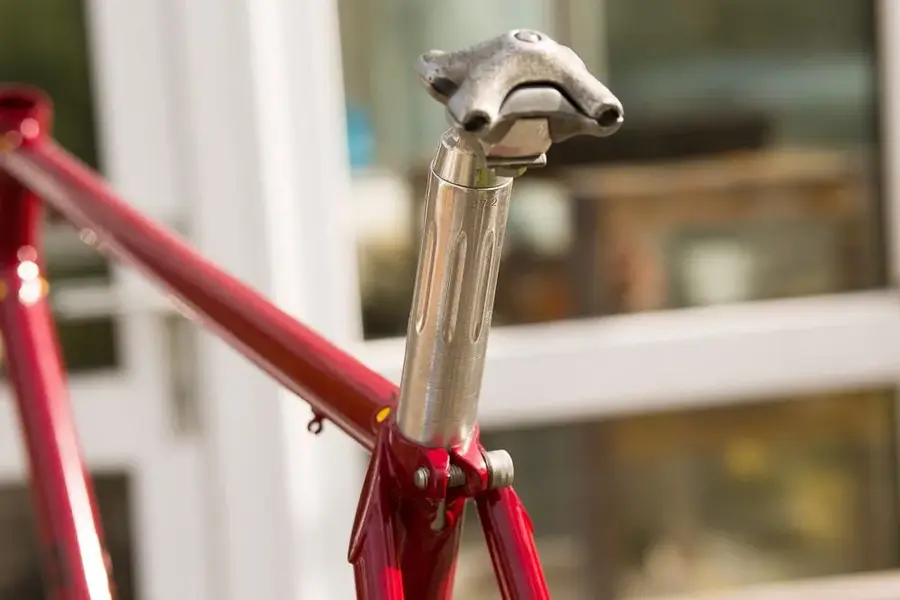

I always start with the seat post to hold the frame in the stand, then fit the forks. The seatpost is 27.2 mm, single bolt SuperRecord. Headset is a slightly bruised but otherwise fantastic EDCO Competition


Attachments

  • _MG_3019.jpg
    135.9 KB · Views: 2,637
  • IMG_4350.jpg
    104 KB · Views: 2,637
  • IMG_4352.jpg
    129.4 KB · Views: 2,637
  • IMG_4349.jpg
    150.3 KB · Views: 2,637
  • _MG_3000.jpg
    253.3 KB · Views: 2,637

gavr

rBotM Winner
Re:

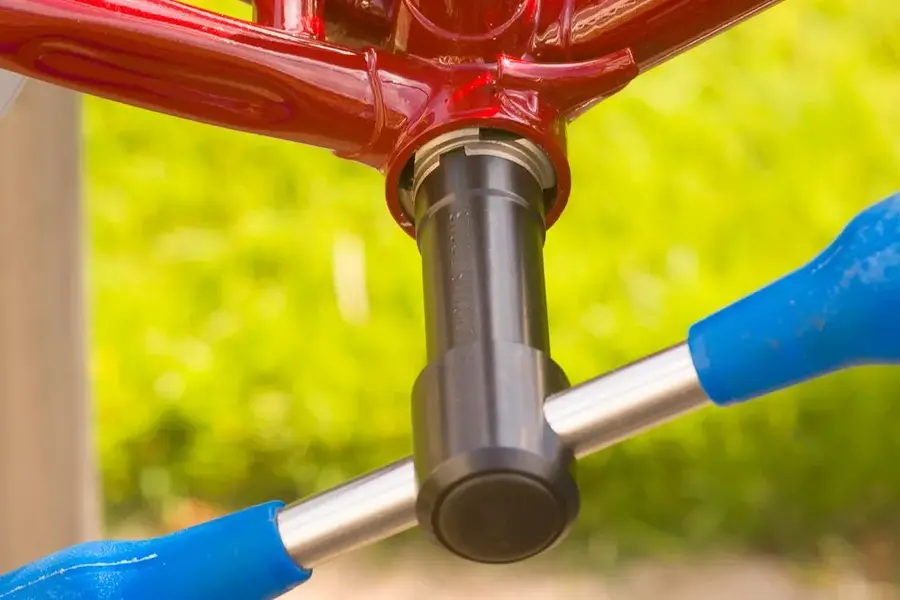

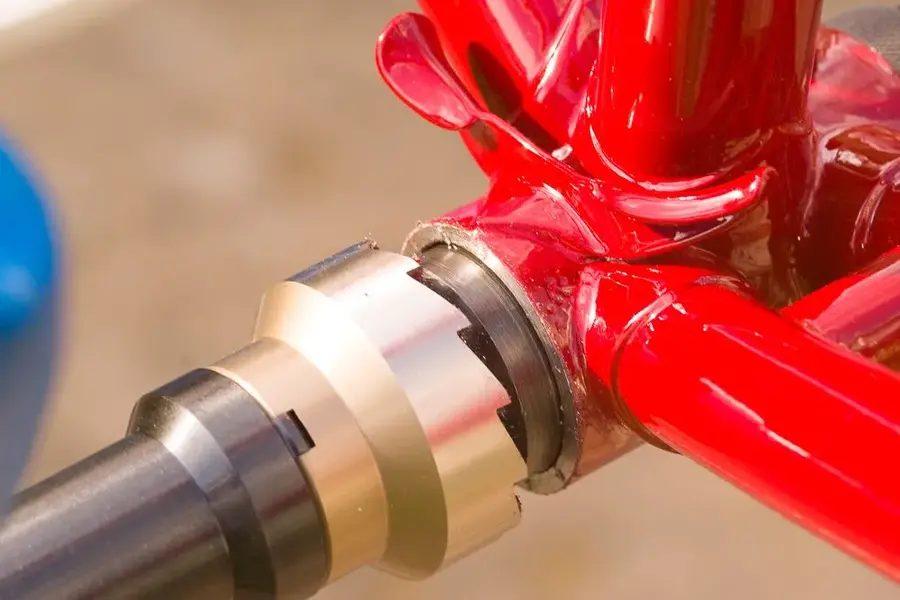

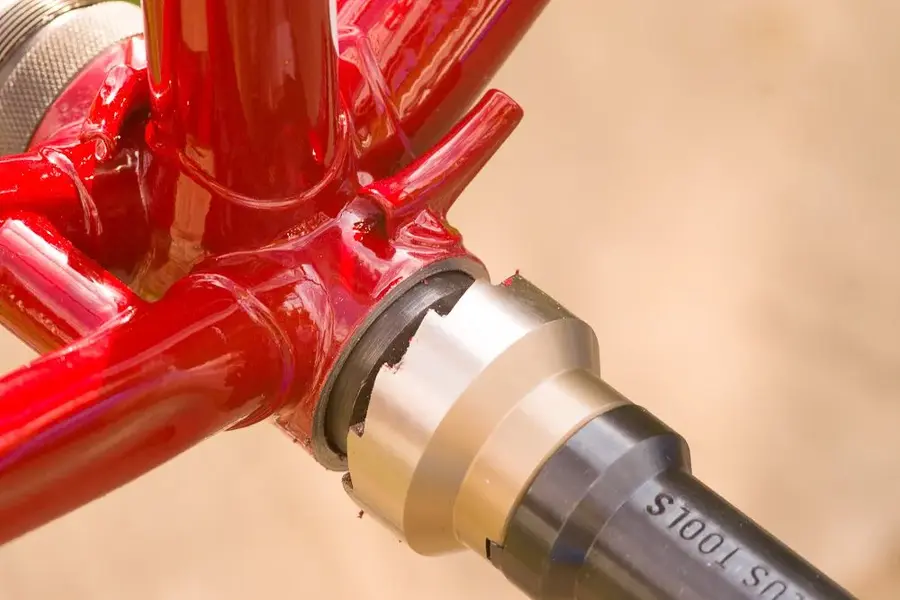

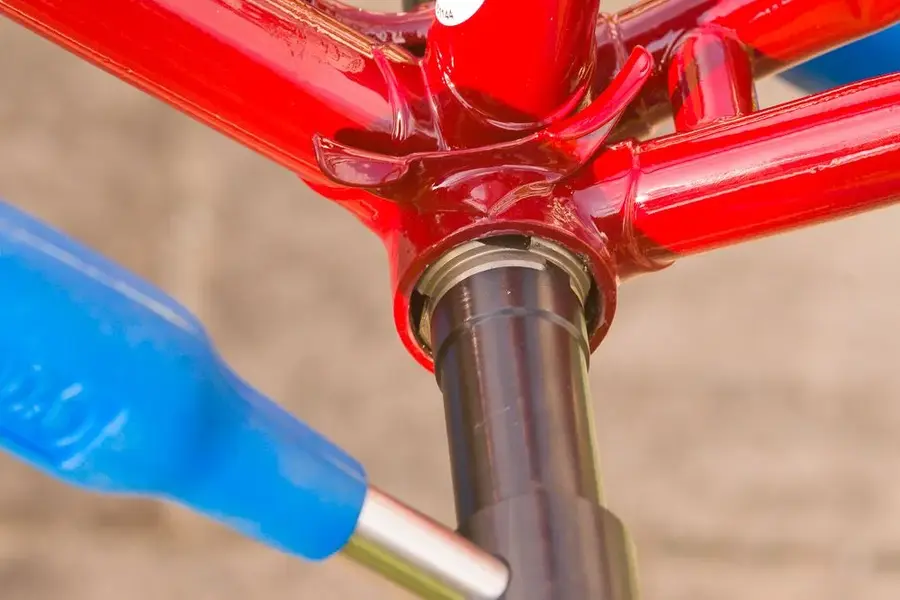

Clean out threads and face bottom bracket shell


Attachments

  • IMG_4364.jpg
    213.8 KB · Views: 2,625
  • IMG_4362.jpg
    216 KB · Views: 2,625
  • IMG_4360.jpg
    223.5 KB · Views: 2,625
  • IMG_4359.jpg
    202.5 KB · Views: 2,625

Midlife

Retro Wizard
Can't beat an EDCO headset for a frame like this, Raleigh fitted them to their top frames from the factory in the late 70's :)

That's a mighty fine BB tool :D what make is it ?

Looking good :D

Shaun


gavr

rBotM Winner
Re:

Midlife":2vljqtw2 said:
Can't beat an EDCO headset for a frame like this, Raleigh fitted them to their top frames from the factory in the late 70's :)

Reckon I was lucky to find the Edco in such good condition too.

The BB bracket tools are Cyclus - I've got a few of their tools now, they're tremendous.


gavr

rBotM Winner
Re:

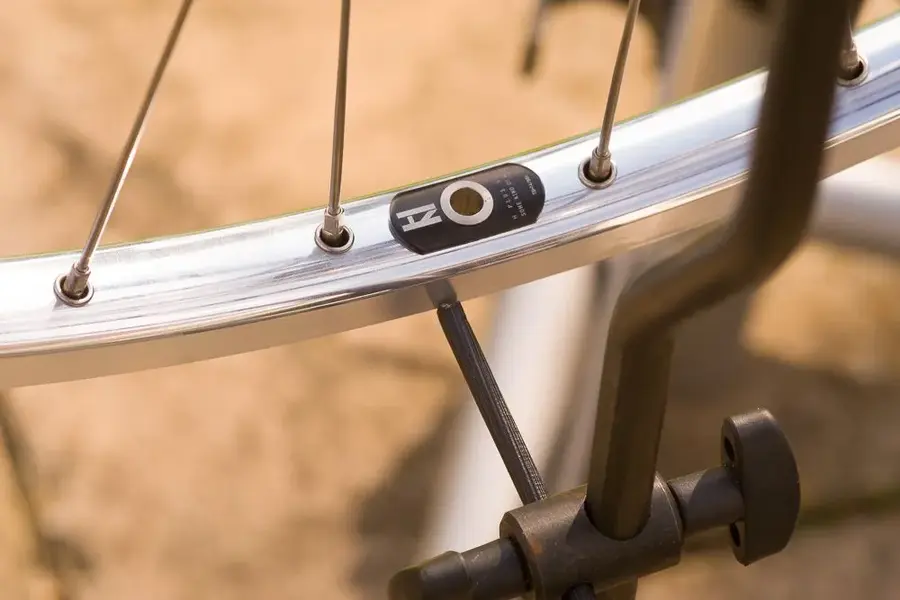

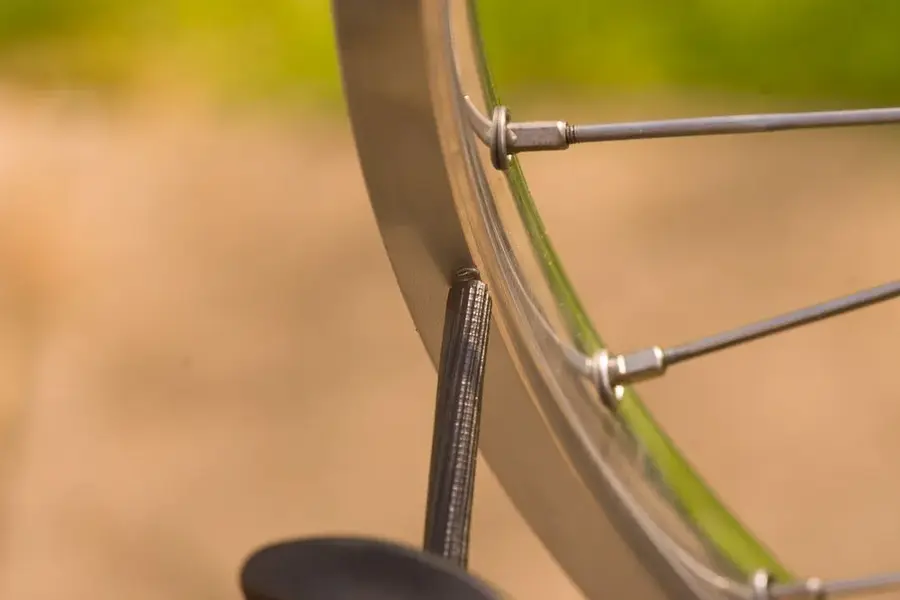

I built up some wheels a couple of weeks ago, H Plus Son TB14 on period Record hubs.

http://hplusson.com/products/TB14

For those who don't know the TB14s the quality is superb, nice and round out of the packaging. Classic box section, double eyletted, welded joints, machined braking surface and this is the polished finish. They build really nicely too. They're 23mm wide and I'm going for a 25 mm tyre.

Here checking the alignment of the mech hanger (another Cyclus tool)


Attachments

  • IMG_4356.jpg
    176.2 KB · Views: 2,602
  • IMG_4355.jpg
    111.5 KB · Views: 2,602
  • IMG_4354.jpg
    166.5 KB · Views: 2,602

gavr

rBotM Winner
Re:

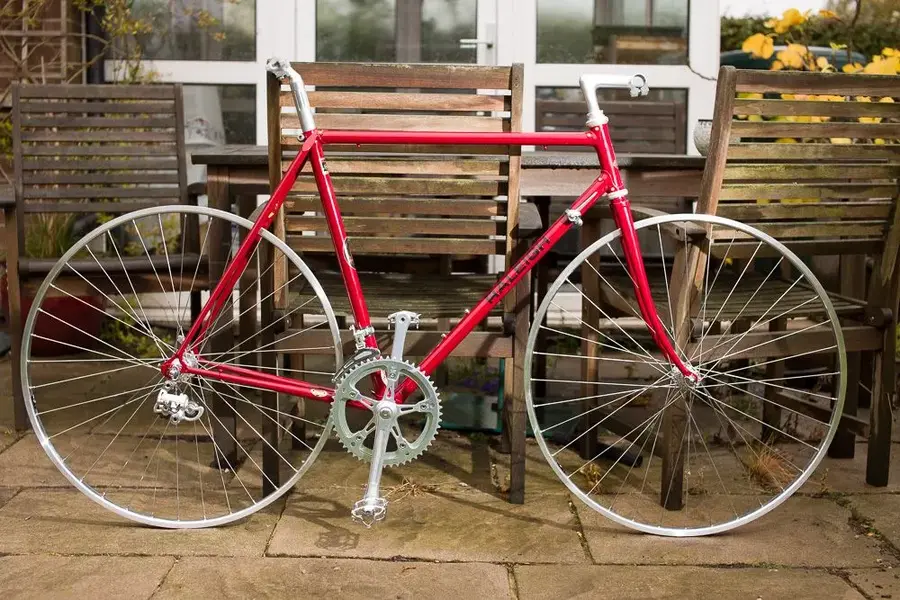

Stinking weather today. Here's as far as I've got attaching the jewelry.

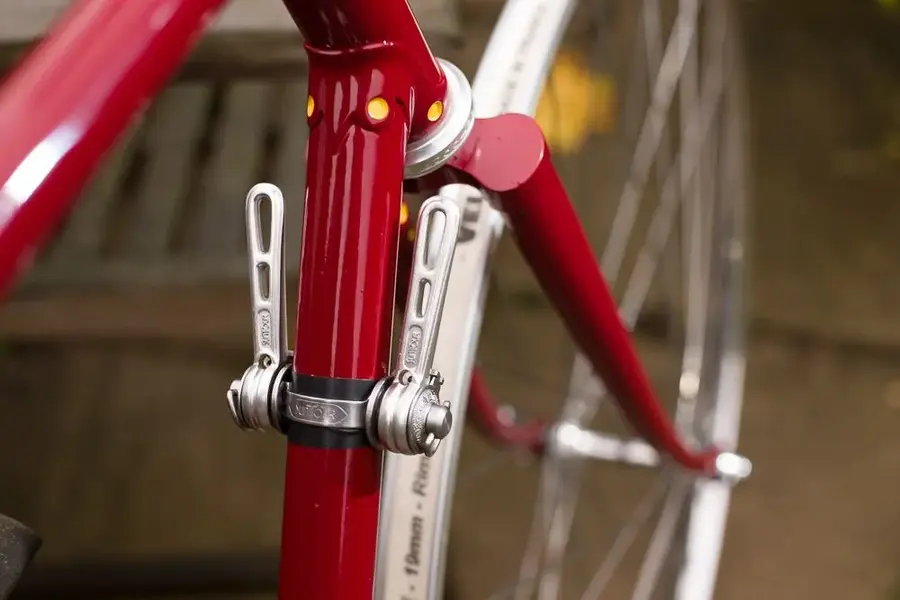

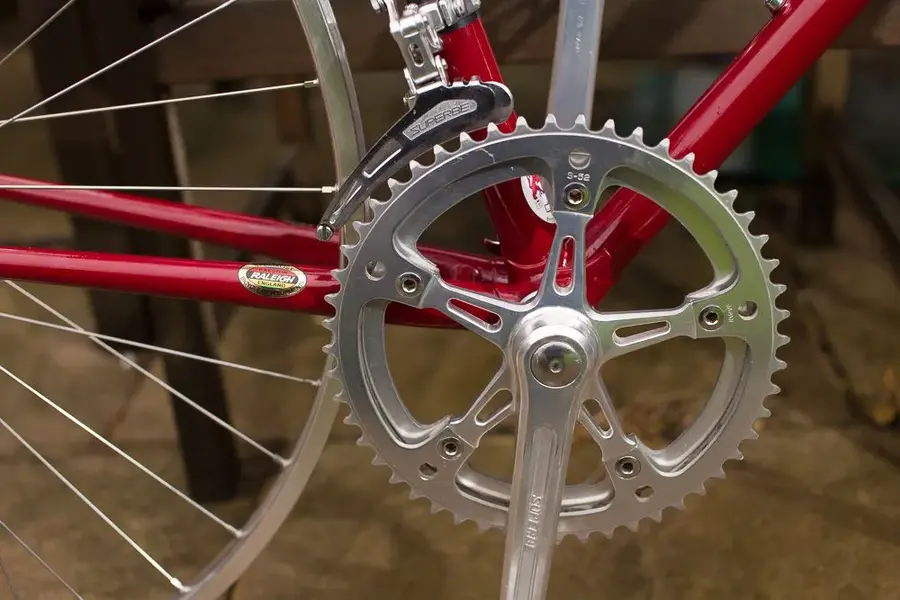

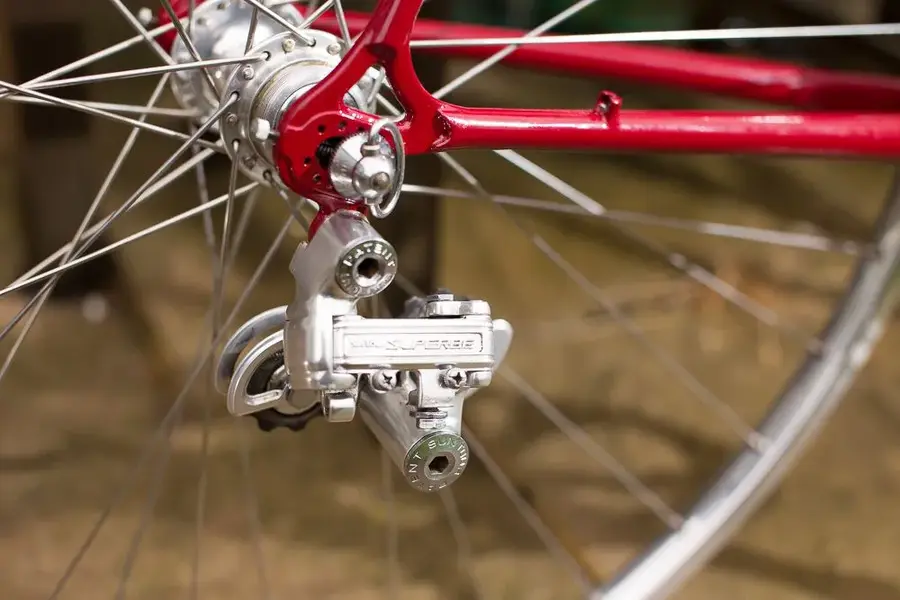

First Gen Suntour Superbe, Campag Record pedals, modern Cinelli 1A stem. Going for speed on this one, chainset is 52-47 170 mm cranks. Quite how this stuff is in such stunning condition for late seventies components I just don't know. Here's a link to the catalog scan from 1977

http://www.disraeligears.co.uk/Site/Sun ... 78%29.html


Attachments

  • _MG_3033.jpg
    152.1 KB · Views: 2,599
  • _MG_3031.jpg
    233.4 KB · Views: 2,599
  • _MG_3027.jpg
    203.5 KB · Views: 2,599
  • _MG_3026.jpg
    407 KB · Views: 2,599

AndyMart

rBoTM Triple Crown
rBotM Winner
Re:

Looking good, love the h plus sons, hoping to put some on my sbdu, can't wait to see this finished. Who did the paint?


gavr

rBotM Winner
Re:

AndyMart":1wdoi5di said:
Looking good, love the h plus sons, hoping to put some on my sbdu, can't wait to see this finished. Who did the paint?

I can't say enough about how good the H plus sons are - a bit heavy is the only negative I think.

Paint at Bob Jackson - crimson enamel and golden yellow detail


gavr

rBotM Winner
Re:

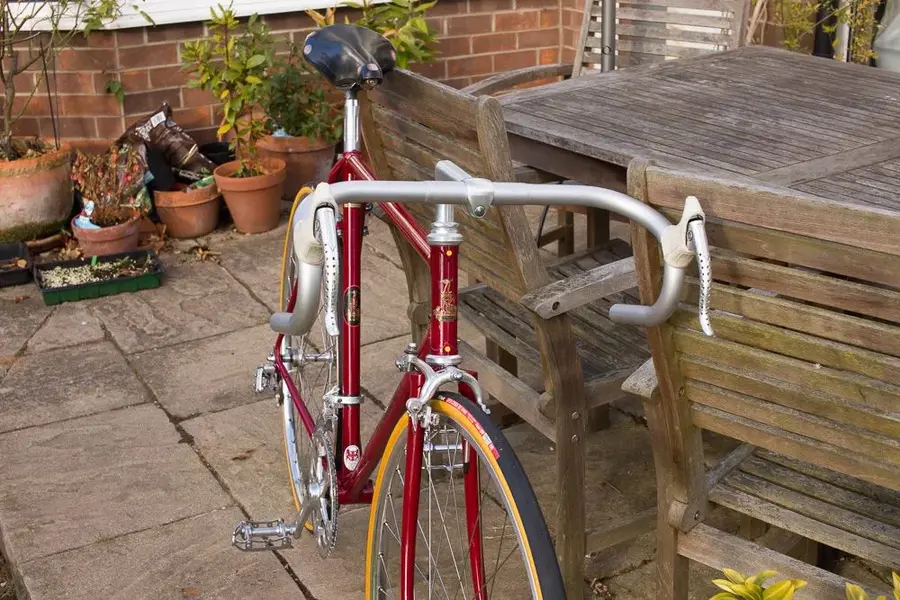

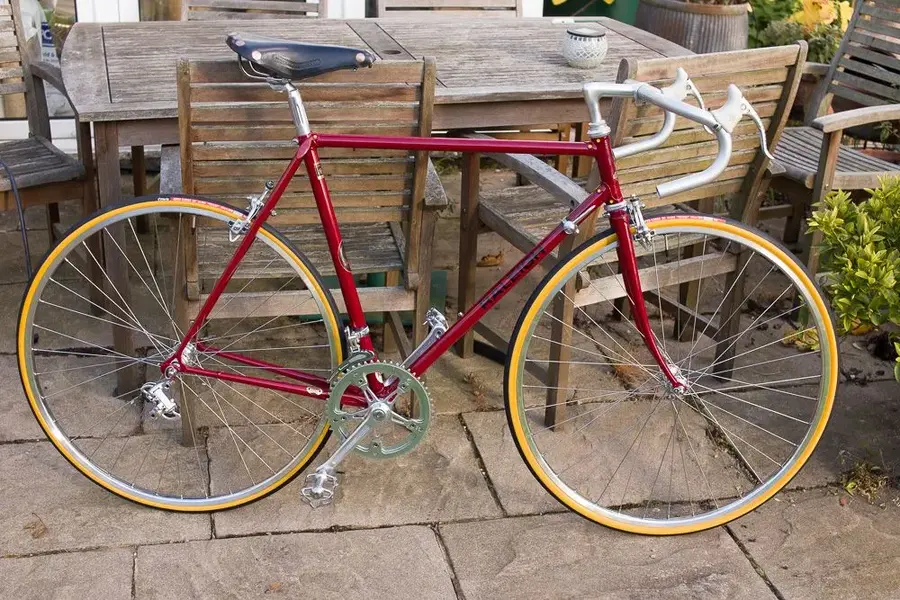

I got some more done this afternoon. A big fight with the Vittoria's first up - really painful!

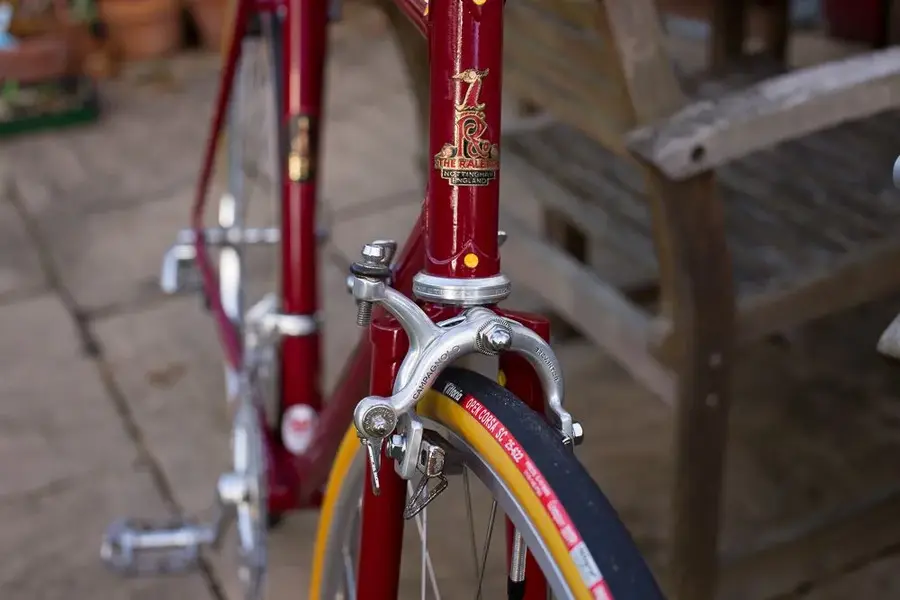

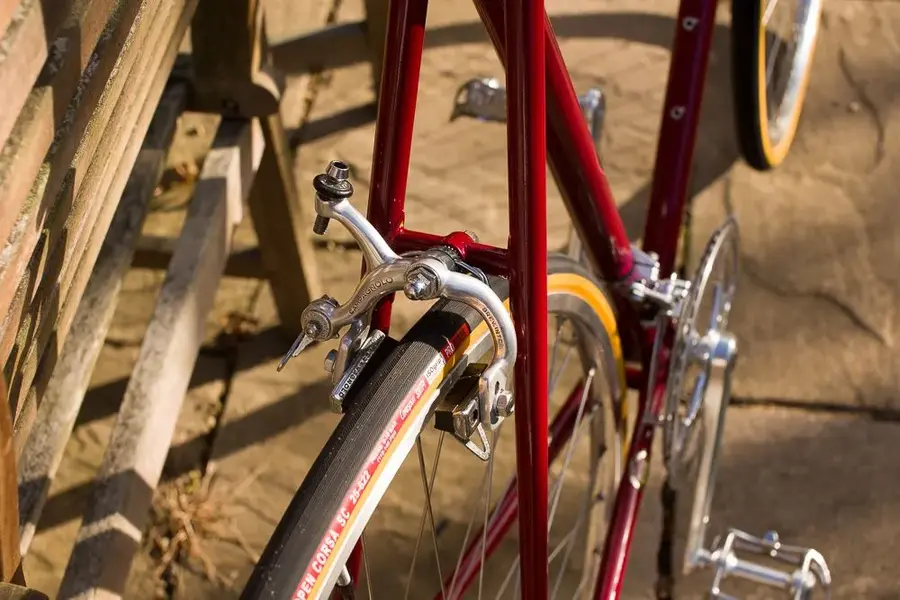

Record brakes, saddle, Cinelli bars, Super record brake levers, panto with a Rossin R but might as well be Raleigh ;)

The darker colour you see in this flatter light is more like it than the brighter red in the sunshine.

I don't have a block yet - looking for a nice tight 6 speed Suntour Winner and then cables and bar tape, can't decide at all


Attachments

  • _MG_3035.jpg
    280 KB · Views: 2,574
  • _MG_3039.jpg
    391.9 KB · Views: 2,574
  • _MG_3045.jpg
    176.6 KB · Views: 2,574
  • _MG_3044.jpg
    472.8 KB · Views: 2,574
  • _MG_3041.jpg
    457.4 KB · Views: 2,574

Midlife

Retro Wizard
All coming together nicely :D Silly question but are the rear brake blocks on the "stabbby" 70's campag brakes the wrong way round?

Shaun
