Marin East Peak (year 2000) rear disc brake mount adapter

[Captain Cally]

Re: Re:

I’ve now got another one of these adapters

Hi there, can I buy it from you then? Happy to paypal transfer.



[d8mok]

Re:

Yes no problem. I’ll send you my email now



[Captain Cally]

Re: Re:

Yes no problem. I’ll send you my email now

Email Sent



[simonpgreen]

Re:

I think i need one of these adaptors for my marin east peak, not sure of the year or exact model. Could you message me details of these



[Ridgeback602]

Re:

I need one too if anyone knows where I can get hold of one... thanks



[simonpgreen]

Re:

This is where i got mine that someone else suggested in the thread suggested

https://www.mountainbikecomponents.co.u ... c-mount-2/

Depending on size of your discs you may need to pad out a.good bit.

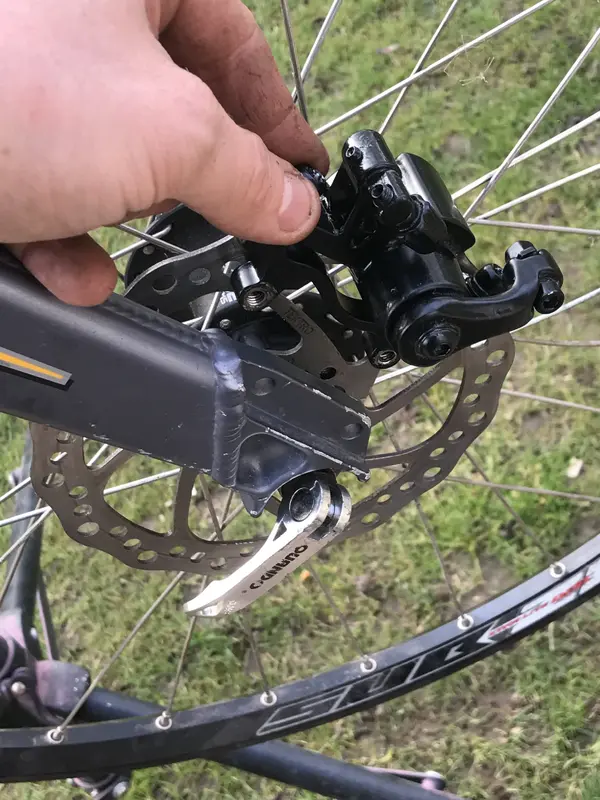

Attached is a temporary setup i have might reduce disc size or get a better spacer set



[Ridgeback602]

Re:

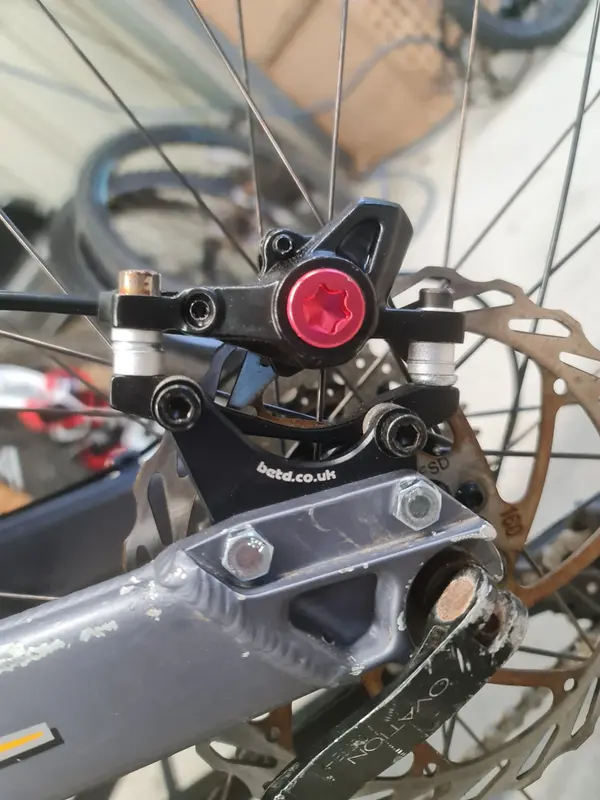

Thanks for reply - I saw these advertised, but read somewhere that they didn’t fit - your picture clearly shows otherwise. Many thanks, I’ll get one ordered.



[tfer2]

Re:

This is where i got mine that someone else suggested in the thread suggested

https://www.mountainbikecomponents.co.u ... c-mount-2/

Depending on size of your discs you may need to pad out a.good bit.

Attached is a temporary setup i have might reduce disc size or get a better spacer set

Hi Simon,
Thanks for sharing. My old Rift zone was fitted with Avid Juicy but I'm fed up with shelling out for service kits to fix stuck pistons. I'm thinking to change to a shimano but thought the modern brake sets might need an adaptor... so,now if i run into a problem, I know where to find one.
very handy.
Cheers
Tony



[was8v]

anyone got one of these kicking about? Cheers.



[retronut90]

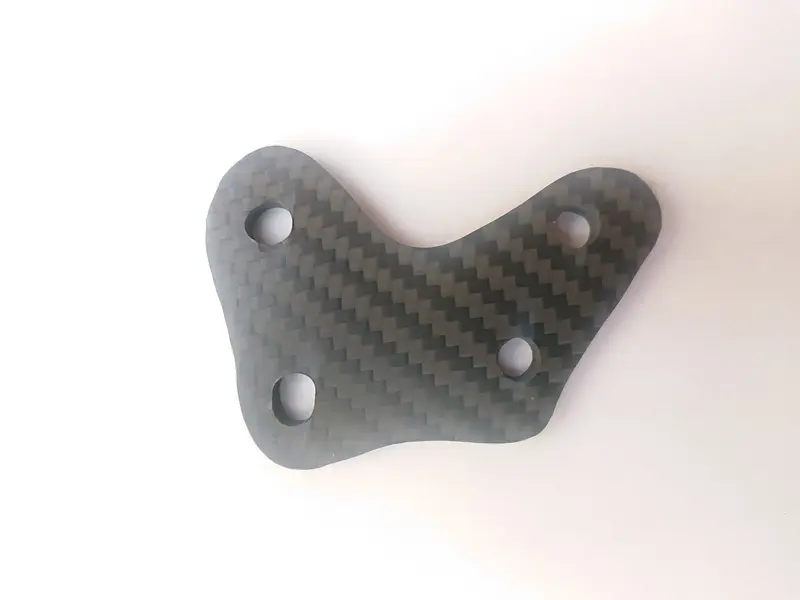

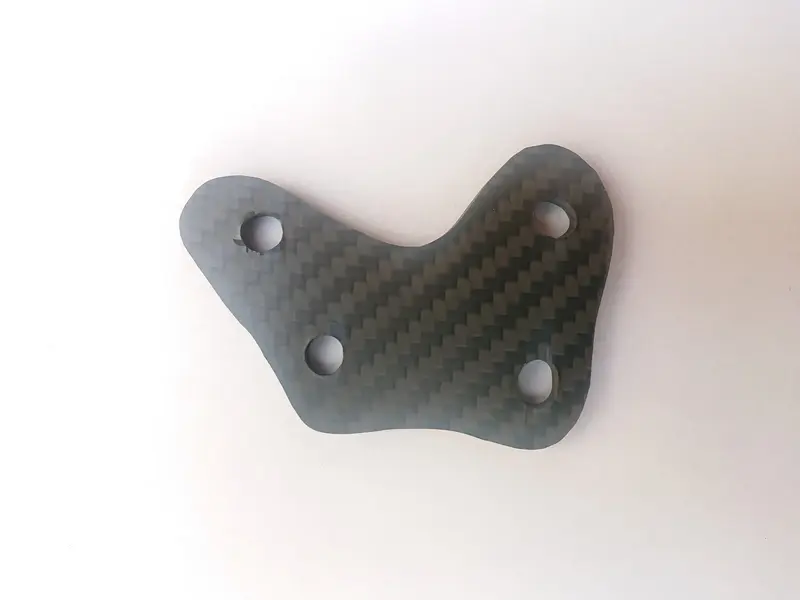

i have made a couple rear disc mounts from 3k 5mm carbon to fit my Marin east peak year 2000 ish so i can run disc brake- see pictures

you can't seem to buy this mount which is why i made my own

its hand made using Dremel so a little rough around the edges, not cnc machine quality but it fits perfect

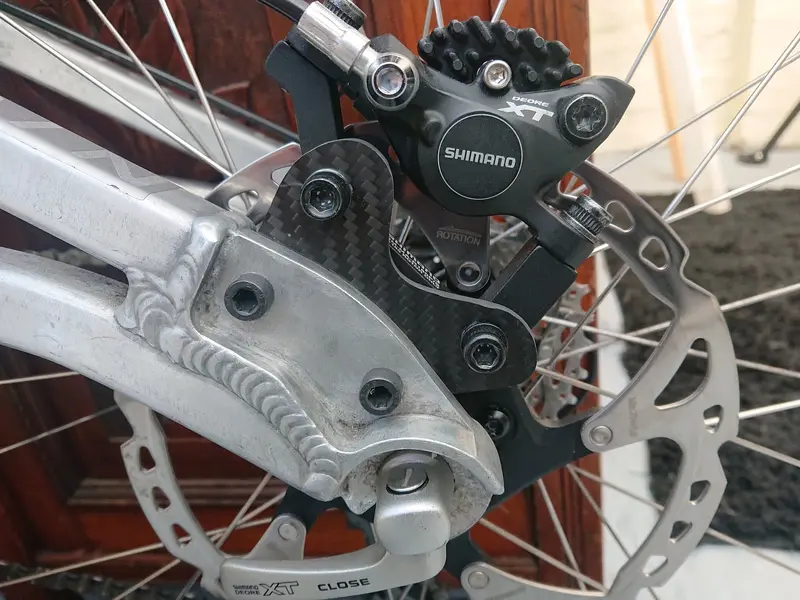

my set up on bike as i made this mount is as follows

shimano xt m785 disc calliper with shimano xt 180mm rear disc rotor and 180mm shimano is to post mount

if you run a smaller rotor like 160mm then obviously you will use 160mm is to post mount

if you are running different brand of brakes like HOPE i do not know if this will fit, but i would say only shimano to be safe

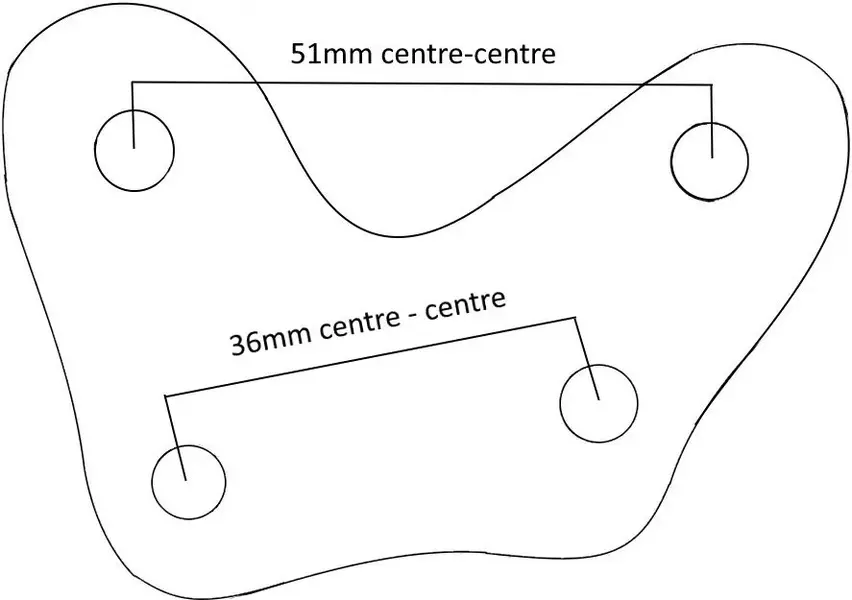

frame bolt holes centre to centre - 36mm


i am selling one spare one if anybody needs one, its here on ebay

Marin east peak year 2000 carbon rear frame disc mount mountain bike | eBay

Find many great new & used options and get the best deals for Marin east peak year 2000 carbon rear frame disc mount mountain bike at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk
