chickendrumsticks
Senior Retro Guru
That's a fearsome beast! Terrific (or is it terrifying?)
Tools - Show Me Your DIY Tools
- Thread starter MuchAlohaNui
- Start date
27motorhead
Senior Retro Guru
- Feedback
- View
I love that!!!
How many scotchbrites die in the making of a factory finished frame from @Dr Dremel's lab? Dremel by name, Dremel by nature!Ren Rawbor
Fat Chance Fan
I hereby pronounce your neck the Reddest of The Red... (in a V. Good way of course)
That thing is a work of art in itself.
MuchAlohaNui
Senior Retro Guru
Sweet Jesus, that is awesome!
Dr Dremel
Fat Chance Fan
Thanks guys, contraptions like this are indeed the reason for me being given my nickname. Hope to be promoted to Professor Proxxon some day
A couple more from "the lab", albeit a bit less inspired, but still in the vein of "if it looks stupid but works, it ain´t stupid"

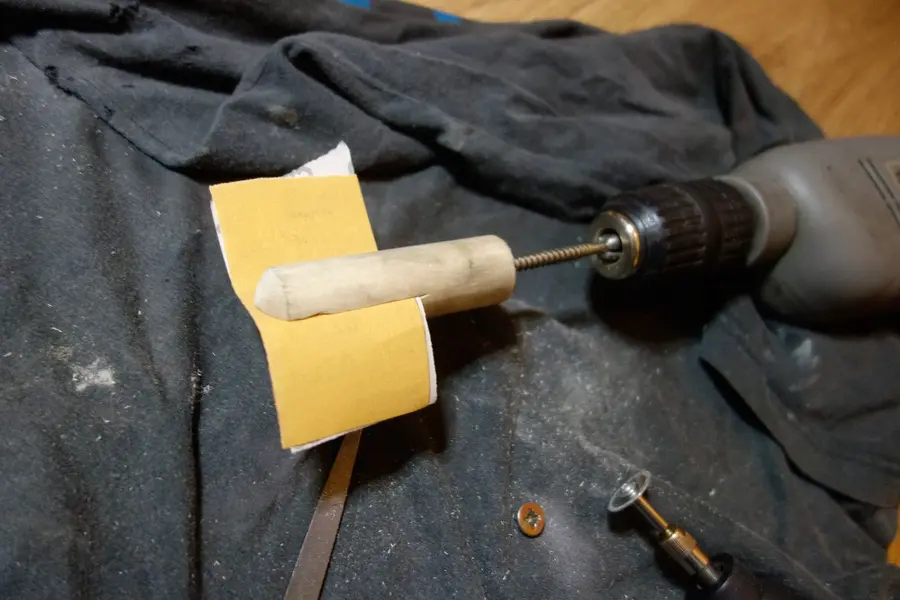

Seat tube sander
Chain whip
A couple more from "the lab", albeit a bit less inspired, but still in the vein of "if it looks stupid but works, it ain´t stupid"
Seat tube sander
Chain whip
Suprachrgd82
GT Fan
I usually use this one. If it's a tough job, I get the big one.

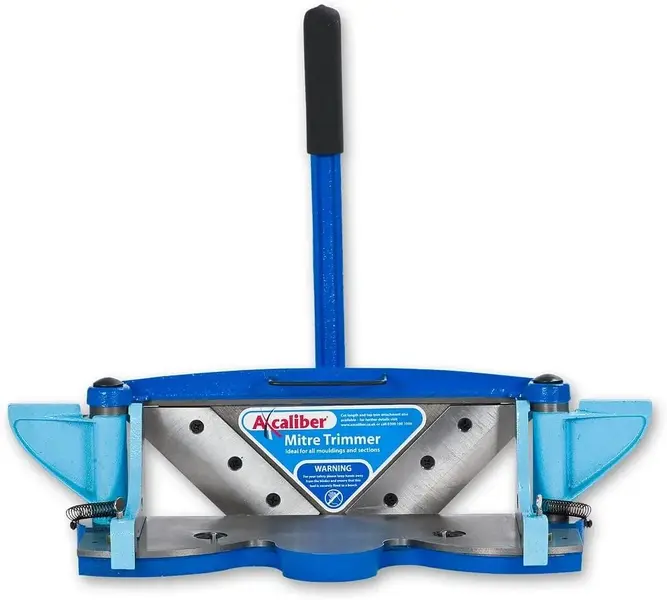

This is what I use to ensure the ends of hydraulic hose is cut at exactly 90 degrees. And when I say exactly, I mean exactly.
Achieved by first using a pillar drill to put a 5mm hole in a piece of timber, which I then use the razor sharp blades of this mitre trimmer to shave off a smidgen, taking the end of the ragged hose with it and leaving the end flat and true ready for the fittings.
Achieved by first using a pillar drill to put a 5mm hole in a piece of timber, which I then use the razor sharp blades of this mitre trimmer to shave off a smidgen, taking the end of the ragged hose with it and leaving the end flat and true ready for the fittings.
Last edited:
MuchAlohaNui
Senior Retro Guru
For the "Seat Tube Sander" you can use another piece of the wood there, drill a hole through the center completely through then stuff scotch brite or steel wool in there and "polish" the inside of the seat tube, head tube or BB housing and threads.Thanks guys, contraptions like this are indeed the reason for me being given my nickname. Hope to be promoted to Professor Proxxon some day
A couple more from "the lab", albeit a bit less inspired, but still in the vein of "if it looks stupid but works, it ain´t stupid"
Seat tube sander
View attachment 778487
View attachment 778488
View attachment 778489Chain whip
View attachment 778490
Is that your blood or is the bike bleeding?

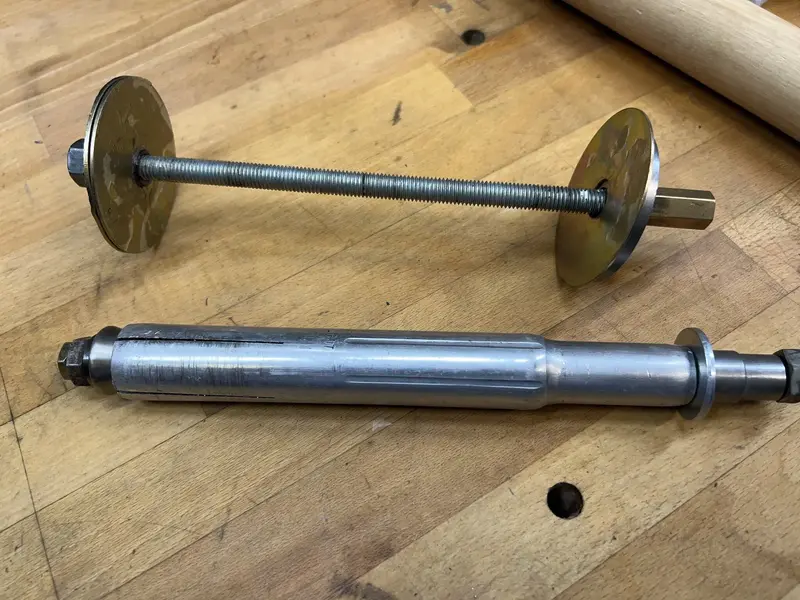

Makeshift headset press and an expanding cup remover. Screw in the cone from the other end and the cut seat-post expands so it butts up nicely to the head set cups. I call it the Butt-Plug.

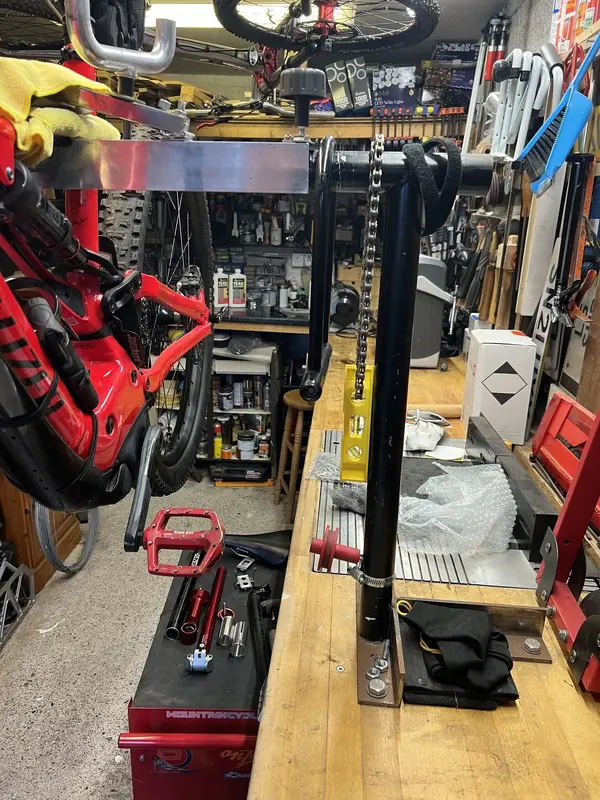

Modern bikes - BB thru axle stand. Modified from an existing stand with some light welding to add the gusset brace. It will just about support
my e-bike.

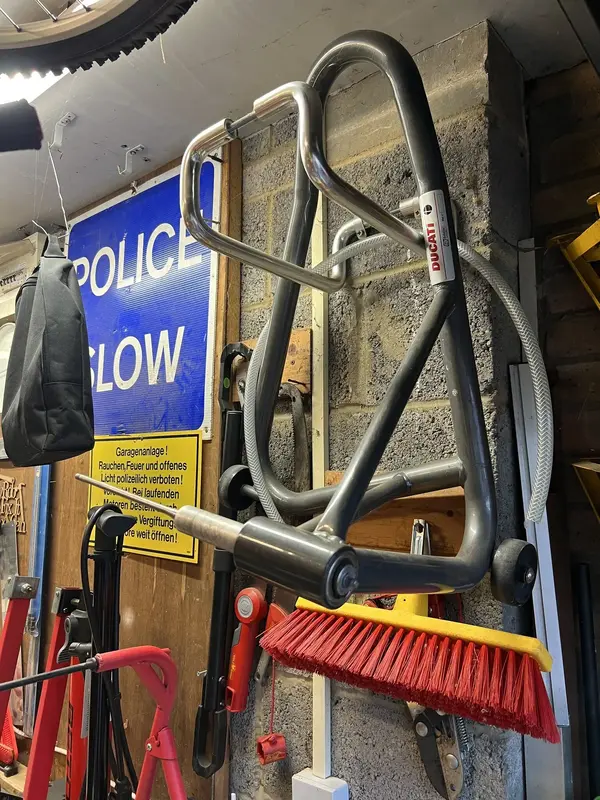

Heavy Duty version for e-Bike, made from a Ducati stand that some bloke was throwing away at the tip.
I added the thinner bar to the main motorobike sized axle tube thing.

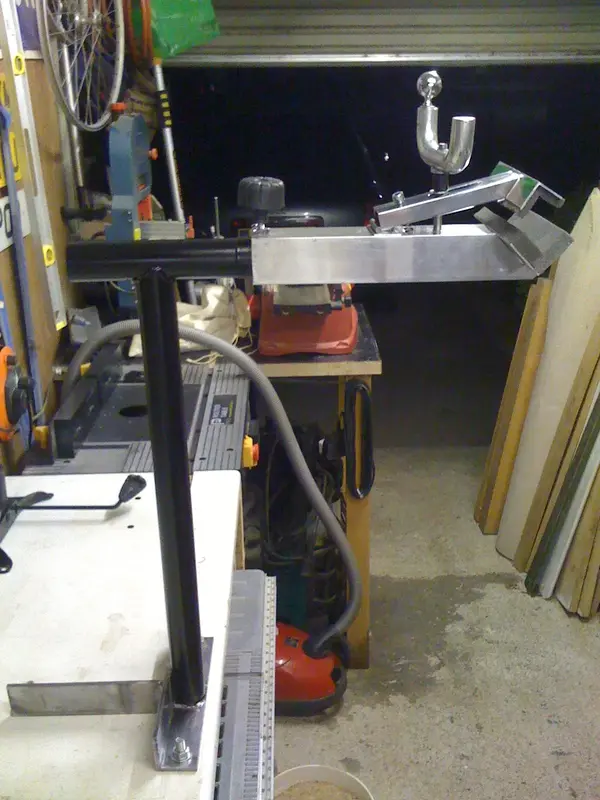

Homemade workstand, entirely from bits in the workshop, including some samples of door ironmongery.
Wheel truing stand, made from legs of a very old MFI office desk, and a bit of a chair frame.
Not bike related, but this was a crankshaft locking toolset I made for Toyota Supras, back in the day. I sold it eventually. Its heavy sections of steel, mirror polished. Note, foam deforms with heavy steel in, so it had to be stored flat or eveything started to "migrate"
Modern bikes - BB thru axle stand. Modified from an existing stand with some light welding to add the gusset brace. It will just about support
my e-bike.
Heavy Duty version for e-Bike, made from a Ducati stand that some bloke was throwing away at the tip.
I added the thinner bar to the main motorobike sized axle tube thing.
Homemade workstand, entirely from bits in the workshop, including some samples of door ironmongery.
Wheel truing stand, made from legs of a very old MFI office desk, and a bit of a chair frame.
Not bike related, but this was a crankshaft locking toolset I made for Toyota Supras, back in the day. I sold it eventually. Its heavy sections of steel, mirror polished. Note, foam deforms with heavy steel in, so it had to be stored flat or eveything started to "migrate"
Last edited:
27motorhead
Senior Retro Guru
- Feedback
- View
love all these!!! What idiot chucks away a Ducati paddock stand??? I guess someone who had a Ducati!!! His/her stupidity is your gain!
