Bontrager Anti-Chainsuck Plate

[August Bicycles]

I recently scored a Bontrager Privateer frame and fork, unfortunately, the chainsuck plate is missing.

I have a vague idea of what it should look like including the three separate parts that you can fine-tune to your chainring setup, but does anyone have a better picture of one or could take a picture of one square on with something in the picture for scale so I can replicate it for my build.

Thanks in advance!



[timoshenko]

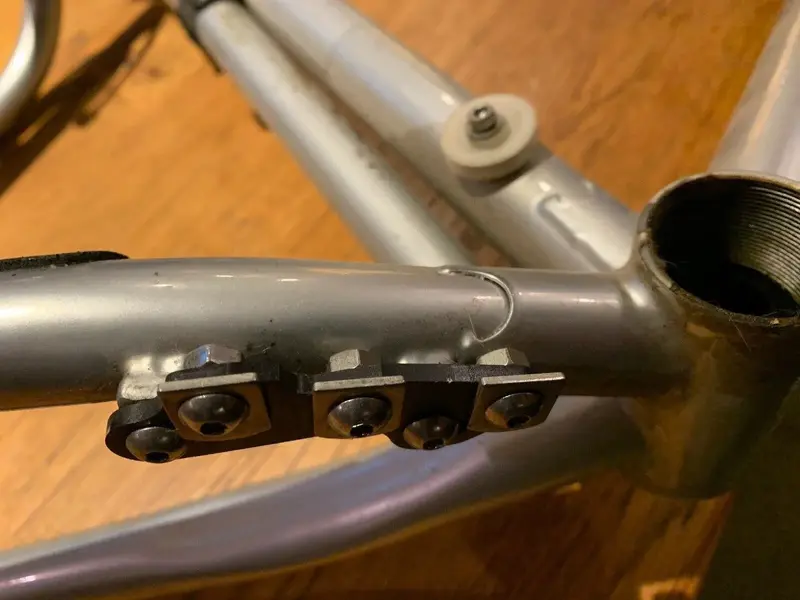

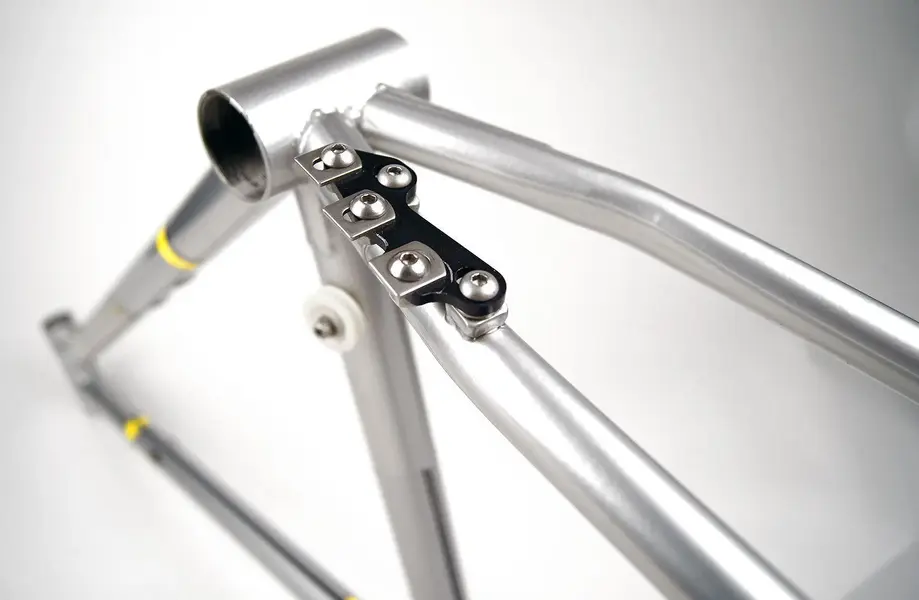

Examples of the chainsuck assembly but they are from before the Privateer.



[timoshenko]

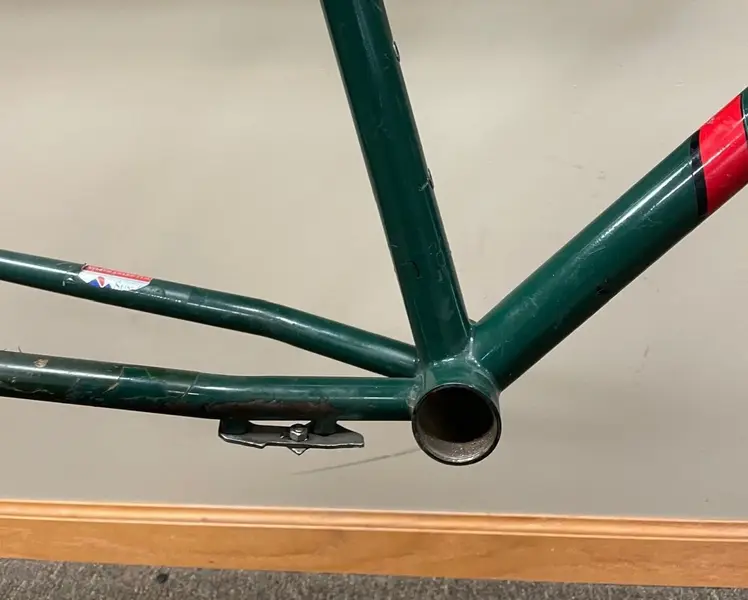

Digging into this a bit more, it looks like the Privateer used a simplified assembly.

Looking thru the parts bin, I happen to have an example of the larger plate.


Scan below with a scale for reference. I measured the plate thickness as 2.1mm.



[August Bicycles]

Digging into this a bit more, it looks like the Privateer used a simplified assembly.View attachment 675894

Looking thru the parts bin, I happen to have an example of the larger plate.
View attachment 675905

Scan below with a scale for reference. I measured the plate thickness as 2.1mm.

View attachment 675917

That’s amazing! Thank you!
