Raleigh Dynatech Quantum build

jimbog

Senior Retro Guru

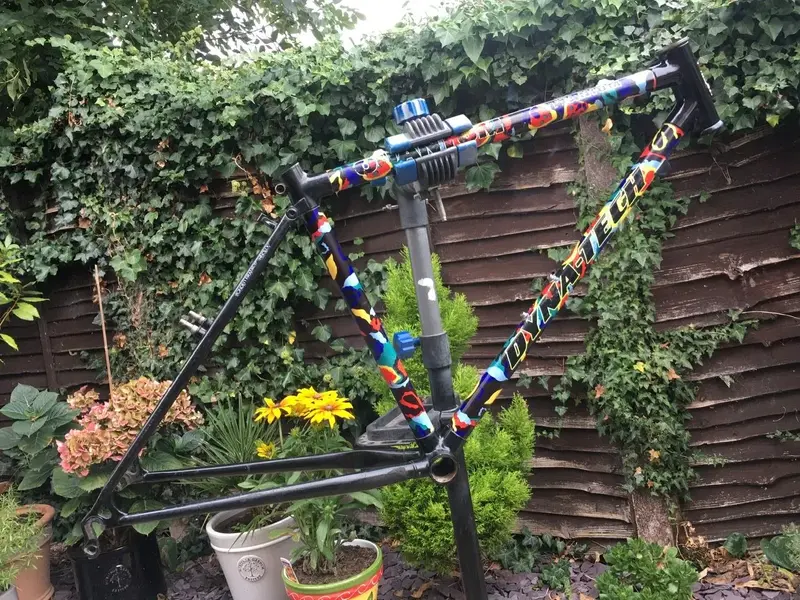

Had this sitting in the shed for over a year and have decided to build her up using bits I have in my various parts boxes. I’m building it as a rigid bike using some period correct Raleigh Dyna drive forks as well as a mix of DX and XT bits including thumbies.


jimbog

Senior Retro Guru

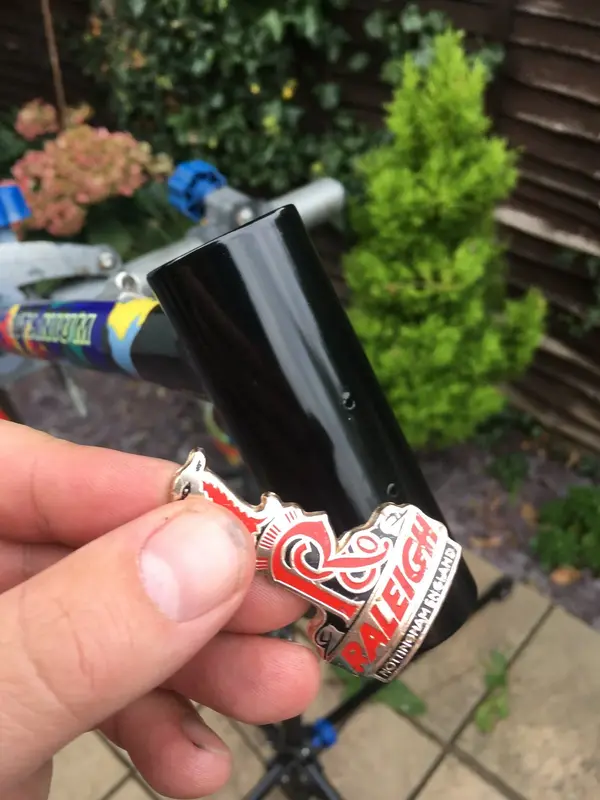

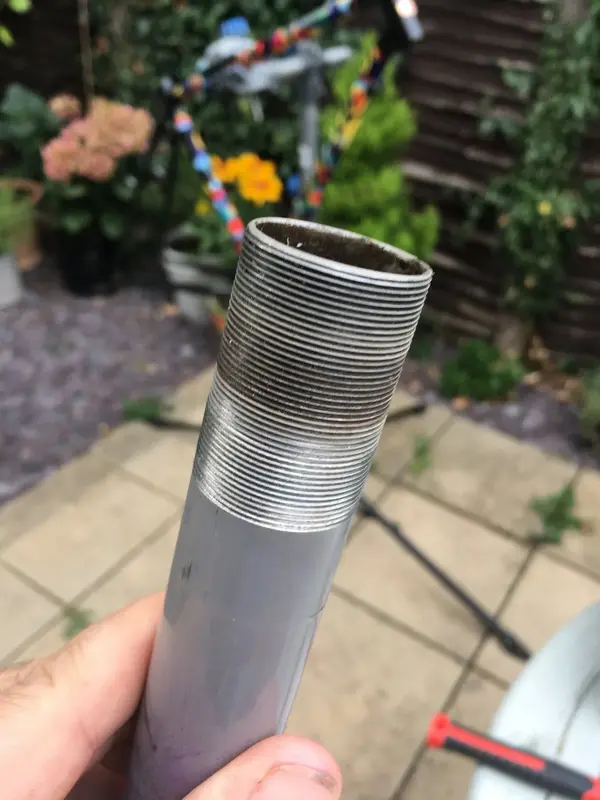

Painted up the head tube as it was scuffed and the new forks which were off another larger sized Dynatech. I had more thread cut by AW cycles in Caversham and I cut the steerer down to suit.


Attachments

  • 7B255C85-07FA-484E-8851-643CB6FA7882.jpeg
    400.1 KB · Views: 8
  • 0D993221-814F-453D-BD9A-3A55E5C02548.jpeg
    362.3 KB · Views: 8
  • E42F997A-1F07-4442-A53D-C21E19B332ED.jpeg
    364 KB · Views: 8

jimbog

Senior Retro Guru
New shimano bottom bracket and new headset (cheap but actually ok)


Attachments

  • 6108C15D-E0F0-477D-9320-1D76BFD58815.jpeg
    455.4 KB · Views: 8
  • 816F4706-A74B-4654-BBB8-E8451422AE1E.jpeg
    430.2 KB · Views: 8

jimbog

Senior Retro Guru

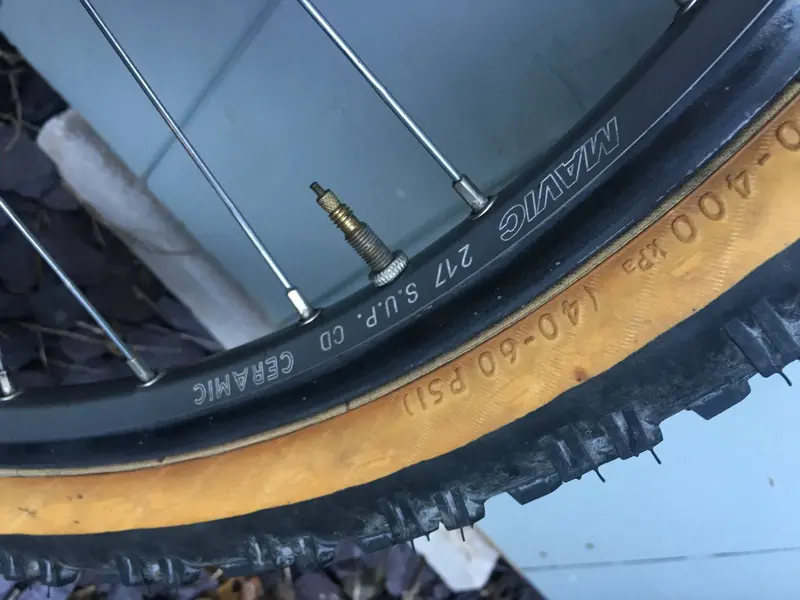

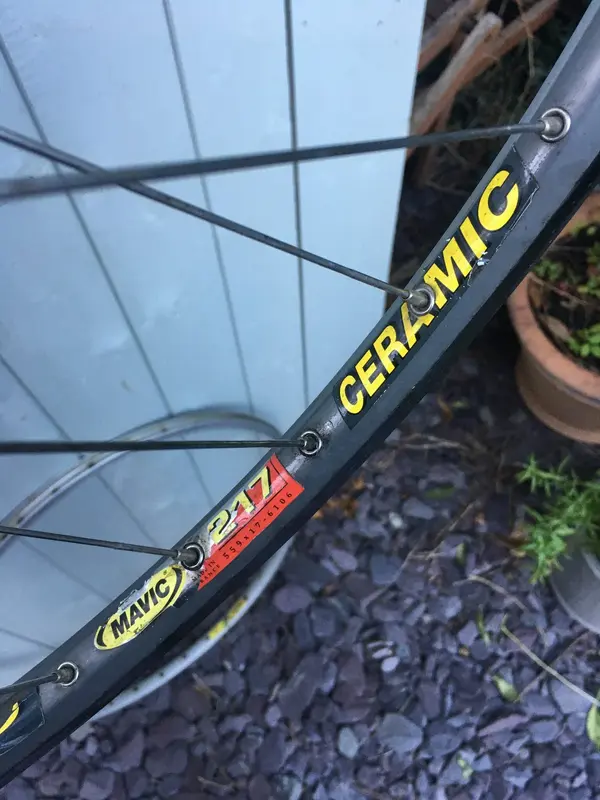

Not quite period correct but I have some nice Mavic 217 ceramic rims laced to M737 and M738 XT hubs. Got a decent pair of IRC Mythos 1.95 tyres also.


Attachments

  • 237D1BE1-E6DE-4F92-8603-0C13568D8452.jpeg
    519.7 KB · Views: 7
  • 4682A927-C0C8-4AC9-A23B-F622AD827989.jpeg
    428.2 KB · Views: 7
  • DB6D4FD6-0F95-431B-A0B6-71EF79490B0A.jpeg
    357.8 KB · Views: 5
  • D070A96D-2A55-4375-95E9-7654196BF68D.jpeg
    445.6 KB · Views: 7

jimbog

Senior Retro Guru
As I’m not adding Mag 20/21 forks I thought I’d add a neon Flexstem as found on a few other Raleighs of the period.


Attachments

  • 2EECFDB9-9A8B-4FC7-9529-EE299D50E57A.jpeg
    436.1 KB · Views: 5

ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View
Really liking this - Quantum paint scheme is really cool
Looking forward to seeing it built
Those forks are a bonus!!


jimbog

Senior Retro Guru
Fitted a new 26.4mm seat post from chain reaction cycles and seat clamp that I salvaged from another Dyna tech. Anybody know this clamp? Not sure what it is but it is very light.


Attachments

  • 934777BE-2422-4496-A46B-69BAECF11D93.jpeg
    344.5 KB · Views: 13
  • 5FC2D5BA-1283-420A-B938-FFDFE1EAA514.jpeg
    447.1 KB · Views: 13

jimbog

Senior Retro Guru

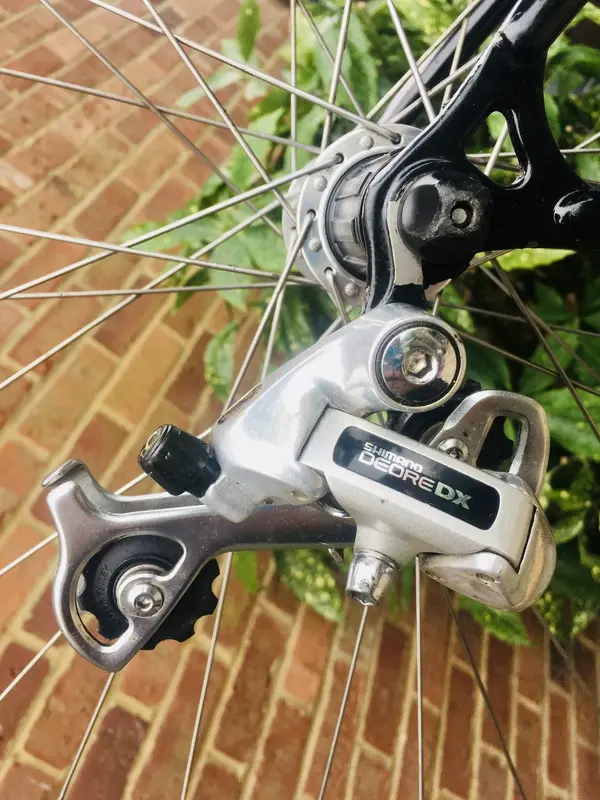

Added a very clean DX rear mech that I already had in my various parts boxes.


Attachments

  • F24F9F24-0F4E-4275-BA38-2B82801C84C1.jpeg
    572.3 KB · Views: 4

jimbog

Senior Retro Guru

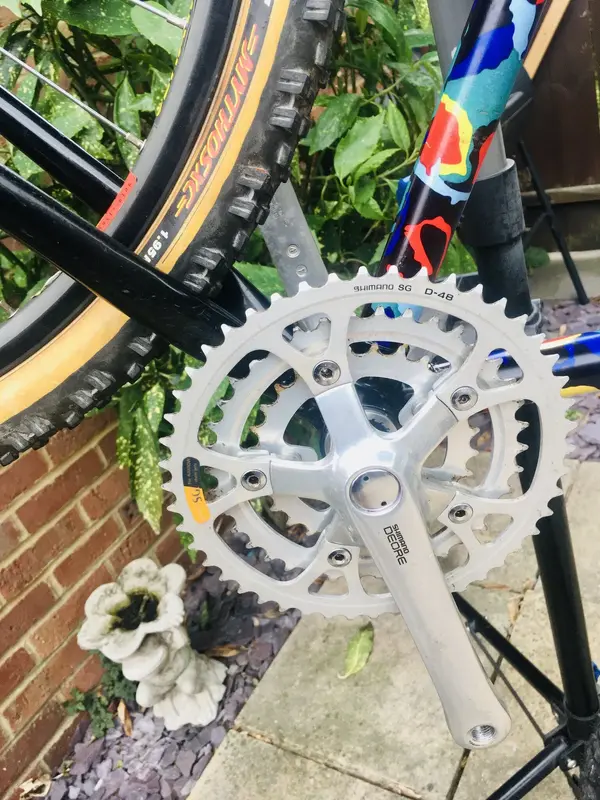

Also a lovely clean DX Chainset and m900 XTR front mech that I had knocking about!


Attachments

  • 5C2CB2C8-3847-45EE-9BCB-2319E6A81E14.jpeg
    594.4 KB · Views: 8
  • E1492D0D-0247-4985-8266-FAD4415A35B8.jpeg
    495.2 KB · Views: 7
