Re:

MR OX":1rbz3m8y said:
That is Epic! :cool: :cool: :cool: :cool:

Thanks MR OX :D

bkp":1rbz3m8y said:
Beautiful!

Cheers B. If you want me to add those pics of your Browning Forks to this thread - just let me know.

brocklanders023":1rbz3m8y said:
The amount of win on this thread is off the scale. :cool: :cool: :cool:

Cheers Edd. :cool:
Considering the original intention was to break this to build the Cannondale - I'm very pleased with the outcome. Ironically, It's the Cannondale that will now get broken down as try as I might, the frame is just too small. I'm hoping for a result on the Saracen Kili and move all the parts over to that from the Dale.

When I can, I'll try and get a ride report for the Pine Mountain. A quick spin up and down the drive shows that the forks are working - definitely in the 'lock out' position although there's not a lot of difference between the 2 'movement' settings.

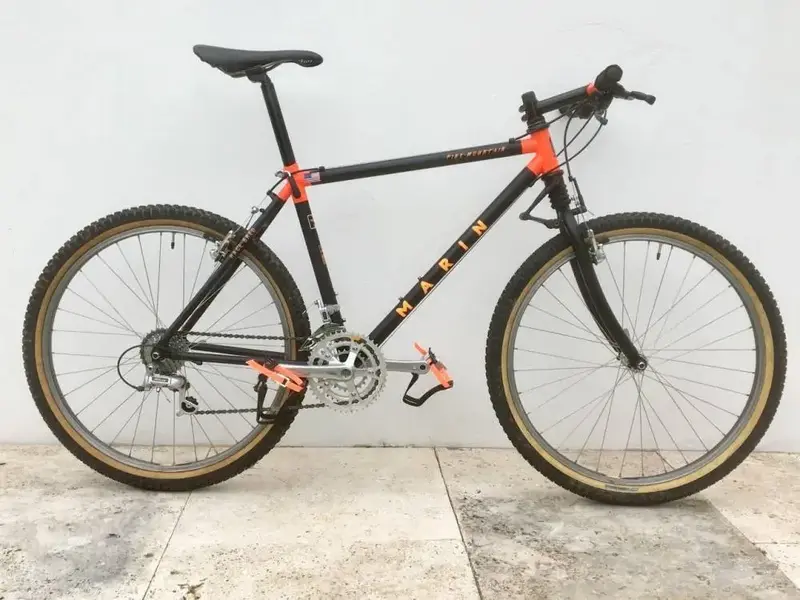

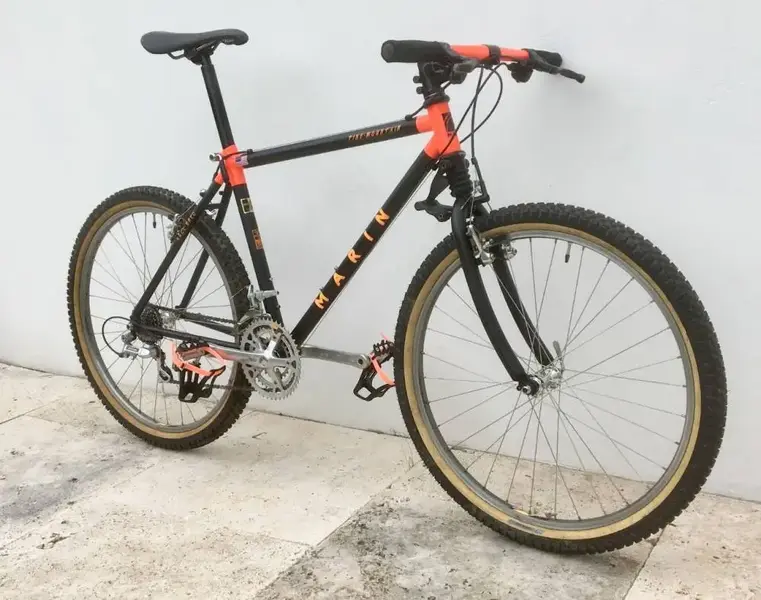

The only update I can add are a few pics showing the Orange toe straps - they finally turned up 3 weeks late!

Other than that.... it's complete! ;)

Here's a spec list for those who are interested.

Frame: Marin Pine Mountain - Browning fork specific geometry.
Tange Prestige ~ Frame number M 91 06 0050
Repainted Matt black and Neon Orange. Reproduction decals

Fork: Browning Suspension fork. 2 x suspension settings / 1x lockout.
Based on what appears to be a modified Tange Super big Fork.

Headset: Shimano M732 XT 1 1/4"

Stem: Original Marin 1 1/4" 'Aheadset' style. repainted gloss black

Handlebar: 580mm Alloy. Repainted 'Neon' orange to match frame

Grips: Ritchey Foam True grips

Barends: Not this time.

Brakes: Shimano BR- M650 Deore DX

Brake Pads: Non original - Mat change this depending on how it rides.

Cantilever cable hangers: Shimano.


Shifters: Shimano ST - M075 Deore Dx

Front Derailleur: Shimano FD-M605 Deore DX 31.8mm bottom pull

Rear Derailleur: Shimano RD-M650 Deore DX Short Cage

Cassette: Shimano CS-HG70 7 speed.

Chain: KMC 7 speed with 'power link'

Chainset: Shimano FC-MT60-A Deore DX

Crank Bolts: Shimano

Bottom Bracket: Shimano UN-51 118mm

Pedals: Shimano PD-M735

Toe clips: Black Mt Zefal

Toe straps: Neon Orange Mt. Zefal

Hub Skewers: Deore DX

Rims: Araya RM17 32H

Hubs: Shimano HB / FH-M650 Deore DX 32H

Nipples: Alloy

Spokes: DT Swiss

Tyres: Amber wall Tioga Wonder Dawgs 1.95

Tubes: Presta

Saddle: 1992 Flite Titanium

Seatpost: Marin Branded 'Kalloy' 29.4mm

Seatpost Binder: Marin branded rubber handle Quick release lever


Cheers.
boy"O"boy


Attachments

  • PM finished wo3.jpg
    PM finished wo3.jpg
    81.8 KB · Views: 861
  • PM finished wo2.jpg
    PM finished wo2.jpg
    94.7 KB · Views: 861
  • PM finished wo1.jpg
    PM finished wo1.jpg
    86.7 KB · Views: 861

bkp

Retro Newbie
Re: Re:

boy"O"boy":1yso6s8j said:
MR OX":1yso6s8j said:
That is Epic! :cool: :cool: :cool: :cool:

Thanks MR OX :D

bkp":1yso6s8j said:
Beautiful!

Cheers B. If you want me to add those pics of your Browning Forks to this thread - just let me know.

brocklanders023":1yso6s8j said:
The amount of win on this thread is off the scale. :cool: :cool: :cool:

Cheers Edd. :cool:
Considering the original intention was to break this to build the Cannondale - I'm very pleased with the outcome. Ironically, It's the Cannondale that will now get broken down as try as I might, the frame is just too small. I'm hoping for a result on the Saracen Kili and move all the parts over to that from the Dale.

When I can, I'll try and get a ride report for the Pine Mountain. A quick spin up and down the drive shows that the forks are working - definitely in the 'lock out' position although there's not a lot of difference between the 2 'movement' settings.

The only update I can add are a few pics showing the Orange toe straps - they finally turned up 3 weeks late!

Other than that.... it's complete! ;)

Here's a spec list for those who are interested.

Frame: Marin Pine Mountain - Browning fork specific geometry.
Tange Prestige ~ Frame number M 91 06 0050
Repainted Matt black and Neon Orange. Reproduction decals

Fork: Browning Suspension fork. 2 x suspension settings / 1x lockout.
Based on what appears to be a modified Tange Super big Fork.

Headset: Shimano M732 XT 1 1/4"

Stem: Original Marin 1 1/4" 'Aheadset' style. repainted gloss black

Handlebar: 580mm Alloy. Repainted 'Neon' orange to match frame

Grips: Ritchey Foam True grips

Barends: Not this time.

Brakes: Shimano BR- M650 Deore DX

Brake Pads: Non original - Mat change this depending on how it rides.

Cantilever cable hangers: Shimano.


Shifters: Shimano ST - M075 Deore Dx

Front Derailleur: Shimano FD-M605 Deore DX 31.8mm bottom pull

Rear Derailleur: Shimano RD-M650 Deore DX Short Cage

Cassette: Shimano CS-HG70 7 speed.

Chain: KMC 7 speed with 'power link'

Chainset: Shimano FC-MT60-A Deore DX

Crank Bolts: Shimano

Bottom Bracket: Shimano UN-51 118mm

Pedals: Shimano PD-M735

Toe clips: Black Mt Zefal

Toe straps: Neon Orange Mt. Zefal

Hub Skewers: Deore DX

Rims: Araya RM17 32H

Hubs: Shimano HB / FH-M650 Deore DX 32H

Nipples: Alloy

Spokes: DT Swiss

Tyres: Amber wall Tioga Wonder Dawgs 1.95

Tubes: Presta

Saddle: 1992 Flite Titanium

Seatpost: Marin Branded 'Kalloy' 29.4mm

Seatpost Binder: Marin branded rubber handle Quick release lever


Cheers.
boy"O"boy

Sure! Add them!


boy"O"boy

Orange 🍊 Fan
Feedback
View
Re:

bkp":20qj47p0 said:
Sure! Add them!

Thanks bkp :cool: - here you go!

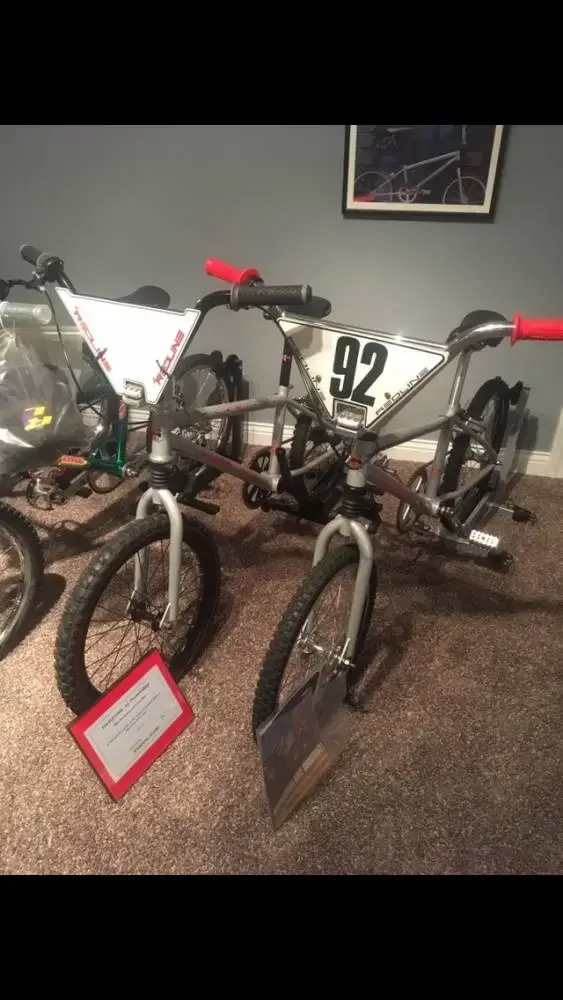

Back on page 5 - my research bought up some tasty images of the Redline BMX that used the Browning suspension fork.

Turns out that those pics are bkp's and he kindly sent me these images. What a collection! :cool: :cool:

If any one has a Browning Fork for sale, or even a complete bike that has the Browning fork - such as a Marin or Fusion 0260 - bkp would definitely appreciate a PM!

Cheers.
boy"O"boy


Attachments

  • BKP Redline BMX.jpg
    BKP Redline BMX.jpg
    68.7 KB · Views: 855
  • BKP redline Browning forks.jpg
    BKP redline Browning forks.jpg
    68.5 KB · Views: 855

legrandefromage

Bin Monkey
BoTM Winner
PoTM Winner
GT Fan
Feedback
View
Now just needs:



raidan73

Moderator
Retrobike Rider
BoTM Winner
Gold Trader
PoTM Winner
Kona Fan
Rocky Mountain Fan
Feedback
View
Great work mate! Looks a little different to when I saw it :)
