2007 kona scrap

mattiamerca

Retro Guru
i've always observed with a great curiosity the dirt bikes, but i've never had one... until... until three days ago :D
I've searching a pair of crossmax for the RM vertex, and i've found a really nice kit with frame (this kona), an early era RS pike (i've got one on the RMslayer and I love it simplicity) with the Mavic... so.... thanks to some leftovers and some unpaired components i've assembled this bike, and it's so damn funny!

I'll start with this configuration

Frame: KONA scrap - 2007
Fork: RockShox Recon TK silver solo air
Headset: Ritchey WCS 1,1/8" external, standard

Habdlebar: Bontrager 620mm flat
Stem: Ritchey Comp 35° 70mm
Grips: unknown, i take them from a "butterfly" handlebar expertiment that i've used on an old roadie bike
Seatclamp: Unknown
Seatpost: DaBomb 30.0 x 350
Saddle: SDG BelAir

Brake levers: FRM Hidraulic
Brakes: FRM hidraulic
Disc: Shimano deore 160mm center-lock (rear)

Shifters: -
Rear der.: Campagnolo mirage 9v used like a chain tensioner
Front der.: -
Cassette: Shimano Deore 12-34 - 9 Speed
Chain: Shimano XT 9v
BB: Race Face
Crankset: Shimano Hollowtech II 36t and hope bash
pedals: '93 Shimano LX

Front wheel: Shimano Deore 2003 wide flange, 32h x qr, laced on FIR MT 231 rims
Rear wheel: Shimano alivio centerlock qr hub laced to old ritchey Rock 4000 rim
tires: Geax and michelin found in garage

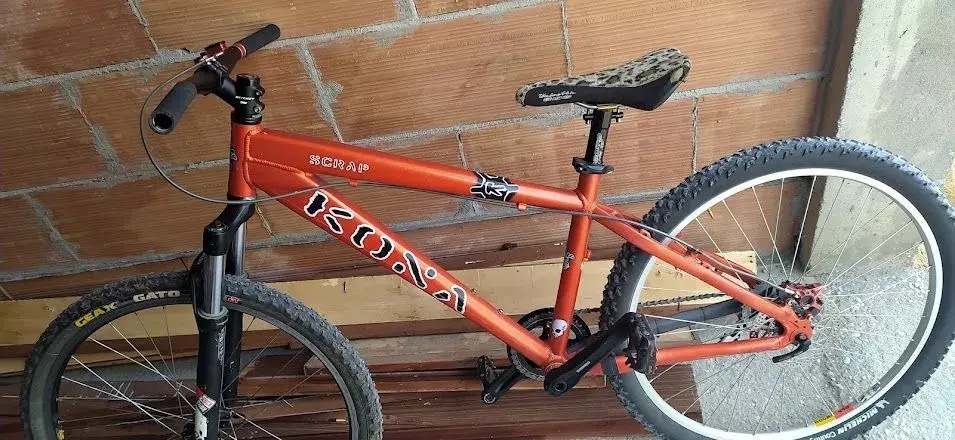

Attachments

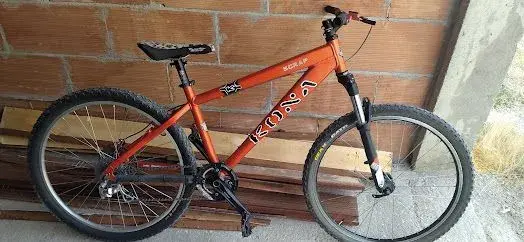

  • konaScrap2007_leftside.jpg
    144.4 KB · Views: 7
  • konaScrap2007_rightSide.jpg
    58 KB · Views: 7

mattiamerca

Retro Guru

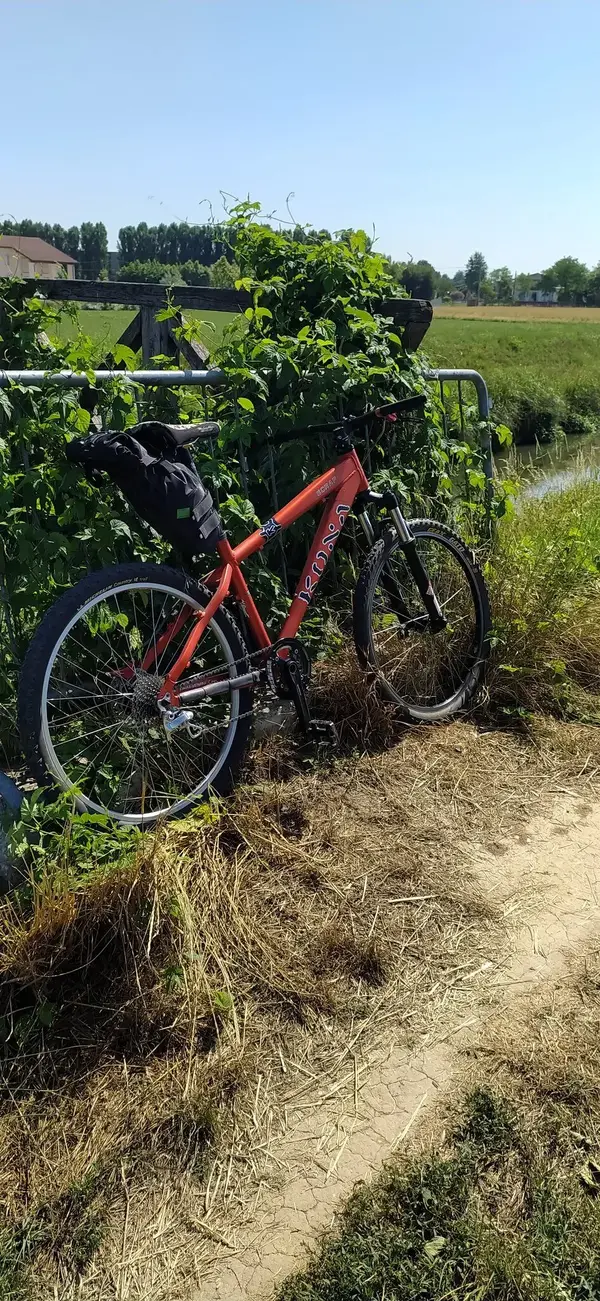

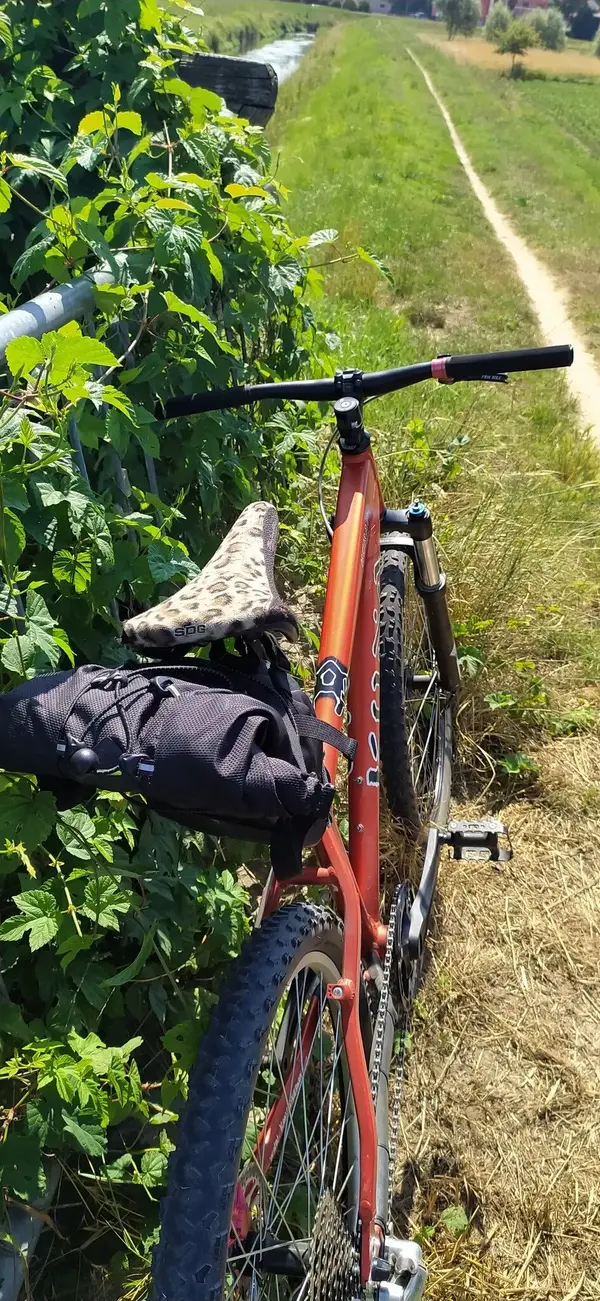

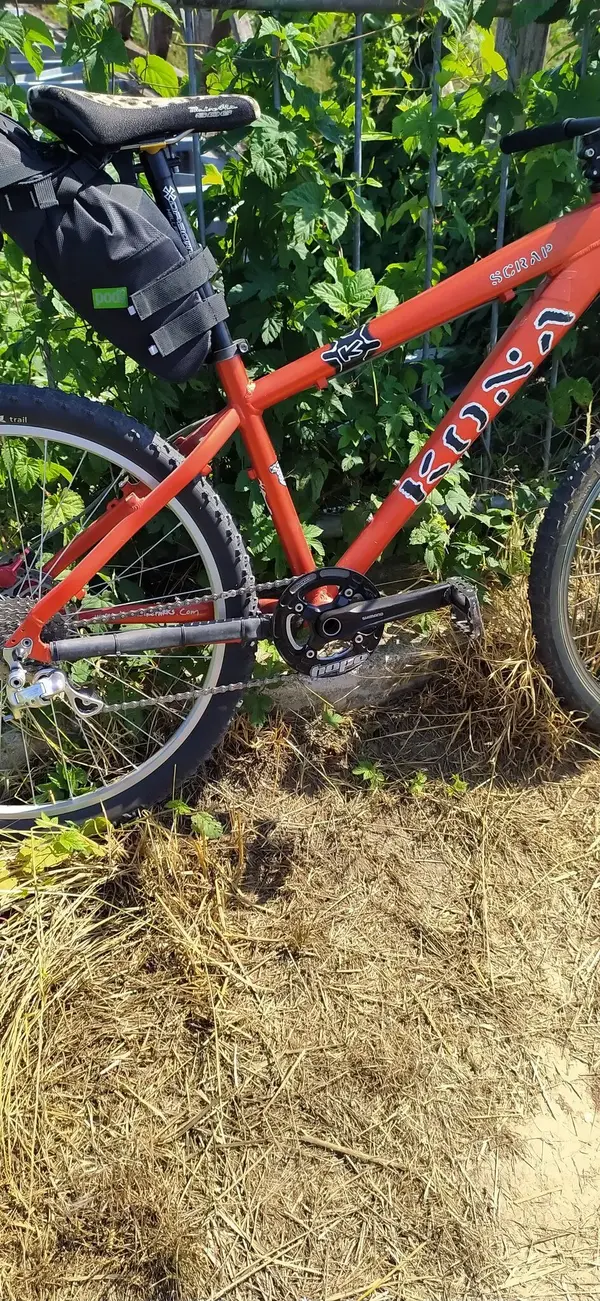

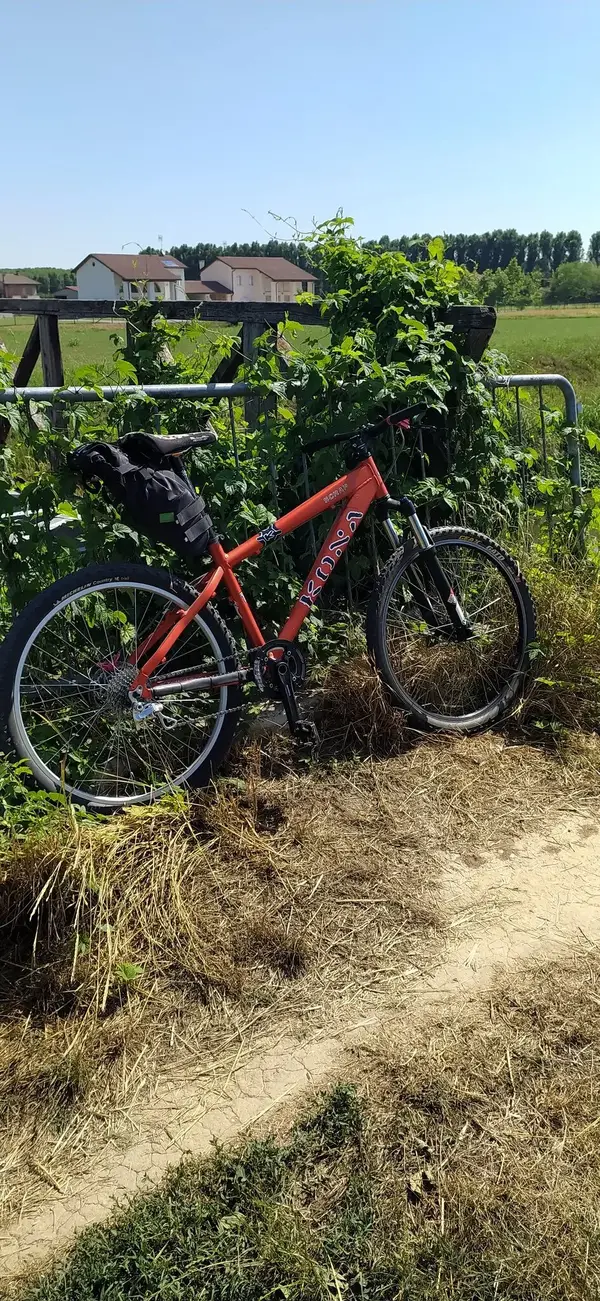

Attachments

  • IMG_20220612_103403.jpg
    706.9 KB · Views: 0
  • IMG_20220612_103540.jpg
    590.1 KB · Views: 1
  • IMG_20220612_103434.jpg
    761.7 KB · Views: 2
  • IMG_20220612_103422.jpg
    425.3 KB · Views: 3
  • IMG_20220612_103415.jpg
    317 KB · Views: 1
  • IMG_20220612_103357.jpg
    724.9 KB · Views: 1
  • IMG_20220612_103403.jpg
    706.9 KB · Views: 1

mattiamerca

Retro Guru

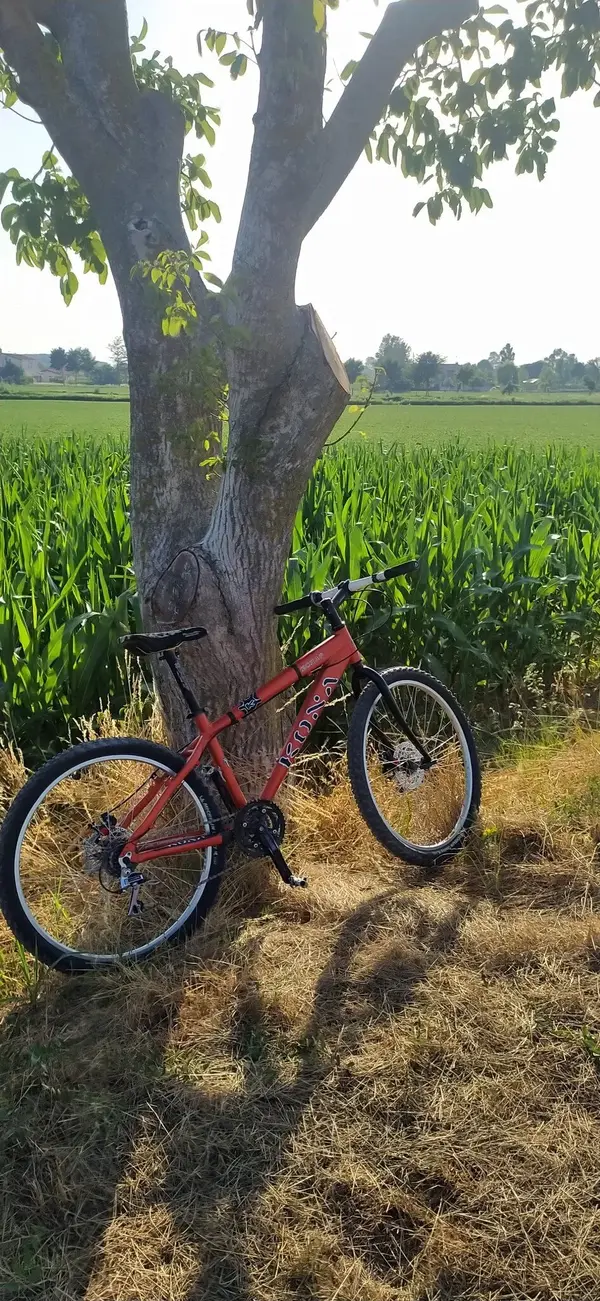

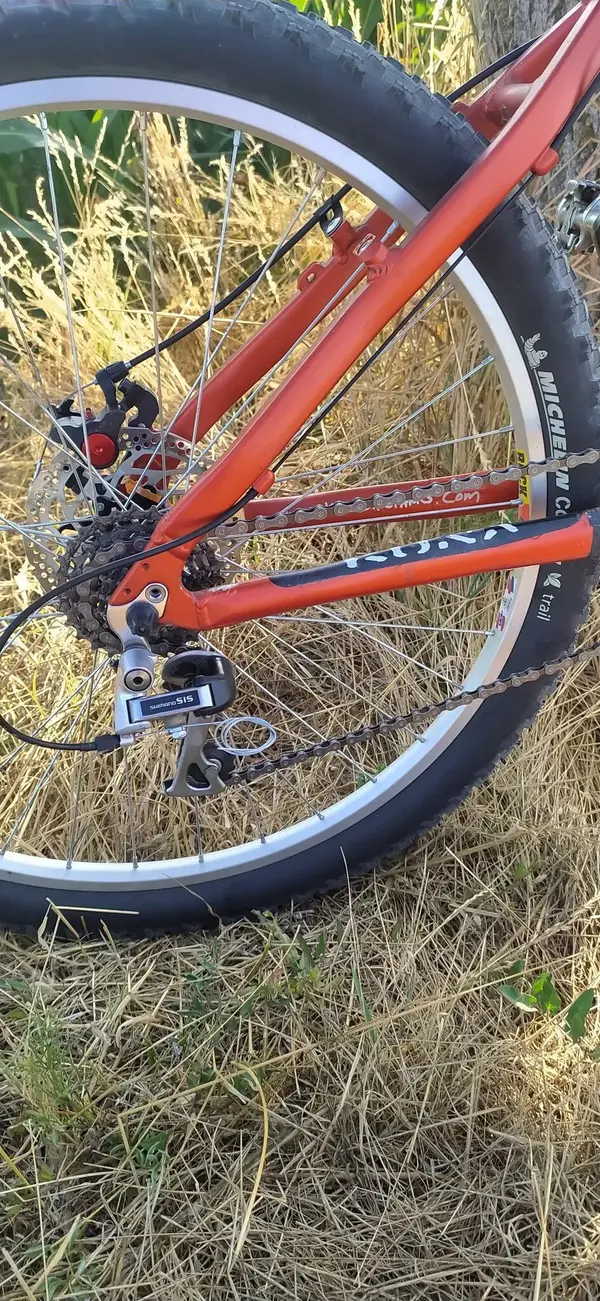

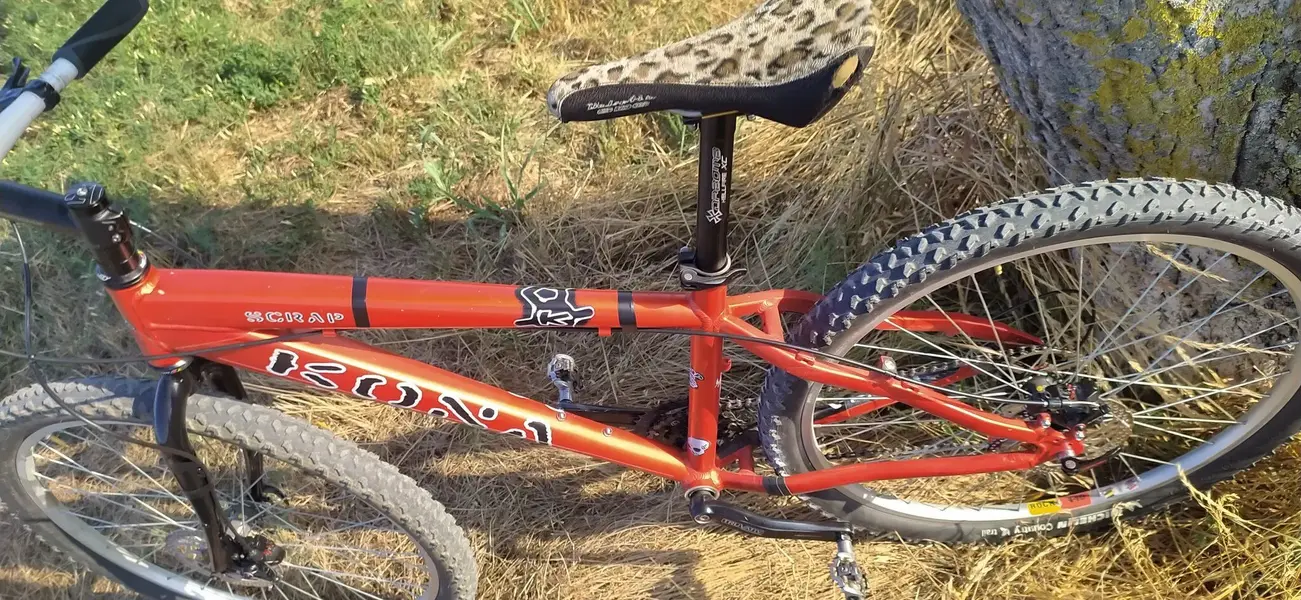

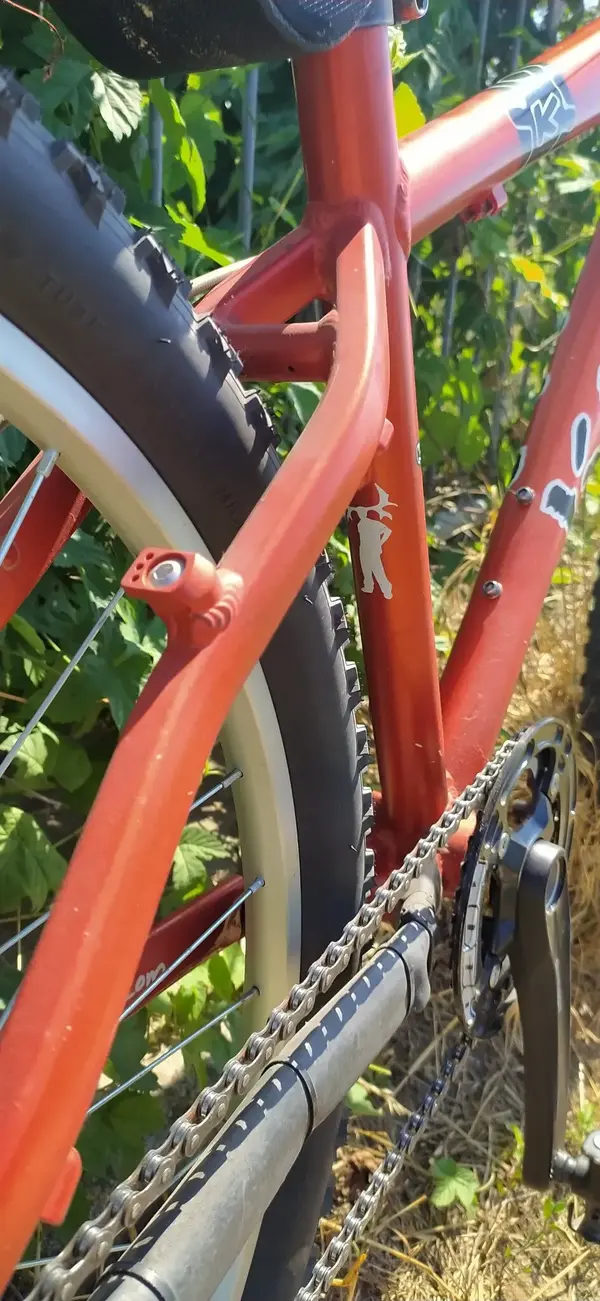

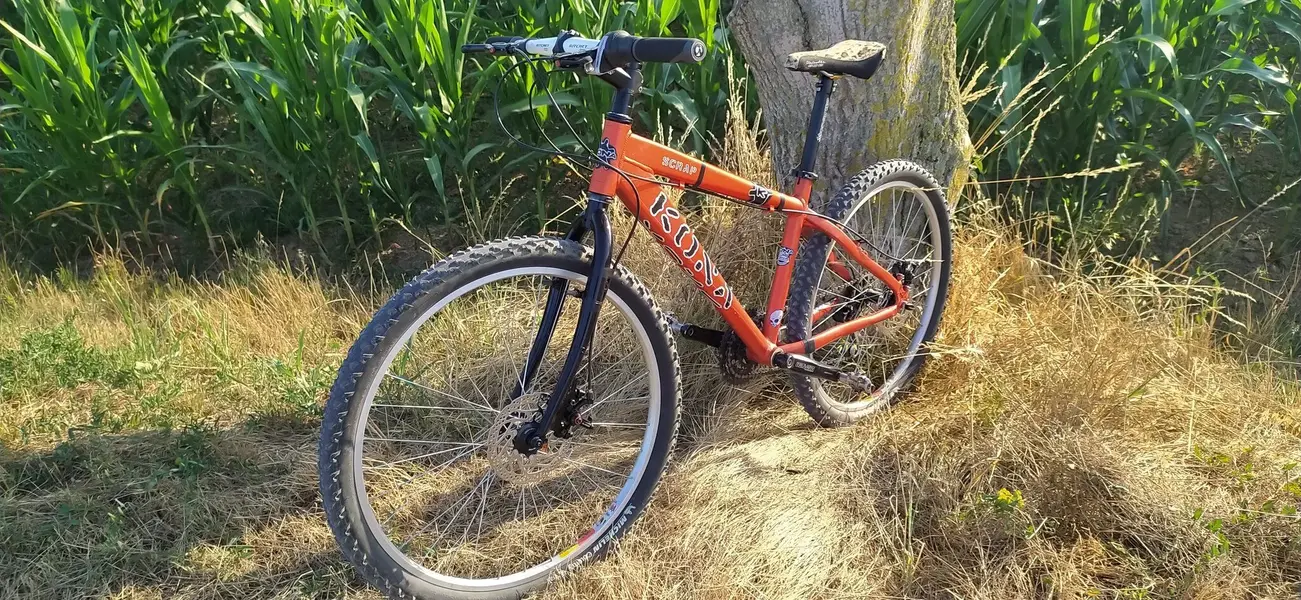

... This frame is so damn versatile that I've change setup in order to use it as daily commuter...
1*7
mechanical disc Brakes
and a lot of fun


IMG_20220620_190119.jpgIMG_20220620_190135.jpgIMG_20220620_190241.jpgIMG_20220620_190254.jpg
