Help.. good pics of GT2x4 fork dropouts

[dablk]

Morning All,

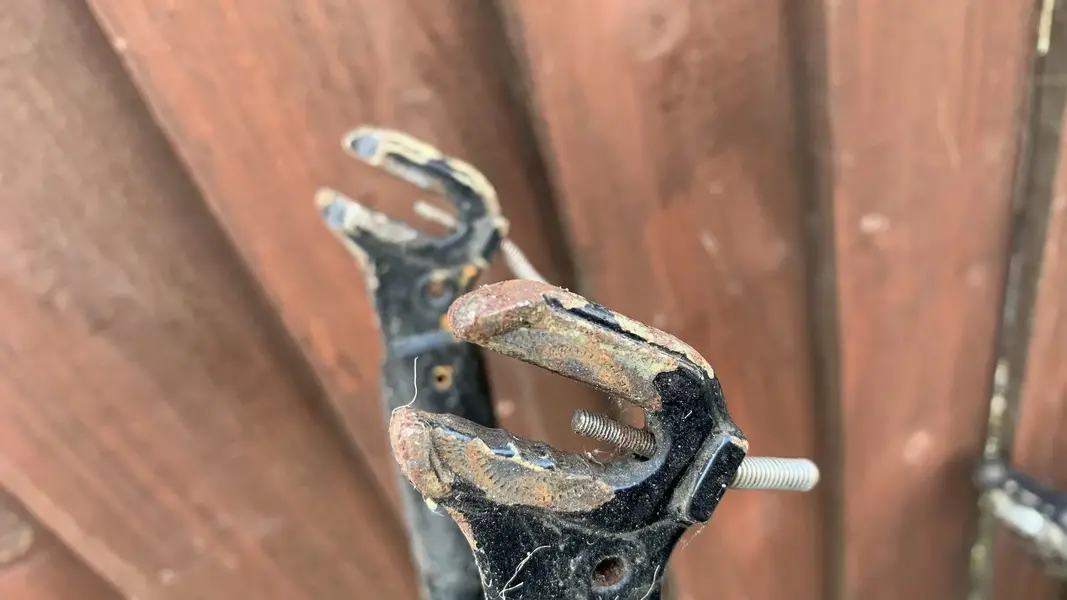

Just picked up a 91’ Zaskar shed find. It’s got 2x4 that are looking a little sorry for themselves.

I’d anyone able to get me some good photos please of what the adjustable dropouts should look like? I’m guessing I maybe missing some bits.

Thank you



[raidan73]

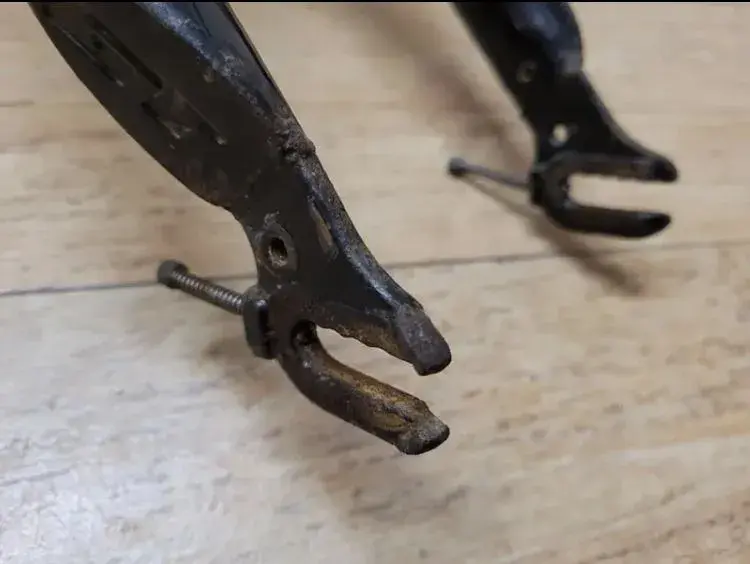

Mine look pretty sorry for themselves too!



[dablk]

Cheers. I just assumed there would be a slide block. Mine have the external springs still but the screws are bent.they also look very long.



[raidan73]

I'm pretty sure that's it.....just the same as you get on many road bike dropouts



[novocaine]

the very best image I have ever seen of these came from this ere forum.

GT 2x4 fork

Hi folks, I am looking for a GT 2x4 fork. Only available threaded. Adjustable rake. Dropouts look like this: (C) Secondspincycles Steerer length min. 142 mm. I am not looking for threadless forks (Bologna Lite, Bologna Cut) or standard threaded forks (no adjustable rake). Thanks! Stuff I...

www.retrobike.co.uk



[dablk]

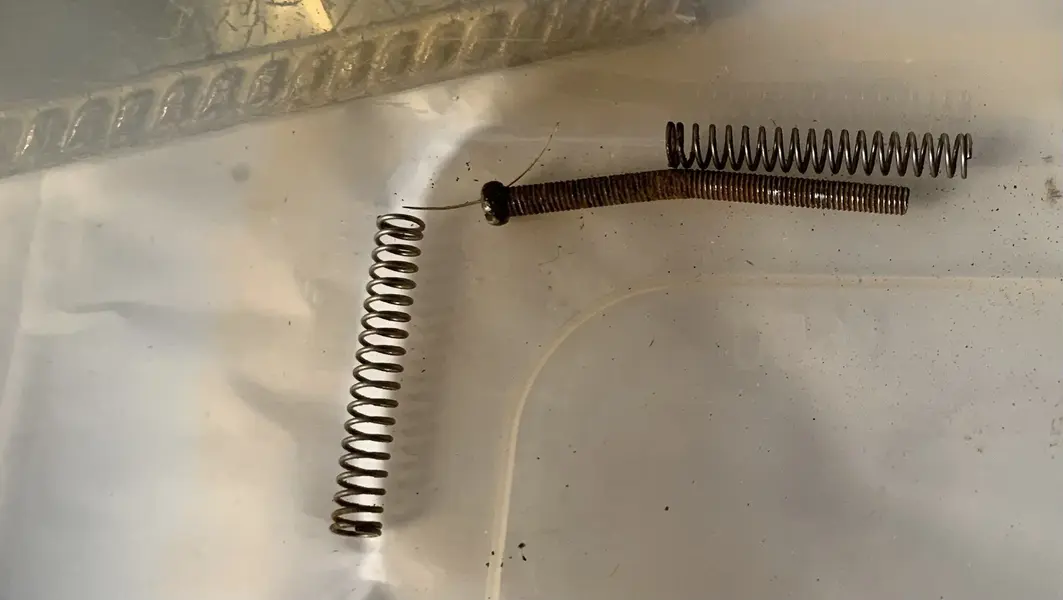

There has been 50% good news and 50% bad news so far



[novocaine]

I think I've got a couple of screws that would work.

given there is only 1 screw there I'm assuming the other is stuck in the fork or worse snapped off. if you want to run the forks over we can have a look at extraction. I'll have a look when I'm home to see if I've got an m3 or m4 helicoil, so if it's snapped off we can drill out and rethread.



[dablk]

Your judgment is correct unfortunately the worse of the two options. Even after an overnight soak. Pretty much was hanging off already and snapped as soon as I breathed on it. Will drop you a PM. I’m happy to give it a go but if your have better kit then any help appreciated.



[novocaine]

Your judgment is correct unfortunately the worse of the two options. Even after an overnight soak. Pretty much was hanging off already and snapped as soon as I breathed on it. Will drop you a PM. I’m happy to give it a go but if your have better kit then any help appreciated.

I reckon I have the technology but I can't promise the paint will survive.



[Frankenorange]

Out of interest; is there a noticeable difference in handling from the 2 extreme positions?
