Frame cable guide adapter

[Once A Hero]

I must be missing something here.

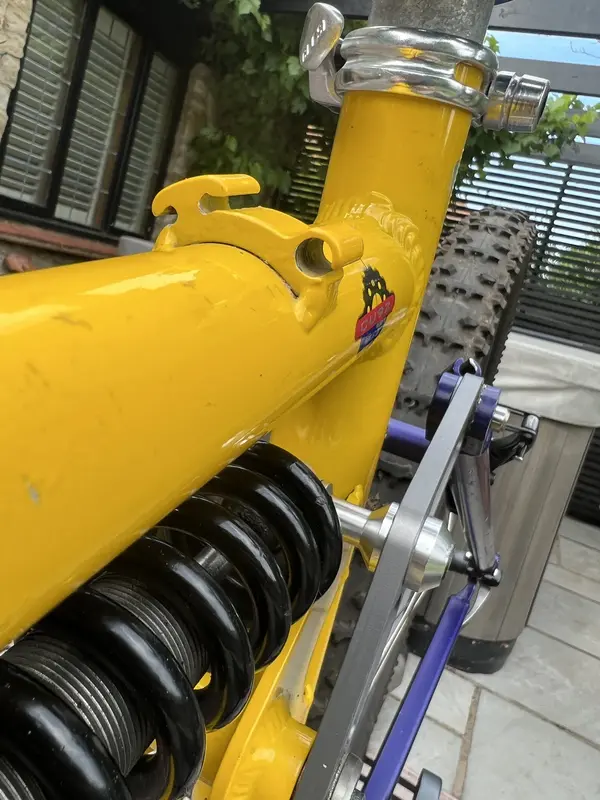

I need to run cabling to the rear brake on my ‘96 ATX 990, but the cable guides on the top tube (for the rear brake only) are the open type and don’t have a stop for the outer cable.

Can anyone tell me the name or keyword of the adapter I need to allow cable outers to start / stop please. A point in the right direction would also be welcomed!



[mk one]

Running a Vbrake you could run a full outer with no problems.



[mk one]

Or use a stepped ferrule.



[benjabbi]

Search for stepped ferrules, you should find something, probably from the motorbike world.
Edit: @mk one great minds and all that!



[Once A Hero]

Running a Vbrake you could run a full outer with no problems.

That’s actually what I’m trying to avoid as I think it looks a bit clunky.
Thing is it’s a canti frame bike so there must be a thingy - I just remember what the thingy is called



[gtturbo]

Perhaps Maguras originally ?. But as above a ferrule is what you need.



[benjabbi]

Thorn Stepped Alloy Ferrules 5.95 mm Insert for 5 mm Brake Outer - Pack Of 3 | Cables - Spares | SJS Cycles

used by Thorn to convert cable guides (sometimes on S&S frames) to stops. These top quality ferrules can be handy in many applications.

www.sjscycles.co.uk

These might do the trick.



[Once A Hero]

Perhaps Maguras originally ?. But as above a ferrule is what you need.

Nope originally LX cantis - but perhaps with a thought for those that may want to run Maguras.

Right! Stepped ferrules it is! Thanks all



[benjabbi]

CU92 tubing, I bet someone laughed a lot when they agreed to name it that!



[Spankyfart]

There are coned rubber versions, I took some of a bike I bought.
Can't find them on the interwebz now but I might still have them in a box (or 3)
