Shimano Deore XT Shifter ST-M095 Rebuild

[hookooekoo]

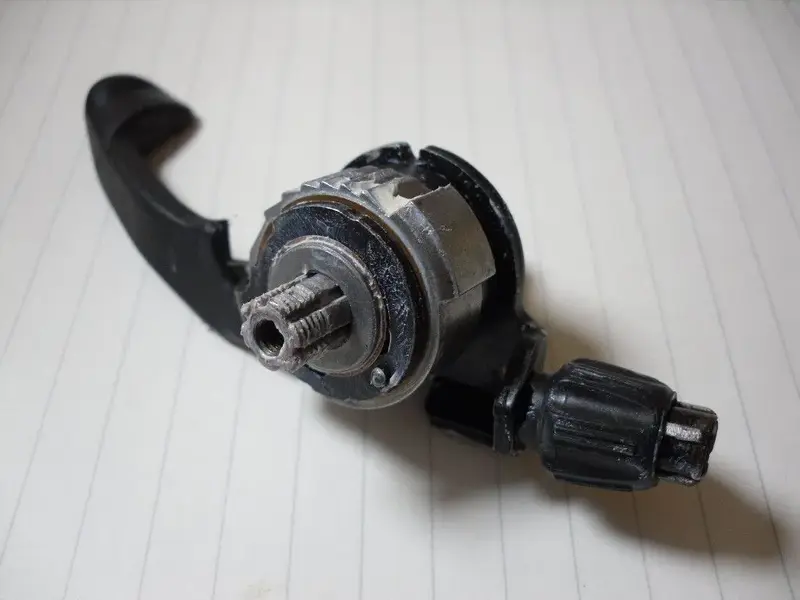

Install the steel spacer washer.



[hookooekoo]

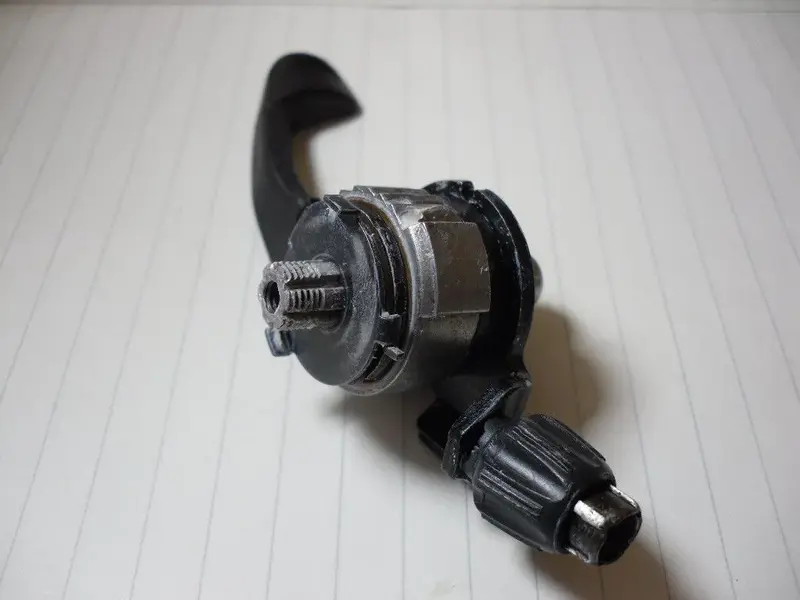

Install the return spring for the pull trigger.



[hookooekoo]

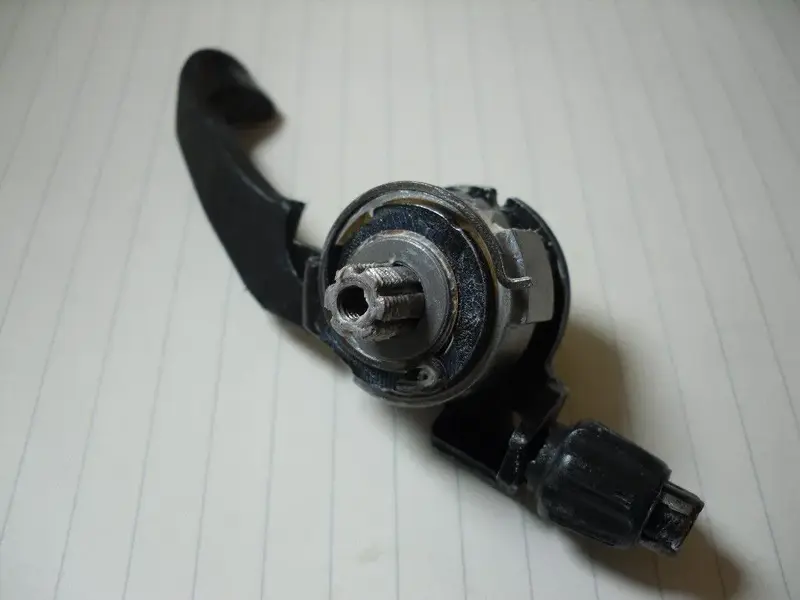

Add the custom steel washer.



[hookooekoo]



[hookooekoo]

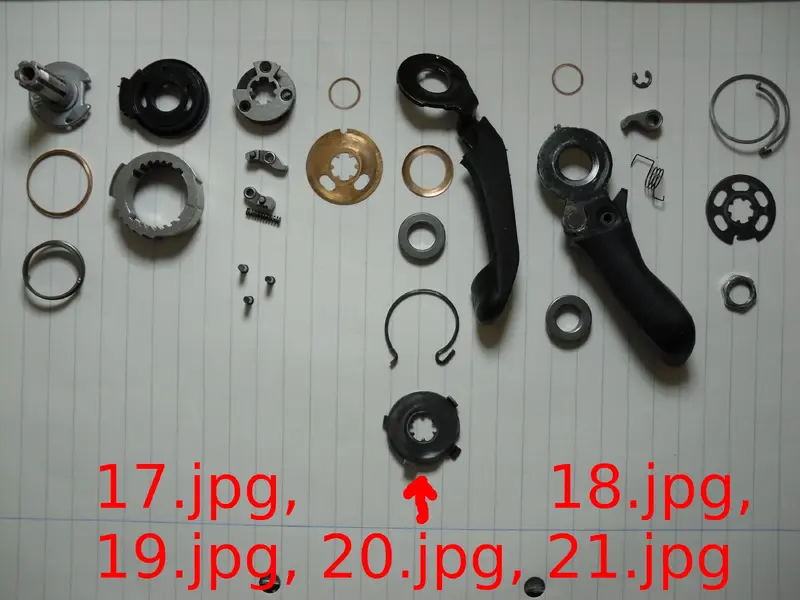

I will probably dismantle a shifter to get some more photos, as some details of the parts and assembly are not as well documented as they could be.



[hookooekoo]

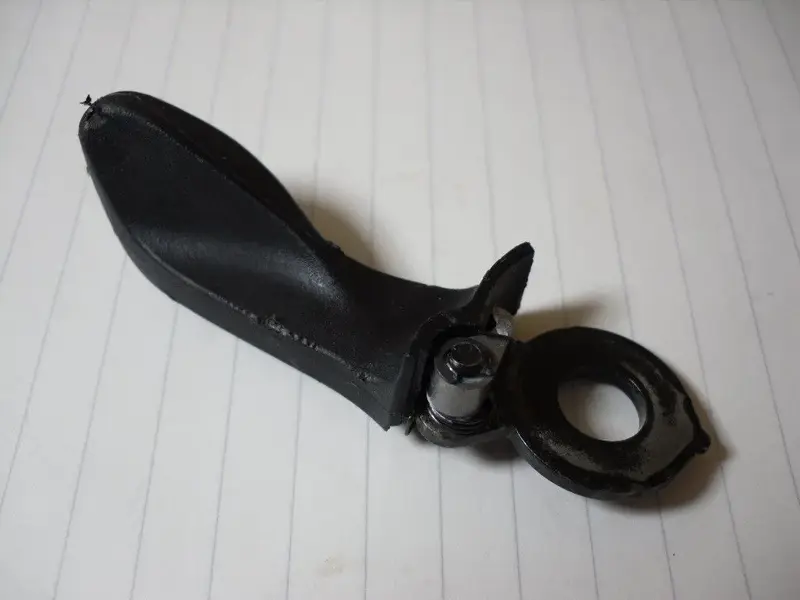

Grease the pivot for the pawl on the push trigger (the one behind the handlebars that reduces cable tension), and place the spring over the pivot.



[hookooekoo]

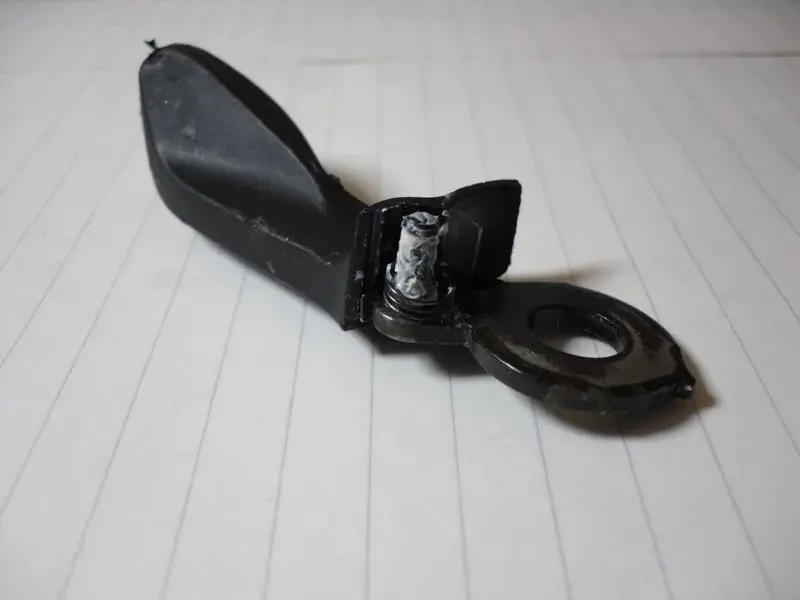

Put the pawl on its pivot so that the ratchet spring hooks around the pawl.



[hookooekoo]

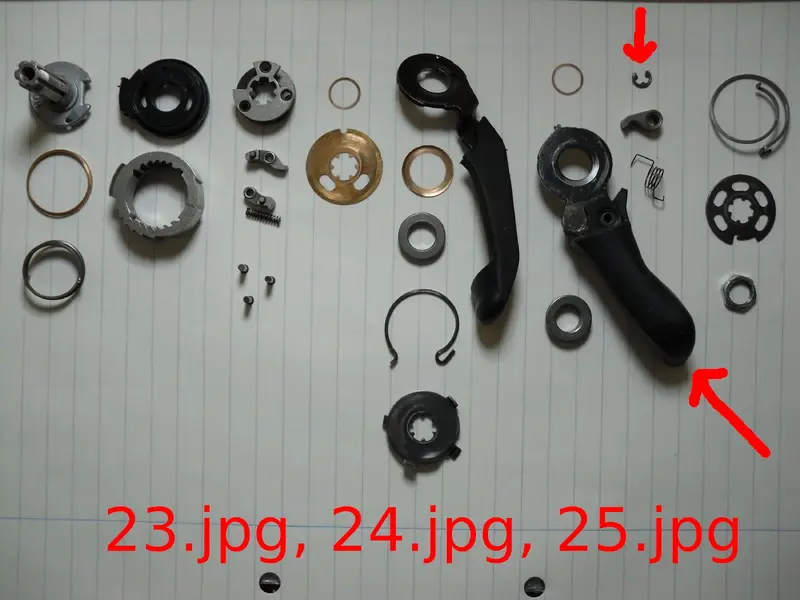

Add the circlip to the top of the pawl pivot to keep the pawl in place on its pivot.



[hookooekoo]



[hookooekoo]

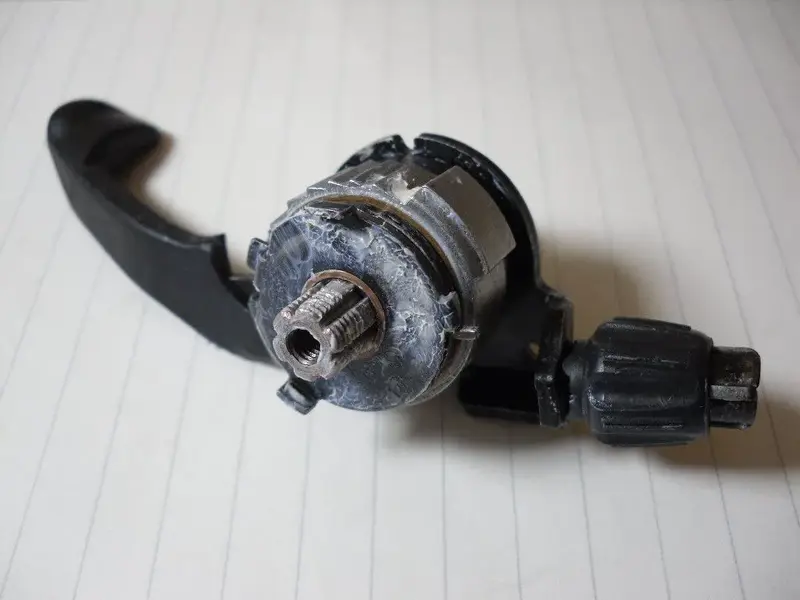

Place the copper washer on the shifter spindle.
