Kona P2 q

[specializedm2]

Excuse my ignorance, I know modern bikes but haven't had much dealing with the retro stuff so far

I have a 93 hei hei that I want to fit the original forks and stem to, from what i've read I need a P2 with 193mm of steerer to fit a 20" frame.

I've found a P2 on ebay from the right era with what looks to be a 200/205mm steerer.

Will this fit? Or does it need trimming down and the thread extending with a tap?

The seller reckons it's from a '93 21" Hahana

Cheers



[Lhatch4]

Is it a threaded or threadless steerer tube? You can just use a spacer either way.



[Lhatch4]

Re:



[specializedm2]

Yer its threaded. I wasn't sure if the length of thread would be ok over a range of frame sizes or not. Sounds good though.

Cheers for the info!



[MatBH5]

Re:

The Hahanna fork will (I think) be straight gauge Cr-Mo whereas the better frames (certainly the Hei Hei) would have had a triple butted fork, which had 'xx-TB' stamped on the steerer, and in some years slightly more refined dropouts.
So the one you see on eBay may not be the best match really.



[specializedm2]

Oh ok cheers.

What's the shortest steerer/frame size forks I could get away with do you think?



[hamster]

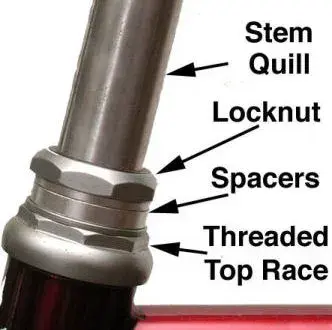

Measure the head tube of your frame. You will need 45-50mm extra on the steerer for the headset if threaded, or 70+mm it using Ahead headsets.

There are low-stack headsets available for borderline cases.



[rogerzilla]

Re:

Triple butted forks are stamped CM/TB and single butted forks are stamped CM/SB. The steerer length is also stamped on threaded steerers, further up the column.

The most common lengths seem to be 143, 163 and 183mm.

Weights vary a lot and some SB forks are almost exactly the same weight as TB. It largely depends on the year of manufacture.

The original Kona Impact headset is 32-33mm stack height. A Tange Falcon is the same if you replace the chunky washer with a thinner one. It's a cartridge bearing headset and streets ahead of the original.



[specializedm2]

Ok cheers!

What colour would they have been on the hei hei? all the catalog pics i've seen are with the ti fork



[fattiman]

Hei hei never came with a steel project two fork
