HELP ME IDENTIFY MY DB FRAME PLS.

aisaisbaby

Retro Newbie
Hi, I'm a retro newbie. Would like to ask for help identify my Diamondback retro frame. I inherited it from my uncle but I'm not sure what kind of DB frame is this. Hope you can help me identify so I can restore it. Thank you!


aisaisbaby

Retro Newbie

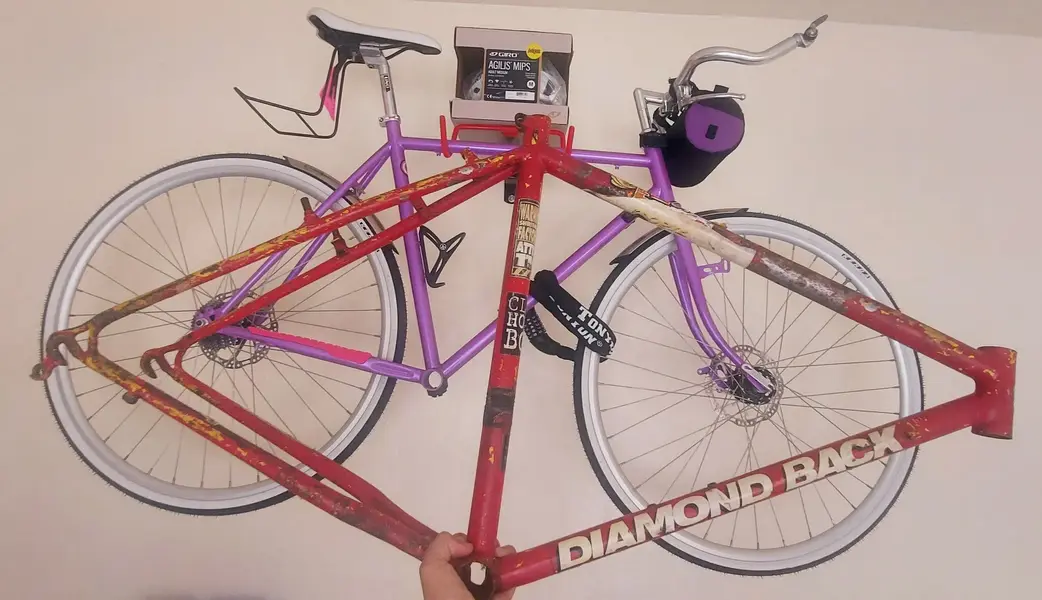

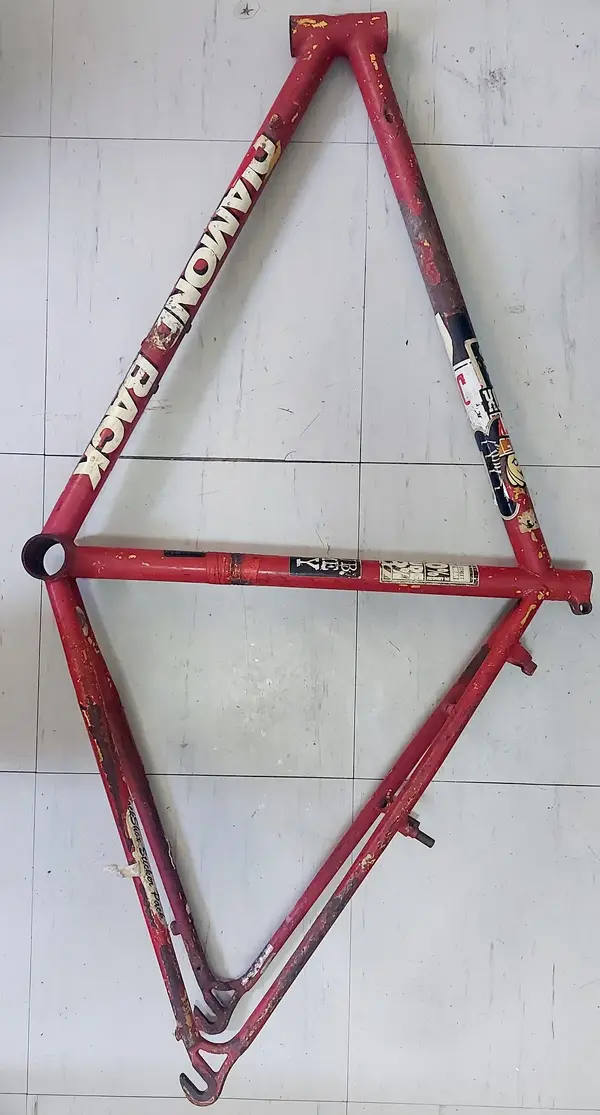

Here you go sir. Thank you.


Attachments

  • 20210616_132859.jpg
    316.8 KB · Views: 34
  • 20210530_151041.jpg
    294.9 KB · Views: 30
  • 20210921_021723.jpg
    182.9 KB · Views: 32
  • 20210907_163430.jpg
    217.2 KB · Views: 34

joglo

Old School Hero
hi,

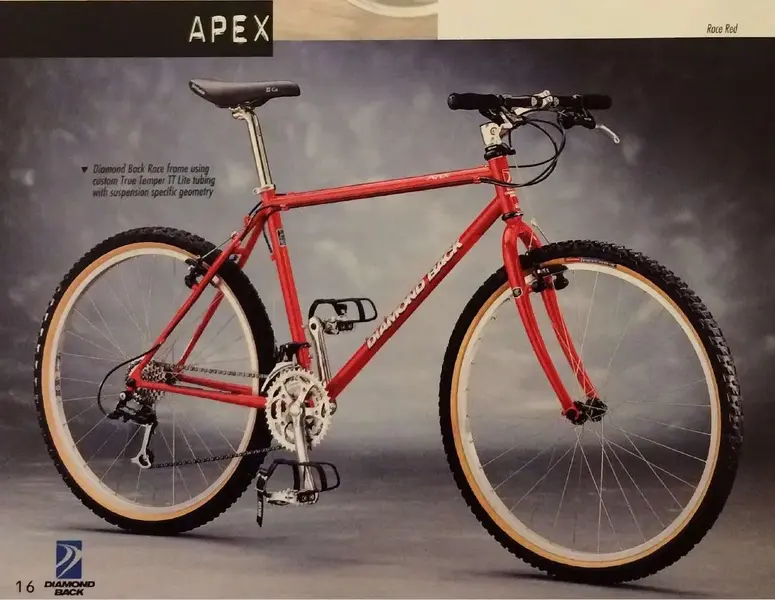

That's very likely an Apex from 1995
Diamond Back Apex 1995.jpg

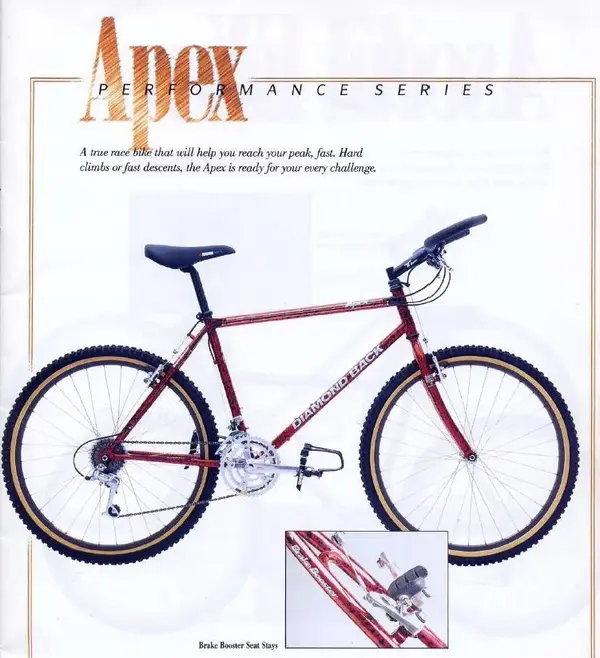

the 1993 model was also red but not uni color.
Diamond Back Apex 1992.jpg


aisaisbaby

Retro Newbie
Oh I see.. Apex.. I'm just having a doubt about the cable insertion since Apex doesn't have one. I'll try to search more and wait for other replies. Thank you..


retrobikeguy

BoTM Winner
Gold Trader
BoTY Winner
Orange 🍊 Fan
Feedback
View
What size headtube is it? Does it take 1" fork or 1-1/8"? , Also Is that yellow under the red paint an original colour.

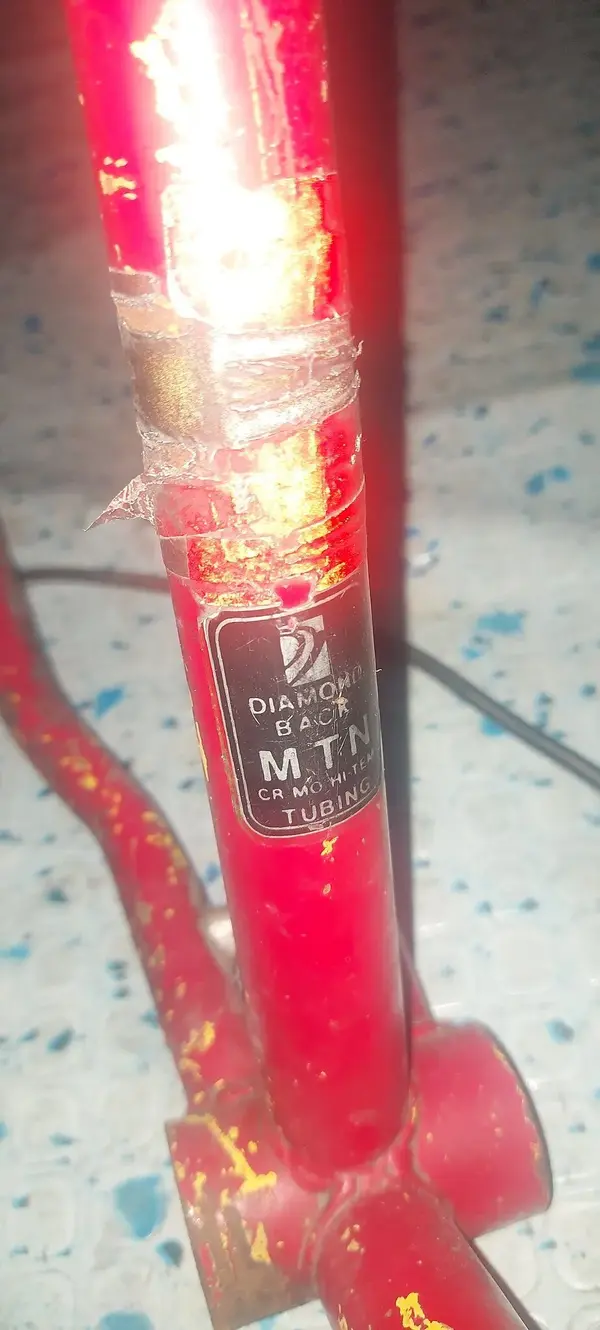

Going by the hi tensile steel sticker I would be going lower end, Sorrento/topanga.....


joglo

Old School Hero
Oh I see.. Apex.. I'm just having a doubt about the cable insertion since Apex doesn't have one. I'll try to search more and wait for other replies. Thank you..
ah, sure, your're right and also the drop-outs of your bike look a bit more old fashioned.
Adding the 89 catalog, some models fit better in terms of drop out, but yours is without rear rag mount eyelets.
The Ascent EX, Sorrento and Curaca have been also available in racing red according spec sheet at the end


Attachments

  • Diamond Back 1989.pdf
    5 MB · Views: 4
Last edited:

novocaine

Retro Guru
I think you have something of a mongrel here. It's got a fillet brazed headtube that from first look seems to be 1.5" rather than 1 1/8". all other joins are welded. the internal cable route looks to be a braze on too. there doesn't seem to be an exit for the internal cable either.


aisaisbaby

Retro Newbie
What size headtube is it? Does it take 1" fork or 1-1/8"? , Also Is that yellow under the red paint an original colour.

Going by the hi tensile steel sticker I would be going lower end, Sorrento/topanga.....

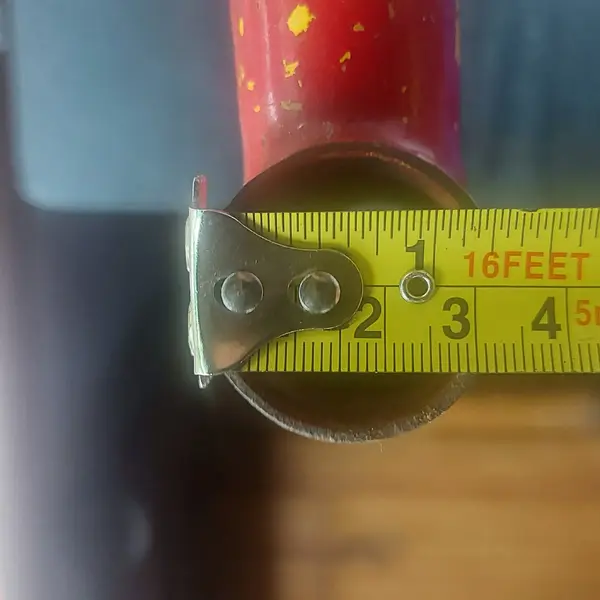

This is the size of the head tube sir... and I think the yellow color is the primer paint.


Attachments

  • 20210921_155440.jpg
    395.2 KB · Views: 6

aisaisbaby

Retro Newbie
I think you have something of a mongrel here. It's got a fillet brazed headtube that from first look seems to be 1.5" rather than 1 1/8". all other joins are welded. the internal cable route looks to be a braze on too. there doesn't seem to be an exit for the internal cable either.
The exit of the cable insertion..


Attachments

  • 20210921_155738.jpg
    167.6 KB · Views: 9
