Frame identification help - Marin? two stays on top tube

[Bri957cc]

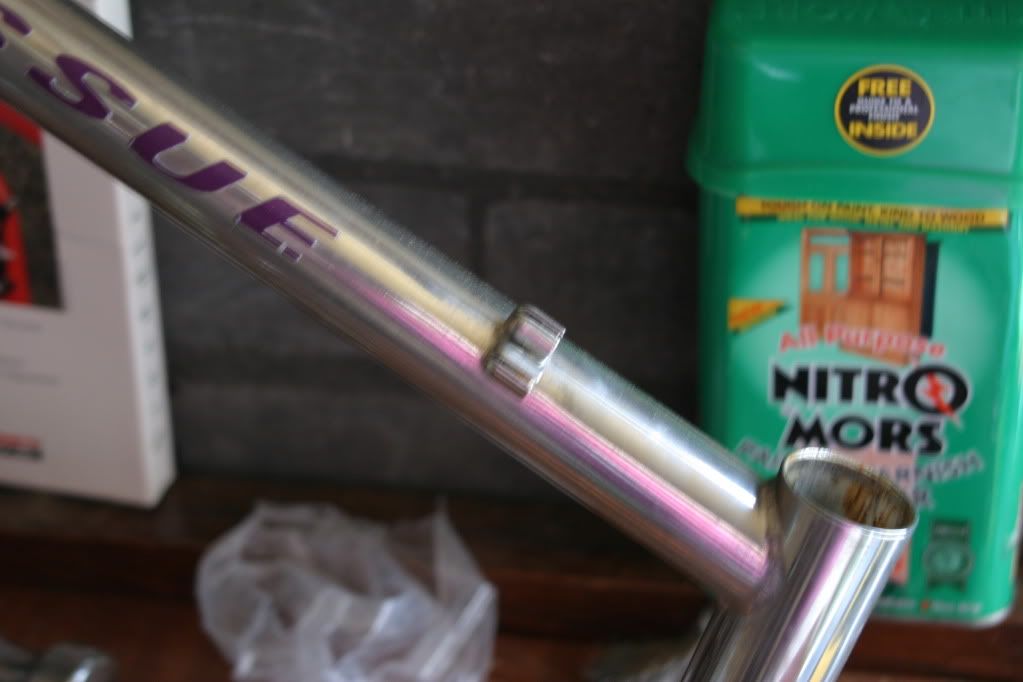

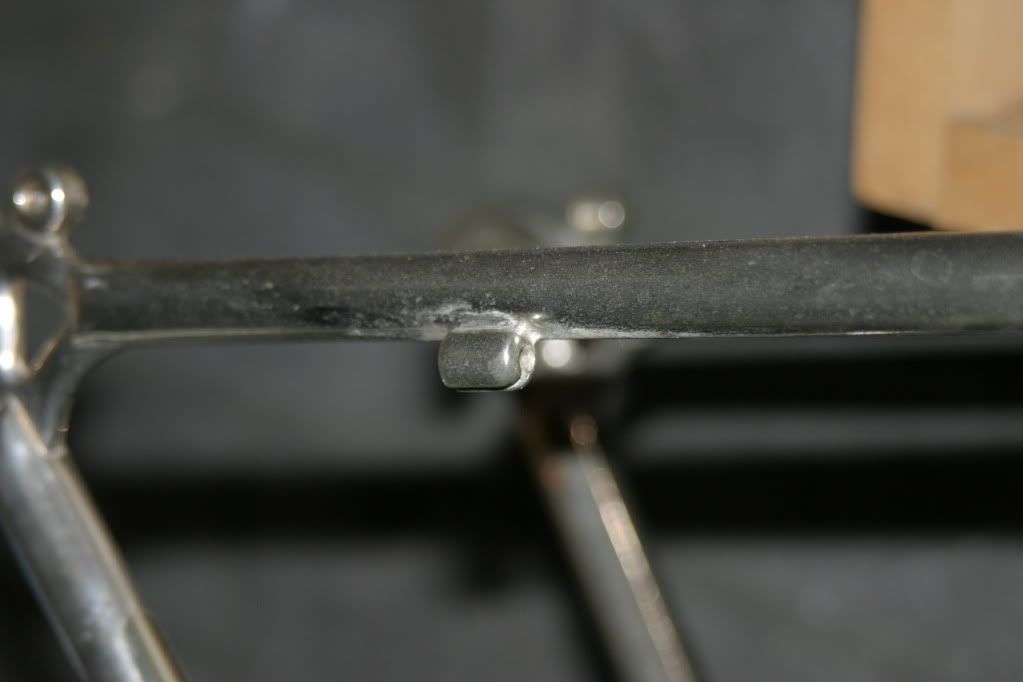

My new Marin Team Issue frame has two sets of cable stops on the top tube, along with the usual pair on the down tube.

While I search high and low for a suitable fork to fit the frame, I thought someone may be able to clarify what the extra cable stops are for?

Why would it have four in total?

Cheers Bri



[Anthony]

You seem to have rear mech stops on the seatstay not the chainstay, so you need two pairs of stops on the top tube - so it would be the two pairs on the down tube that would be one too many.



[Bri957cc]

Has them on both the seatstay and chainstay...

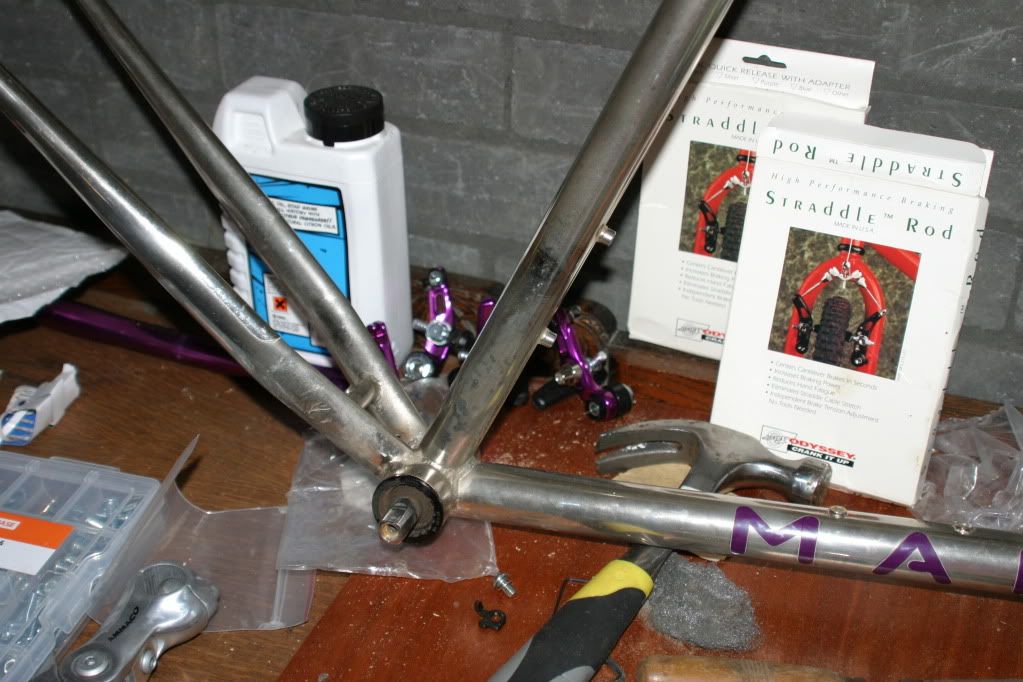

The plastic cable guide under the BB shell shows that both downtube stays were used.



[pete_mcc]

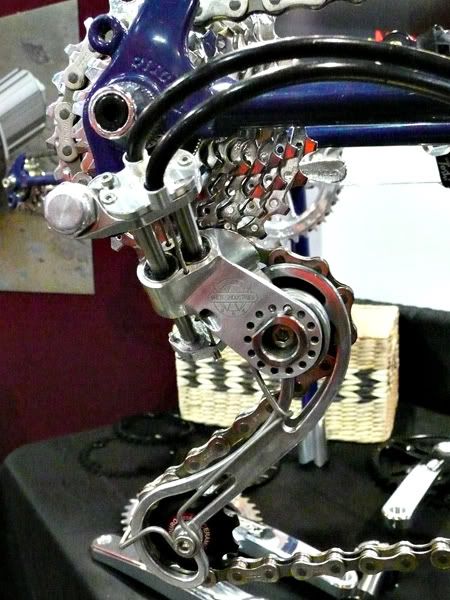

Maybe it was a test frame used to try out the White Industries LMDS derailleur system back in the time when Marin and WI had a tie in. The LMDS uses 2 cables running from the shifter to the rear mech:



[Bri957cc]

Just checked, there is no stop on the chainstay.

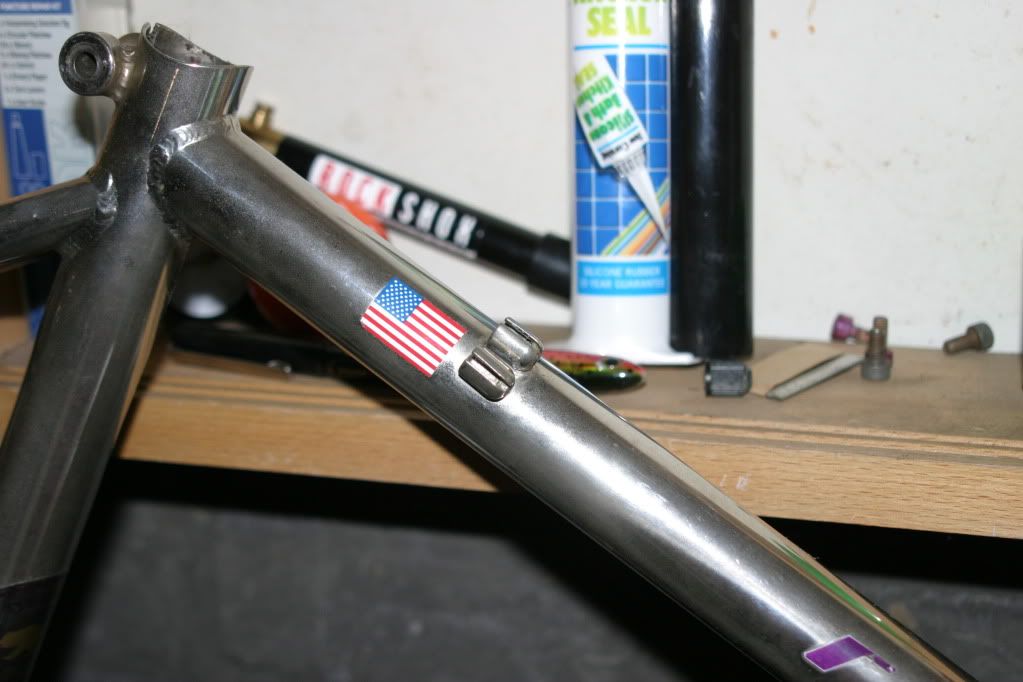

Have an idea what's happened, there is a small crack between the two upper stops on the downtube.

I think the extra ones have been added to take some stress away from the downtube.



[pete_mcc]

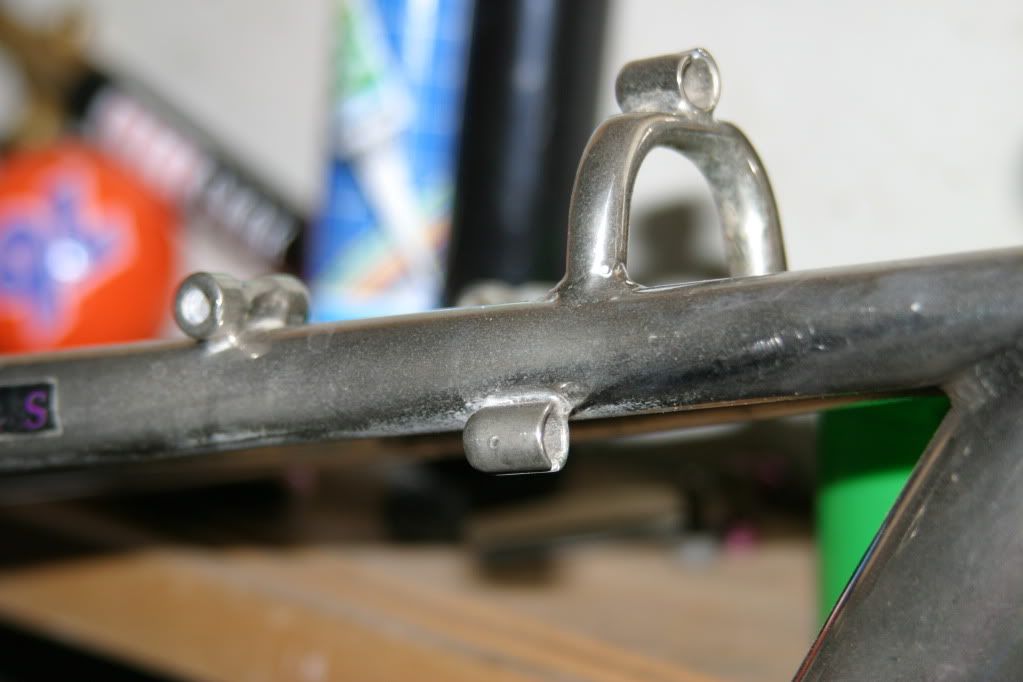

Just as another thought, are you sure its a Marin? Just looking at the stays, dropouts, cable stops and canti hanger and they don't look too familiar. Also I am not sure that the 'Team Issue' came with mudguard and pannier mounts.

Bear in mind that I am not a Marin expert though!



[Bri957cc]

I'll take some more pictures today, hopefully it can be identified, probably as an Apollo .

Cheers Bri



[Bri957cc]

More detailed pictures here:



[pete_mcc]

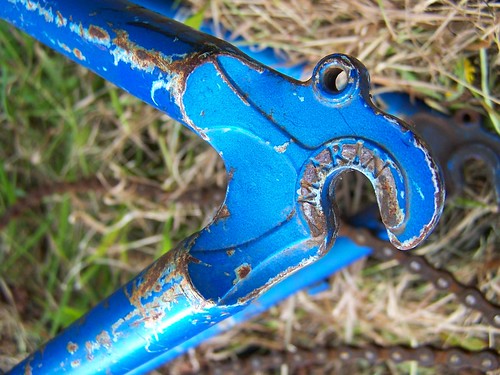

Ah, I hope that someone will come along and prove me wrong but those chainstay and seat stays are not Marin. Marin has used a design called 'Afterburner' stays for many years (back to the early 90s). These are characterised by a more single-gauge, untapered appearance:

best image I could find at the moment - it comes from a 94 but they were similar to this earlier on.

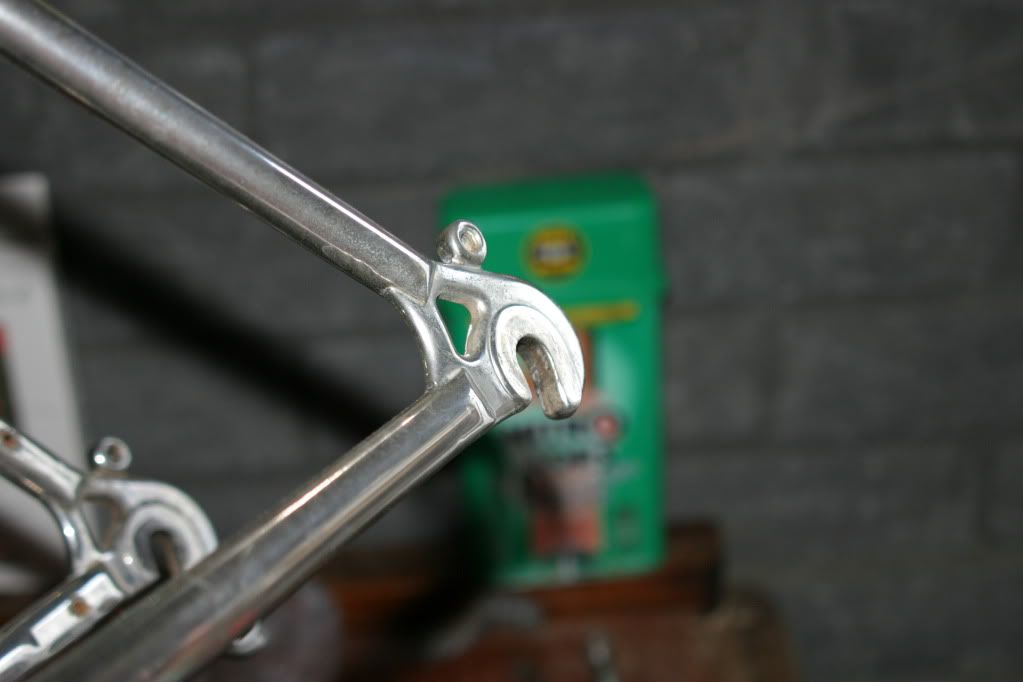

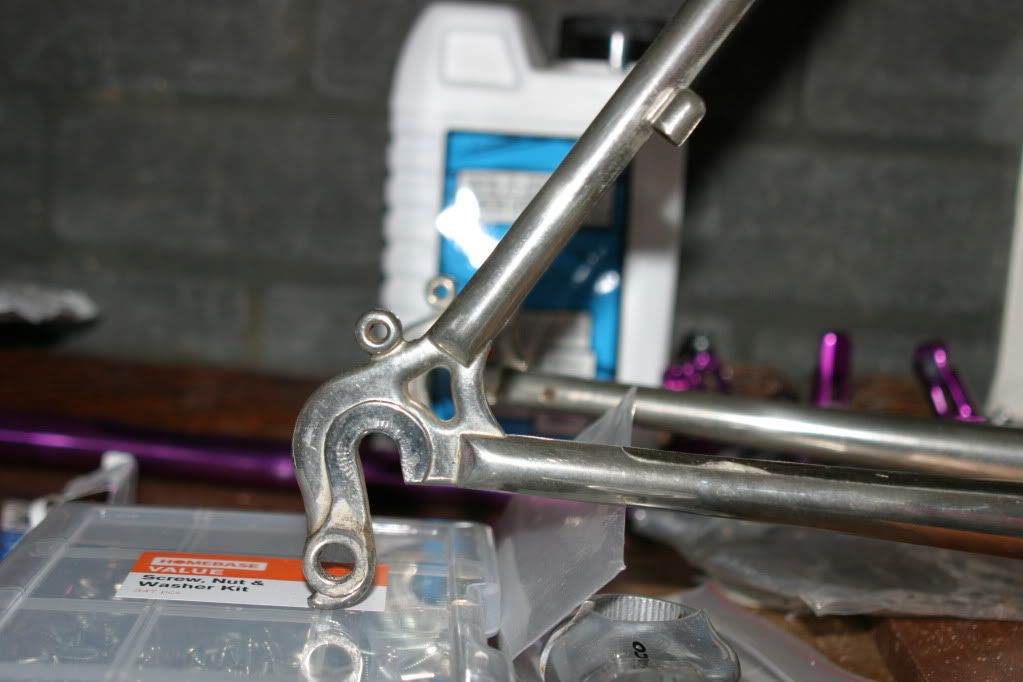

Yours has tapered stays ending in a standard dropout which looks far more like a Fuji Stoutlite frame with Marin decals applied (not a bad frame anyway!).

As I said, I hope someone proves me wrong.



[Bri957cc]

I've got a older Marin with the afterburners...had not even noticed this one was different.

It does have a tapered seatube, getting bigger near the bottom bracket shell.
