Four Bar Full Suspension Bikes

sam_white

Retro Guru

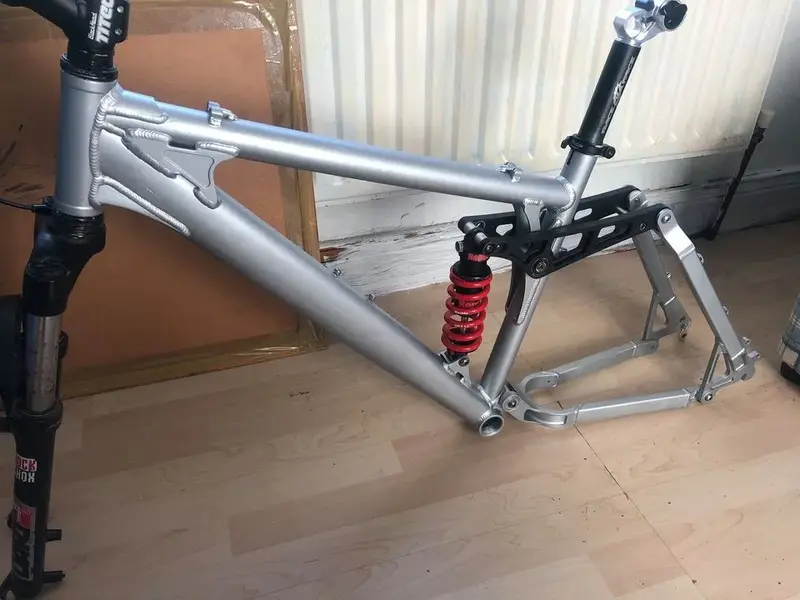

And another, Azonic Saber - There are quite a few more designs out there than I realised.


Attachments

  • Azonic Saber 2.jpg
    Azonic Saber 2.jpg
    1.3 MB · Views: 335
  • Saber.jpg
    86.9 KB · Views: 335

sam_white

Retro Guru
Haven't added anything to the list recently but came across this today. Ellsworth Moment frame. Sold over several years (early 2000s onwards) and generations of design, all appear to be Horst link designs.


Attachments

  • p4pb11723855.jpg
    172.4 KB · Views: 174

toomanyframes

Retrobike Rider
Feedback
View
legrandefromage":1ra6347g said:
Heres my Intense, it doesnt look like this now as its been adjusted a bit since

file.php
Yours sir???


mk one

Old School GrandMaster
Retrobike Rider
BoTM Winner
Gold Trader
Kona Fan
Feedback
View
My favourite suspension design, and one of the best still to this day.

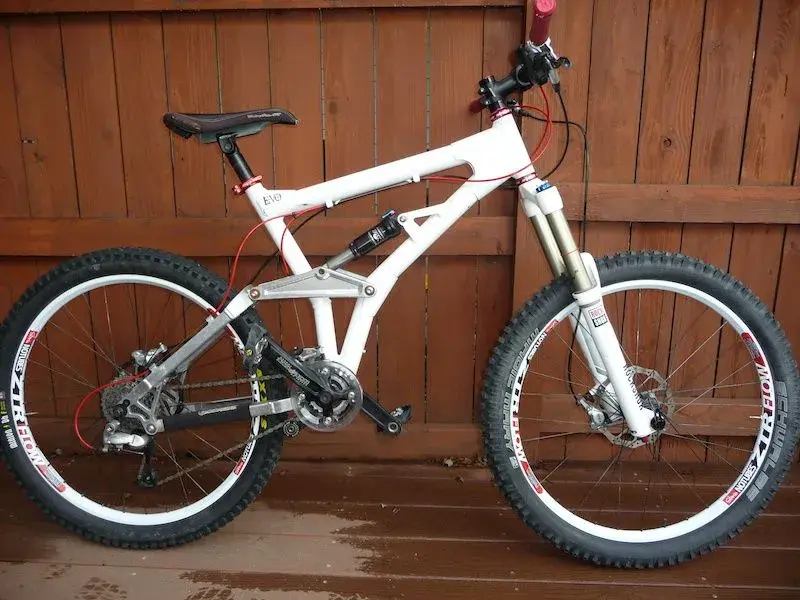

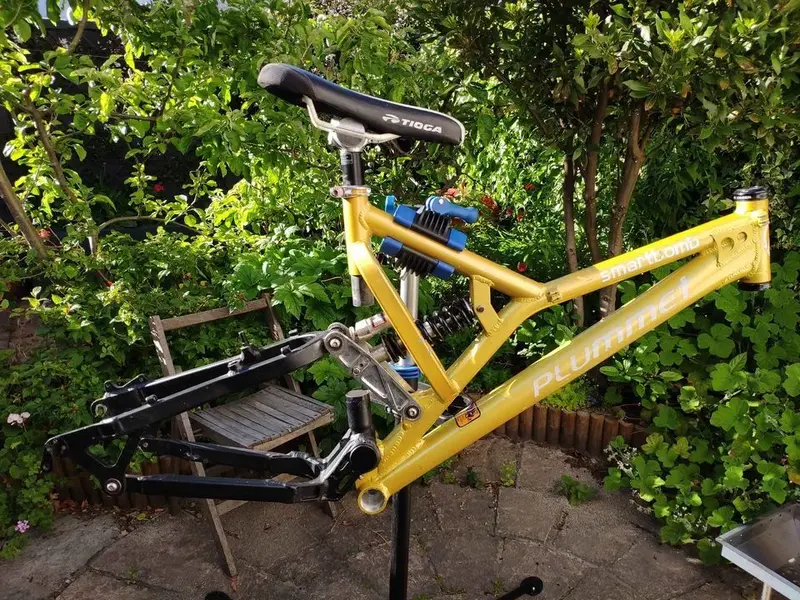

Trying to rack my brain to remember some of the old school bikes, there were quite a few, Muddy Fox, mentioned above had a nice dh bike, the Ultimate, originaly in bright yellow, still have the catalogue somewhere...

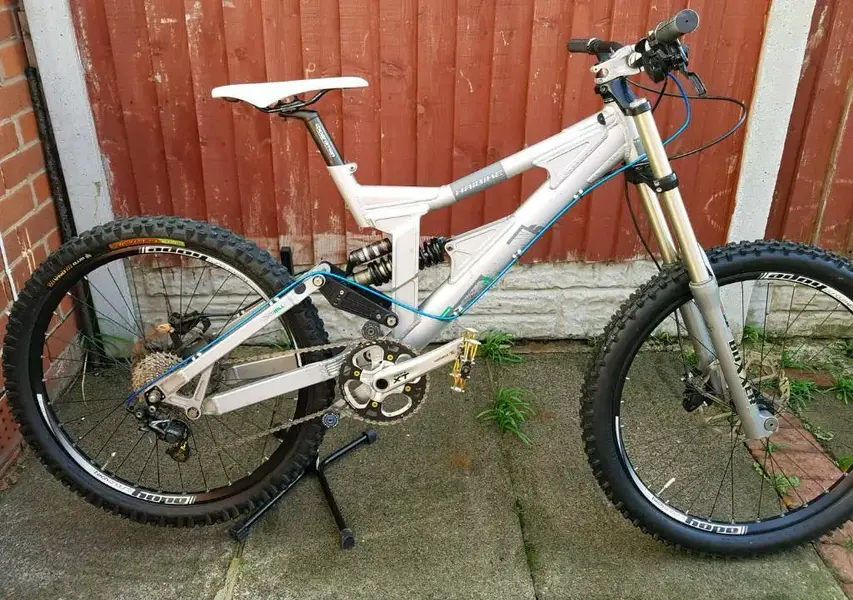

A couple of of more modern bikes...



And only the later Intense M1's had the active design, the first version had the rear axle on the chainstay.


Attachments

  • haibikedh.JPG
    147.6 KB · Views: 42
  • chumbadh.jpg
    248.2 KB · Views: 42
  • mfdh.jpg
    58.8 KB · Views: 42

mk one

Old School GrandMaster
Retrobike Rider
BoTM Winner
Gold Trader
Kona Fan
Feedback
View

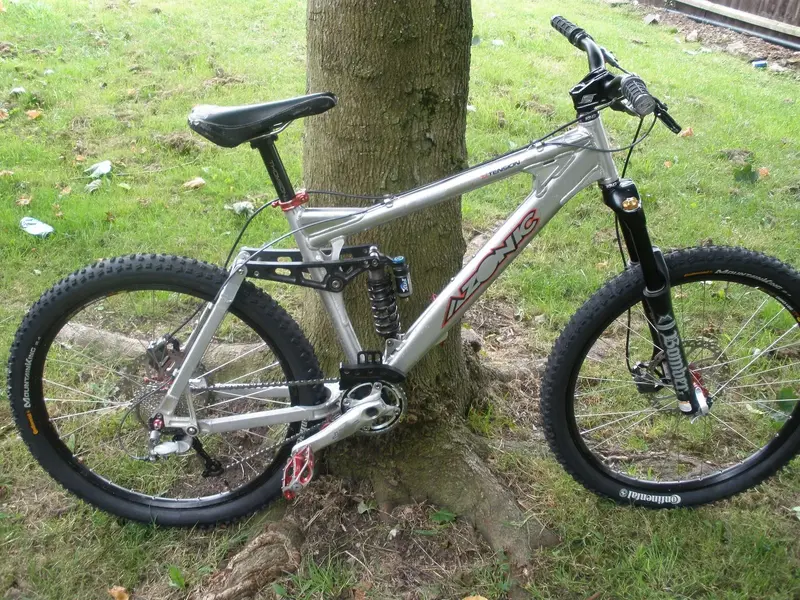

Azonic, already mentioned, they did quite a few including the awesome Recoil...


Attachments

  • azonicdh.jpg
    136.3 KB · Views: 39

mk one

Old School GrandMaster
Retrobike Rider
BoTM Winner
Gold Trader
Kona Fan
Feedback
View

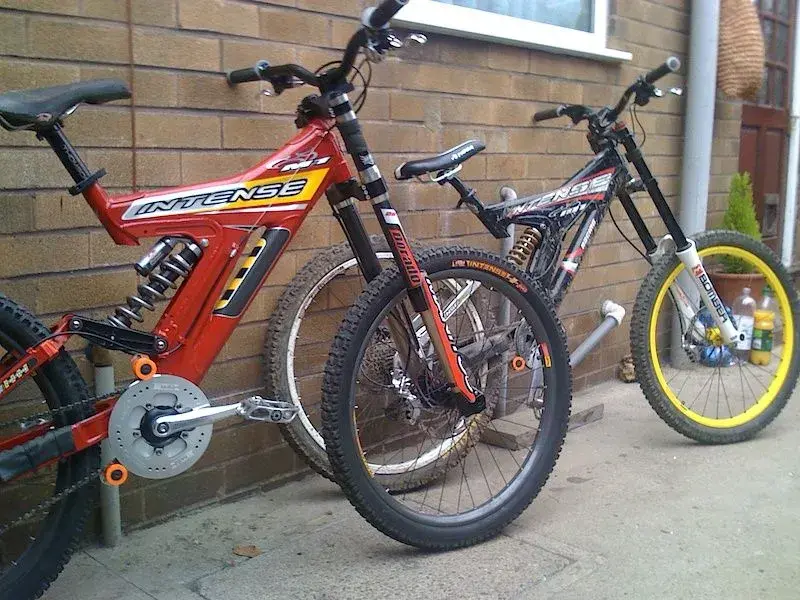

A couple of mine...intense.jpg

Last edited:
