I'm wanting to know more about the tube sets that Easton had BITD but I'm obviously using the wrong key words as I'm not getting many hits. They supplied hundreds of different companies, so there must be some data available! Can someone point me in the right direction?


danson67

Retrobike Rider
Feedback
View
Easton did produce an excellent series of at least 11 R&D report/articles about frames and aluminium.
I have been able to hoover up most of them over the years...attached.

All the best,


Attachments

  • EASTON RD-03-Scandium.pdf
    182.3 KB · Views: 1
  • EASTON RD-11-Tube-Shapes.pdf
    388.9 KB · Views: 1
  • EASTON R&D Al-Alloys.pdf
    129.9 KB · Views: 1
  • R&D-05-Carbon.pdf
    162.1 KB · Views: 0
  • R&D-06-2Bolts.pdf
    175 KB · Views: 0
  • R&D-02 Composites.pdf
    234.4 KB · Views: 0
  • R&D-04-Strength.pdf
    86.5 KB · Views: 0
Last edited:

Swede

Gold Trader
Feedback
View

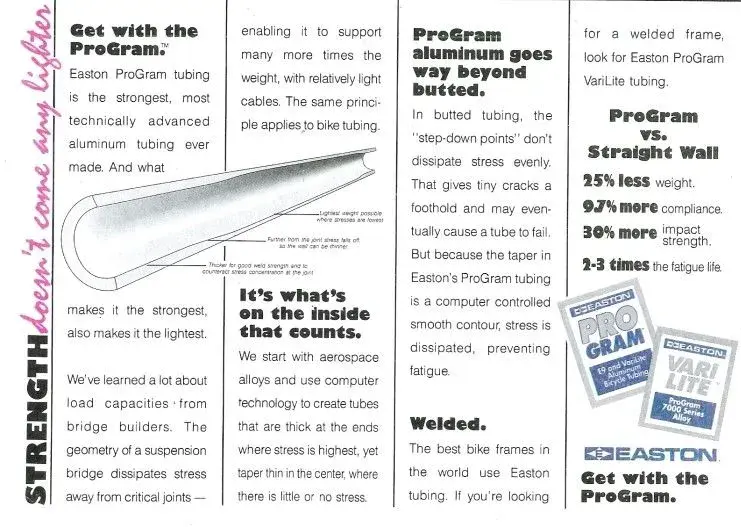

Brilliant, thank you. About the best I could find was in an Alpinestars brochure from 1992 which talks about their ProGram tubing; E9 & Vari Lite but it's light on detail.

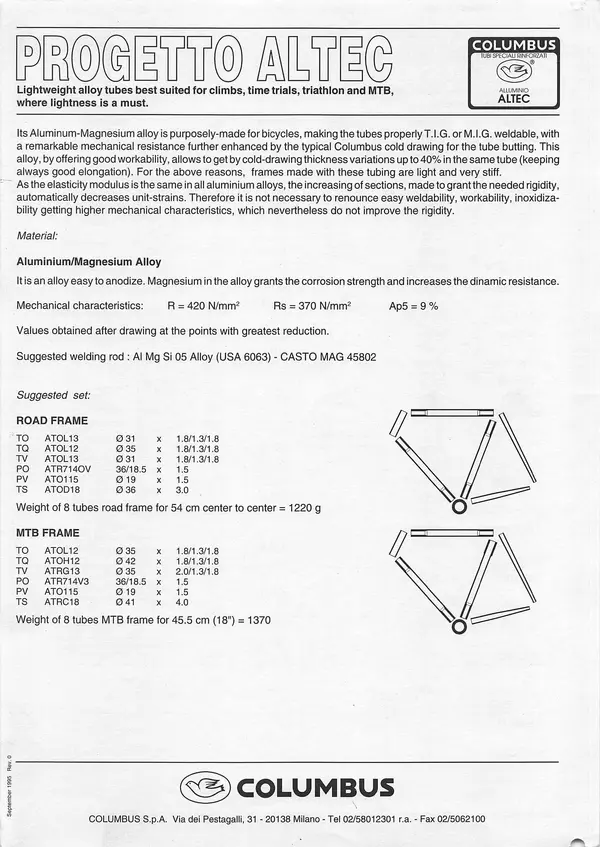

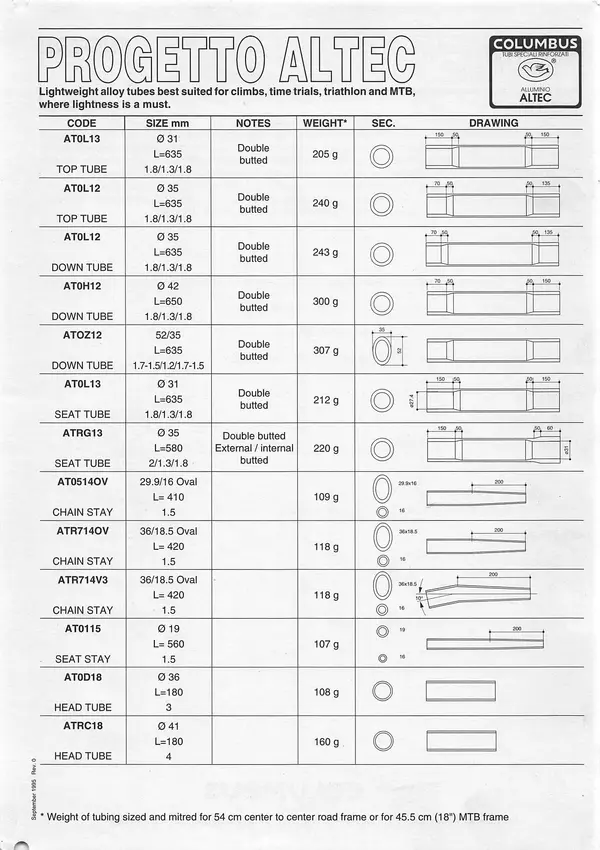

I don't suppose you know anything about Columbus Altec OR?


Attachments

  • scan0010.jpg
    149.9 KB · Views: 2

danson67

Retrobike Rider
Feedback
View

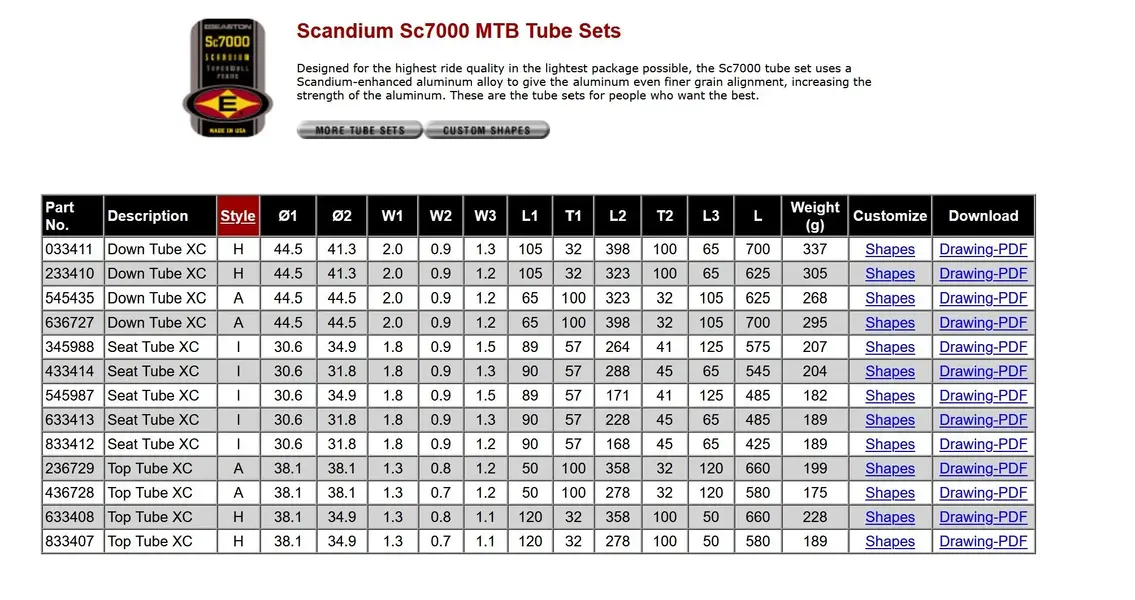

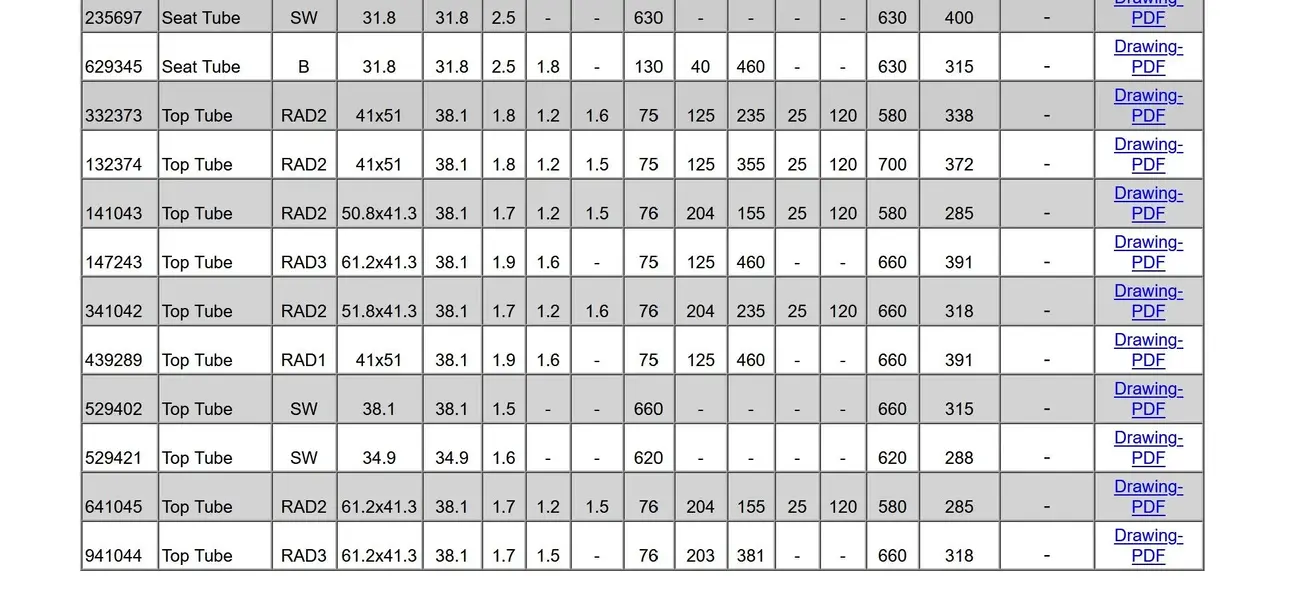

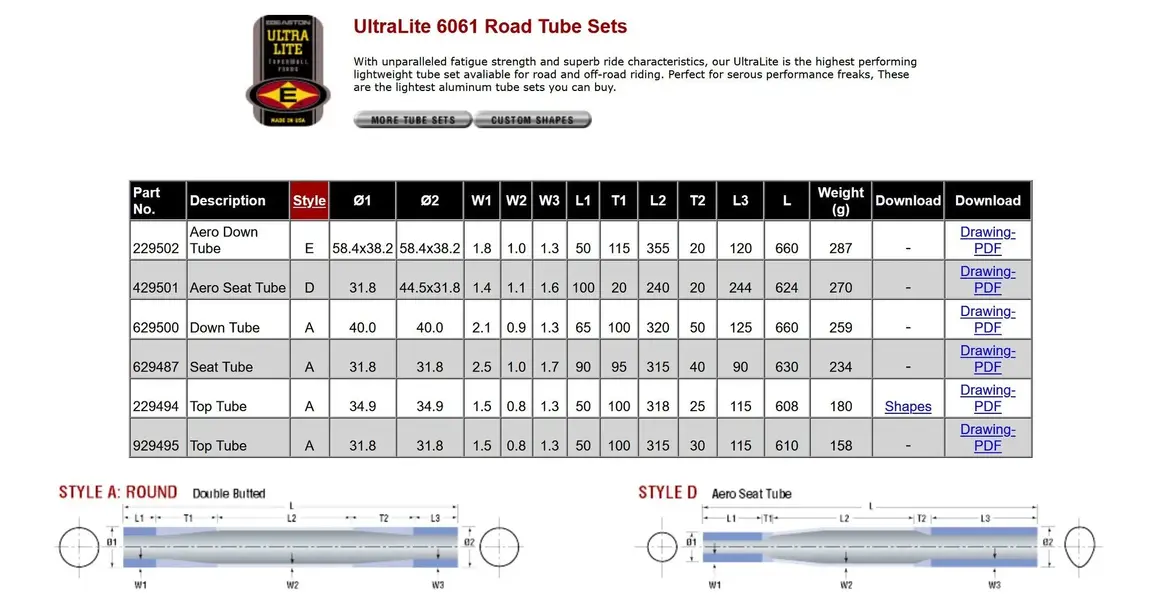

So onto the tubesets:
Easton 7005 MTB came in UltraLite, Elite and FS specs.
There is one called Elan, but I've never been able to pin that spec down. I suspect it was lower spec than Elite, for Taiwan production.

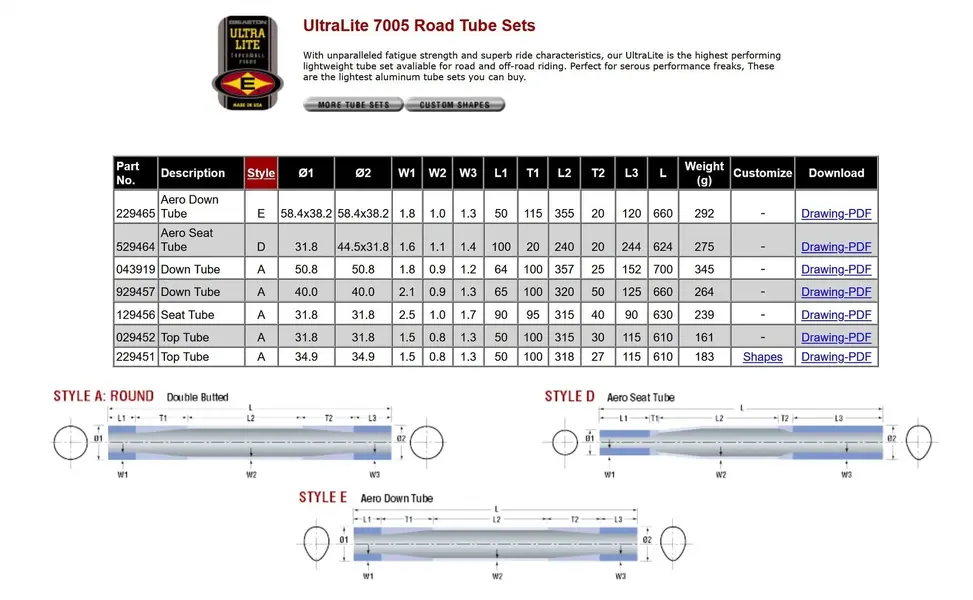

UltraLite 7005 MTB.jpg
Elite 7005 MTB.jpg

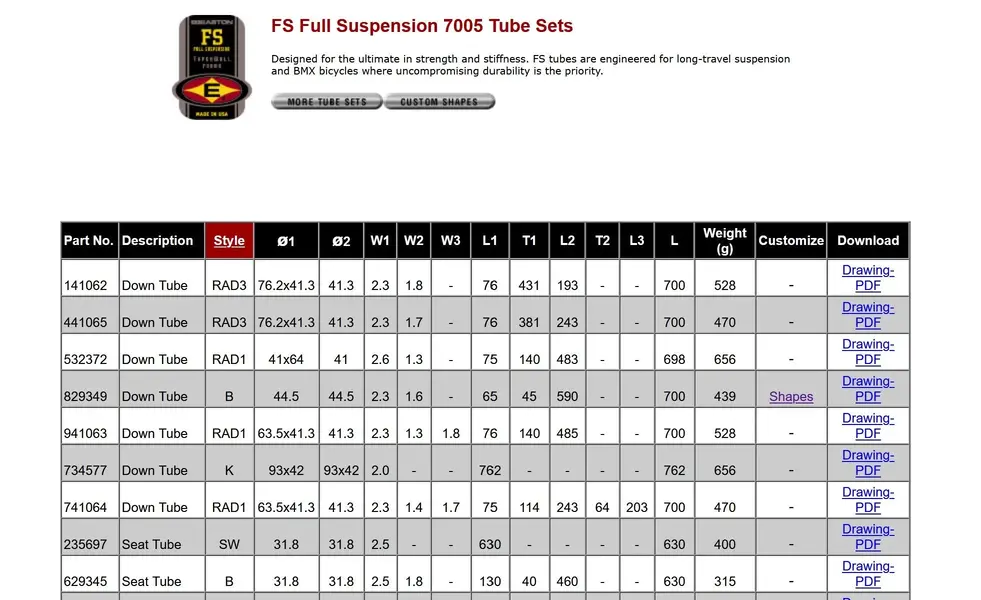

FS 1.jpg
FS 2.jpgFS 3.jpg
All the best,

Last edited:

danson67

Retrobike Rider
Feedback
View
Fabrication instructions:


Attachments

  • fab_instructions-7005_6061.pdf
    201.6 KB · Views: 0
  • fab_instructions-sc.pdf
    570.4 KB · Views: 0
