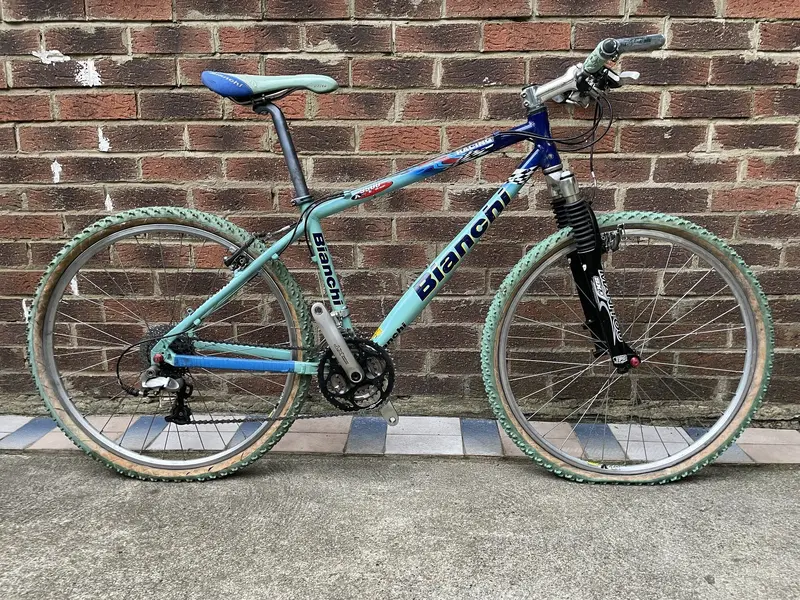

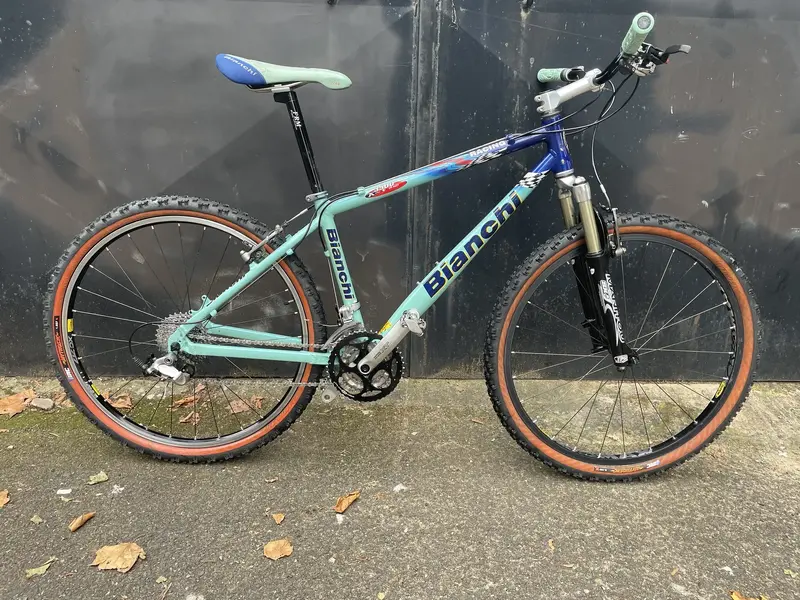

This is my Bianchi 3500 Asset from 2000
I first saw this in the 2000 catalogue and really liked it as

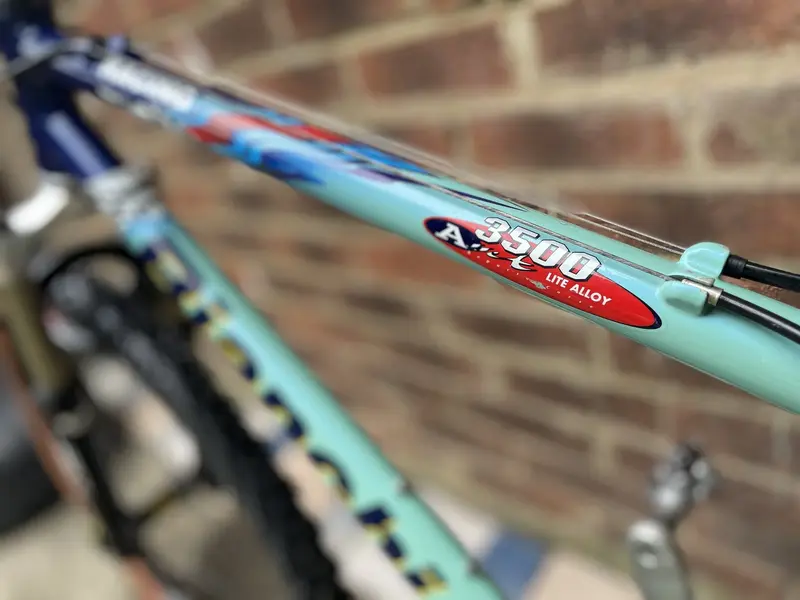

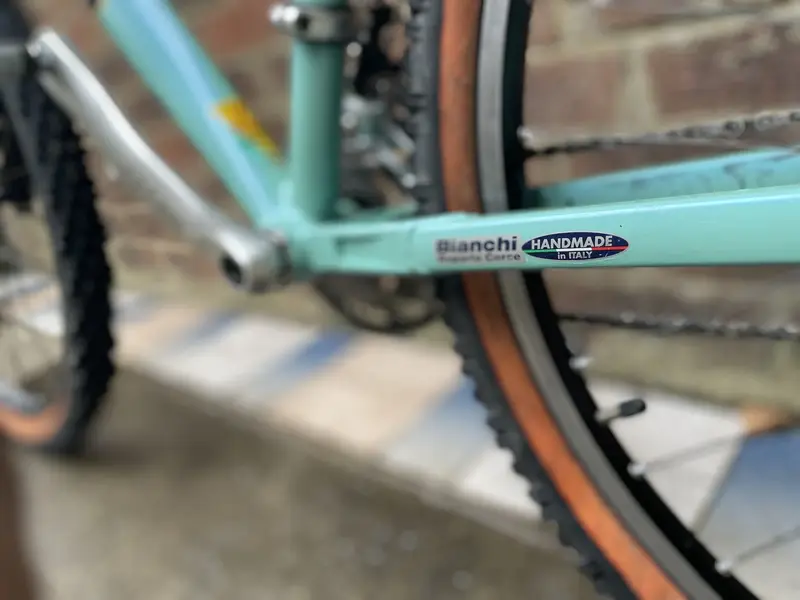

It’s higher end model with an Italian made double butted alloy frame - I have also had my eye on the top end Tycoon with the triple Butted Reparto Corse frame. There’s one of these from the ‘02 catalogue on eBay.

I managed to bag this one which is all original. Thanks to Niall it was picked up from near Woking and eventually found its way to me.
Including the Celeste Bianchi Flite Ti Gel saddle and. Elevate NTH grips. Only the XLite bar ends and USE SpinStix are extra.

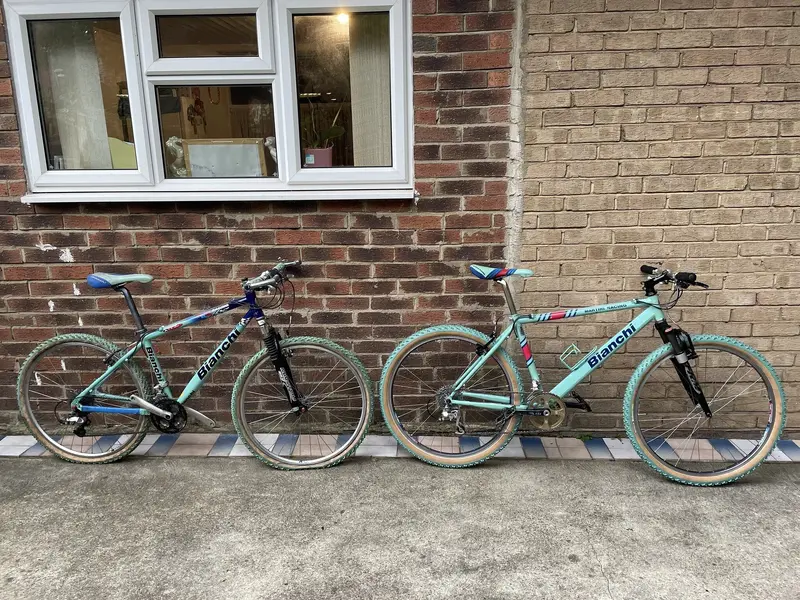

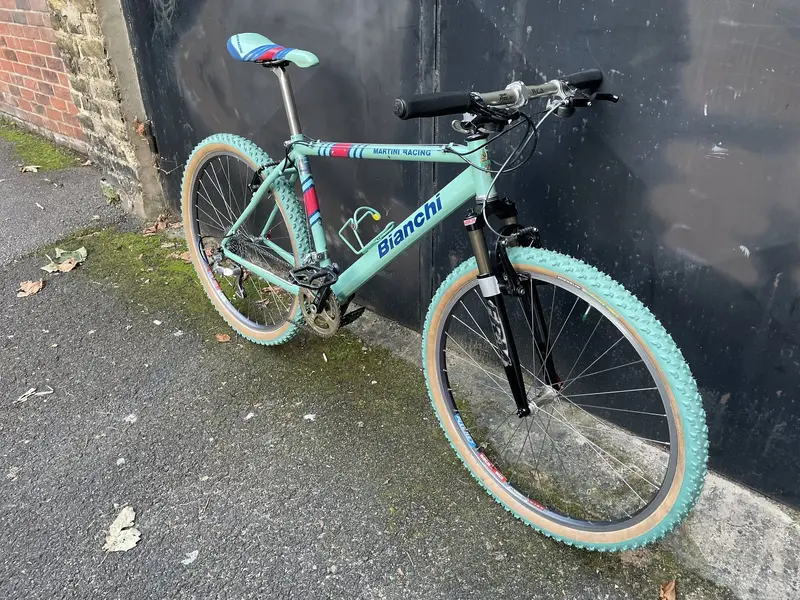

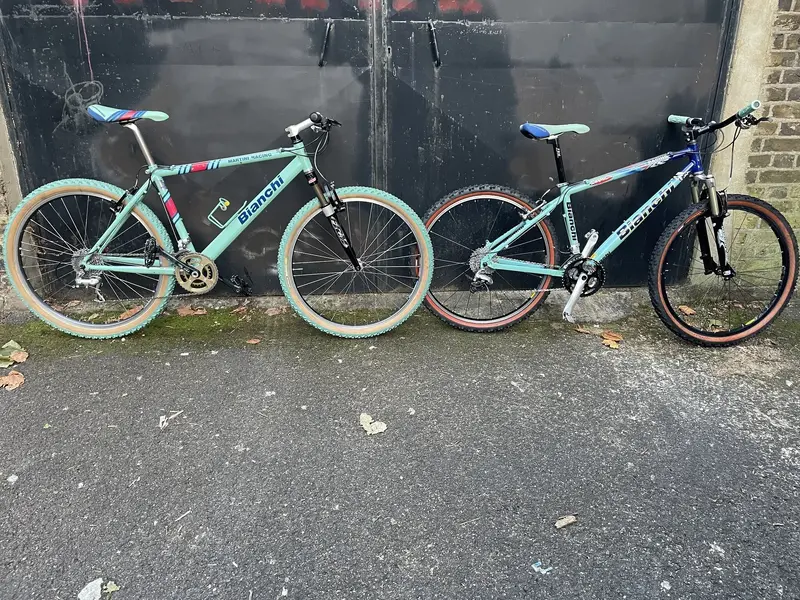

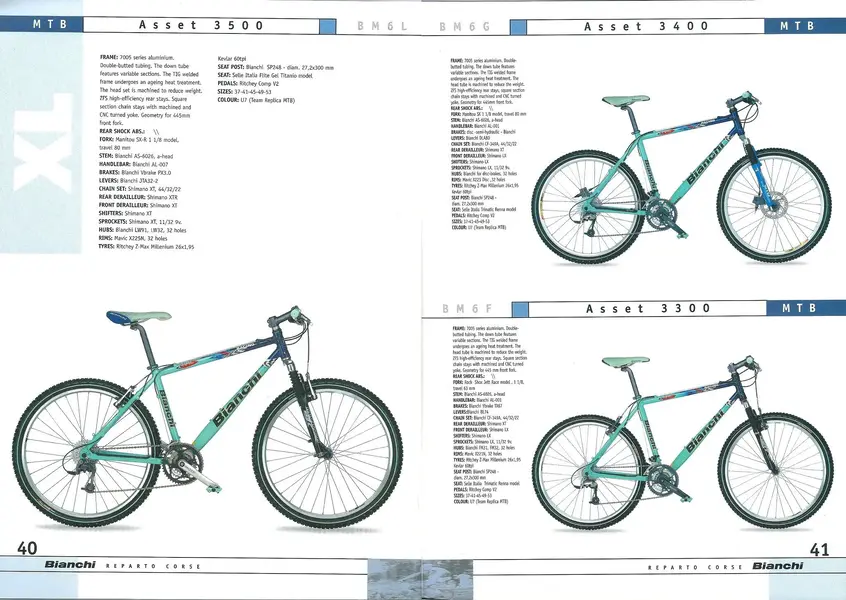

It’s small and quite light. Unfortunately the tyres are shot but here’s some pics of the catalogue spec and next to my Bianchi Martini Racing Ti Megatube (1997).
It’s slightly different from the catalogue spec in that this has Wildgrippers and XT M75x rear mech - but everything else is the same.
It won’t be staying original though - I’ve collected a selection of parts which were for the Raleigh RSP 600 but which I now
No longer have.

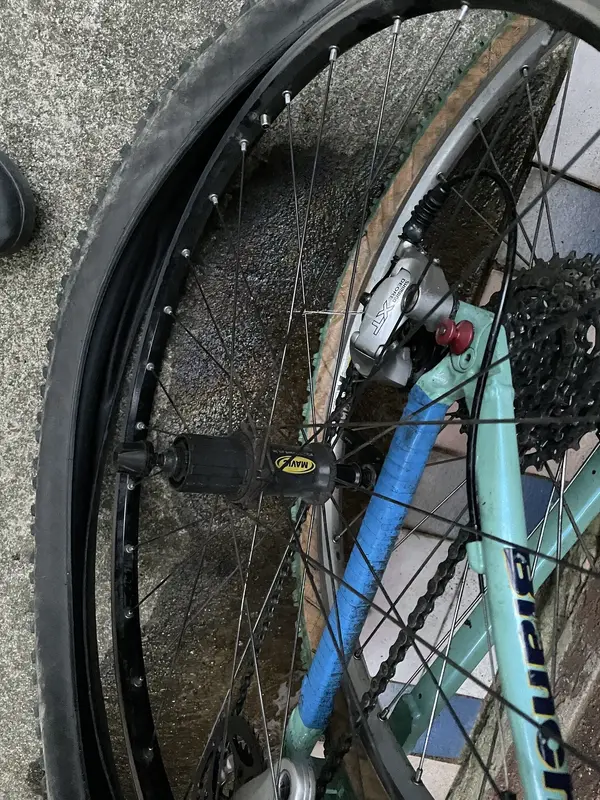

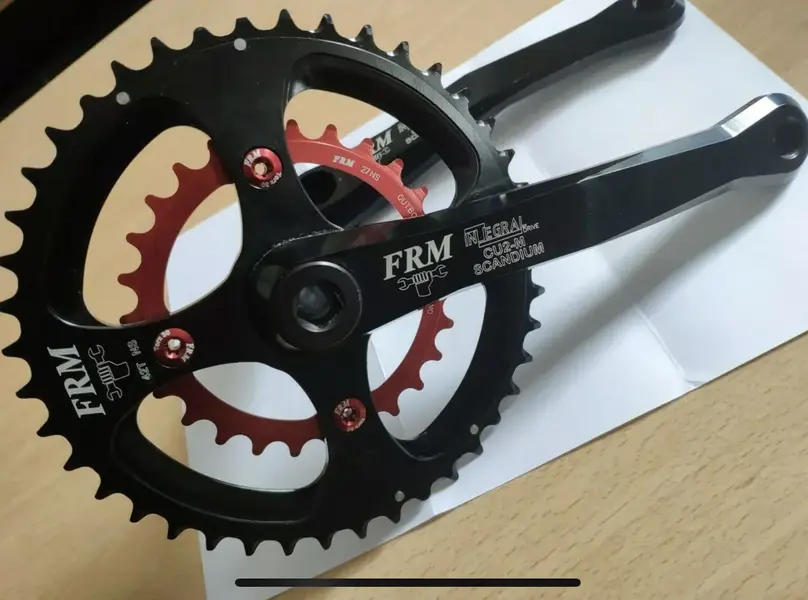

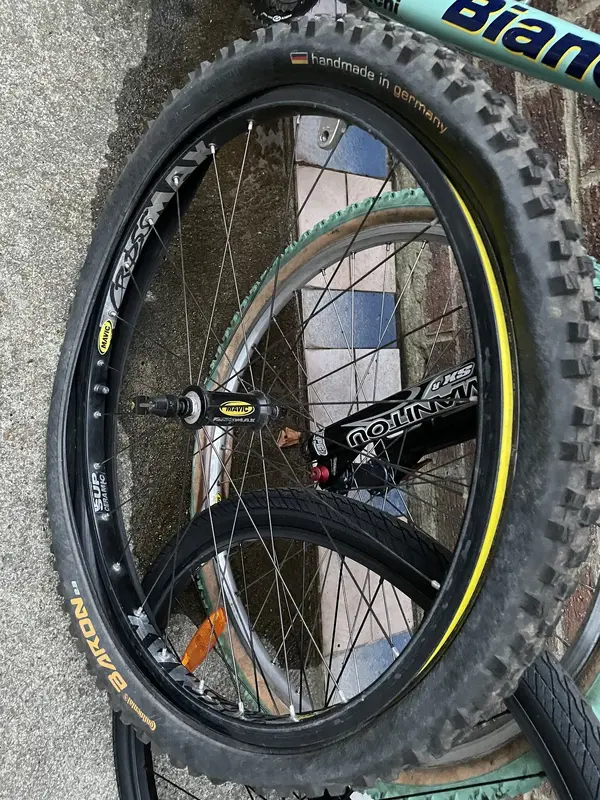

It’ll be having a makeover with Mavic Crossmax v1, avid Ti/Mag, FRM Seatpost and stem and FRM CU2 Evo Scandium chainset. IRC Mythos XC amber wall tyres.
I’ll be updating this tomorrow when I fit some more stuff and see how it fares.

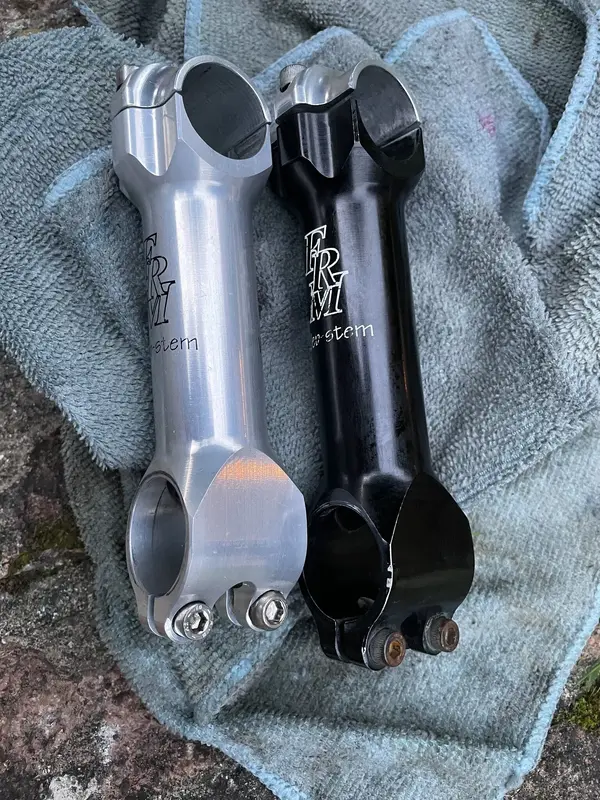

I think I’ll be going to go for the silver stem rather than black one.


Attachments

  • 1E87AC9C-7AAA-4E2A-B239-E99256D5F416.jpeg
    503.5 KB · Views: 59
  • EB2EC9B2-D1B6-4B36-8582-427ECFA9B4D7.jpeg
    1.2 MB · Views: 58
  • 999A0A01-F411-4AC2-A4A8-45A4FD57B6F0.jpeg
    1 MB · Views: 52
  • 640E780B-00CA-41E7-A8E6-7FCA1492A822.jpeg
    736.1 KB · Views: 34
  • 5611CBA8-C8B2-47E9-84C6-23B8110FEF66.jpeg
    859.2 KB · Views: 27
  • 0C6B8D2B-CA3B-4568-AB52-6071AEBA4660.jpeg
    801.5 KB · Views: 24
  • 45066C58-7807-4CD7-9DD2-86F05B31780C.jpeg
    1 MB · Views: 31
  • C8E42AA7-8552-489A-AA12-73260F013C03.jpeg
    902.1 KB · Views: 40
Last edited:

ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View

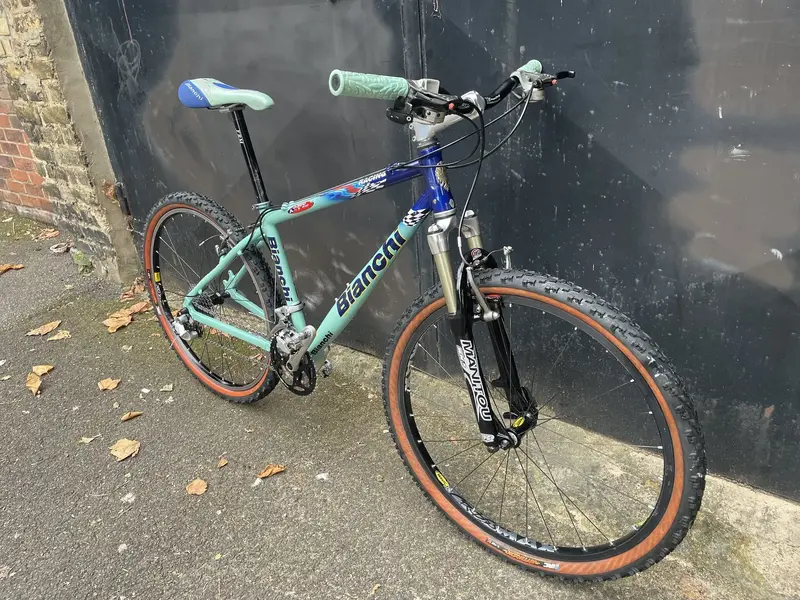

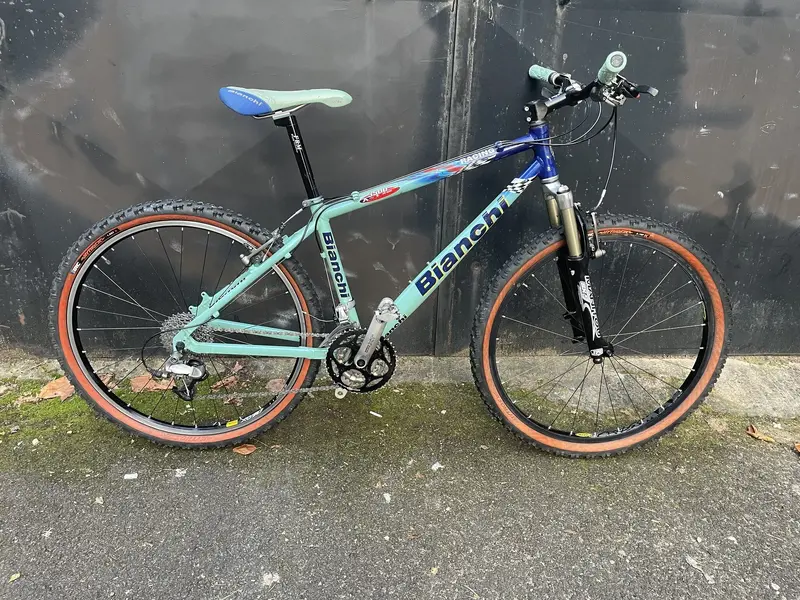

Here we are:

im

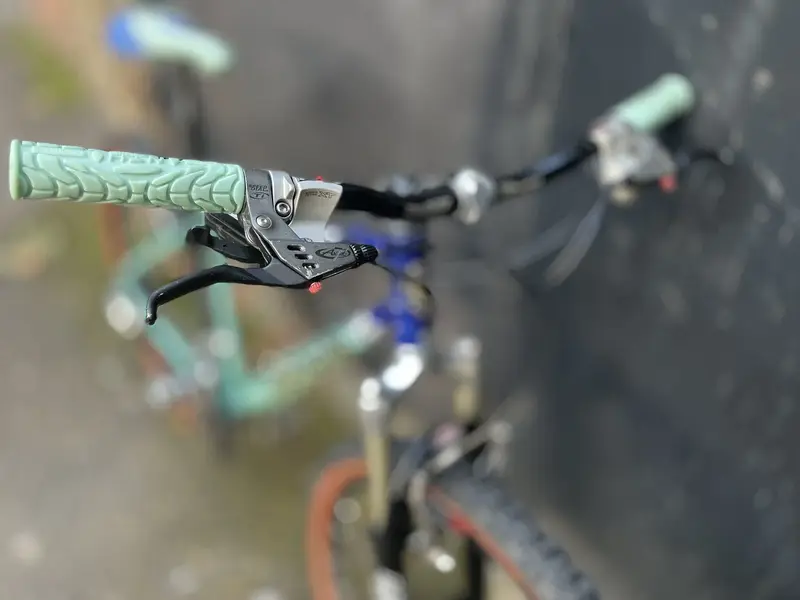

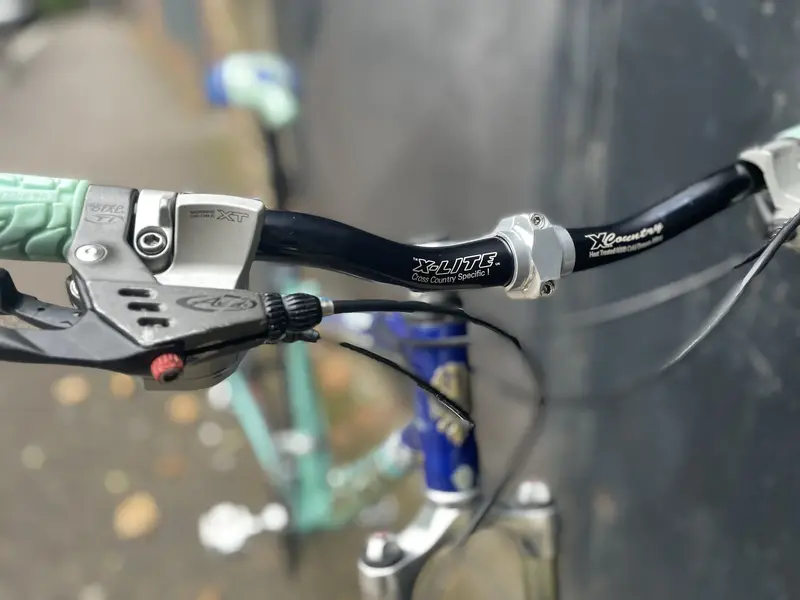

Not happy with the riser bars -this bike is for riding (I dont want to ride my precious martini racing one much) they’re extremely comfy in riding position but I think I need a shorter black stem. I’m pondering whether to swap this silver stem for the short 90mm one on my Martini racing


Attachments

  • 6D909851-BBC7-4FE2-A4E6-80D728BAE36E.jpeg
    195.9 KB · Views: 13
  • 88B5946F-E3C9-44E1-A4D8-8B79B703185D.jpeg
    252.7 KB · Views: 13
  • 1A7F61CB-A714-4776-A40C-A8B08B76931A.jpeg
    224.4 KB · Views: 13
  • A2F76351-9FD3-40D2-BE49-863F2F9339C4.jpeg
    478.2 KB · Views: 12
  • 90A1AD3E-759B-4AD5-ACAF-C35958A856B9.jpeg
    309.3 KB · Views: 13
  • C2105948-88A8-4631-A822-0F5BB39151C5.jpeg
    341.2 KB · Views: 13
  • F7FE45D4-3A91-464A-9214-06574ABCBAF8.jpeg
    201.3 KB · Views: 13
  • 7BD88C43-8B49-4742-BC6E-B7EE4FC83382.jpeg
    278.9 KB · Views: 12
  • 0B77E120-7401-49FF-B601-7CFC5690F81B.jpeg
    213.6 KB · Views: 12
  • 399FF97D-CB6D-467F-9499-6490E67D7D1F.jpeg
    261.3 KB · Views: 13

ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View
One pic has it with original Bianchi flat bar and XLite bar ends


Attachments

  • 7ABCEB88-8F8F-4471-8C6D-A6474734B16B.jpeg
    843.4 KB · Views: 17
  • 80205A16-3DE1-46F3-8046-F560489608EB.jpeg
    847.7 KB · Views: 16
  • 8034C750-1550-457A-B709-115680674649.jpeg
    181 KB · Views: 15
  • 914E2A4B-09D0-47B4-86AF-011466C26B68.jpeg
    203.4 KB · Views: 14
  • 63891786-8FD5-4E8D-BC16-829D843109E9.jpeg
    1.2 MB · Views: 21

ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View
I don’t want to swap the stems around. I’ll have to try and source another short one. I’m not keen on the NTH Celeste grips and will see how some black grips look



ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View
Yes I’ve just bought some XLite XC straight bars (much the same finish as the ones currently fitted) which will, as you said, be more aesthetically pleasing than these strange horned things.


ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View

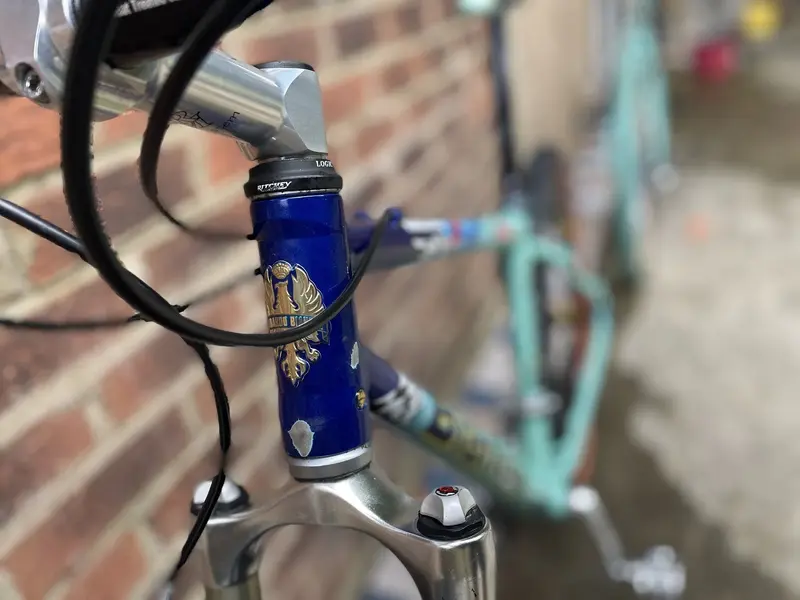

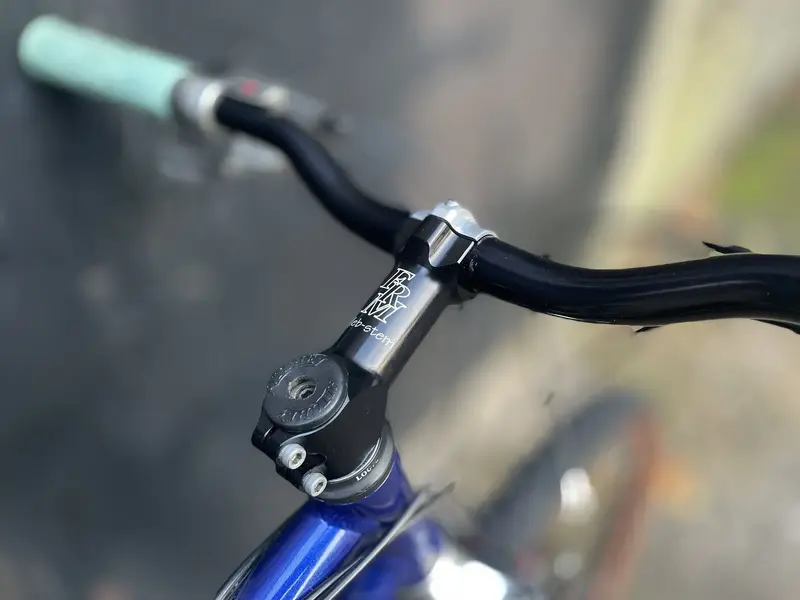

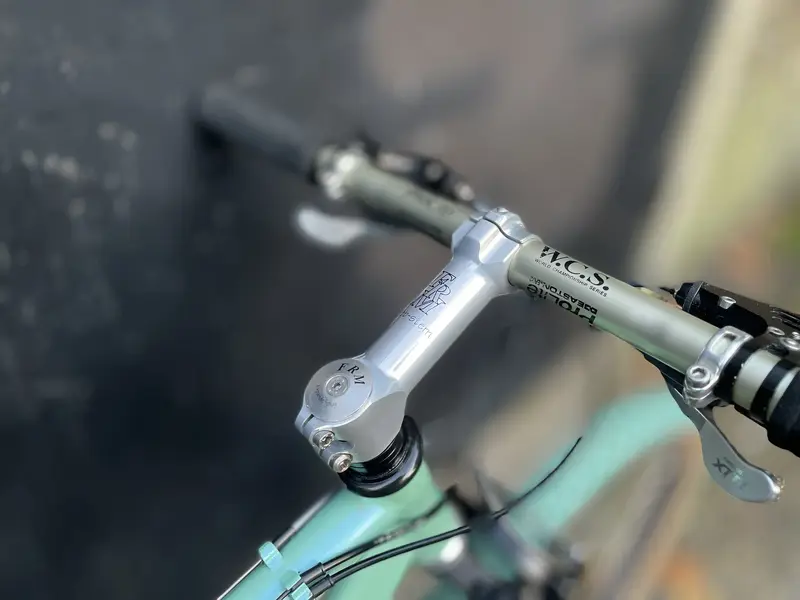

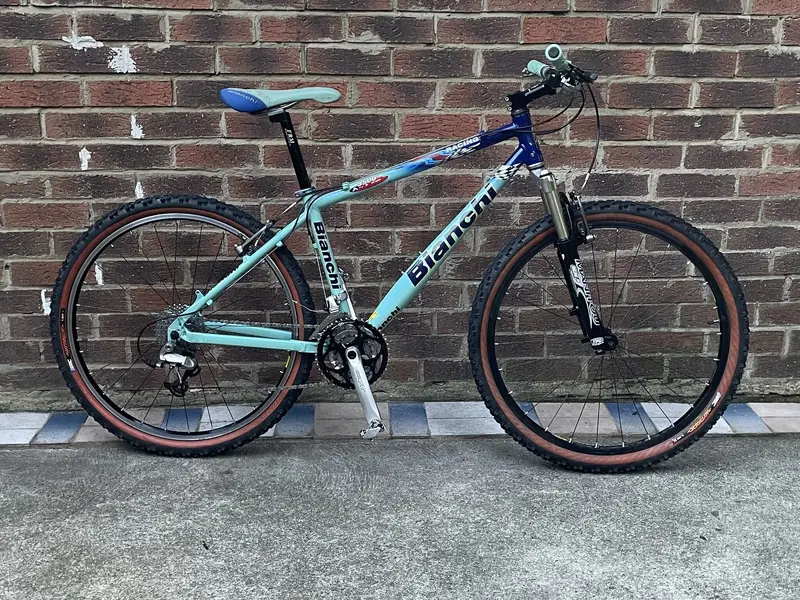

Well I swapped the stems around and things have improved somewhat.

move adjusted everything and it rides very nicely.

need some black grips though as the Celeste ones are overkill and look odd.


I have a flat bar on The way but I quite like the ride with these riser bars.

I didn’t want to but now looking at my Martini racing, the silver stem looks very nice indeed and hasn’t made much difference to my riding position. Though when I do find another 90mm FRM stem in black it’ll go back on the Martini


Attachments

  • 407C6A0C-98DE-4302-B0D3-A5C6815763A2.jpeg
    984.9 KB · Views: 13
  • 605CA31B-61A5-431B-B575-F50A7CE84B65.jpeg
    1.1 MB · Views: 8
  • ABFEACBB-2CD4-4BED-A219-59E88C95ADB0.jpeg
    183.1 KB · Views: 6
  • 337A0062-DED8-4F3B-A098-3F0CE4D386EA.jpeg
    166.1 KB · Views: 9
  • 83F96BF5-25E2-4976-B883-A78AE9950C50.jpeg
    987.1 KB · Views: 11
  • 4ED8563A-BCA4-4FF8-8DED-128D1EDDB3E4.jpeg
    951.5 KB · Views: 9
  • 49611992-0873-4E00-AF5D-4DC198D5FFBA.jpeg
    194.5 KB · Views: 8
  • D3309A3D-00B6-476D-88A7-2041AC36AC18.jpeg
    963.3 KB · Views: 12
  • A370C264-CC31-4362-BE8E-FDFC96482632.jpeg
    1.1 MB · Views: 13

ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View

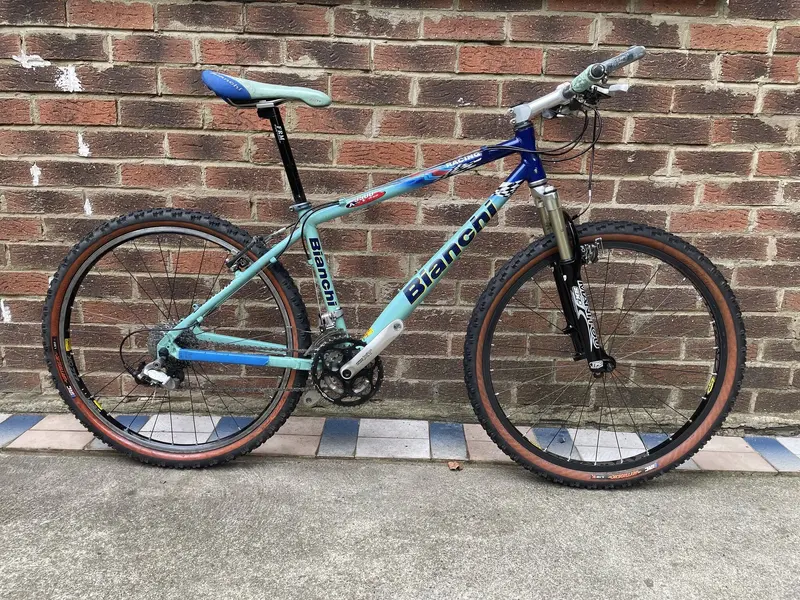

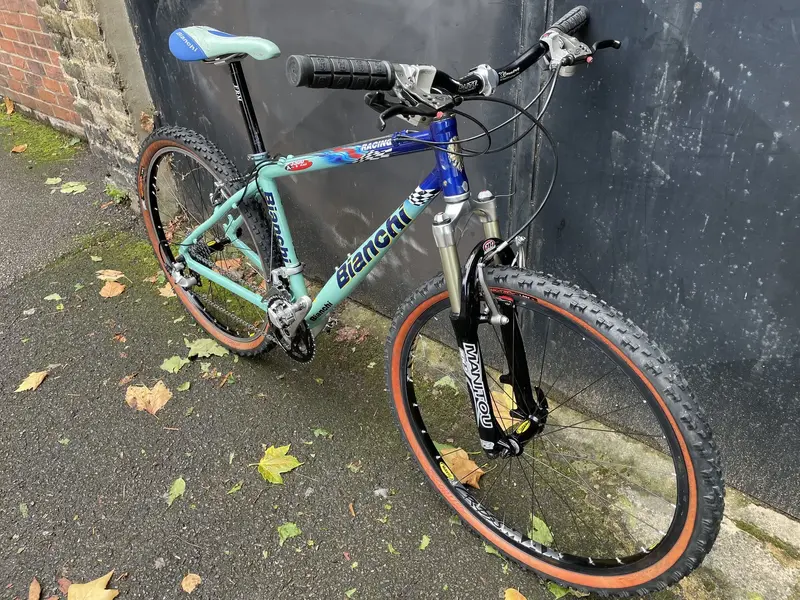

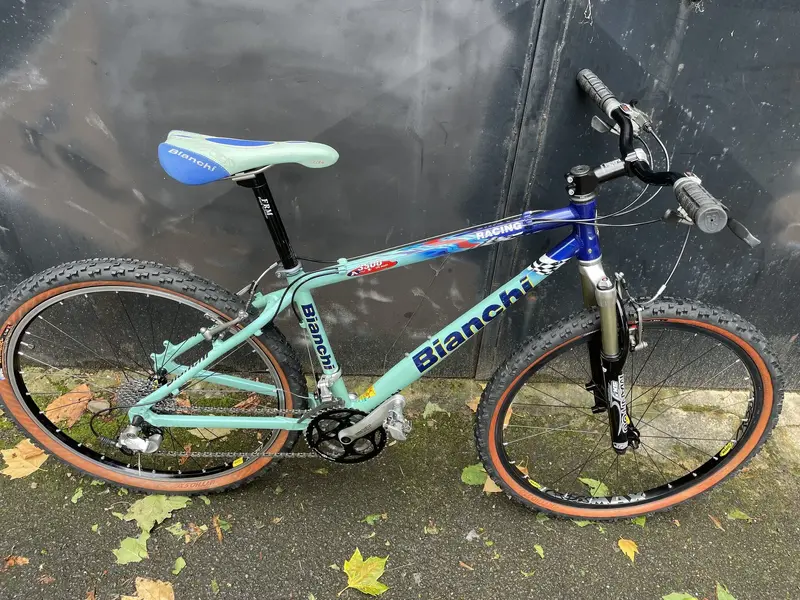

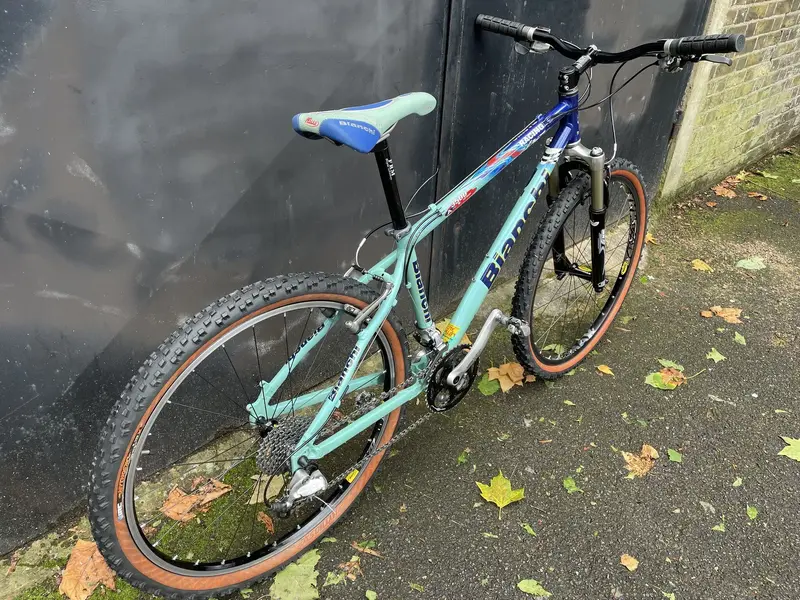

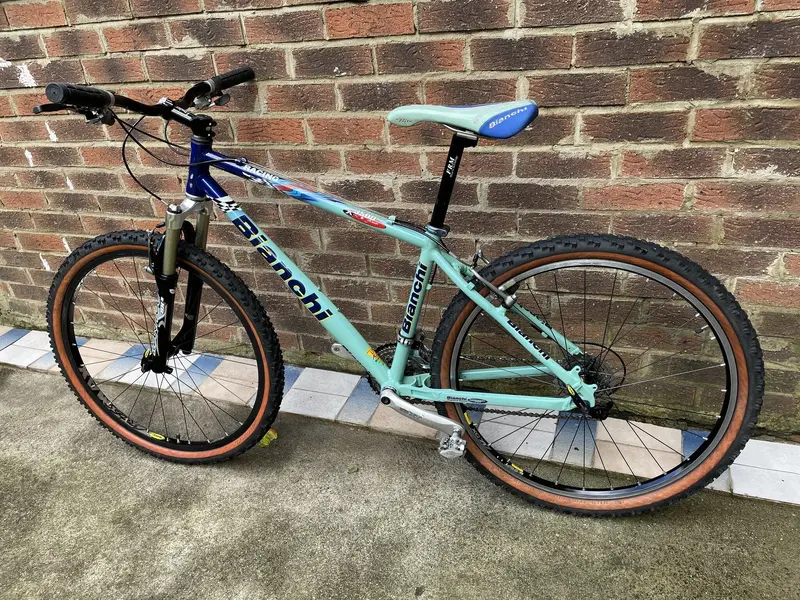

Brief update
finished witsome black Ritchey WCS grips.
It’s quite light too - not sure about the weight but surprisingly light and almost as light as my Bianchi Ti !!

this I like as a go to rider.


Attachments

  • 54A7FD2D-EF3D-48E1-847C-D40DD2C5601A.jpeg
    858.7 KB · Views: 28
  • 2D81DAC3-3284-44B7-9B1C-0FB59E851C97.jpeg
    987.1 KB · Views: 25
  • 581A02ED-6D63-4A4A-A517-BD21AB0194F8.jpeg
    932.4 KB · Views: 18
  • 9DA0D670-70C9-4EC6-8897-98557C00D004.jpeg
    1.2 MB · Views: 27
Last edited:

ibbz

Gold Trader
rBotM Winner
Karma King
Dyna-Tech Fan
Feedback
View
Frame - Bianchi XL Asset 3500 made in Italy

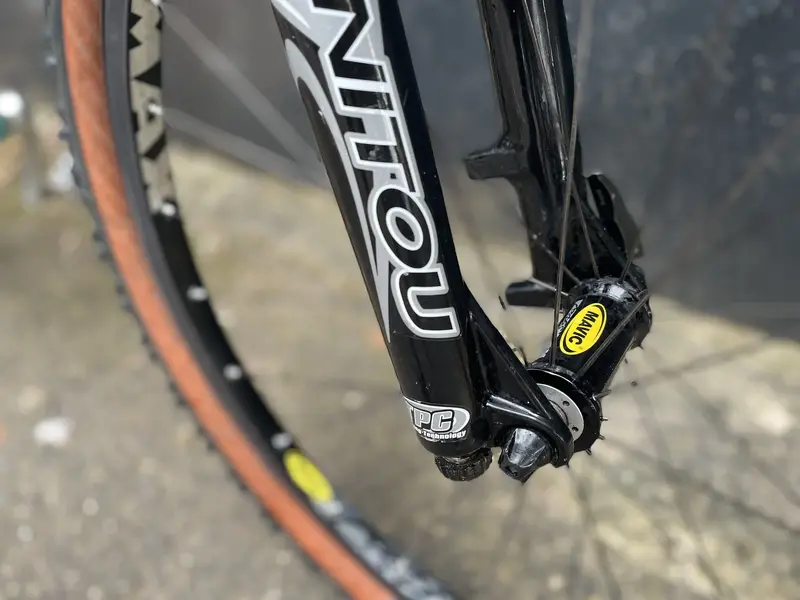

Forks - Manitou SX R
Wheels - Mavic Crossmax mk 1.
skewers - Mavic
Tyres - IRC Mythos XC
Cassette - XT M760
Bottom Bracket - shimano XT Hollowtech Octalink

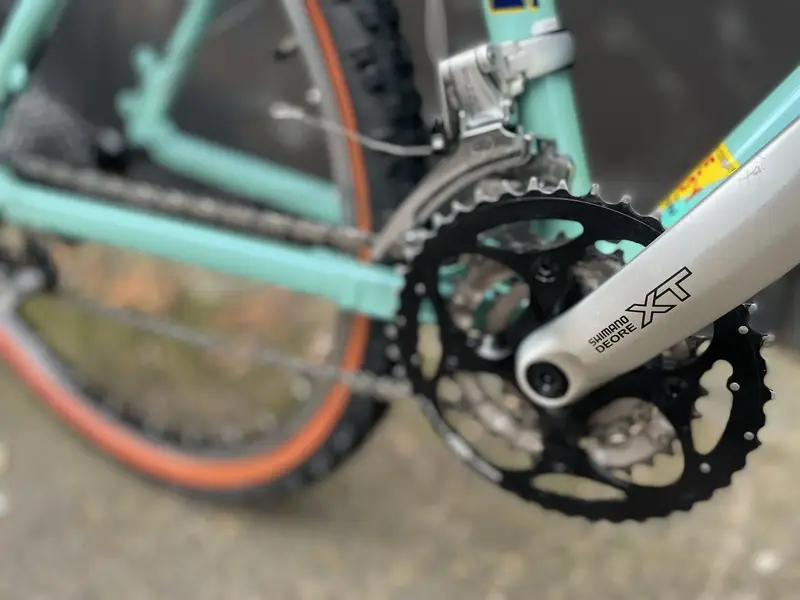

Cranks - Shimano XT M750 hollowtech
Pedals - Shimano

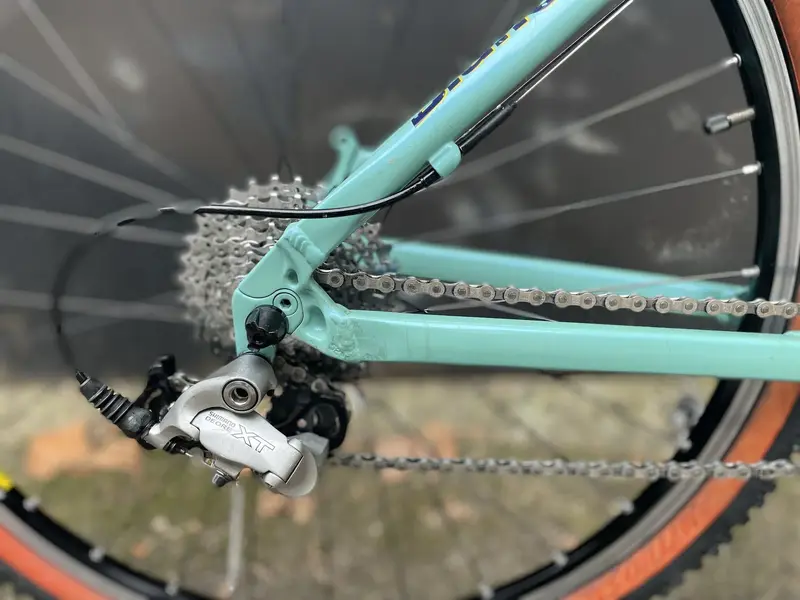

Rear Mech - Shimano XT M750

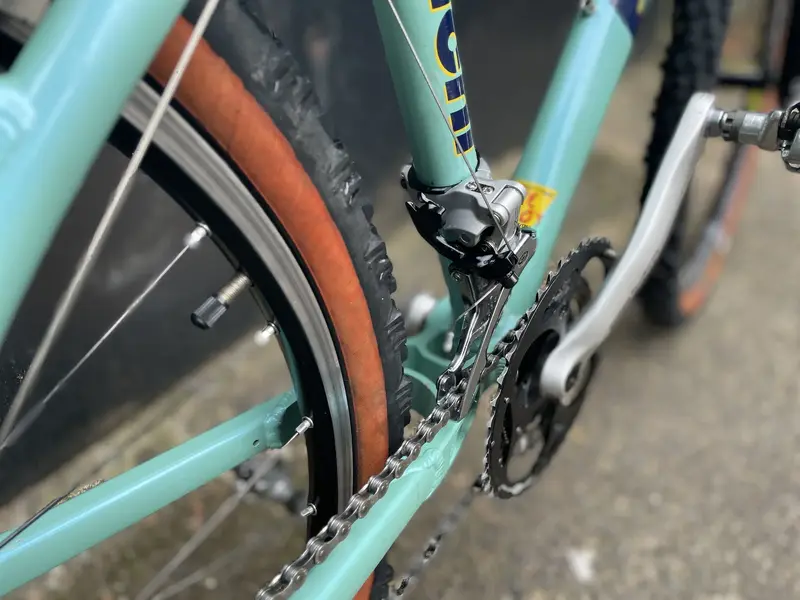

Front Mech - Shimano XT M750
Shifters - Shimano XT M750
Brake levers - Avid SD Ti
Brakes - Avid SD Mag
Stem - FRM Web stem
Bars - XLite XC

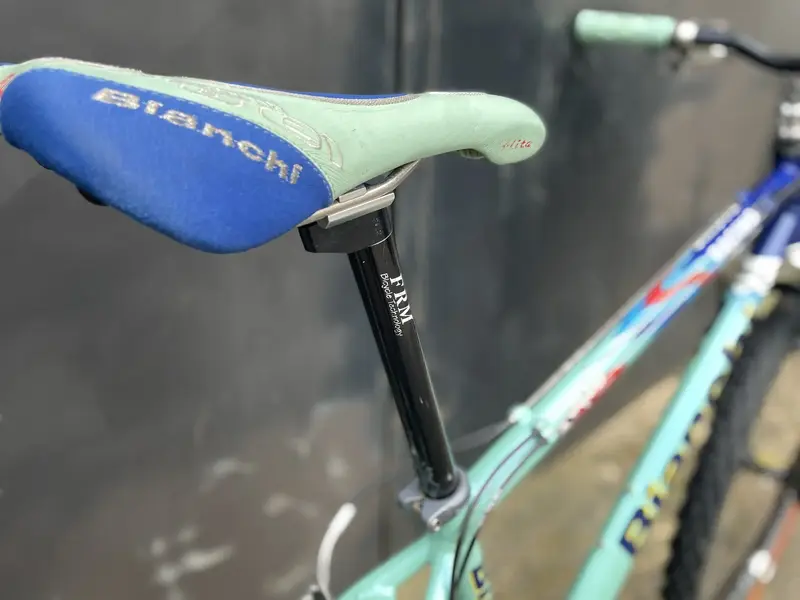

Seatpost - FRM
Headset - Ritchey Logic
Grips - Ritchey Logic
Saddle - Flite Ti Gel
