OK so a while ago I bought some lovely looking Altek levers & V-brakes, I’m sure I bought them on here, but can’t for the life of me remember who from and any searches I’ve done have drawn a blank…. :oops:

Anyway, I remember receiving them and thinking, “they’re lovely” then tucking them away for when needed. Foolishly not realy looking closly at them… :facepalm:
Now when I’ve got them out to clean up for my current build, I find them a bit confusing.

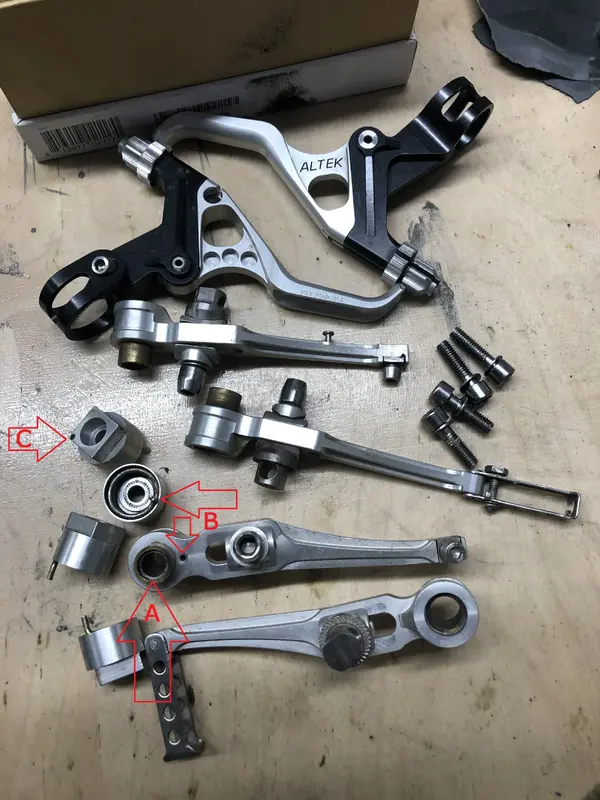

First they only have one machined sleeve (A) this is a good fit for the frame pegs, so I guess im going to have to get three replacements somehow..
But also, its not obvious exactly how they mount onto the pegs, the spring pin (B) locates into the main arm, but the other end of the spring housing (C) seems to be missing an anchor pin, also this component (C) doesn’t fit over the frame pin..

I’m confused… does anyone have an exploded schematic or some instructions?


Attachments

  • IMG_5840.jpg
    2.6 MB · Views: 734

oaklec

Senior Retro Guru
Feedback
View
they look like the caps where the mounting bolts go twist to set the spring tension like old bmx brakes. Google diacompe u brake


mattbrown

Retrobike Rider
Kona Fan
GT Fan
Feedback
View
Re:

It looks like when you tightened the bolts, you also need a spanner to set the spring tension, so they are equal on both sides.


mk one

Old School GrandMaster
Retrobike Rider
BoTM Winner
Gold Trader
Kona Fan
Feedback
View
Never used them but look like self tension arms, like dia compe and control tech v's.

Part B goes into hole B as you said, that leaves the reccess in part C to accept the bolt head, tighten down onto boss and the spring tension should be there, should just be a case of setting the arms in the right position prior to fully tight to get the desired spring tension, my theory based on f... all knowledge of the brake :)


Peachy!

Retrobike Rider
BoTM Winner
rBoTM Triple Crown
rBotM Winner
Claud Butler Fan
Feedback
View
Cheers guys... yes, that worked...

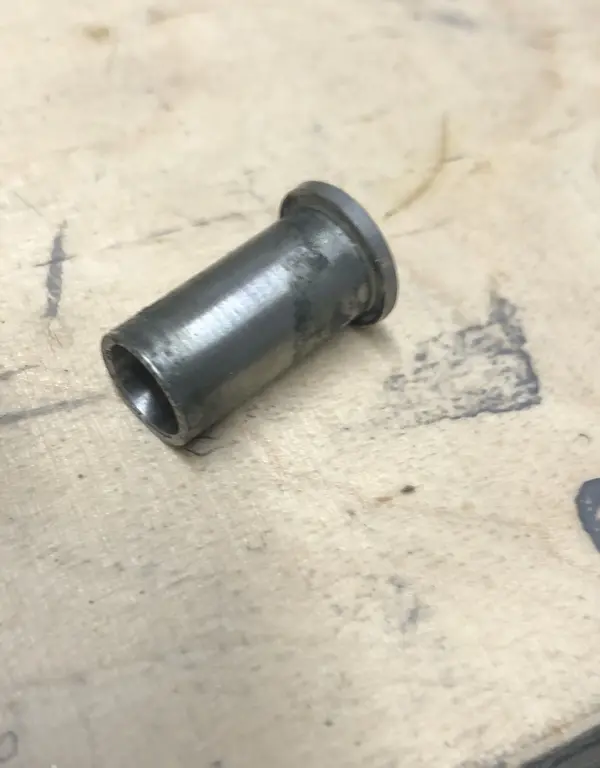

Just need to find/make three of these sleeves;



21mm long, main tube diameter 9.9mm internal dia 8mm.
Flange dia 12.75mm x 1.6mm thick


Attachments

  • IMG_5841.jpg
    2.2 MB · Views: 712
  • IMG_5842.jpg
    736.5 KB · Views: 712

Peachy!

Retrobike Rider
BoTM Winner
rBoTM Triple Crown
rBotM Winner
Claud Butler Fan
Feedback
View
Ok, all bearing producers I've used in the past have no "flanged sleeved bearings" this size in stock. :|

None of the small firms I know who have lathes will let me use there kit under current CV19 controls.. :(

That leaves me with only one option, (& the one I should have automatically gone with in the first place TBH)
Our man who can… Danson67 :D


Peachy!

Retrobike Rider
BoTM Winner
rBoTM Triple Crown
rBotM Winner
Claud Butler Fan
Feedback
View

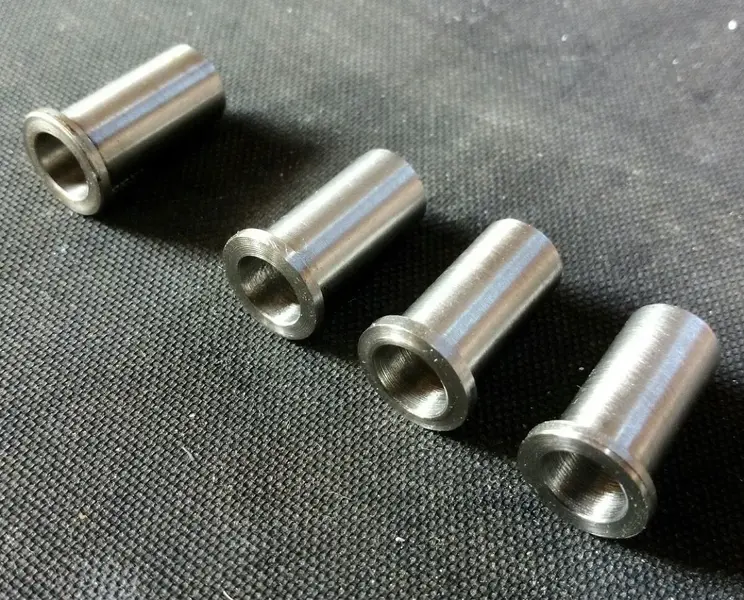

Super job by Danson67


Attachments

  • E71FA7BF-24AE-471E-B4B5-B87E993E5D64.jpeg
    491.1 KB · Views: 549

ronezwun

Retro Newbie
Re:

Beautiful brakes! have been looking for a silver set of these v-brakes for a long time - if you are ever interested in selling please let me know!


Peachy!

Retrobike Rider
BoTM Winner
rBoTM Triple Crown
rBotM Winner
Claud Butler Fan
Feedback
View
Re: Re:

ronezwun":uzicecjq said:
Beautiful brakes! have been looking for a silver set of these v-brakes for a long time - if you are ever interested in selling please let me know!

Cheers, but they’re stopping on my Titanius viewtopic.php?f=6&t=405760 until I’m dead :D
