1996 GT Zaskar LE- how would you build it?

ishaw

Gold Trader
GT Fan
Feedback
View
The limit screws won't change the fact you have 9 speed shifters and an 8sp cassette. The spacing between the cogs is different from 8-9 speed so you won't get very good shifting in various places on the rear.

If I'm wrong, someone will I'm sure be along to correct.

I don't see why you wouldn't just use a cassette that compliments the 9 speed set up the rest of the drive train is. It will be far easier and simpler.


ishaw

Gold Trader
GT Fan
Feedback
View
And yes, a 9sp cassette will fit on m950 hubs. Shimano didn't change the hubs when they introduced m951/2/3.

Sram 9sp will fit shimano freehubs just fine.


Stump_Jumper

Dirt Disciple
Good evening all,

There have been some developments with this build over the last couple of weeks. I’ve managed to source a number of parts for it, namely:
Flite Titanium saddle (awaits delivery)

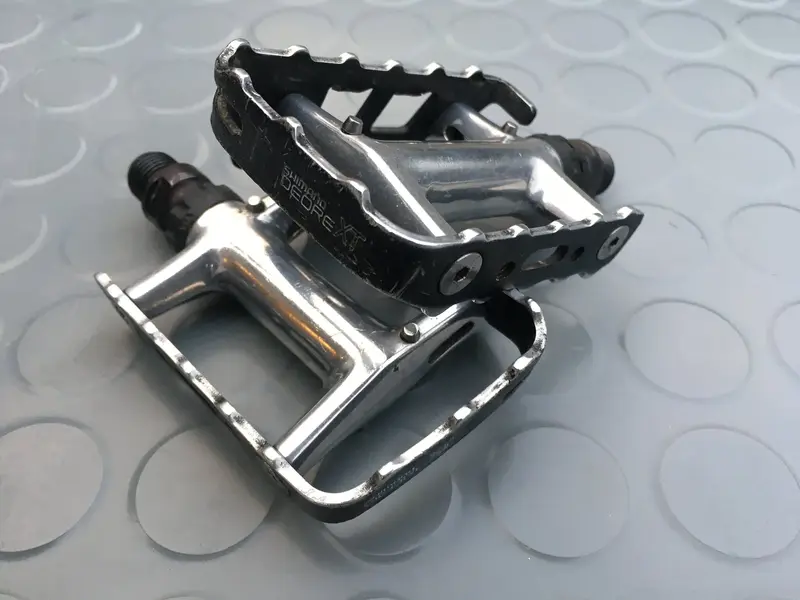

XT caged pedals
Re issue Panaracer Smoke/Dart tan walls (awaits delivery)

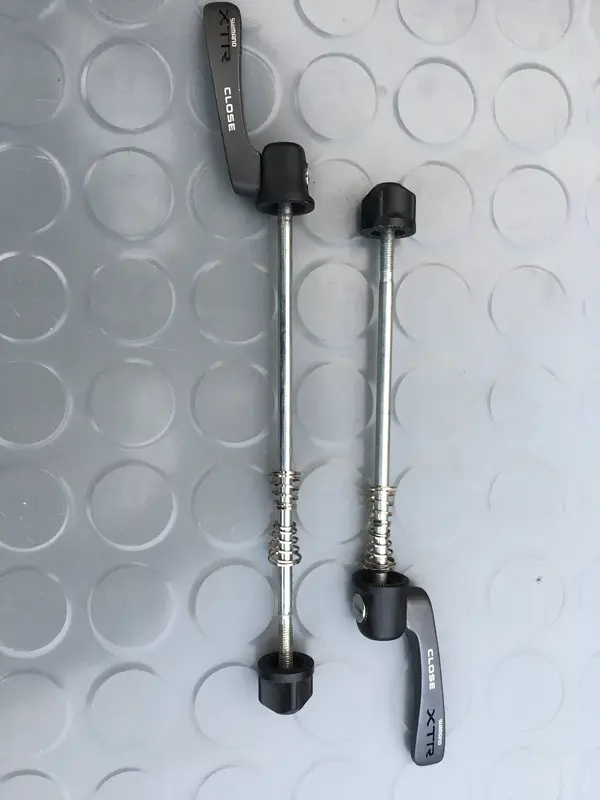

M950 skewers

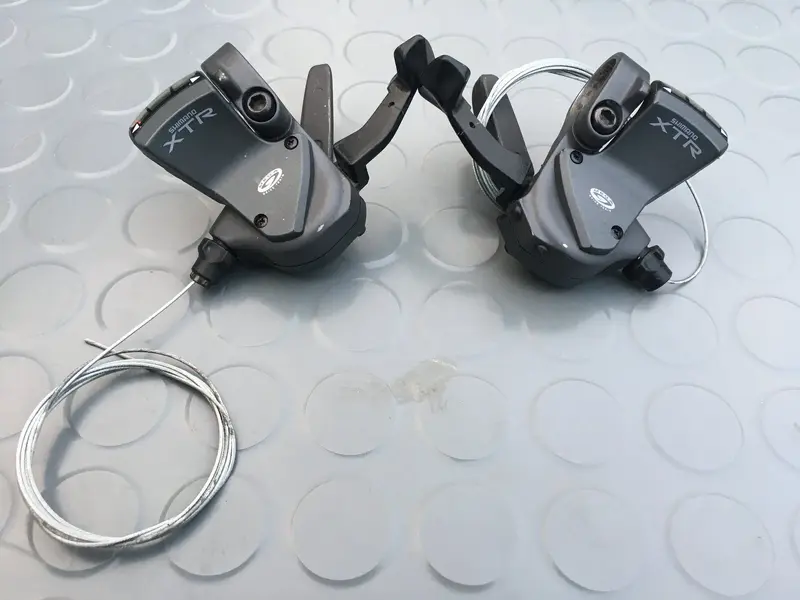

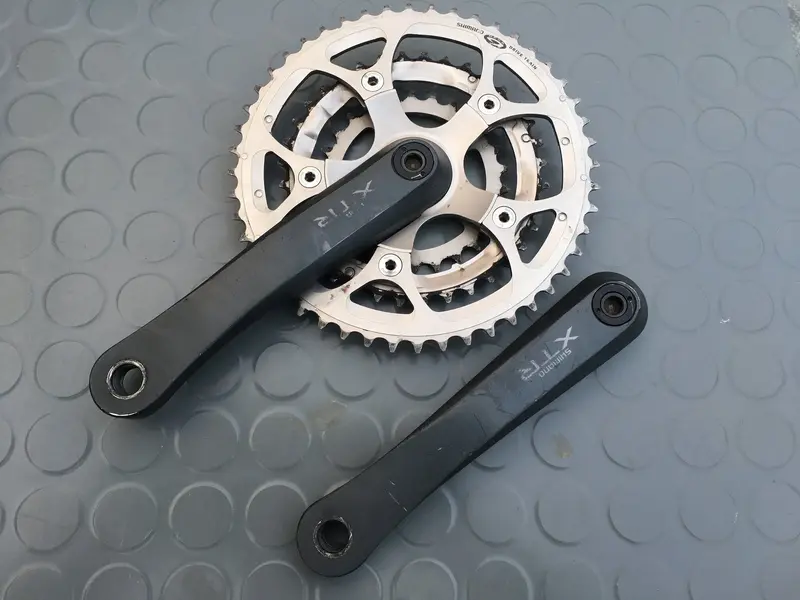

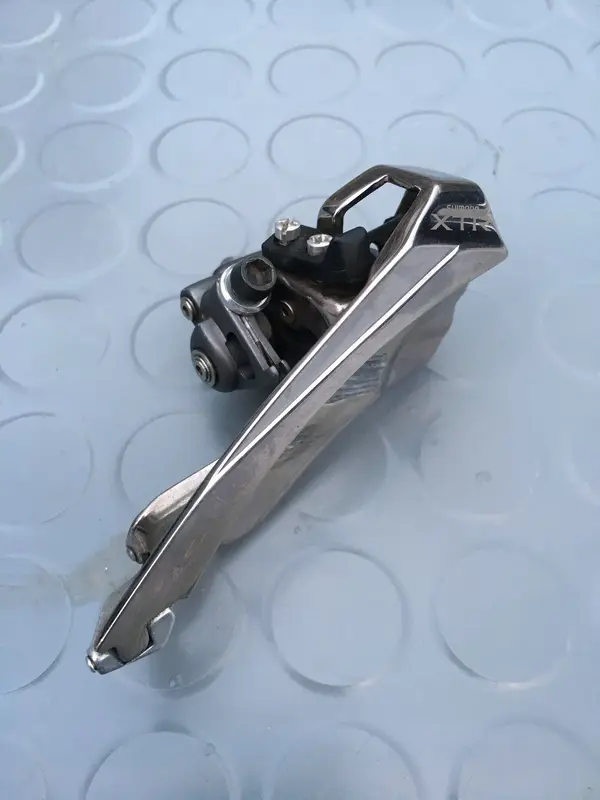

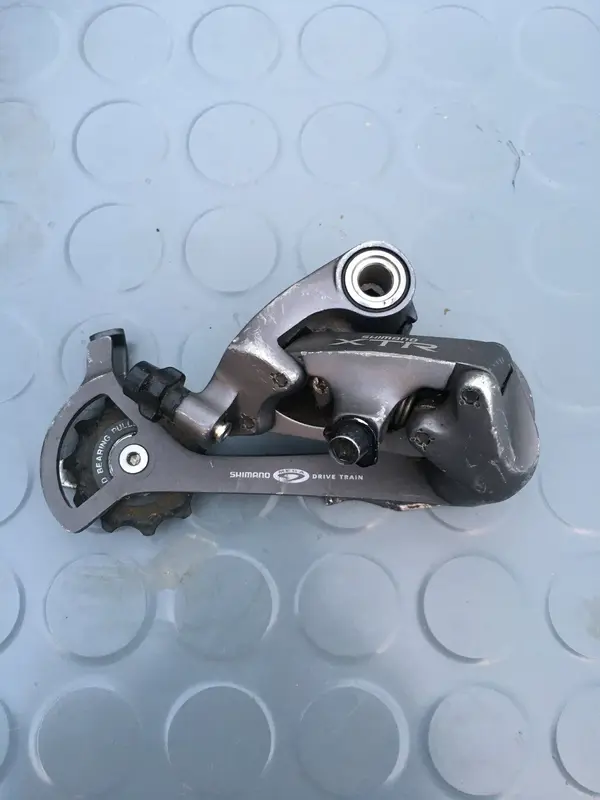

M952 chainset, front and rear DR’s, BB and shifters

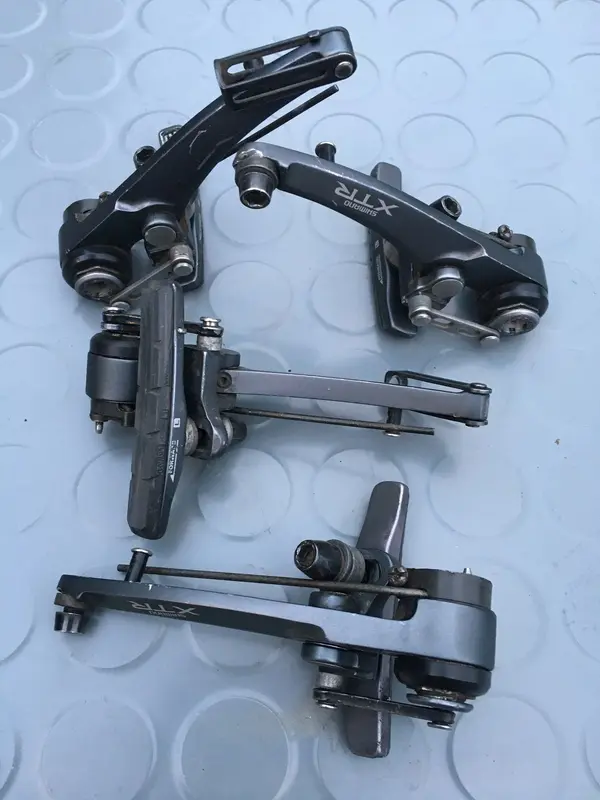

M950 V brakes, M950 Levers.

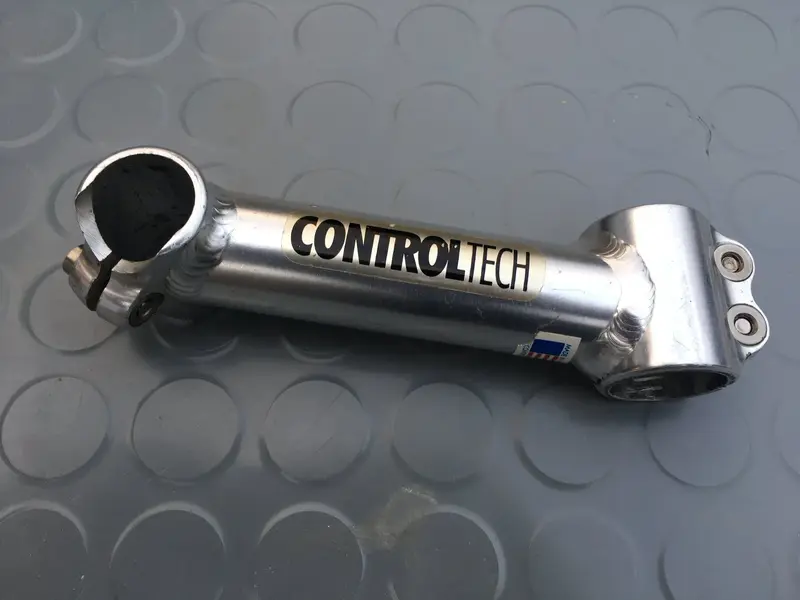

Control Tech Stem

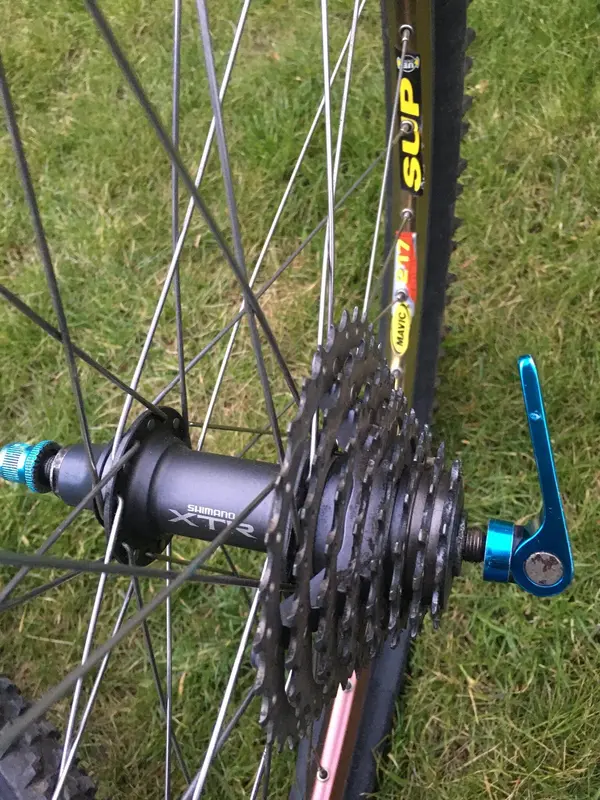

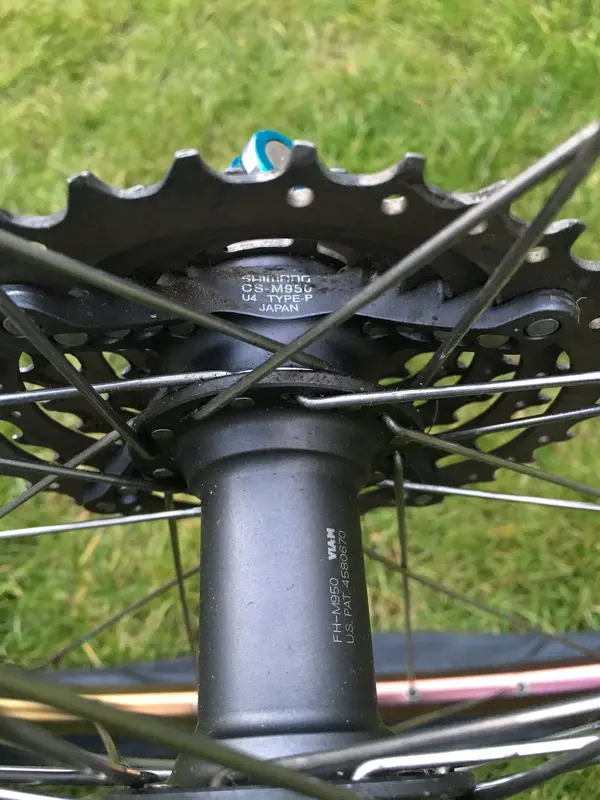

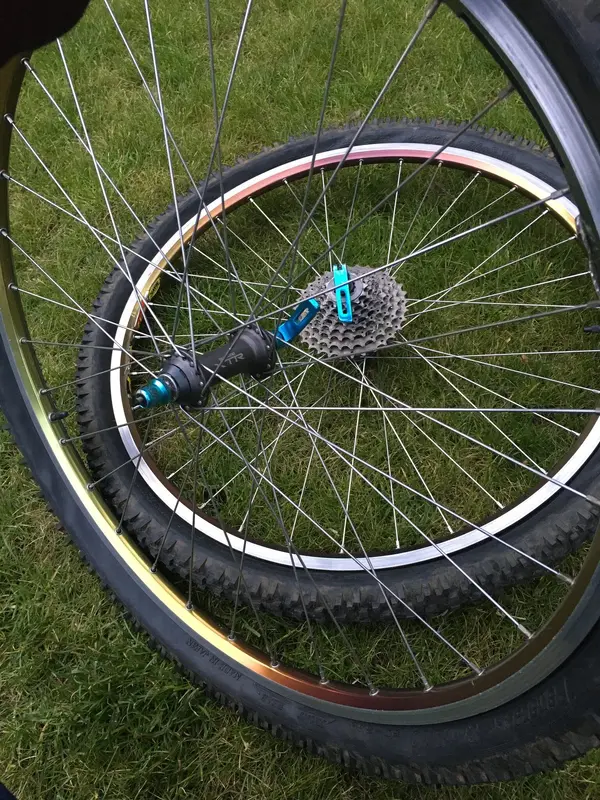

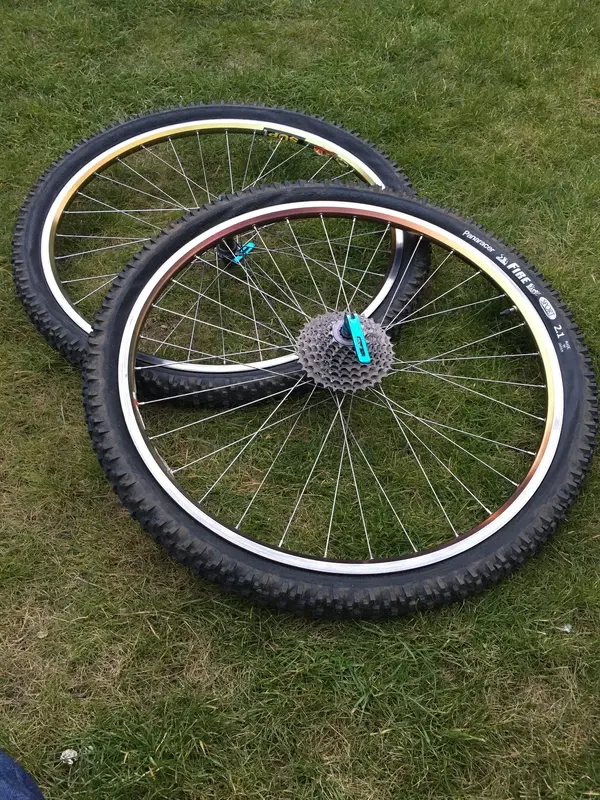

And some very nice Mavic 217 Sunset rims, laced to M950 XTR Hubs, with an 8 speed M950 XTR cassette.

pics to follow in the next posts.

A couple of questions for you chaps:

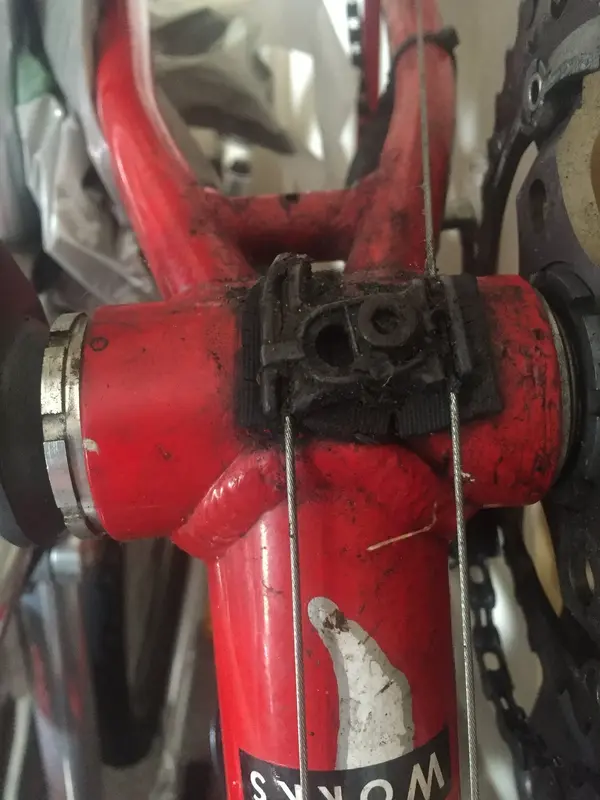

Any suggestions on tools to purchase for removing the old Shimano Cartridge Bottom bracket and cranks (tapered spindle), and also for fitting the new m952 Octalink BB and cranks?

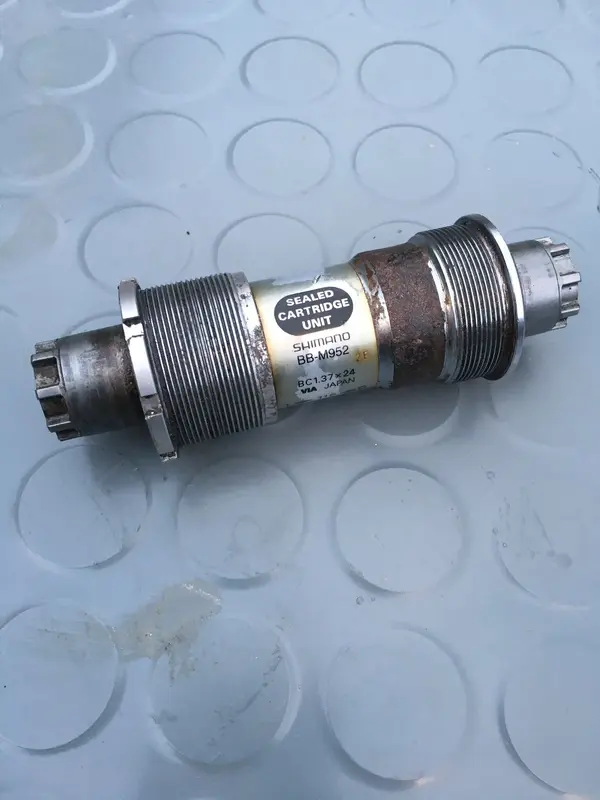

I have just noticed that the BB has a 116mm spindle, where as I’ve been told, and I’ve read that the Zaskar/M952 crankset should use a 112.5 spindle. (Newbie error I guess, and I should have double checked, although I did ask!) can I run the 116mm spindle, or will it be too long?

The BB came without any spacers. Do I need to use any in the Zaskar frame (73mm shell), if so what size and on what side?

Thanks for any advice, Paul.


Attachments

  • 7AA18548-226D-49E3-8D57-44BA77051BB7.jpeg
    294.6 KB · Views: 3
  • 7D935BD0-BCC4-402F-87D2-67CA8BA33345.jpeg
    301.9 KB · Views: 2
  • E894BD6F-F263-4F83-A472-8D222252FECE.jpeg
    292 KB · Views: 3
  • 9F239E0C-24E1-4DFA-92FB-156AA2635684.jpeg
    397 KB · Views: 2
  • E83F7FEE-EE63-4F8E-97FC-81AE83D42375.jpeg
    312.6 KB · Views: 2
  • 8ACF52DF-693A-4570-9786-ECC2EFA1DA32.jpeg
    290.5 KB · Views: 1
  • 75FAF8FA-FDB0-4E7A-BFED-50A80ED86CAE.jpeg
    284.2 KB · Views: 1
  • 8875A4AD-E2FA-439A-99DB-71B392862EB7.jpeg
    311.5 KB · Views: 2
  • FF9B91DB-08D2-4E53-936C-B66A32A0A6A7.jpeg
    340.9 KB · Views: 2
Last edited:

Stump_Jumper

Dirt Disciple
The rest of the ‘stash’..


Attachments

  • D0576922-05C7-4C03-950D-5AA8910D2AAC.jpeg
    388.8 KB · Views: 3
  • 1EA0405C-A59D-4881-9E7E-AB0044AD0246.jpeg
    847.6 KB · Views: 4
  • 24E86763-2D7C-4DBA-8848-99C8F303752F.jpeg
    656.6 KB · Views: 4
  • 699C6A14-1BE4-4AAB-A90D-77988E81CC67.jpeg
    499.6 KB · Views: 4
  • 20FEA180-B6F8-4D78-A3D3-574F6E5AD72A.jpeg
    1,010.1 KB · Views: 3

Stump_Jumper

Dirt Disciple

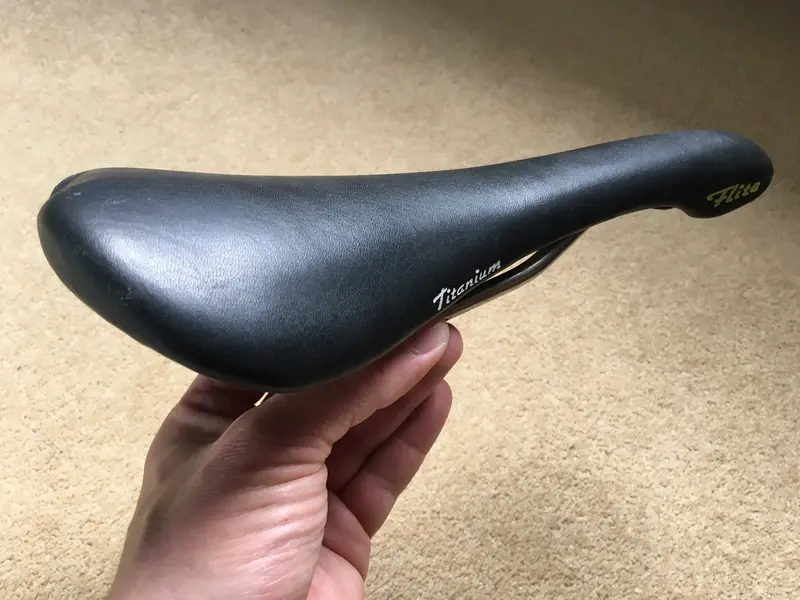

Another piece of the puzzle arrived today. A very tidy Flite saddle.

I’m on the look out for a 73 x 112.5 M950 or M952 Bottom bracket if anyone has one stashed away? As far as I’m aware, they are both compatible with the M952 Crankset?

Cheers, Paul. DECCBFE3-47F6-4C4A-9C06-F285515125CA.jpeg


d8mok

Gold Trader
GT Fan
Feedback
View
From memory a m950 doesn’t need any spacers but a M952 has a small one

116 will be a tiny bit wider 1.75mm each side and isn’t ideal but won’t cause any issues.


Stump_Jumper

Dirt Disciple
From memory a m950 doesn’t need any spacers but a M952 has a small one

116 will be a tiny bit wider 1.75mm each side and isn’t ideal but won’t cause any issues.
Thanks very much.

I don’t suppose you know the size of the spacer for the M952, and what size it goes on?

Thanks!


captaincowelly

Retro Guru
Feedback
View
Both BB's need a spacer if fitted to 68mm shells,no spacer normally needed for 73 mm shells.The standard supplied spacer is around 3mm wide,although Shimano did produce other sizes,often needed when fitting e-type derailleurs.XTR had thick carbon mounting plates,XT/LX thinner steel.
Goes on the non drive side,but spacers can be used on either side in some cases in order to adjust the chainline.If you were to use a 108/118mm Shimano road octalink BB for example.Never done it personally but is possible on some setups.
68mm shell,M952 BB,Standard spacer..
