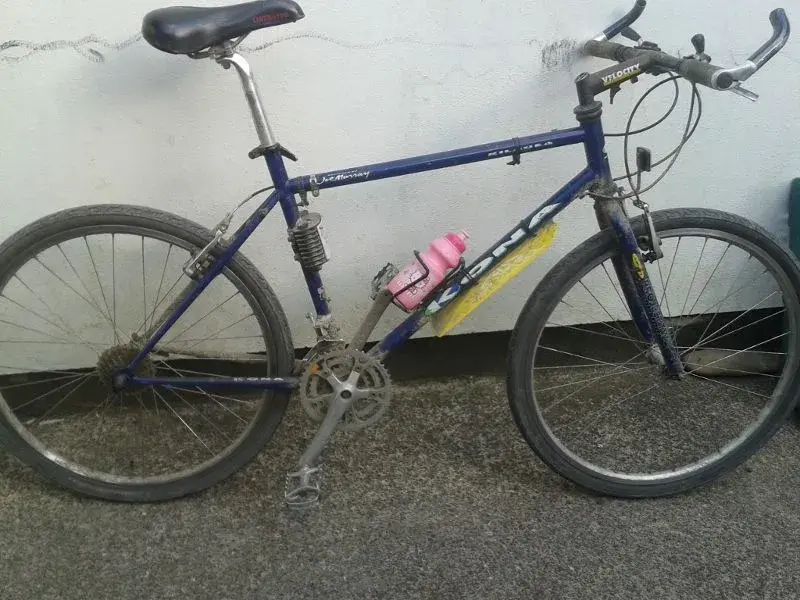

1992 kilauea with bent mech hanger - darn it.

creamedhoney

Retro Guru
Hi there,
wondered if anyone had some advice on dealing with this slight bendage issue before I attack it with an adjustable spanner {and probably regret it!!}. I've had the bike since new and really want it to survive.

I think it was the first year they made these and its been a great bike and until a few days ago was in pretty good nick considering the general neglect it has suffered.

Been mostly used with a kids seat on the back for the last ten years.

Hopefully going to take the opportunity to return it to a more original build. have got a lot of the original bits but will be needing some replacements as well.

any advice gratefully accepted, advice born of actual positive experience hoped for.

thanks very much


Attachments

  • 20150618_182010 (600x800).webp
    20150618_182010 (600x800).webp
    80.6 KB · Views: 756
  • 20150618_182755 (1024x768) (800x600).webp
    20150618_182755 (1024x768) (800x600).webp
    72.8 KB · Views: 756
Whatever method you use (I'd advise against a blow torch myself) bend it back slowly and by degrees to avoid extra stress and weakening it/breaking it.

I've bent back far worse than that with a spanner. Gently does it. In an ideal world finish it off with a hanger alignment jig, otherwise refit the derailleur and check it's vertical by eye.

Re:

a decent bike shop should have an alignment Tool

shouldn`t cost much to have it straightend if you worry about the frame

Re:

If you do use a spanner then leave the wheel and QR in the frame. Otherwise it'll just bend at the top of the axle slot.

thanks for the advice, good thinking to leave the wheel in place, I would have removed it. Didn't know there was such a thing as a mech hanger jig. theres a few good bike shops around here so might check if they have one.

thanks again.
