0range Vit T2 (1994) - New Pics :) - 6/2/15

[dyna-ti]

Re: 0range Vit T2 (1994) - Now with New Decals! 12/1/15

Looks brilliant the matching colours on the barend decals add to it immensely Really helps blend things.



[mtbdave]

Re: 0range Vit T2 (1994) - Now with New Decals! 12/1/15

Very very very nice indeed,the decals have just finnished it of nicely.... Dare I say it but you gonna enter it for BOTM?



[Ollie]

Re: 0range Vit T2 (1994) - Now with New Decals! 12/1/15

:shock: .



[Dossa]

Re:

Delicious.

I want it.



[kingroon]

Re: 0range Vit T2 (1994) - Now with New Decals! 12/1/15

Looks brilliant the matching colours on the barend decals add to it immensely Really helps blend things.

+1

That is awesome..



[wadsy]

Re: 0range Vit T2 (1994) - Now with New Decals! 12/1/15

Looks brilliant the matching colours on the barend decals add to it immensely Really helps blend things.

Thanks ....the very reason I bought the bar ends ...and that they are ti as well

Cheers



[wadsy]

Re: 0range Vit T2 (1994) - Now with New Decals! 12/1/15

Very very very nice indeed,the decals have just finnished it of nicely.... Dare I say it but you gonna enter it for BOTM?

Thanks very much ....I don't think previous winners can enter this month? :? ...and I'd like to do a bit more to it anyway I think.

Cheers



[brocklanders023]

Re:

That is looking sweeeeeeeeeeeeeeeeeeeeeeeet.



[wadsy]

Re:

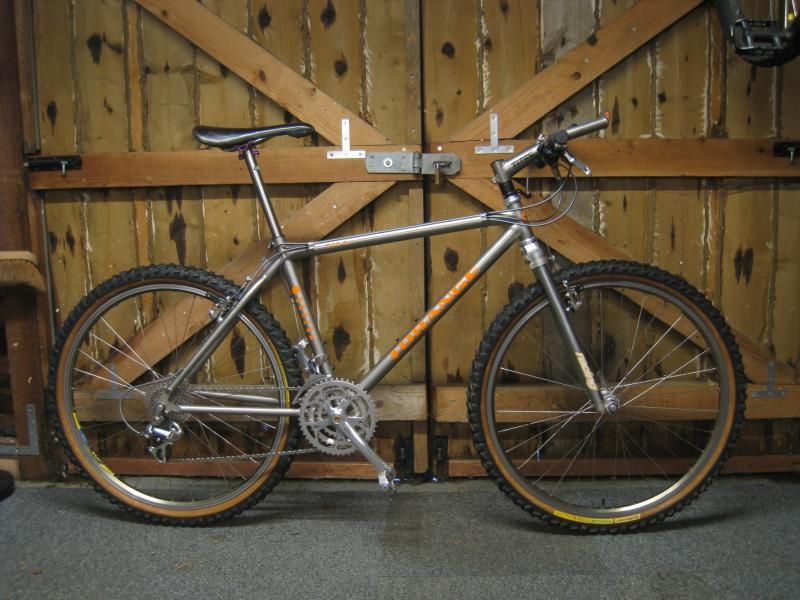

Phase 1 Build done! ....









Spec:

Frame: 1994 Orange Vitamin T2 - 1350g + brake studs (10g)
Fork: Pace RC30 (with ti steerer) - 860g

Headset: Chris King No-threadset - 80g + 10g (crown race)
Cable Hanger: Syncros Hang-doggy - 28g
Spacers: 1x5mm + 1x20mm = 17g
Top-Cap: King + steel bolt - 8+8g
Stem: Titec Titanium (inc ti bolts) - 146g
Handlebar: DEAN Titanium - 183g + 6g (end plugs)
Bar Ends: Onza Titanium - 148g
Grips: ATi - 66g

Brakes: XTR M900 - 156g (front) + 156g (rear) (inc. pads) + 2x13g (stradles)
Cable hangers: (Shimano) included
Brake Pads:xtr (included)
Brake Cables: XTR outers - 45g + 22g (steel inners)
Brake Levers: XTR M900 (STi) - 390g (pair)

Shifters: As above (included)
Front Derailleur: XTR M900 - 122g
Rear Derailleur: XTR M900 - 226g
Derailleur Cables: XTR outers - 55g + 23g (steel inners)
Cassette: XTR M900 - 312g
Chain: Shimano HG73 - 264g
Cranks: XTR M900 - 497g (inc. rings and alloy bolts)
Crank Bolts:Middleburn titanium - 19g
Chainrings: Shmano SG - 86+49+22g (46/36/26)
Chainring bolts:Shimano - outers (25g) inners (20g) spacers (4g)
Bottom Bracket: Shimano (xtr) UN91 - 247g
Pedals: Onza HO Titanium - 280g

Hub Skewers: XTR M900 - 163g
Rims: Mavic 217
Hubs: XTR M900
Nipples: Alloy
Spokes: Wheelsmith DB Stainless - 1754g (wheelset)
Tyres: Continetal Premolar (2.125) - 638g + 612g
Tubes: Bontrager - 248g

Saddle: Flite Titanium - 219g
Seatpost: USE titanium - 189g
Seatpost Binder: X-Lite titanium - 11g


Weight: Approx 9797g / 21.6lb


Cheers



[wadsy]

Re:

Trying to decide how 'orangey' to make it!
