Pace RC100 hose guides???

[danson67]

There's also this one at Shapeways: https://www.shapeways.com/product/DV6C5USXL/cannondale-cable-guide

BUT...I've been working on my own model of the Pace guides over the last few weeks for a client who is restoring two RC100s
I have some real, but damaged, ones from the frames to work from for the form and dimensions.

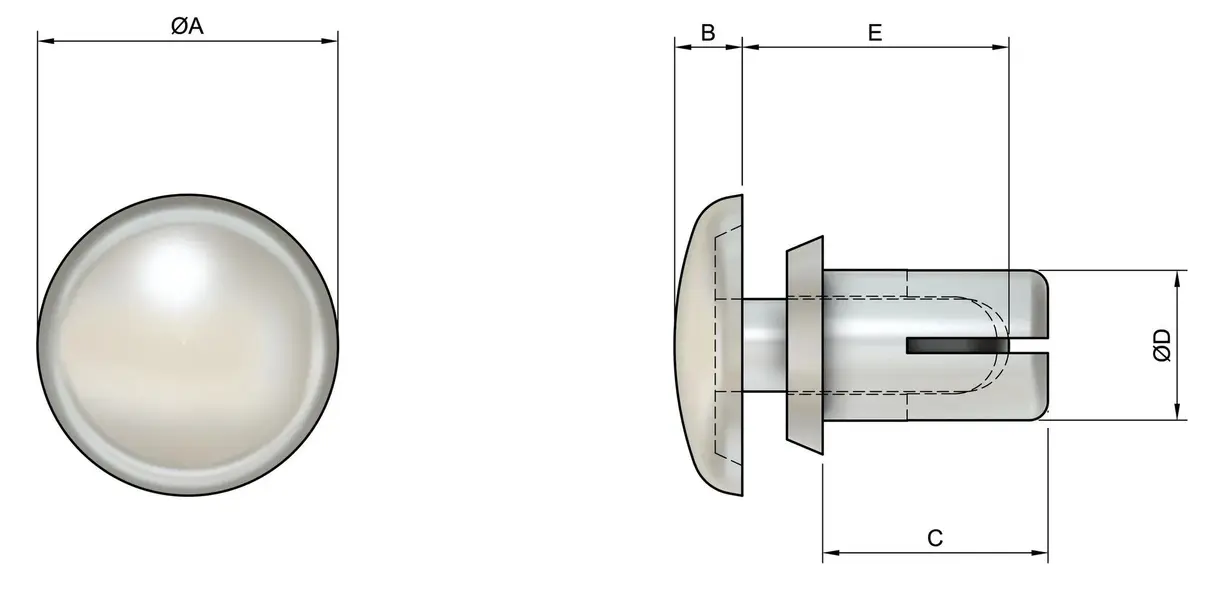

Mine are designed them to work with separate dome-headed push rivets, rather than the built-in one time pin system that Pace used, so should be more easily removable/replaceable.


Currently being printed (LSPc resin), in grey, and should be with me in a few weeks.

All the best,



[Yogi bear]

There's also this one at Shapeways: https://www.shapeways.com/product/DV6C5USXL/cannondale-cable-guide

BUT...I've been working on my own model of the Pace guides over the last few weeks for a client who is restoring two RC100s
I have some real, but damaged, ones from the frames to work from for the form and dimensions.

Mine are designed them to work with separate dome-headed push rivets, rather than the built-in one time pin system that Pace used, so should be more easily removable/replaceable.
View attachment 783028View attachment 783029

Currently being printed (LSPc resin), in grey, and should be with me in a few weeks.

All the best,

Any chance you may have a few going spare???????????
Could also be after a repro stem stearer aswell if you have the time..........



[danson67]

I'm getting 40 made, so plenty of spares.

Yes, I can do a stem combo... currently have a Ti one on the order books and a couple of other steel stems to do, so another's no problem.

All the best,



[MarcArens]

There's also this one at Shapeways: https://www.shapeways.com/product/DV6C5USXL/cannondale-cable-guide

BUT...I've been working on my own model of the Pace guides over the last few weeks for a client who is restoring two RC100s
I have some real, but damaged, ones from the frames to work from for the form and dimensions.

Mine are designed them to work with separate dome-headed push rivets, rather than the built-in one time pin system that Pace used, so should be more easily removable/replaceable.
View attachment 783028View attachment 783029

Currently being printed (LSPc resin), in grey, and should be with me in a few weeks.

All the best,

Hello and good morning, I just found your 2023 post here and would love to know if you still have some of your 40 made hose guides left to be sold? Looking forward to your response. Marc



[danson67]

Yes, sorry, I forgot to post an announcement here

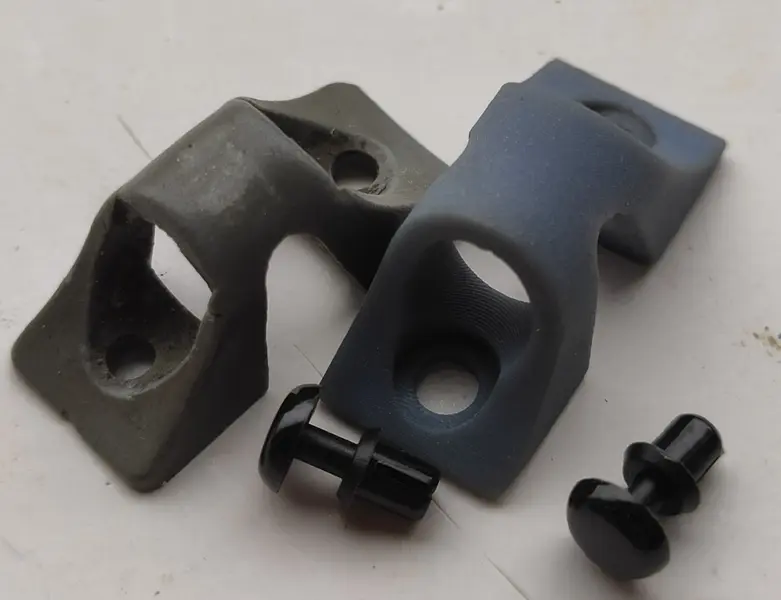

Here's one with a tired and weathered original. The repros aren't as blue as looks on the pic.



Plenty still left.
£4 each + £3 UK postage...so £15 posted for a full set of 3.

All the best,



[andi_pv]

What size do the holes in the frame have to be drilled out to? And do you still have sets available?

Thank you



[danson67]

What size do the holes in the frame have to be drilled out to? And do you still have sets available?

Thank you

Hi Andi,

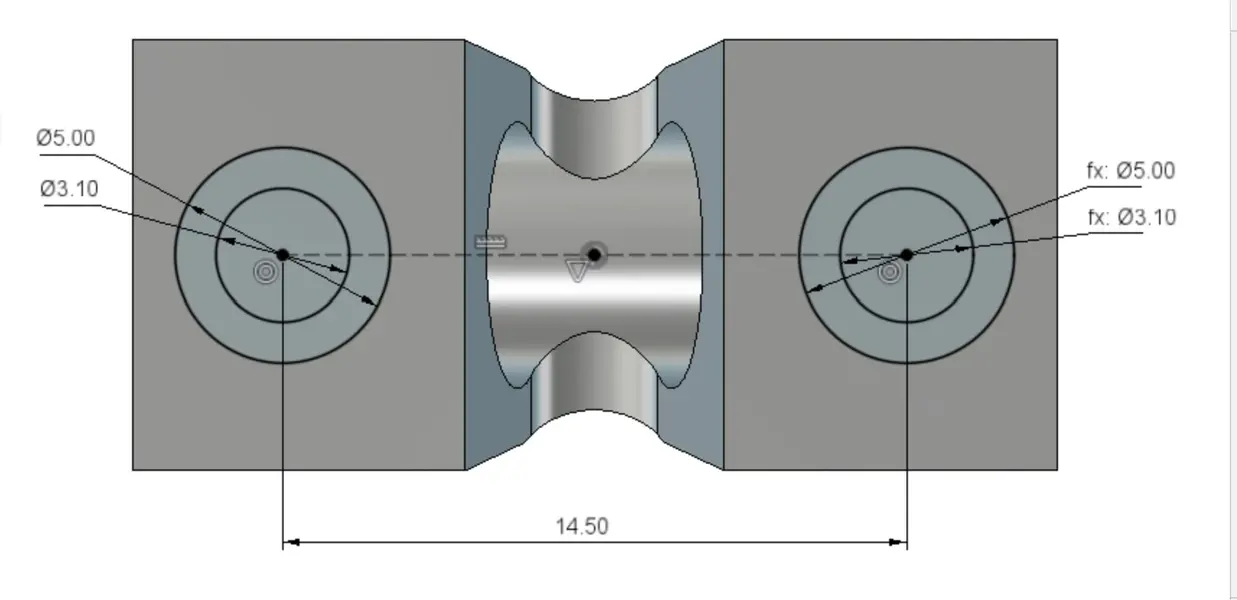

The holes are 3.1mm diameter at 14.5mm centres, so designed to drop straight into the old holes.

All the best,



[andi_pv]

That’s great could I purchase a set please? I’m not too sure how it all works…. In addition, I’m guessing I’ll have to cut the hose and bleed. The brakes have never been bled or taken apart in over thirty years. About the only other item I need is some brake blocks!



[danson67]

Hi Andi,
Paypal friends &family to dan@danson.cc with your address and I'll get them posted off for you.

On the Maguras, they are mineral oil, so pretty friendly to bleed. Just need to cot the hose, fit a new olive and flush out any air bubbles.
There's a technical manual with instructions in the RB Archive here: https://www.retrobike.co.uk/archive/1994-magura-technical-manual.1084/

All the best,



[danson67]

...and the brake blocks are still available.

Certainly from Tarty Bikes (https://www.tartybikes.co.uk/hs33_brake_pads/magura_hs33_pads_pair/c4p623.html) and probably others.



All the best,
