fulcrum 77 hub removal

[Fatmat]

Hi guys, I’m using an 11mm Allen anti clockwise in a vice, nothing is getting this hub off, what am doing wrong?



[Splatter Paint]

Freehub removal Fulcrum racing Sport 77 CX

well after much searching it would appear to get the freehub off the rear wheel you must first remove the nds bearing to get access to the lucknut sleeve . What a mighty PITA , not tried it yet as don't want to ruin the bearing trying to get it out first so will see if I can indentify the...

www.cyclechat.net

Does this help?



[Fatmat]

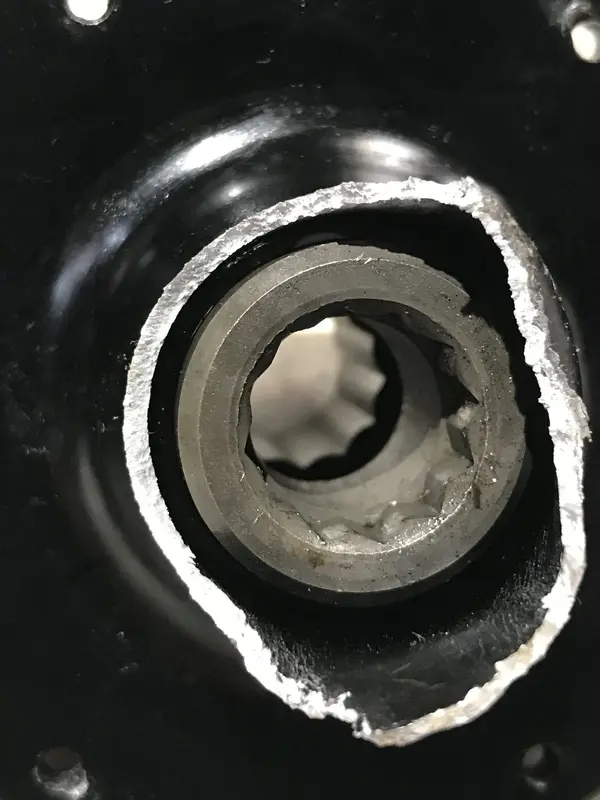

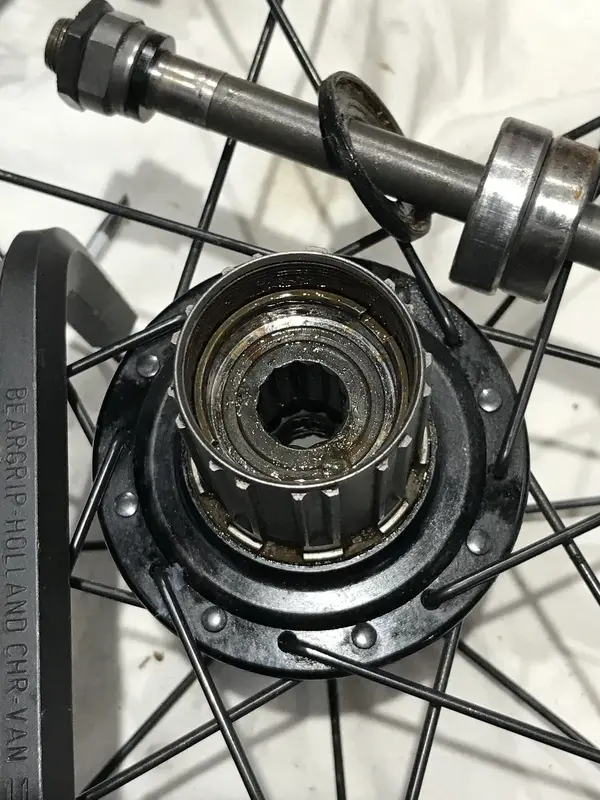

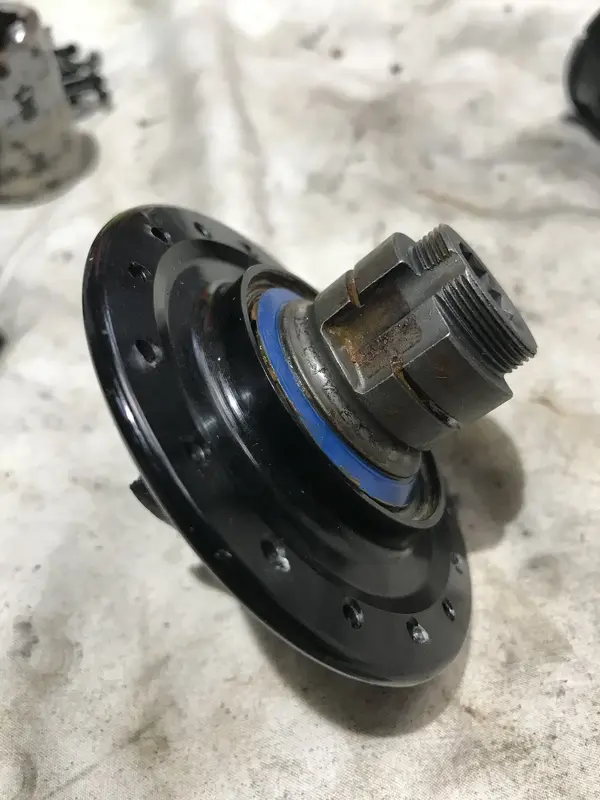

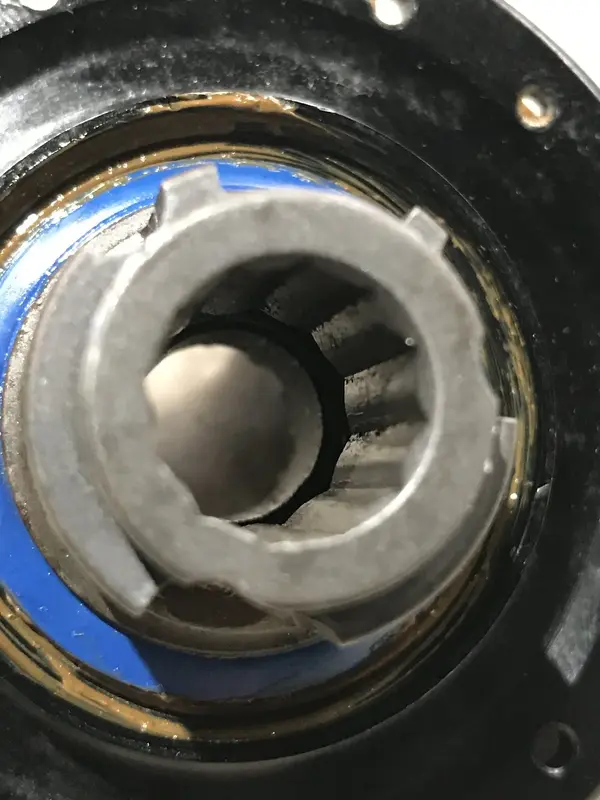

Thanks splatter paint, I removed all the bearings and the hub body, I’m left with the inner/guts, 11mm Allen on the inside / 10mm Allen on the hub side, I’m trying both directions, every which way, no idea what’s correct, if I new how to release it I could go at it with more conviction, any ideas?



[Fatmat]

Scrap that, 11 in hub side, 10 on the inside (not that it really matters I guess!)



[Splatter Paint]

“and the hub body”

Heat maybe? Alloy expands more than steel. Try boiling water (be careful!!) before anything more drastic.



[Splatter Paint]

The bearing surface looks shot, is it worth the effort to save it?



[Fatmat]

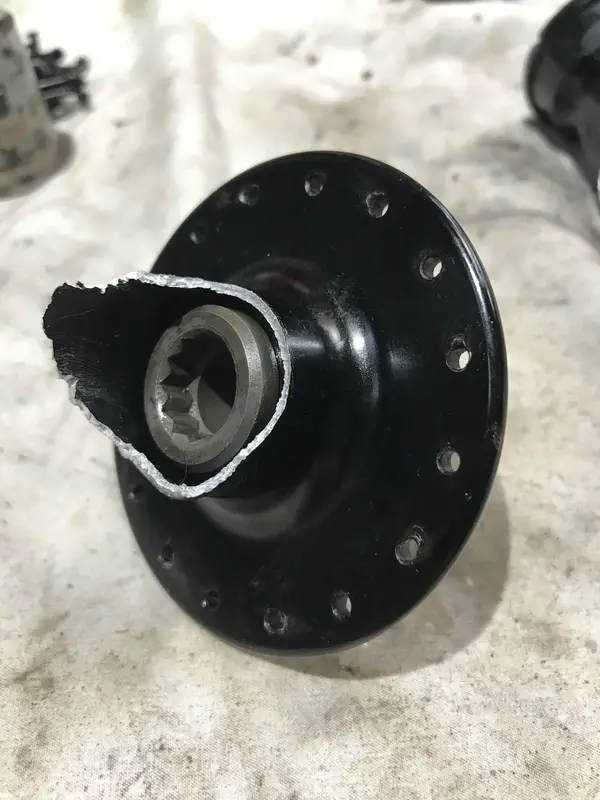

Still going, took the angle grinder to the aluminium trying to heat it up, the odd creek here and there, I’m still not sure which way it’s supposed to undo, common sense says anti clockwise but with hubs I’m never sure, next stop is my welder friend, get some real heat on it! It’s now not about time/money, just need to get it apart, I need to beat this thing!!!
