frame identification - help, please

[dan66]

I would like to build a new project with this steel frame and raised P2 fork, using Magura HS33 hydraulic rim brakes.
I'll probably set up a full 99' Sh. grey LX groupset 3x9...

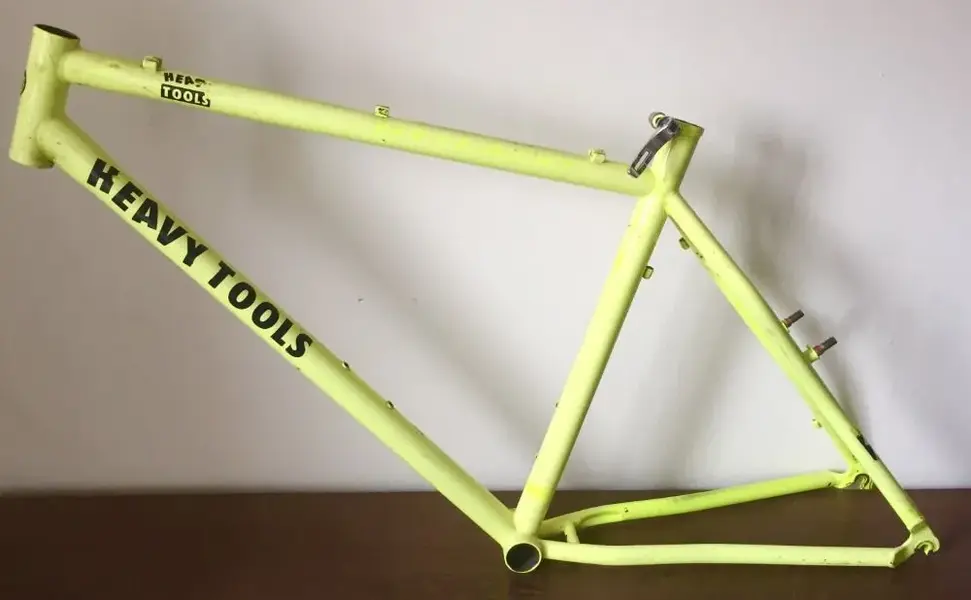

Does anyone know what frame it is?



[mdvineng]

Can only gind a 94 catalogue for Heavy Tools, seems to be German in origin



[kingoffootball]

Can only gind a 94 catalogue for Heavy Tools, seems to be German in origin

Austrian, I think. There's a few on here, but not a lot.



[dan66]

Thanks guys, the frame is in non-original color and marking. Certainly it isn't Heavy Tools. I wanted to find out if anyone could recognize him by the head tube, the back structure, geometry etc...



[dan66]

For the steel one is surprisingly light - the frame weight is 1.47 kg (3,24 pounds).



[WWC]

Re:

Can you picture it with these decals...



[dan66]

Thanks! If I don't find the manufacturer, it will be called ReBike (as recycled ). ...something like this:



[dan66]

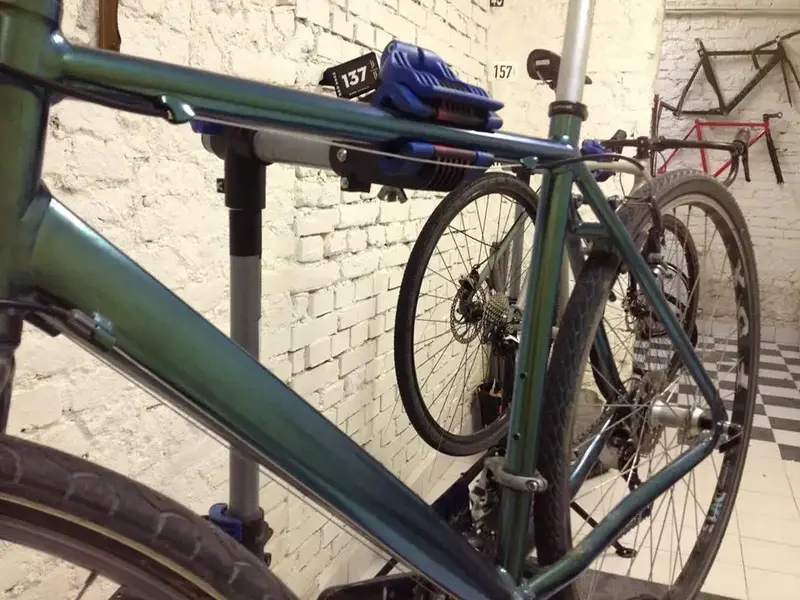

The color will be raw steel with transparent powder coating, or powder coated chameleon (if the stripped welds will not look good).



[TOMAS]

For the steel one is surprisingly light - the frame weight is 1.47 kg (3,24 pounds).

Are you sure it's steel as that's bonkers light for steel (in my humble opinion)!? You sure its not something like Titanium?



[dan66]

I wish ! But welds doesn't look like a titanium. The fact is that such a lightweight steel frame was only from Ritchey and a few garage workshops. The frame is quite small - 18'' seat tube from centre to the sleeve...
We'll see when I strip it with a Dimethyl Formamide.
The frame has so many interesting details that I thought someone would recognize it.

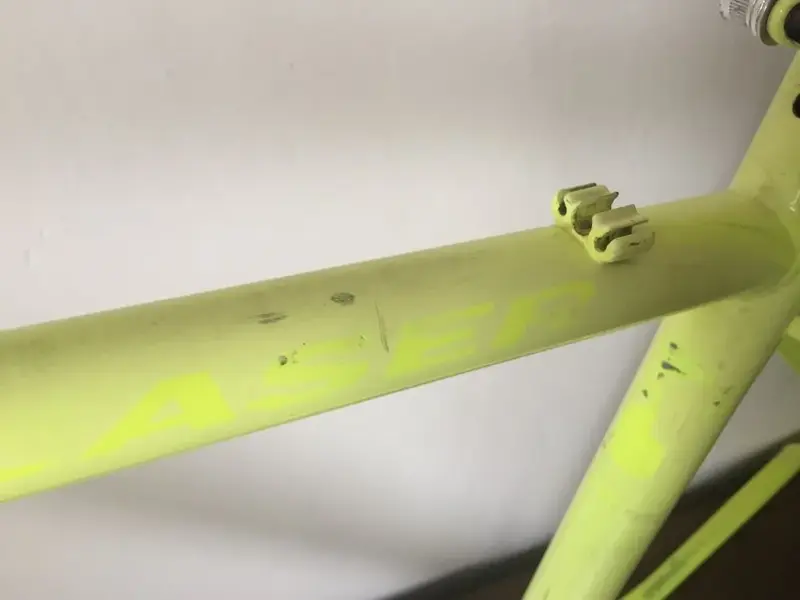

Other detail - on the upper frame tube, the location of the hydraulic pipes was certainly foreseen in the middle of the cables. ...so hydraulic rim Maguras as default.
