Down tube shifters - band on to braze on convertor

[Ralph_the_Rohan]

I successfully fitted Arabesque shifters to the standard braze ons on my Pat Rohan

Daily Rider Rohan

Hi, Just thought I'd post a few pictures of the new daily ride that I've just finished putting together. It's, I believe, a '77 or '78 Pat Rohan, which was initially purchased by a friend as a donor bike for it's virtually complete Campagnolo Record Group Set. He kindly donated the frameset...

www.retrobike.co.uk

I remember having to grind down the back of the shifters using a Dremel. I may have a pic somewhere of what needs removing.



[Ralph_the_Rohan]

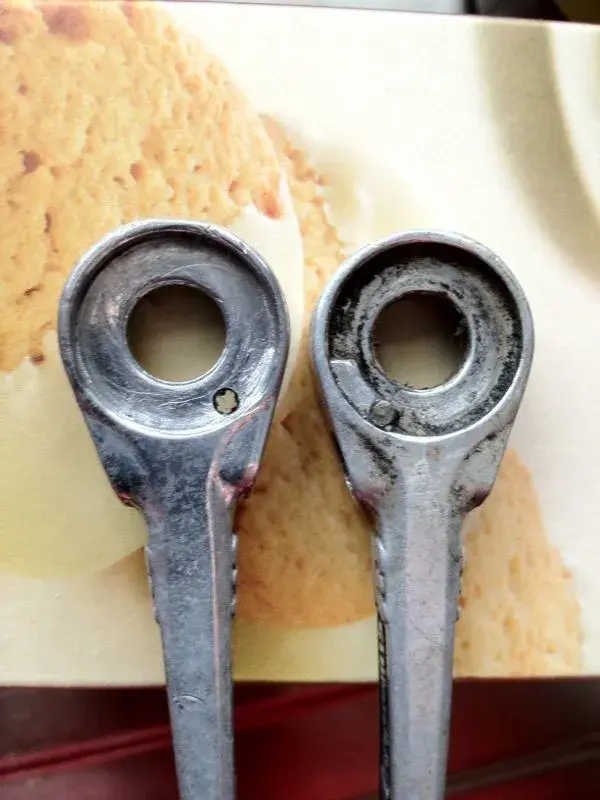

Before and after (before on the right)

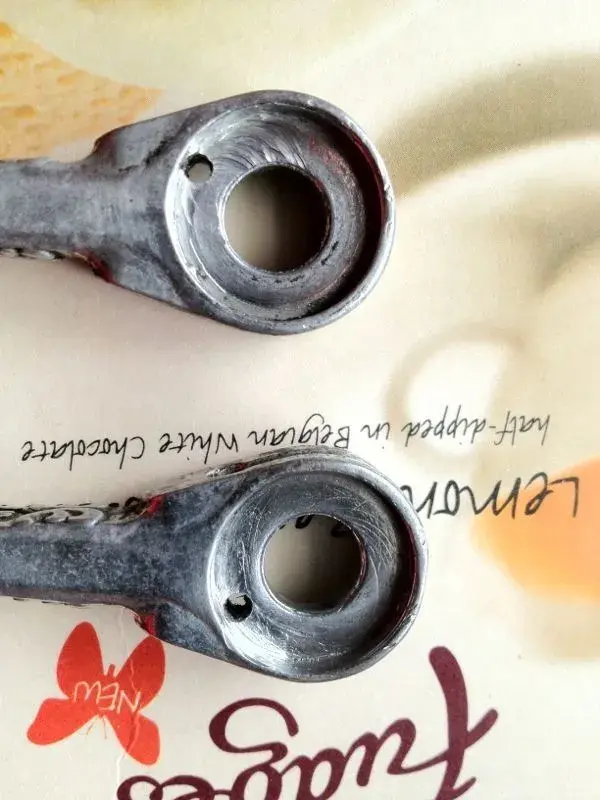

You can then tap out the two pins....



[frkl]

Before and after (before on the right)

View attachment 616403

You can then tap out the two pins....

View attachment 616404

Is there anything that stops rotation other that cable tension in the low directly?



[frkl]

Before and after (before on the right)

View attachment 616403

You can then tap out the two pins....

View attachment 616404

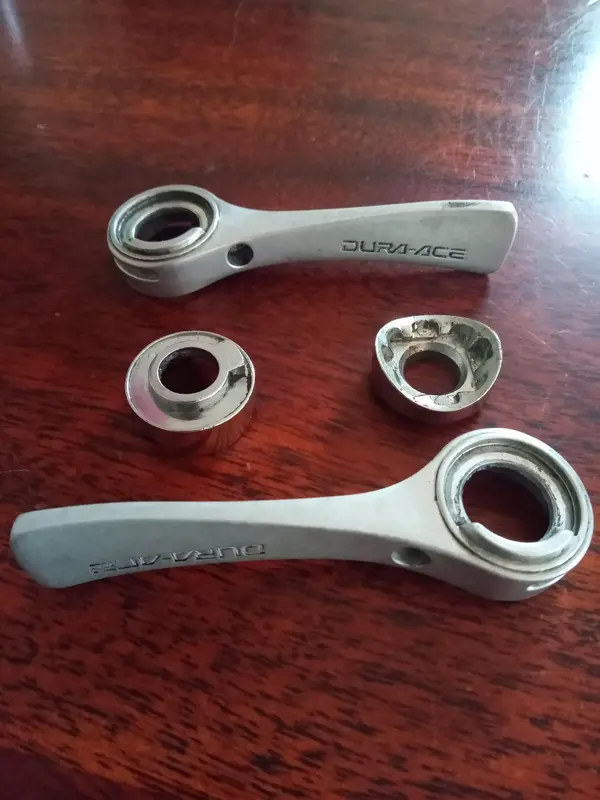

That interface looks really similar to these below, the tab on the arabesque is a bit smaller and in a slightly diff spot, yes, but it may mean a standard shim indexing washer can serve as an adapter. If anything you would have a bit more rotation, rather than too little, I would guess.

That is what it looks like in the blog post. Might be worth a shot before grinding, if you have standard posts. If you are friendly with the local shop they might even let you try one on for size, if you don't have one.
