Cannondale Killer V(T) 900 build thread

[Vesatoro]

From the photo it looks like a 1&1/4" steerer tube is needed so I took a chance and bought a steel tubed Pep fork from Germany, again from a member here. ... If I've guessed wrong re the steerer tube size I have a couple of forks, a headset and a choice of stems.

If it has traditional double seat stays, it's from 1994 and has 1-1/4" steerer tube. If it has wishbone seat stays it's from 1995 or later and has 1-1/8" steerer tube.



[shedobits]

PM incoming



[shawnb]

Brilliant well done!



[Vesatoro]

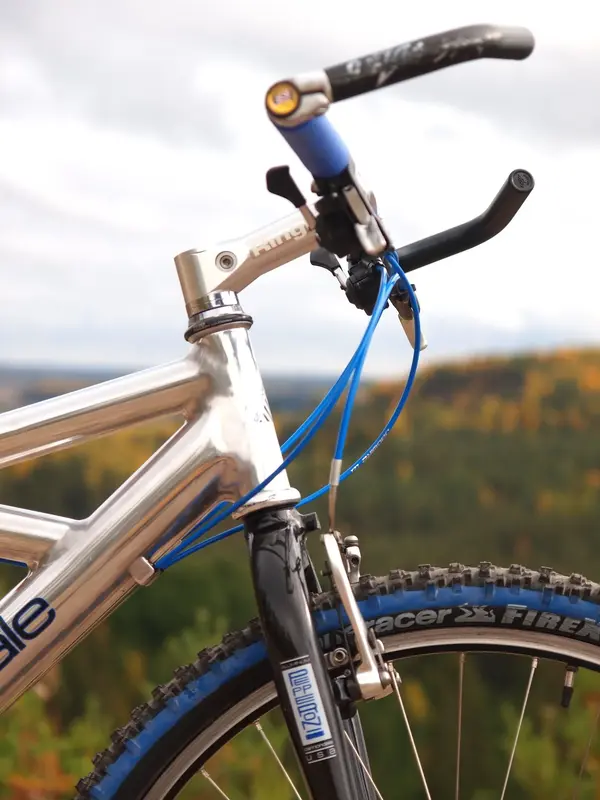

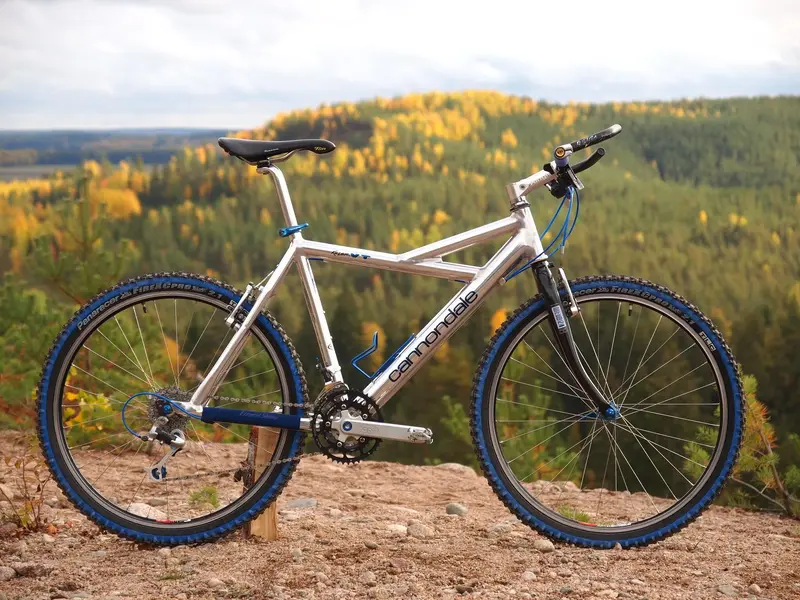

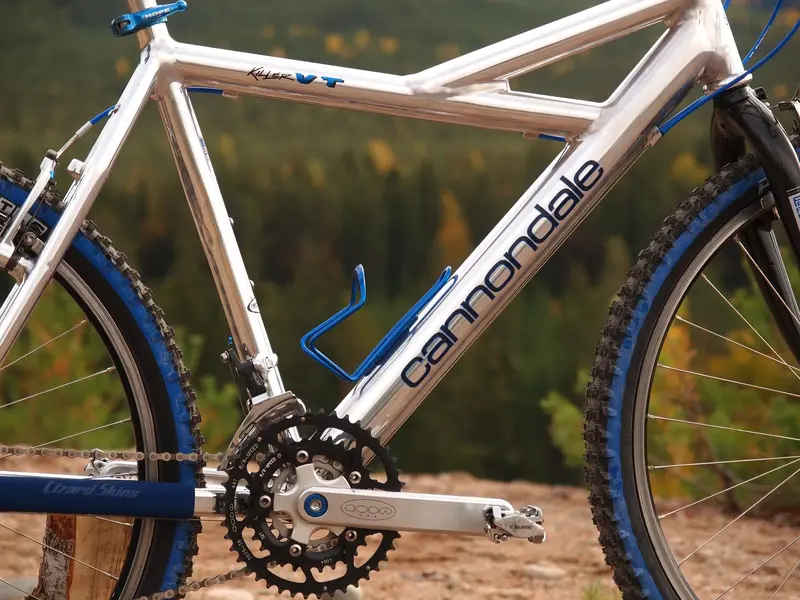

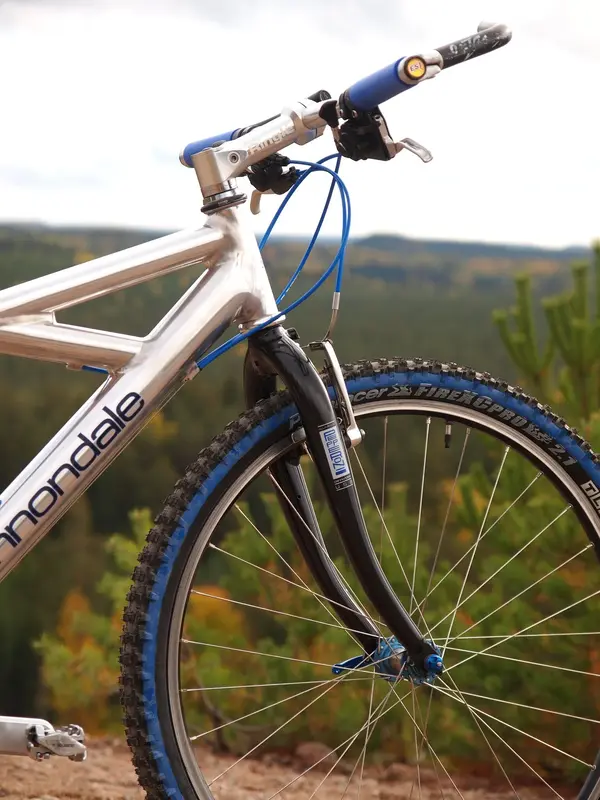

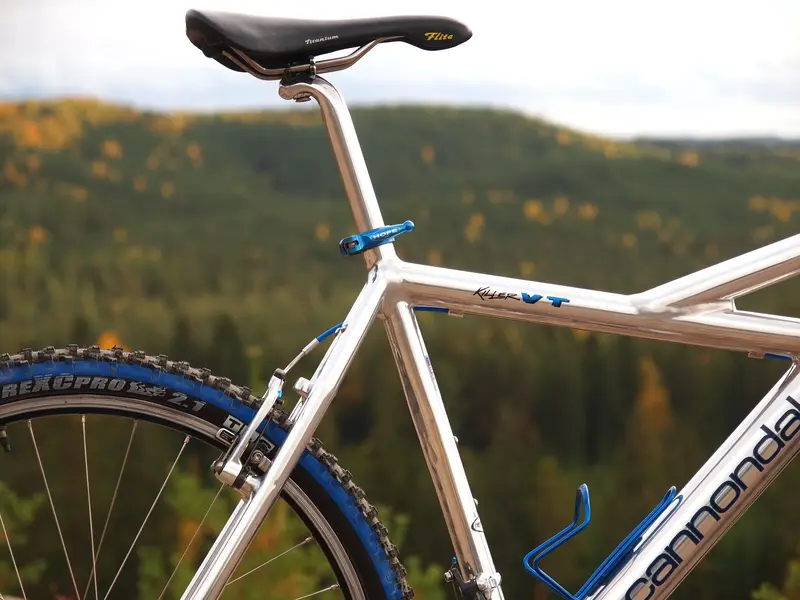

Some photos with autumn background. Swapped the blue USE seat post to original polished aluminum post. Suits a lot better.



[Vesatoro]

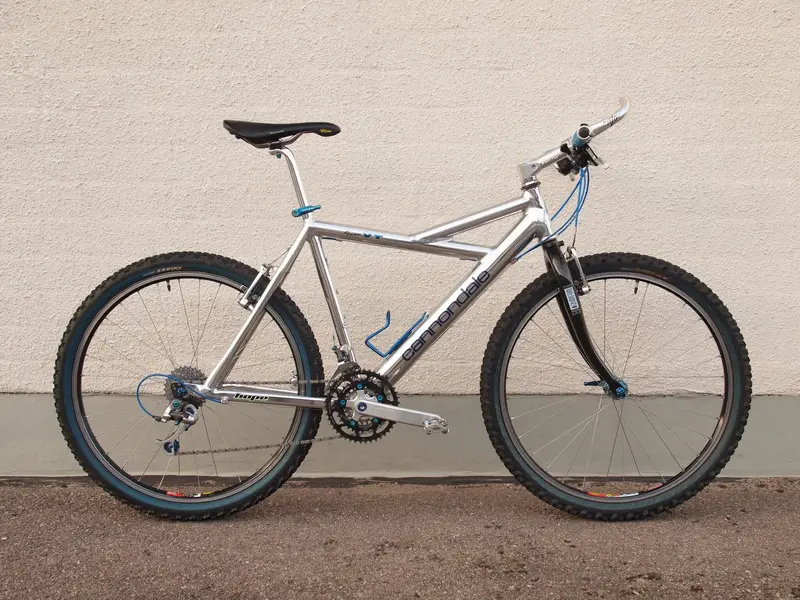

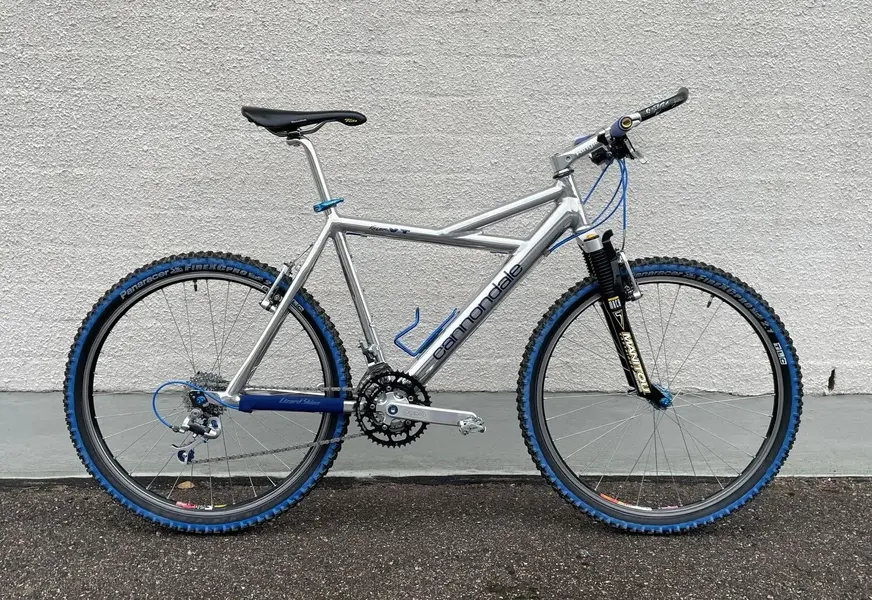

Frame	Cannondale Killer V 900 4/93
Fork	Cannondale Pepperoni / Manitou Mach 5 SX

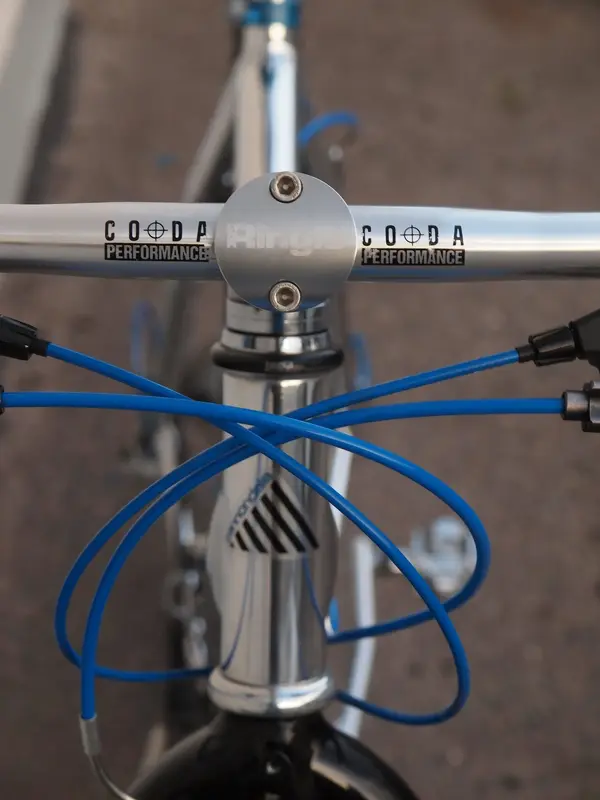

Stem	Ringle Zooka 1-1/4" 5° 120mm
Headset	Tange/DiaCompe Aheadset
Handlebar	CODA Performance
Grips	Onza Porcipaw (Repro)
Barends	Onza

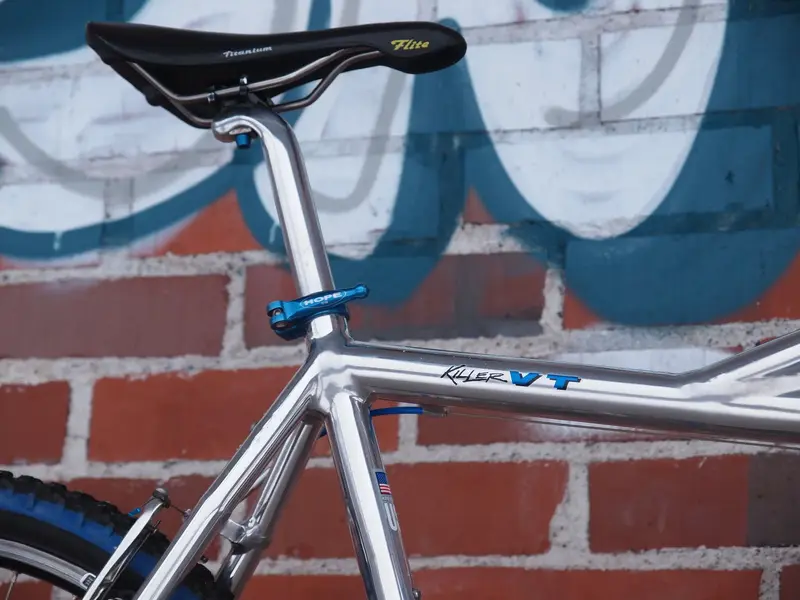

Seatpost	Ritchey
Seat	Selle Italia Flite Ti
Seat collar / QR	Hope
F.hub	Hope Ti
F.rim	Mavic X517
R.hub	Hope Ti Glide
R.rim	Mavic X519
Wheel QR	Hope
Shift levers	XT SL-M739
F.derailleur	XT FD-M737

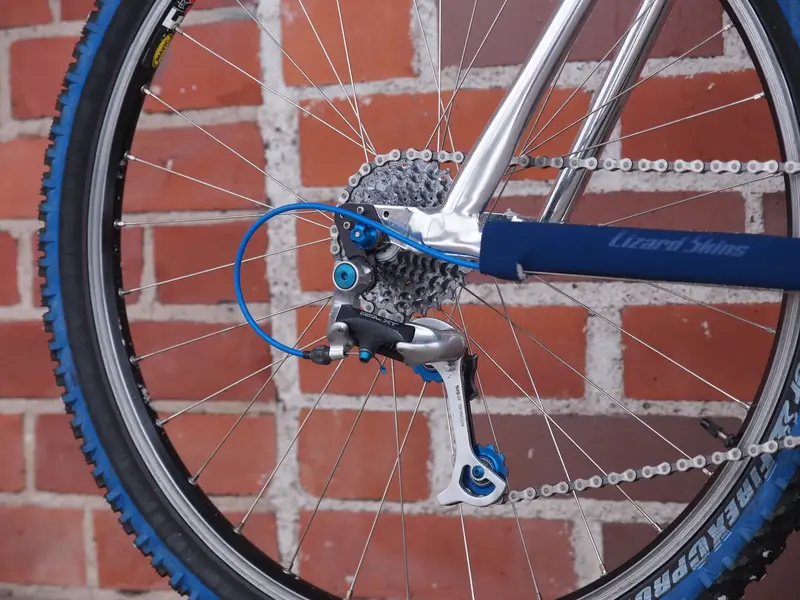

R.derailleur	XT RD-M737
Brake levers	XT BL-M739
F.brakes	XT BR-M739
R.brakes	XT BR-M739
B.bracket	BB-UN51

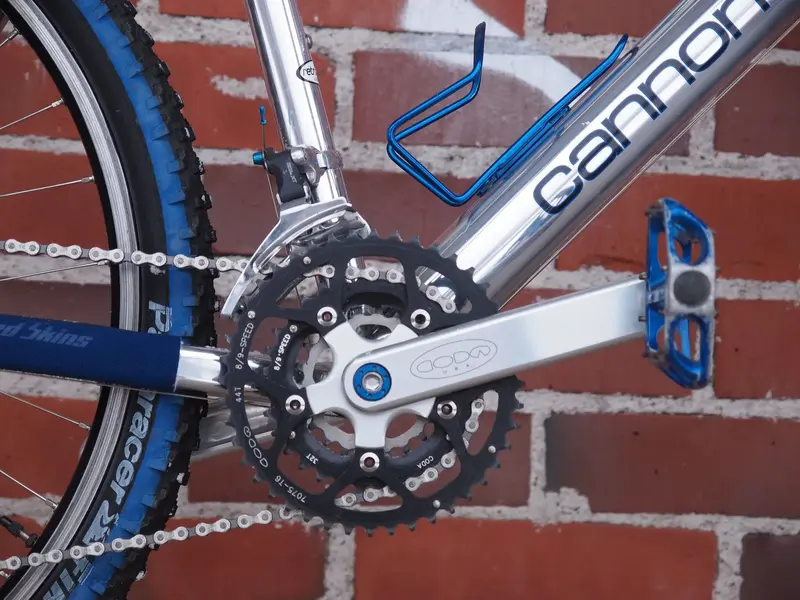

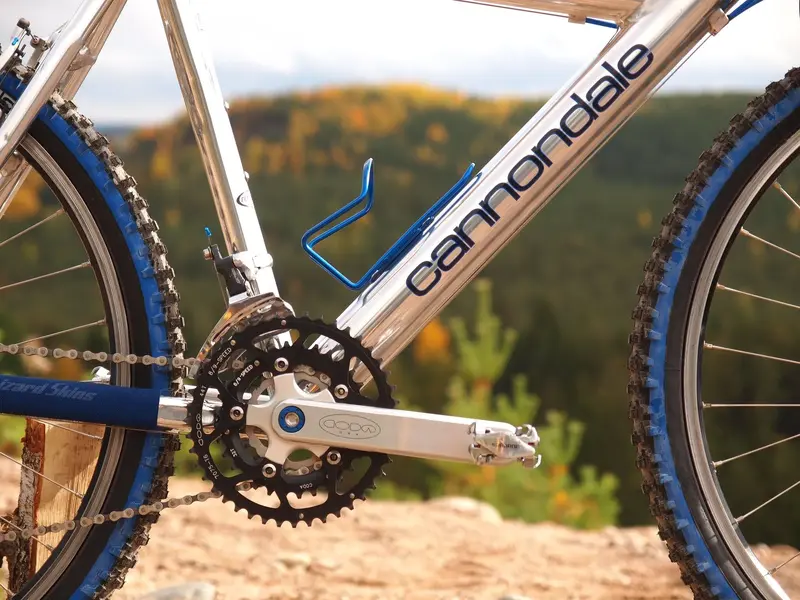

Crankset	CODA Tarantula
Chainrings	CODA 44-32-22
Cassette	Deore XT CS-M737-8
Chain	CN-HG71
Pedals	PD-M747
Front tire	Ritchey Z-Max K 2.1 blue wall / Panaracer Fire XC

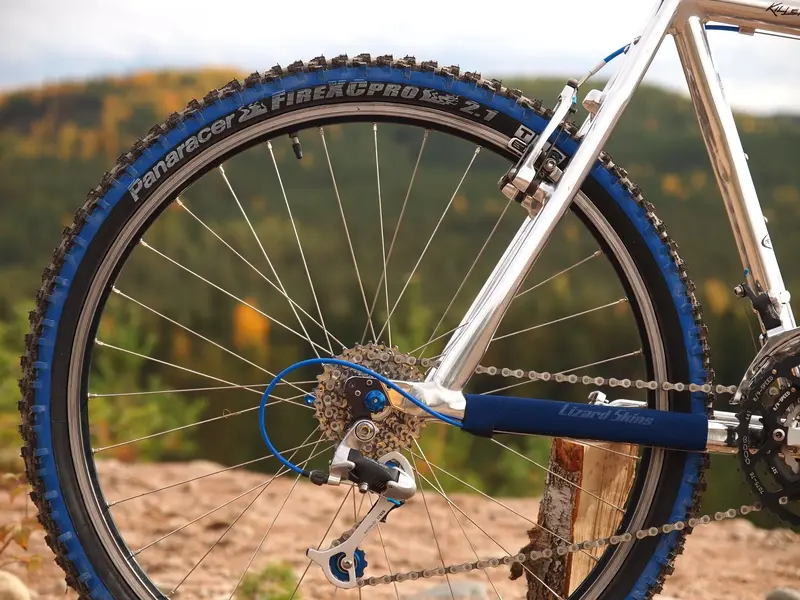

Rear tire	Ritchey Z.E.D. Race K 2.1 blue wall / Panaracer Fire XC



[PhilJ87]

View attachment 650256

That looks epic. Nicely done. Very clean



[Vesatoro]

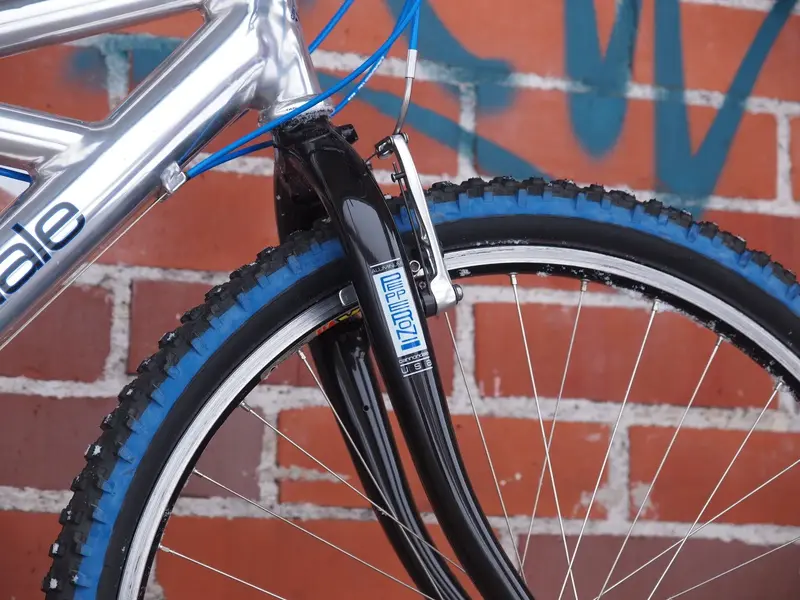

A try with the Manitou Mach 5. Works, but nicer with Pepperoni. Now doing a touch up painting to the Pepperoni that my daughter wanted to u-lock to her bike... you'll guess what happened.



[Vesatoro]

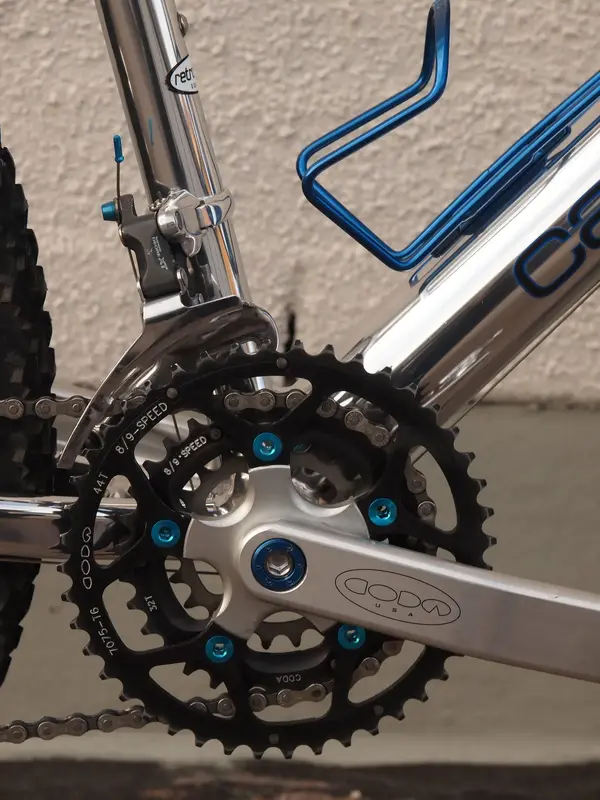

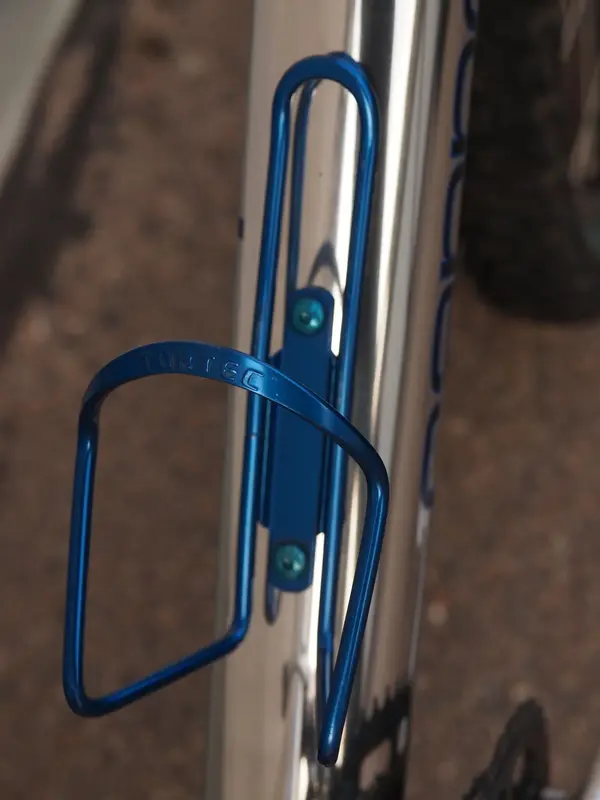

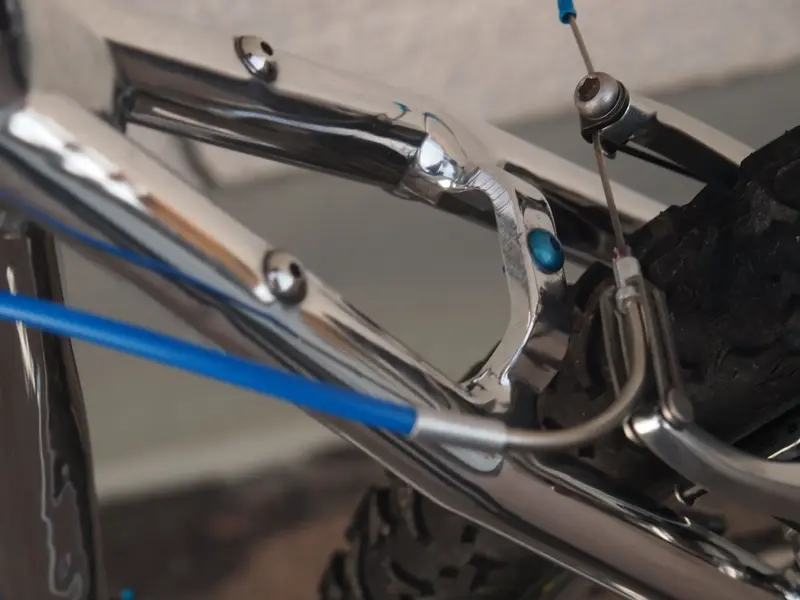

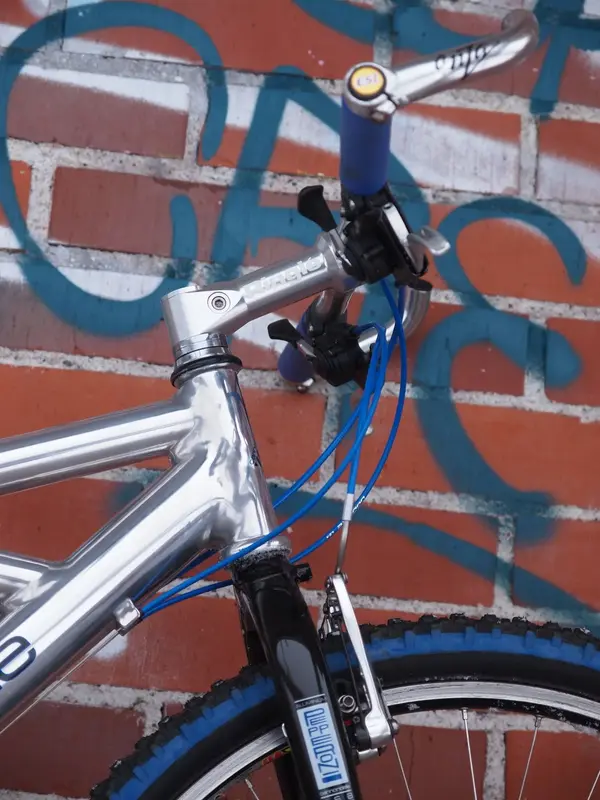

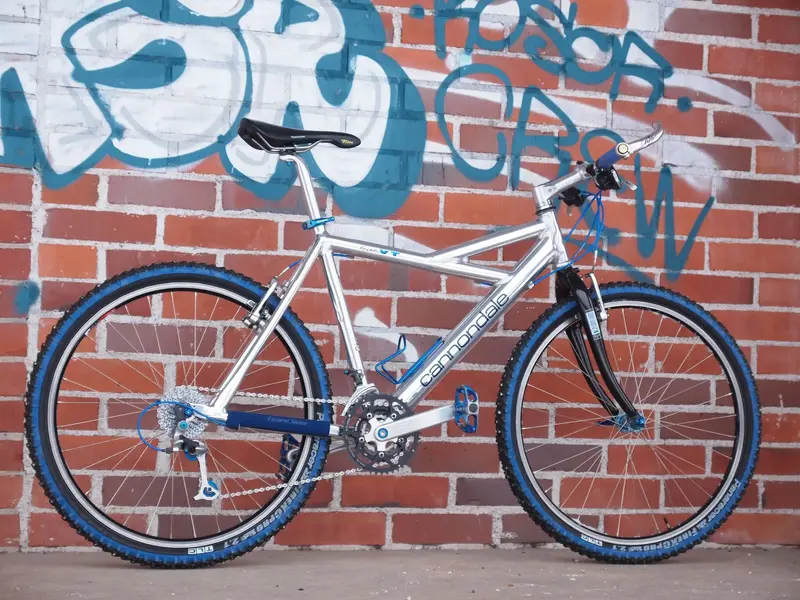

Some small blue bits and pieces added, and black Onzas changed to bright ones.



[Vesatoro]

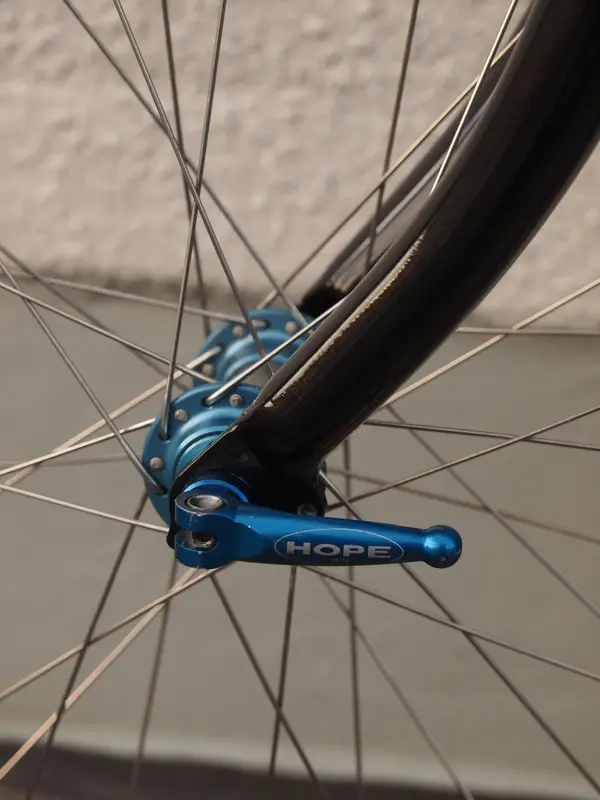

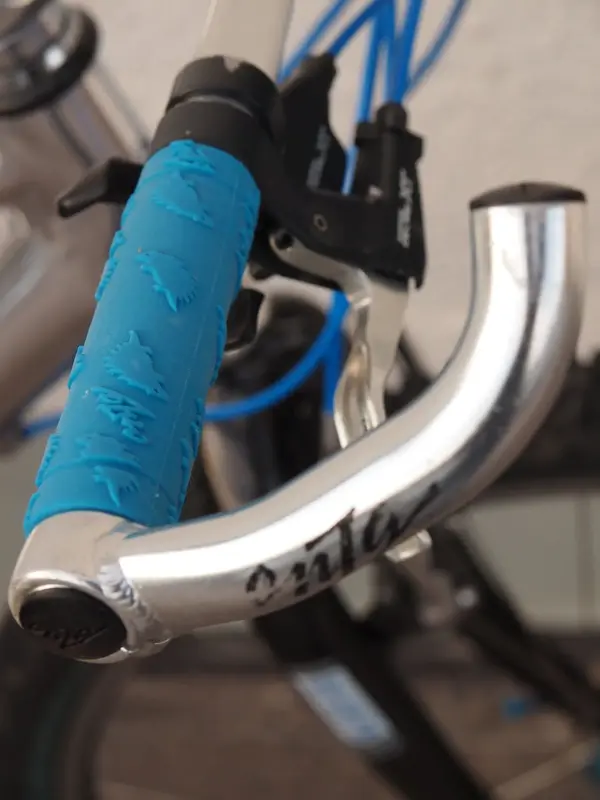

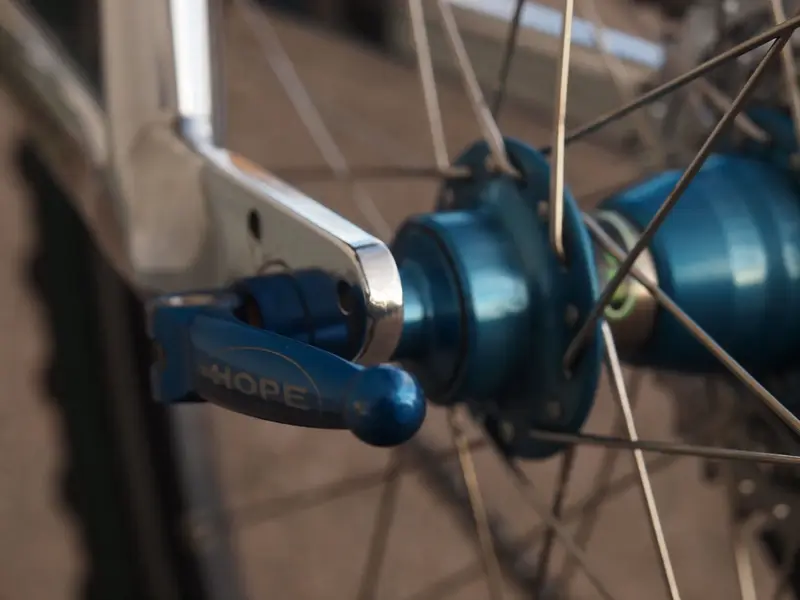

Got Hope skewers and repro Onza Porcipaw grips, so I think she is finished now.



[markoc]

Cor - thats an absolute stunner. Great build!

I've got an M700 that is sound but very rough - and I was thinking of stripping the paint and then polishing. How did you go about polishing? If I can get anything like that I'd be really pleased.
