1992 Cannondale MTB frame ID help

jesuislepop

Retro Newbie
Hello!

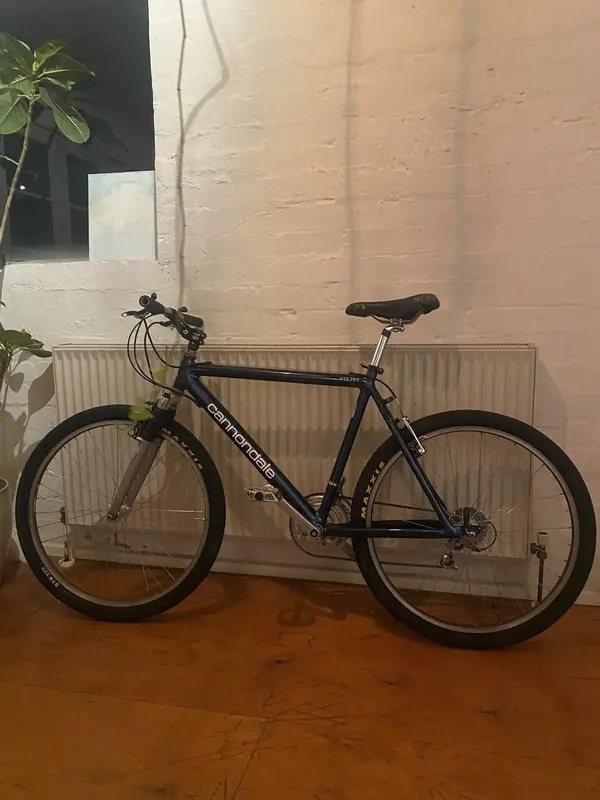

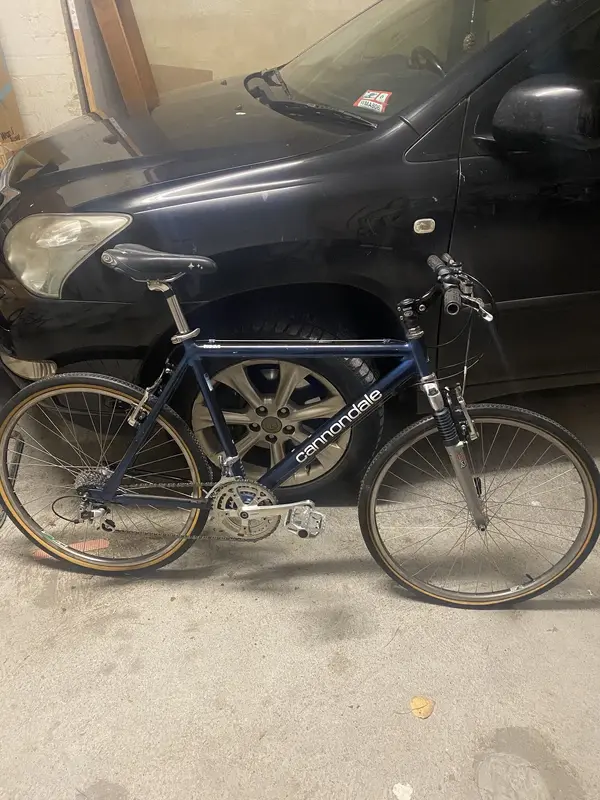

I've recently purchased a Cannondale Retro MTB and despite looking into it pretty deep, I can't quite narrow down which frame it is exactly...
Based on the serial number it's from 1992, but I've reviewed the Cannondale catalogs from this time I can't see it matching up to anything listed in the catalog...

Below I've also listed out some of the parts, broken down the serial number, and attached some photos. Please take a look and help me work out the mystery :)

Parts/spec:

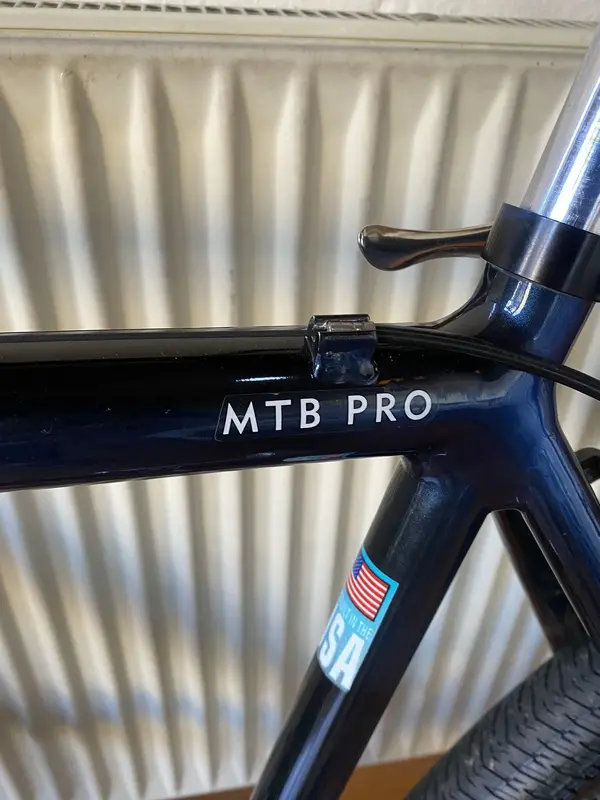

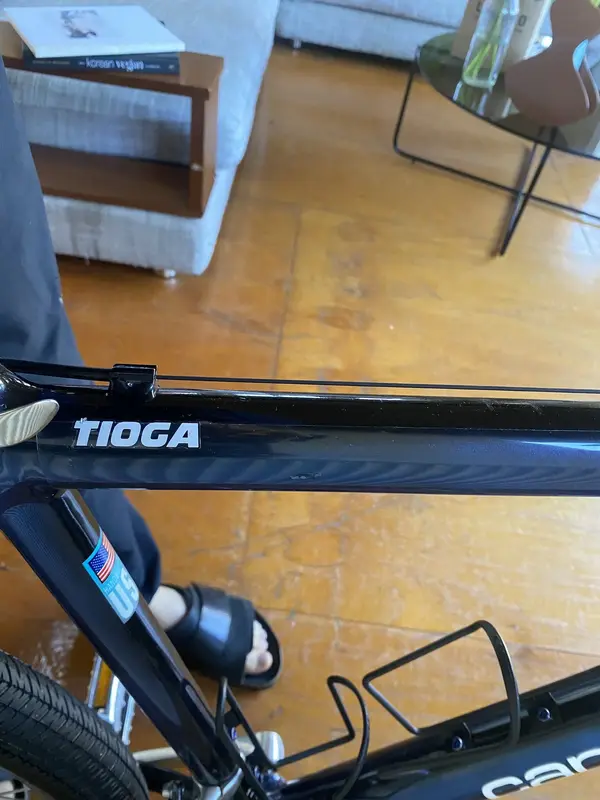

  • Decals: "Handmade in USA" on seat tube. "Mtb pro" and "Tioga" decals on top tube.

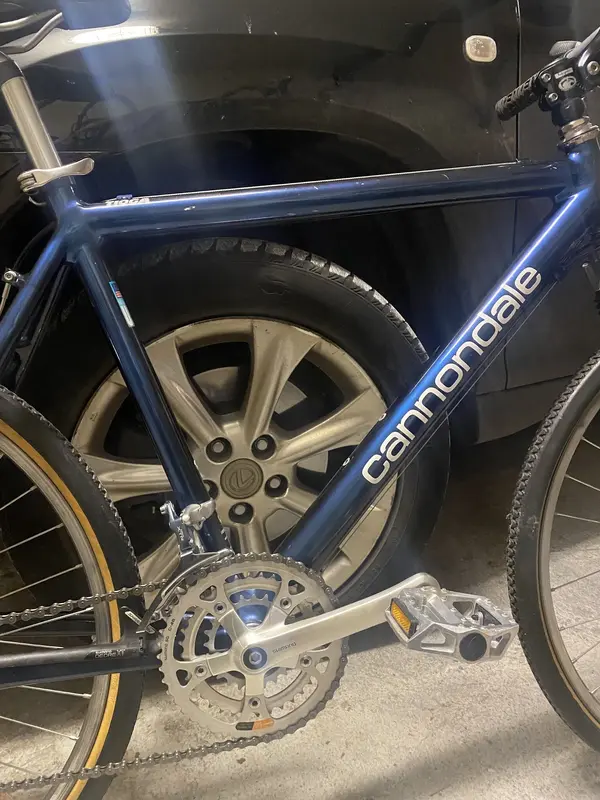

  • Colour: Dark metallic blue to black gradient (see pics)

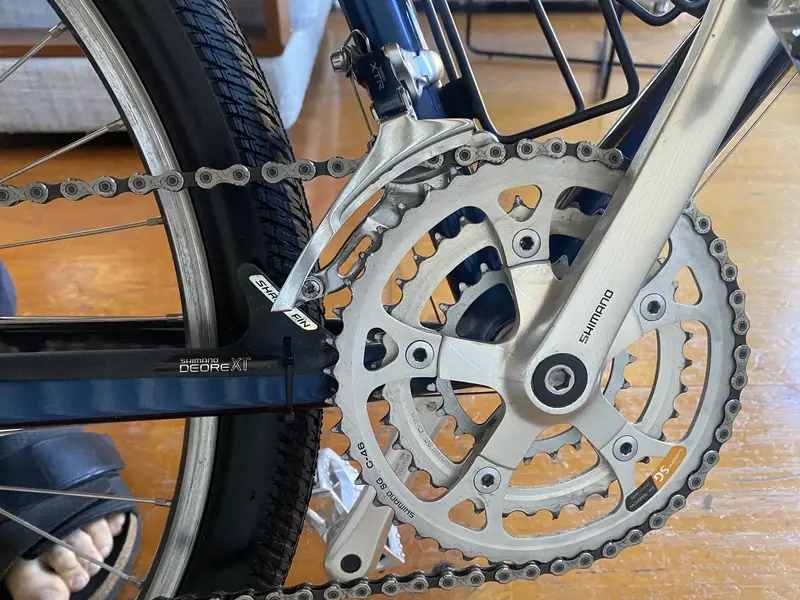

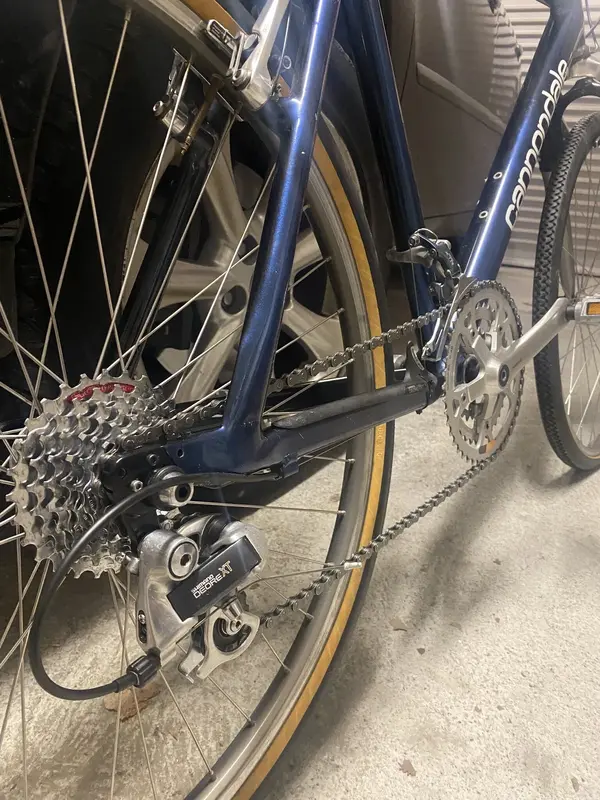

  • Front & rear derailleur: Shimano Deore XT

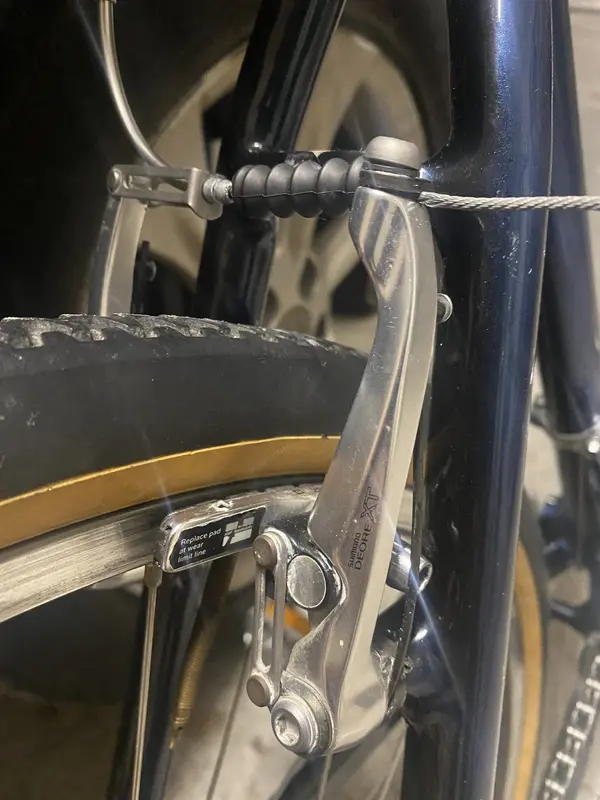

  • Brakes: Shimano Deore XT

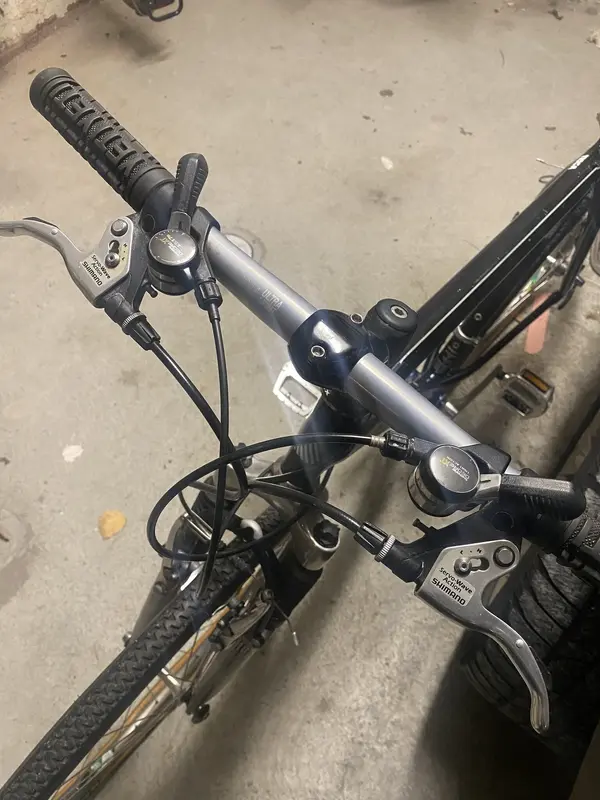

  • Brake levers: Shimano servo wave
  • More components are visible in the pictures linked above
Serial number
The serial number is 5-18-1092-6833, which I've worked out means:
  • 5 = Rear dropout spacing
  • 18 inch = Frame Size
  • 03/92 = Production Date
  • 6833 = Sequence Number
Photos:
IMG_9259.jpeg IMG_9260.jpeg IMG_9261.jpeg IMG_9262.jpeg IMG_9264.jpeg IMG_9265.jpeg IMG_9554.jpeg IMG_9555.jpeg IMG_9556.jpeg IMG_9560.jpeg

Haven't found a nice dark blue Cannondale bike in 1992 catalogs neither, the M700 and M400 look in the catalog blue-ish, but somehow different than yours.
It's at least not a M800 with BotE Geo, but the color looks like the 93-model M800. Maybe it was a replacement frame? Those had been often non-catalog colors.
The components are all obviously randomly selected,
(all +- a year or so)
- LX Brake levers 1997-98
- XT V-Brakes 1996-97

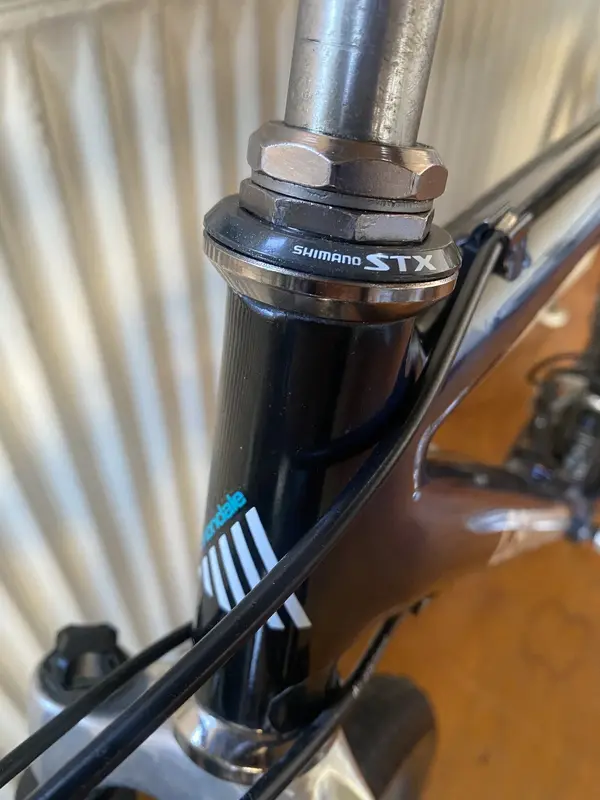

- STX Headset 1994-97
- XT Thumbies 89-92
- RockShox Quadra? without removable crown 94-95

Last edited:
Haven't found a nice dark blue Cannondale bike in 1992 catalogs neither, the M700 and M400 look in the catalog blue-ish, but somehow different than yours.
It's at least not a M800 with BotE Geo, but the color looks like the 93-model M800. Maybe it was a replacement frame? Those had been often non-catalog colors.
The components are all obviously randomly selected,
(all +- a year or so)
- LX Brake levers 1997-98
- XT V-Brakes 1996-97
- STX Headset 1994-97
- XT Thumbies 89-92
- RockShox Quadra? without removable crown 94

Lots of framesets only were sold, and replacement frames provided. No model marking in these frames at all. And after all, different models shared the exactly same 3.0 frame.
