i have 91 saracen cross trax with horizontal drop outs but they slot in from the front of the bike and the wheel moves backwards. anyone got any ideas for using tugnuts as i am running single speed?
tug nuts on a revers horizontal drop out frame?
- Thread starter hoegaardenadds1
- Start date
Harryburgundy
Gold Trader
- Feedback
- View

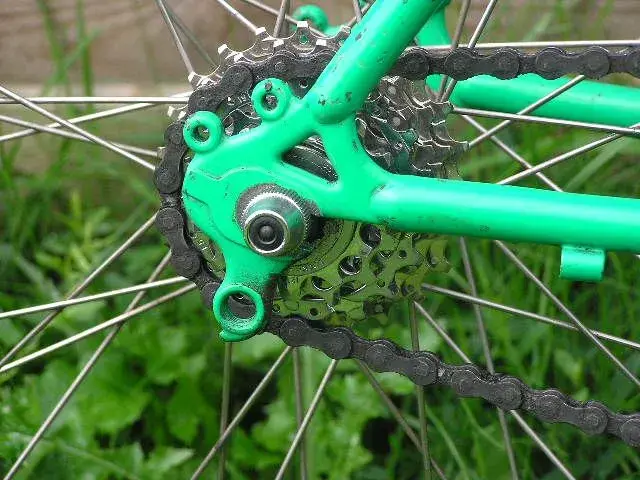

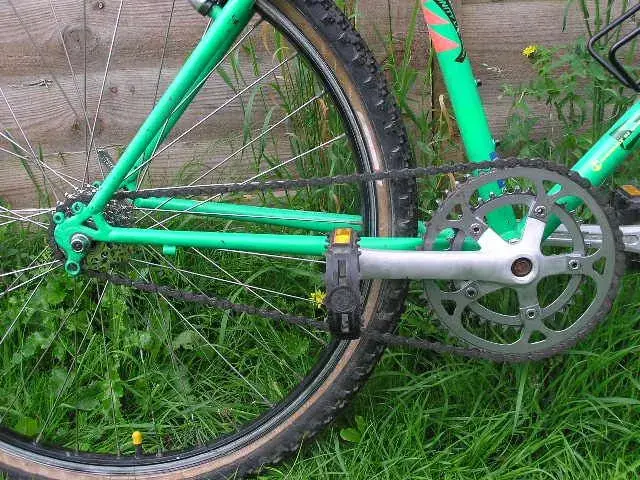

Just posted these tugs...not appropriate for you I fear...send a pic and lets look at the frame.
hoegaardenadds1
Gold Trader
- Feedback
- View
hoegaardenadds1
Gold Trader
- Feedback
- View
hoegaardenadds1
Gold Trader
- Feedback
- View
i think that may be my only option,... wanted to try and keep it qr for ease of tube changes as its my daily commuter.
velomaniac
MacRetro Rider
Seen some tugnuts of the kind you desire on an old Dawes single speed step thru.
I do not know where you can buy them but I reckon you could make up a set.
They comprised a sheet of thin steel which was folded over so that it sat on both sides of the dropout. Holes were drilled so that the axle passed through both sides of the folded sheet.
Where the fold occurs a threaded nut sits between the sheets of steel with a hole drilled on the crease to allow a bolt to enter the nut. The fold wraps around the rear of the dropout.
Tensioning results from winding in the bolt which pulls the nut and thus the sheet steel away from the rear of the dropout as the bolt tip presses against the rear of the dropout. Once tension is reached the axle nuts are tightened to hold the wheel in place.
Baked bean tin steel would probably be adequate with a nut and a long bolt. Secure the nut in place with some super glue.
Looks quite simple and I think I might give it a go myself.
Cheers
I do not know where you can buy them but I reckon you could make up a set.
They comprised a sheet of thin steel which was folded over so that it sat on both sides of the dropout. Holes were drilled so that the axle passed through both sides of the folded sheet.
Where the fold occurs a threaded nut sits between the sheets of steel with a hole drilled on the crease to allow a bolt to enter the nut. The fold wraps around the rear of the dropout.
Tensioning results from winding in the bolt which pulls the nut and thus the sheet steel away from the rear of the dropout as the bolt tip presses against the rear of the dropout. Once tension is reached the axle nuts are tightened to hold the wheel in place.
Baked bean tin steel would probably be adequate with a nut and a long bolt. Secure the nut in place with some super glue.
Looks quite simple and I think I might give it a go myself.
Cheers
hoegaardenadds1
Gold Trader
- Feedback
- View
baked bean tins you say... i know what i'm having for tea now! now wheres my tin snips....
