Sintesi Snake - mech hanger anyone?

[RickTheUncivil]

I have a not too shabby sintesi snake frame but with no mech hanger.
Anyone happen to know which pattern I need?

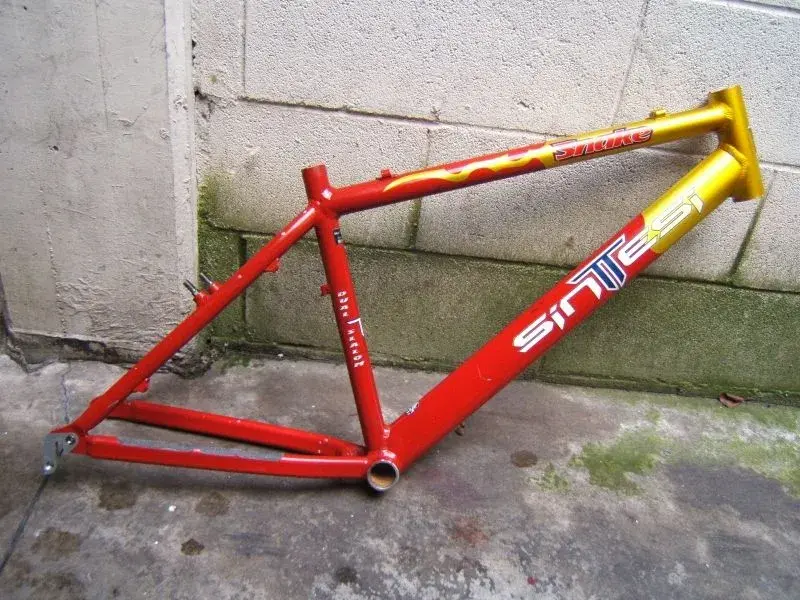

Found a pic online but cant really make it out too well... (this is not my frame)



[LikeClockwork]

Re:

I've got a box full of the things Rick, but I'll need a close up of your drop out shape to be sure which one it is.



[RickTheUncivil]

I'll get the camera out tonight



[RickTheUncivil]

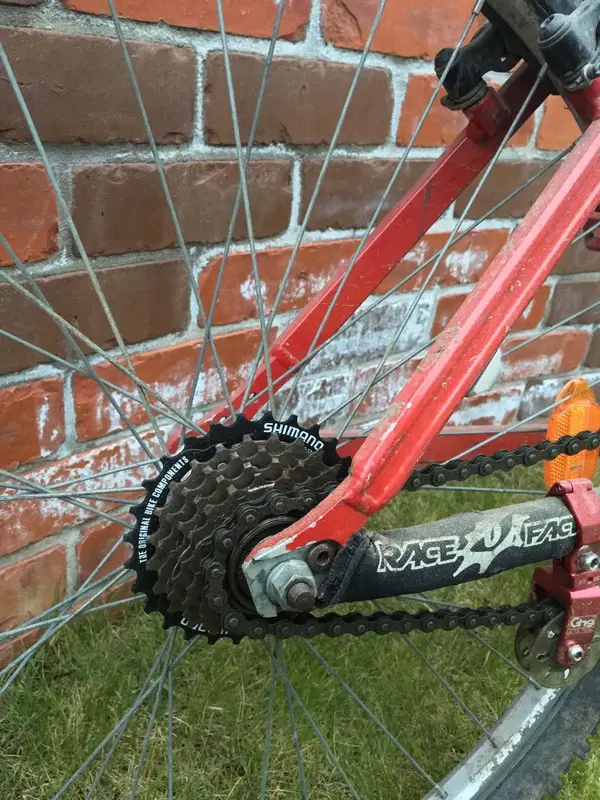

found this pic too



[LikeClockwork]

Re:

Not sure that helps much!

Did you want that seat clamp? Just thinking, for an extra couple of quid I could chuck in a selection of what I've got hanger wise and you could probably fettle one to fit, I know I've filed bits off and reworked them in the past....



[RickTheUncivil]

was thinking something similar.....
(was looking at a couple of your bits and bobs but need to see on a proper screen)
let me measure up and get some piccies tonight and we'll go from there.
I'll be in touch



[RickTheUncivil]

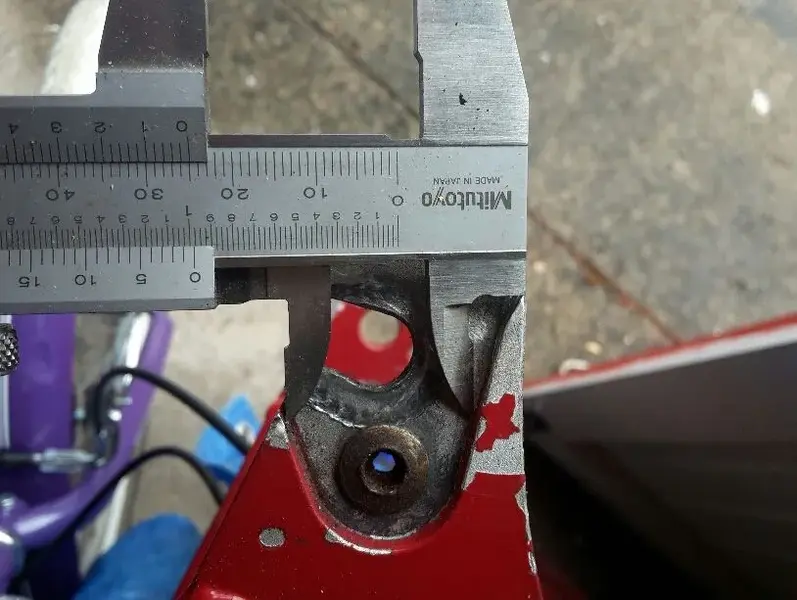

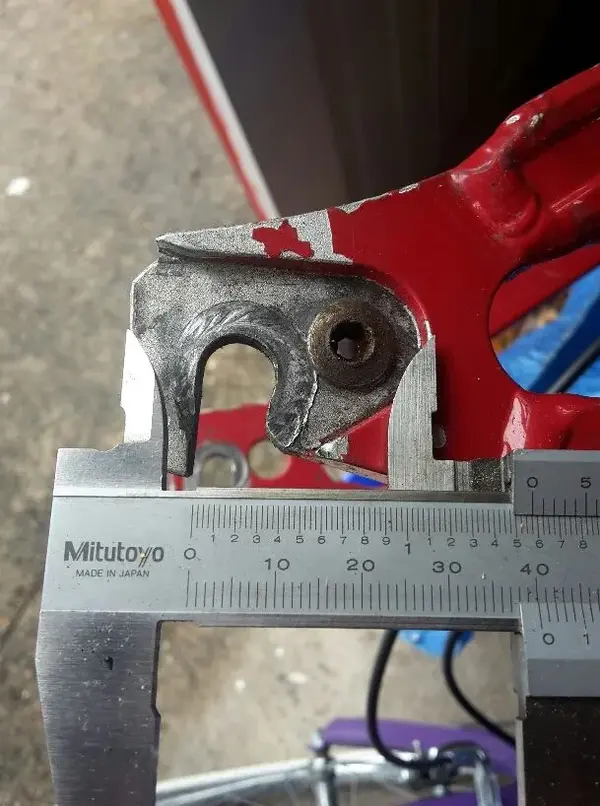

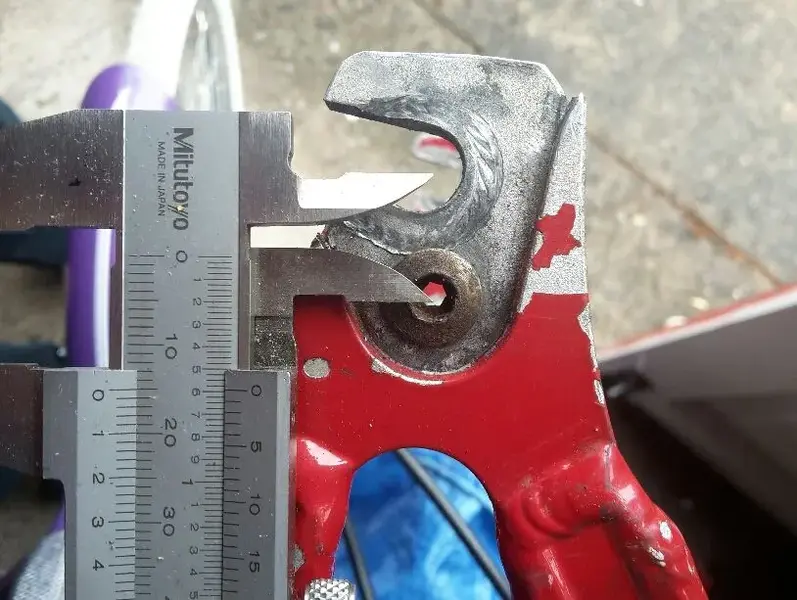

Some dimensions

Say 15mm bolt centre to axle centre, cut out is around 25mm tall and 40mm long but with quite a narrowing. Something to fit that anyone?



[LikeClockwork]

Re:

Unbelievably, I haven't got any that are 'flat' enough across the top, that is perhaps a slightly unusual one.... :?



[RickTheUncivil]

still looking



[Moqi]

http://www.forcellinocambio.com/index.p ... ts_id=1245
