Shimano XT BR-M750 Squeal

Dare

Senior Retro Guru
So I got these used brakes few months ago, when I first installed them it was awsome, great modulation and stopping power with no sound. Then the front brake started to squeal and I tried these things:
1. toe in the pads
2. changing the pads
3. relacing the wheel with brand new rim
4. switching to rigid fork
5. buying complete new set of wheels
6. switching pads placement; front on rear and rear on front
7. switching brake plaement; front on rear and rear on front
8. in desparation - got new tires

and the result was always the same: front brake squeals, rear does not!
I read somewhere about shimano XT 739 paralellogram brakes getting lose and needing the tune up kit, so I tried that with my brakes too and in lack of proper shims I took 0,5mm shim and thined it with file to a proper size, now there is no horizontal movement in brake but the sound of stopping train is still there…

is there really no cure for these?

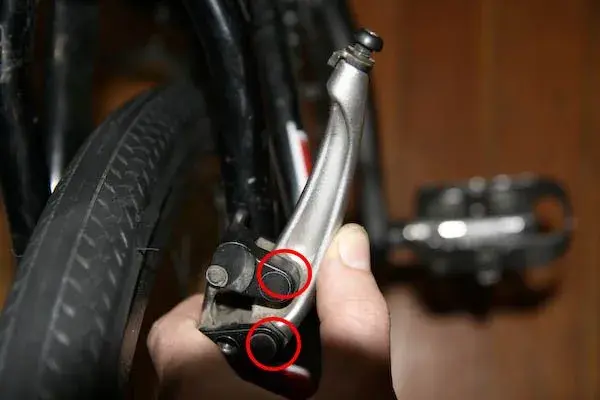

btw. I attached picture showing where I placed the shims.

sorry for my english and thank you in advance


Darko.


Attachments

  • img0531yi6 copy.jpg
    img0531yi6 copy.jpg
    24.2 KB · Views: 812
heh, google translates in worse english than mine!
So, if I understood this text, dude took out the parallelogram from left side and placed it on right and also changed the pad direction?

Nope, he just switch parallelograms from left to right and vice versa

I ll try it out and tell you the results…

edit: this method requires fileing pin - if it doesn't work the brake is ruined and I am not willing to do that, I would rather give these away and buy Single Digit 7.
Thank you for your post mate but I'll wait for other suggestions.
