Pace stem/steerer combo help

[andy.l]

Trying to source enough info to have one made,is this how it fits into the crown,just by clamping with the 4 crown bolts,please feel free to copy/add to the diagram as im not sure still.Please excuse the rubbish paint diagram,lol

thanks for any info

andy



[Bear-Chan]

hi andy
ive got one sat right here actually! ill take a picture for you...



[andy.l]

just sell me that one



[pete_mcc]

two things:

You'll need a lip on the top of the steerer to engage the headset to preload it

Second, you'll need to ensure that the end of the steerer is shorter than the bottom of the crown (think an aheadset assembly in reverse), there were different length ones for each size of frame.



[andy.l]

Like this...



[Bear-Chan]

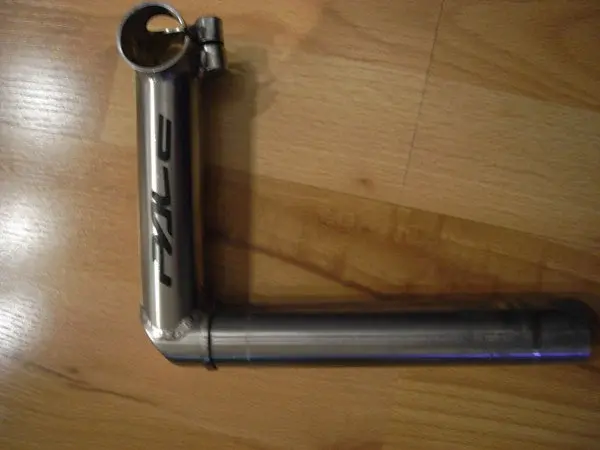

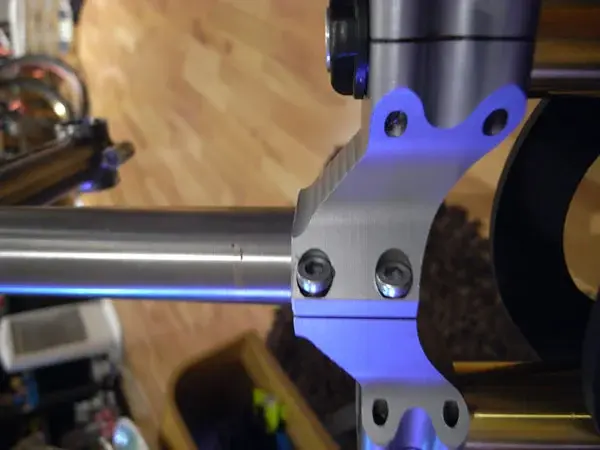

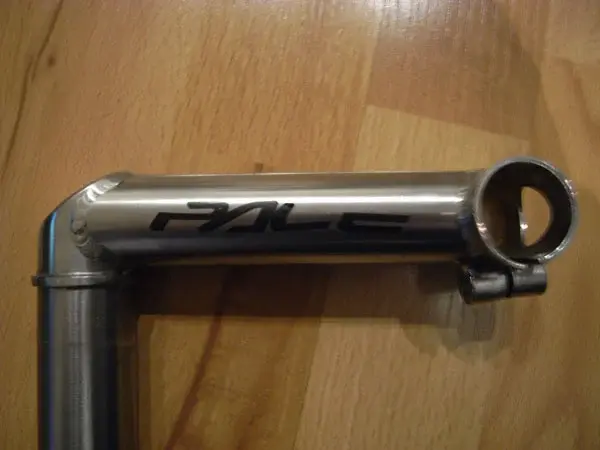

here you go - hope these help. like pete said, you're basically just running the headset upside down:



[Crell]

I'd like to award Andy the "best ever use of MS Paint award"



[andy.l]

thanks for the pics,is that an original or one you had made,and where if you did please?



[Bear-Chan]

its an original im afraid! i need to get some new stickers sorted out for it at some point. id be really interested in getting a fresh one made tho if they can be done for a reasonable amount some how...



[andy.l]

I asked a few members on here about it and Dave Yates name came up,so im going to forward your pics(if you dont mind) to him and ask if its possible.

what does it look like from the top please
