Magura Brake Booster

[ishay]

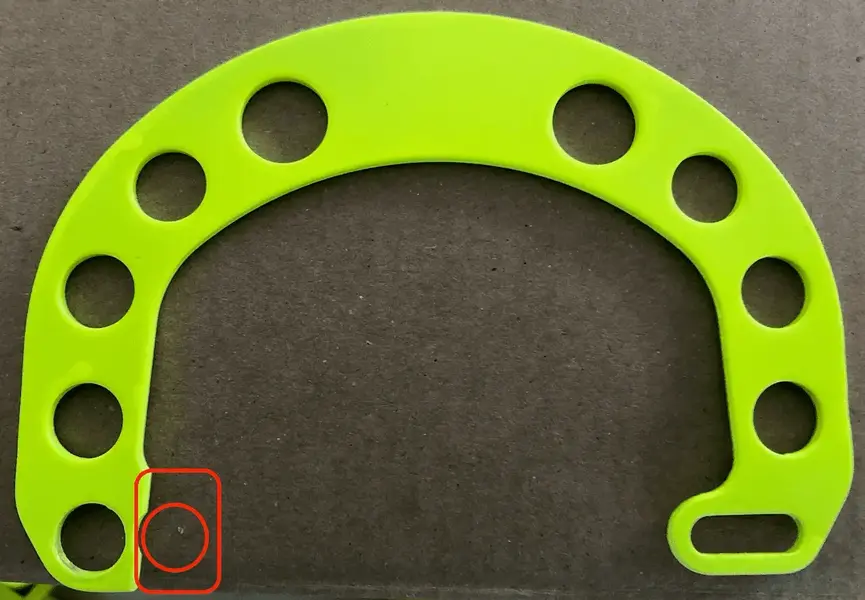

Has a chunk been cut off this brake booster? I bought a set of Magura HS33 brakes with only one booster. Ignore the fact I screwed up the repainting, has the mounting hole been cut off? Looking at photos online, and offering it up to a bike I think it has.



[seiben]

Indeed it has. Presumably removed to fit wider tyres (as I've had to do in the past).



[Timoth27]

Re:

Yep been cut off, the way I see it it’s to do with tire width and rim width getting wider, it’s essentially made that first hole Redundant and also in the way so they get cut off.



[FluffyChicken]

Re:

Yes Magura have it in the instructions to cut it off if it is not needed and gets in the way.



[Timoth27]

Re: Re:

Yes Magura have it in the instructions to cut it off if it is not needed and gets in the way.

Didn’t know that. Cheers fc.



[jimo746]

Re:

As all the above have said, yes it's been cut off, a very common thing to do, I did/do it too as sometimes even 2.1 tyres can be a pain to get the wheel out/ Q/R side brake off. It'll still fit just fine and work as normal, someone has saved you the trouble of cutting the extra hole off



[My_Teenage_Self]

All of mine have that bit cut off

Mostly, I did it...



[FluffyChicken]

http://www.retrobike.co.uk/gallery2/d/1 ... s+full.pdf
backup evidence ;-)
Page 6, #13


I put these up 7 years ago now apparently thought it was only a couple of years ago, eek.
I will get around to renaming them properly and adding anything else I can find.
http://www.retrobike.co.uk/gallery2/v/M ... a/Service/

I like how the 2001 info version still has a Mag21/Quadra in the picture.



[ishay]

Great feedback, thanks all. I've dissembled everything, so those manuals will be used for more than just this query now too.

If anybody should have a one spare brake booster and mounts I'm on the lookout to buy a set. I ordered some here https://www.rockandrollbikes.com but haven't heard from them, not sure if it's just a Covid19 thing, all the bike shops I know are open.
