Help identifying Marin with unusual frame number. Pic's added

[Rule5alfie]

Hello, I recently was given a Marin mountain bike frame with a stuck Seatpost. I was told it was from 1992, but not sure. I have had a look at several things on here but cannot seem too de-code the frame number, it is M02ISO601. Your help would be much appreciated.
Thanks
Alfie



[ringo]

Re: Help identifying Marin with unusual frame number.

Benandemu posted this ages ago on here...

M74HAB182

The M is the factory.

M is Marvel, F is Fairly and T is Ti sports

7 is the model number. Exclude the Ti bikes and work down the list eg.

1 Team Issue
2 Team Marin
3 Pine Mountain
4 Eldridge grade
5 Bear Valley
6 Muirwoods
7 Palisades Trail
8 Bobcat Trail

4 is the year ending number. That would be 1994.

HA is month and date, but you will need the Enigma machine to decode these. Not really relevant either!

B is the size centre to centre.

A is 14 inches
B is 15.5 inches ( this makes it 17 centre to top)
C is 17 inches
D is 19 inches
E is 20 inches

182 are production numbers that are factory use only, and again require the Enigma machine.



[ringo]

Re: Help identifying Marin with unusual frame number.

So looking at that your frame number seems to make sense only in terms of the model year!



[Rule5alfie]

Re: Help identifying Marin with unusual frame number.

Yeah, I had seen this but my numbers don't fit the formula?

A 1992 Team Marin?



[FluffyChicken]

Re:

They're the 1994 formula, other years varied.

Post pictures too.



[Rule5alfie]

Re: Help identifying Marin with unusual frame number.

Sorry won't be able to upload pictures till Later.



[Rule5alfie]

Re:

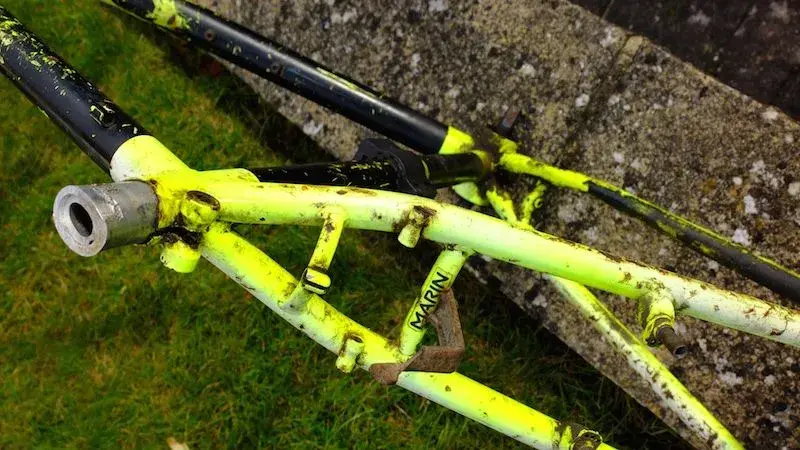

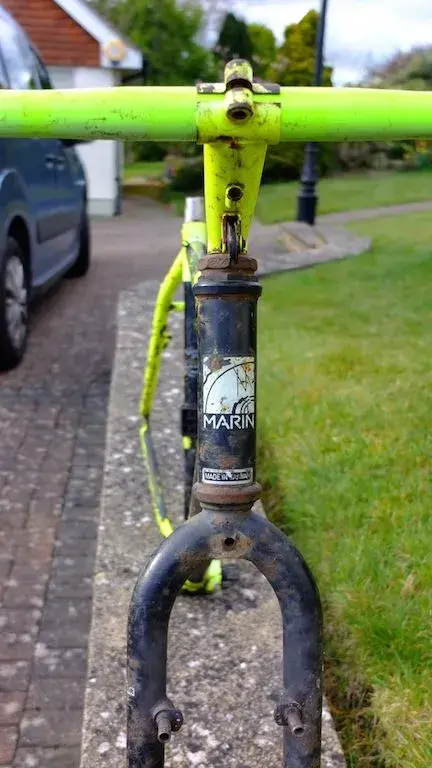

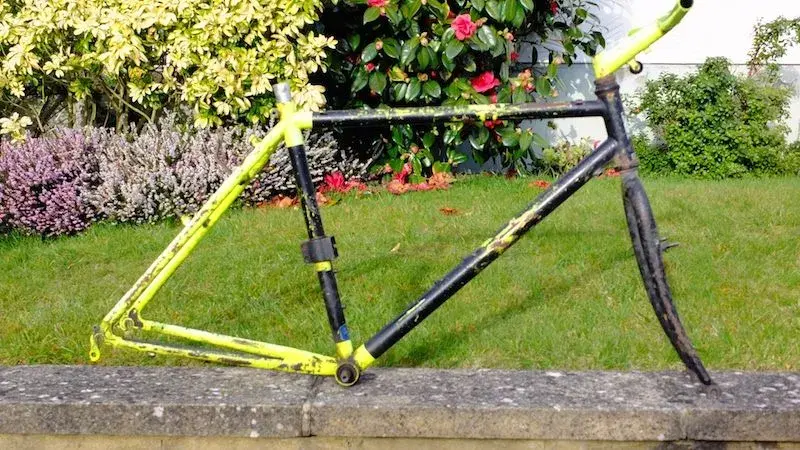

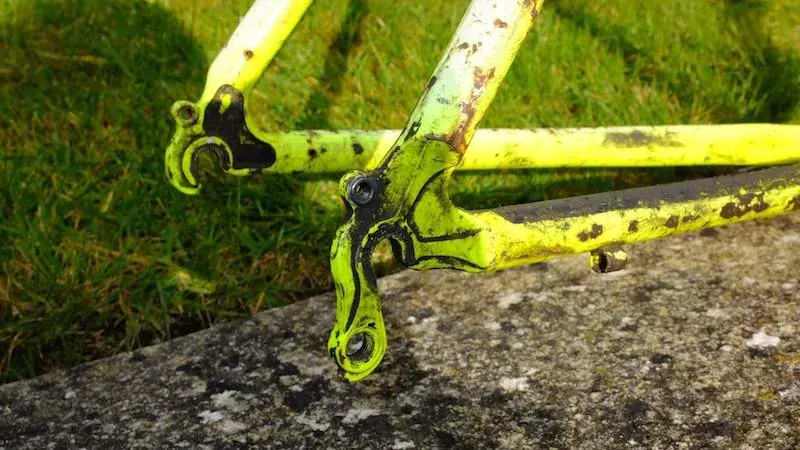

Here are the pics!
The frame is day glo green (like Team Marin in 1992 catalouge), not yellow as the pictures show.



[sherlylock]

Looks like a 1992 Muirwoods to me.

Edit: Just noticed you say not yellow - Palisades then?

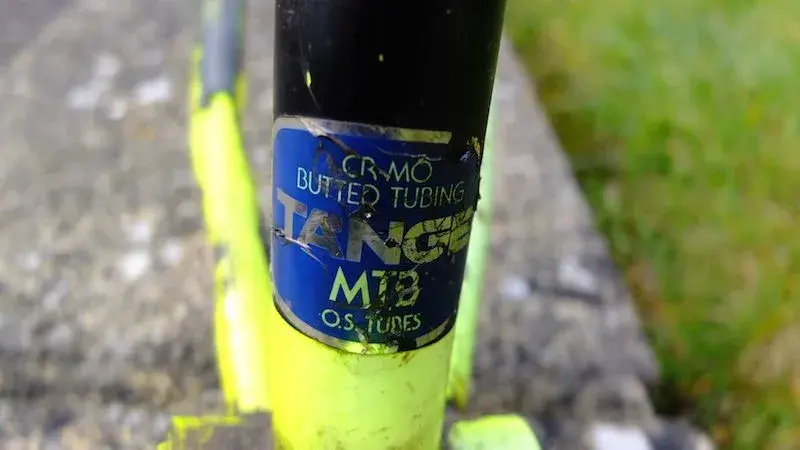

Think the tubing sticker would say Prestige if it was a Team? Catalogue mentions external ribbing on the down tube too on the team - worth a check.



[Rule5alfie]

Looks like a 1992 Muirwoods to me.

Edit: Just noticed you say not yellow - Palisades then

Possibly, but the down tube has a diameter of 37.5, in the catalougue it says 35mm down tube for Palisades and Muirwoods?



[sherlylock]

What's the seatpost diameter?
