BB Spindle Length on Suntour Crank?

[JackHarper]

I need a new BB for my '91 Tequesta and cannot determine what size to get, so need some advice. The old one I took out was a 122, so I just presumed that was the size to go for so I bought a UN54 73x122 and it just seems to short for the Suntour XCE Crank, the front mech is almost touching the rear tyre and there's virtually no gap between granny ring/crank and frame.
I should have realised that the muppet who stuck all these random parts on didn't have a clue and that would explain why the BB was loose to kick off with when I got it, its just all wrong wrong wrong.
Can somebody please tell me which BB to get, what spindle length?

Thanks in advance.



[Loki]

Looks like your 122 was asymmetrical and you bought a symmetrical. A lot of older cone and cup BB's had a longer drive side.



[drcarlos]

It was 122 for both the XCT (old) and XC Ltd (new) chainsets that I have on my pathfinder. I didn't think there was anything longer than 122.

Carl.



[FluffyChicken]

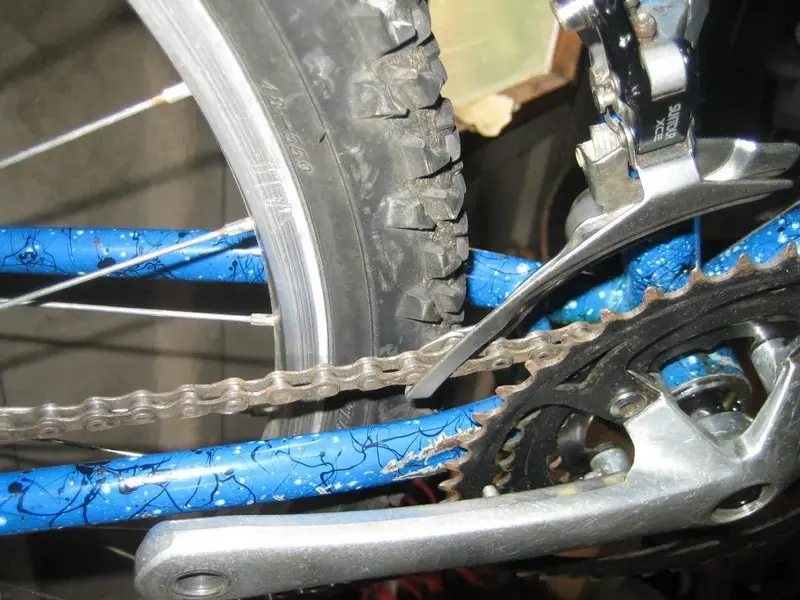

122 and I don't see anything wrong in the picture

other than your granny ring is not aligned correctly (needs rotating a little so the notched line up
