1990 MuddyFox Adventurer

Once A Hero

Senior Retro Guru
Feedback
View
Back in 1990 I bought one of these for the princely sum of £282 - and began my hobby of Mountain Bike racing :D

With the original bike lost to thieves :evil: , and with pushing 30 years having now past, I set about the task of finding and recreating another.

Luckily about 2 years ago I tracked down a practically unused frameset from the east coast of America :shock: , and started the hunt for parts.

I soon established that because of the low end nature of the bike, it was actually quite difficult to find decent quality original spec parts without buying a perfectly useable bike and stripping it - which I didn't want to do, so I abandoned that search and instead decided to search for a higher end set of components.

Because of the vibrant nature of the frameset, my vision was it would look great with an all black groupset.

In reality it has turned out better than I expected! :D I think it looks ace! :cool:

Here's the finished spec and a few pics of the journey. Enjoy.


Frame: 18" Tange 4130 Cro-Mo

Fork: Tange Cro-Mo

Headset: Shimano Deore XT M735
Stem: Tange Cro-Mo (assumed)
Stem Cap: N/A
Handlebar: Steel, black
Grips: Ritchey WCS
Barends: N/A

Brakes: Shimano Deore XT M732
Brake Pads: Shimano Deore XT M732
Brake Cables: Shimano Retro Thick!
Cantilever cable hangers:
Brake Levers: Shimano Deore XT STM-092

Shifters: Shimano Deore XT STM-092
Front Derailleur: Shimano Deore XT M735
Rear Derailleur: Shimano Deore XT M735
Derailleur Cables: Shimano (Modern)
Cassette: Shimano CS-HG90 12-26T
Chain: Shimano HG70
Cranks: Shimano Deore XT M732
Crank Bolts: Shimano Deore XT M732
Chainrings: Shimano Deore XT M732
Chainring bolts: Shimano Deore XT M732
Bottom Bracket: Shimano Deore XT
Pedals: Shimano Deore XT M731 with Tioga PowerClips

Hub Skewers: Shimano Deore XT M732
Rims: Wolber Hard Anodized, black, 36H
Hubs: Shimano Deore XT M732
Nipples: ?
Spokes: ?
Tyres: Tioga Mud Dawg F&R
Tubes: ?

Saddle: Avocet Racing 1
Seatpost: Kalloy
Seatpost Binder: Suntour

Weight: ?

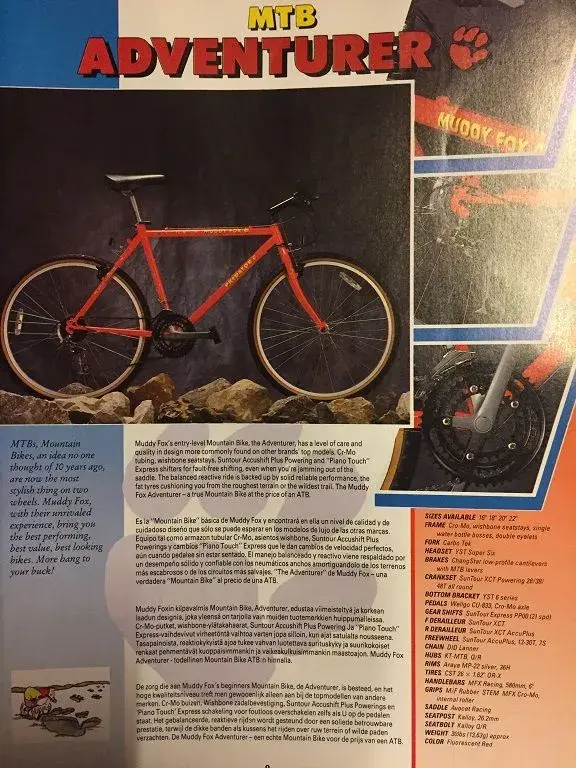

Original brochure

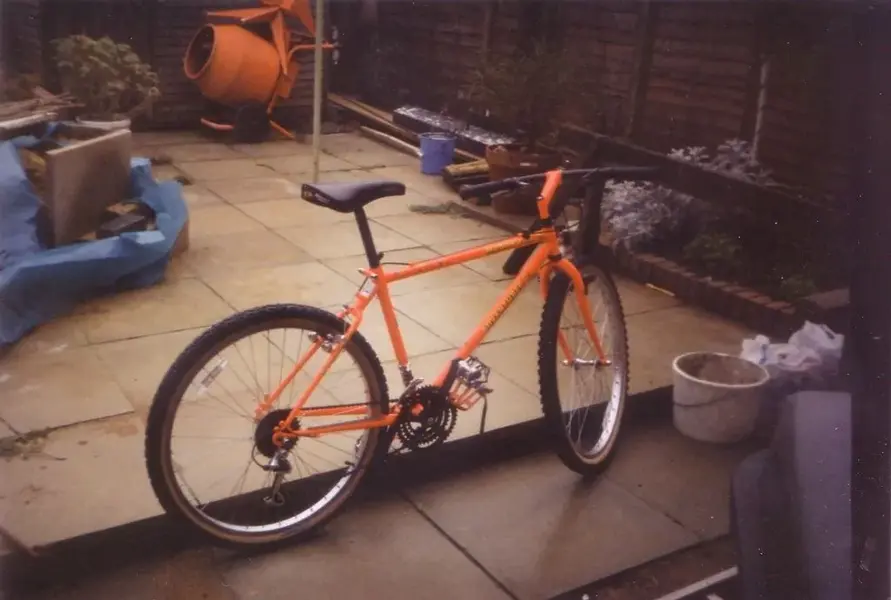

The original bike (with some mods of the time of course) (same colour as the cement mixer!)


The general outcome of a weekends use (me on the left (clean), brother on the right (muddy))

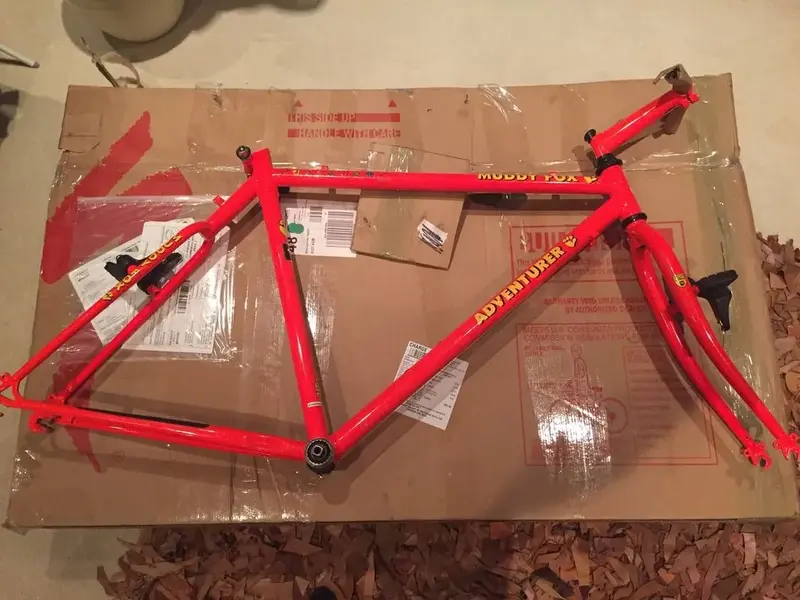

The frameset sourced from the states


The potential groupset - Suntour XCT basis

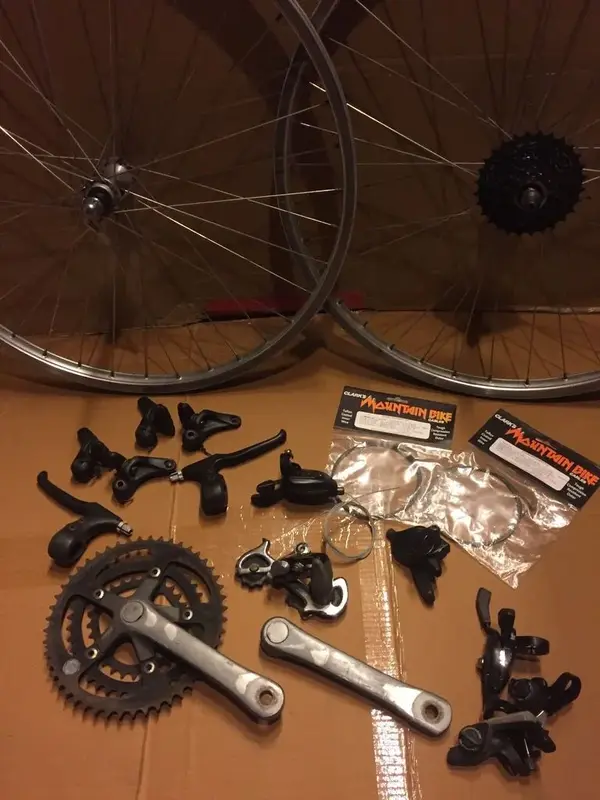

The chosen groupset - Shimano XT

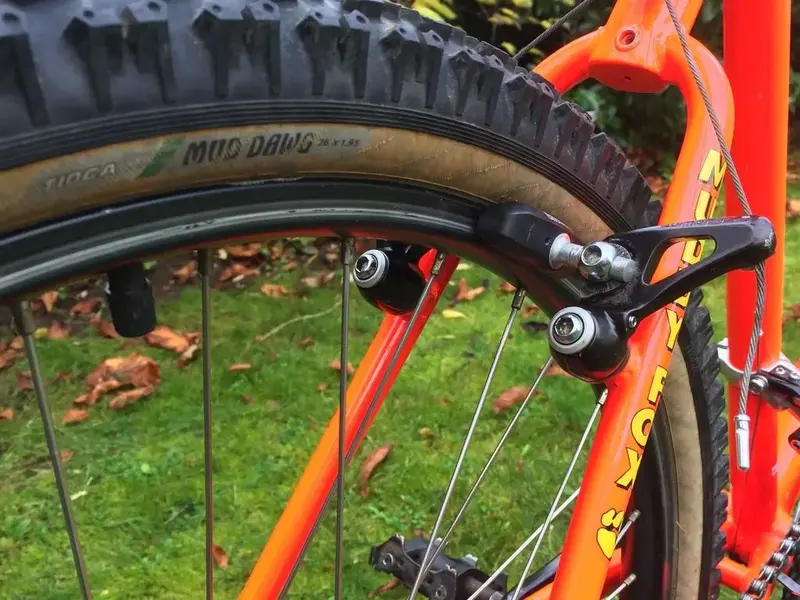

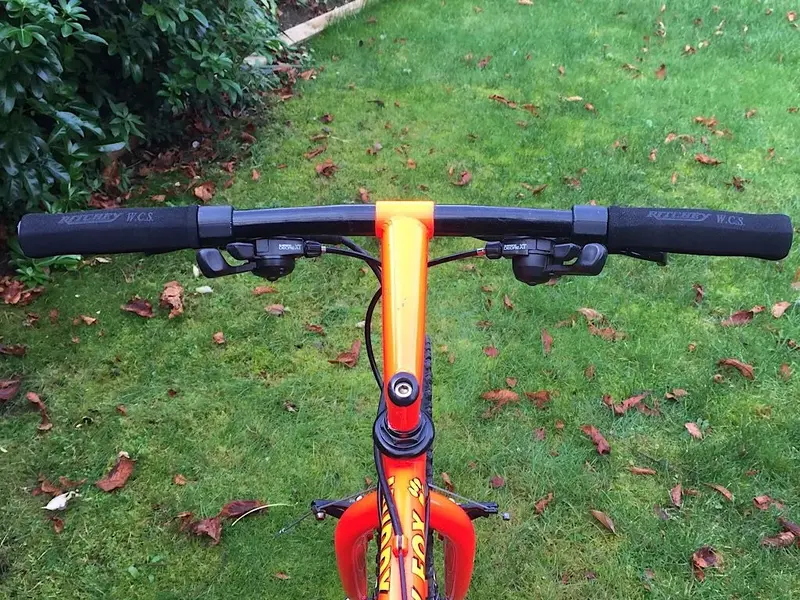

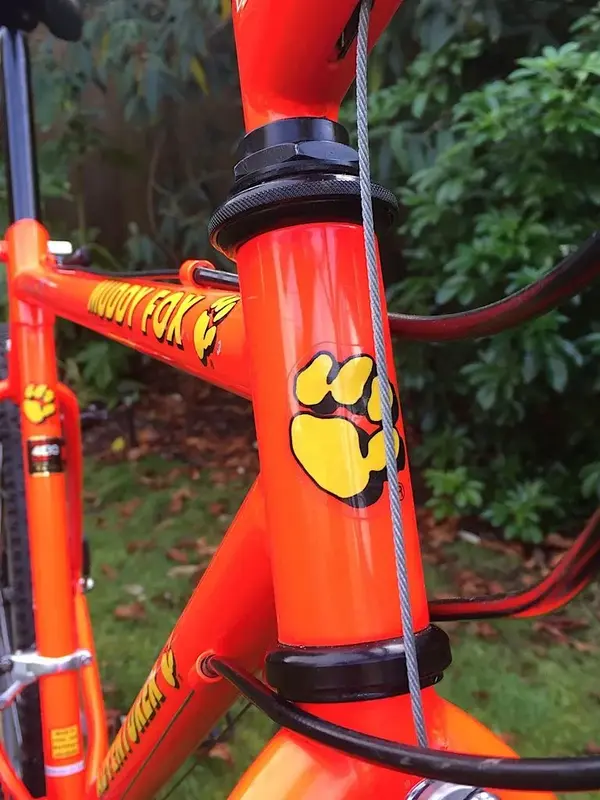

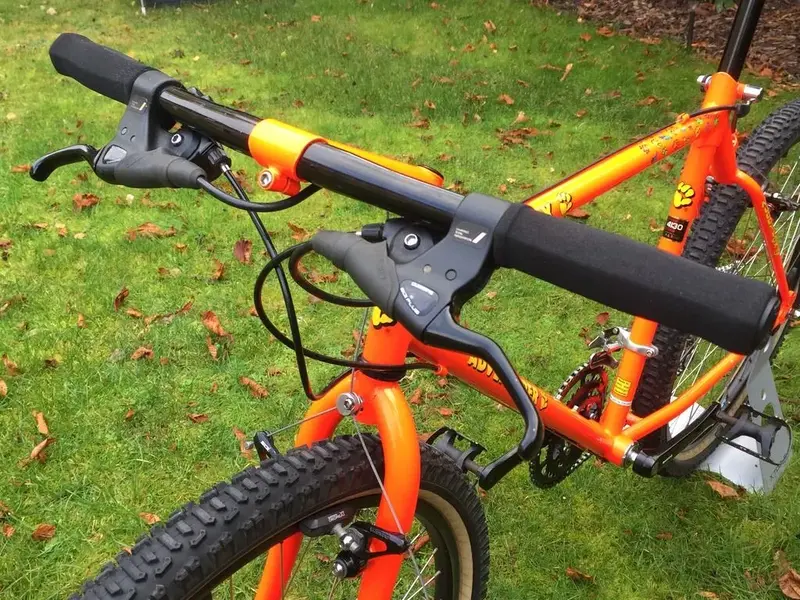

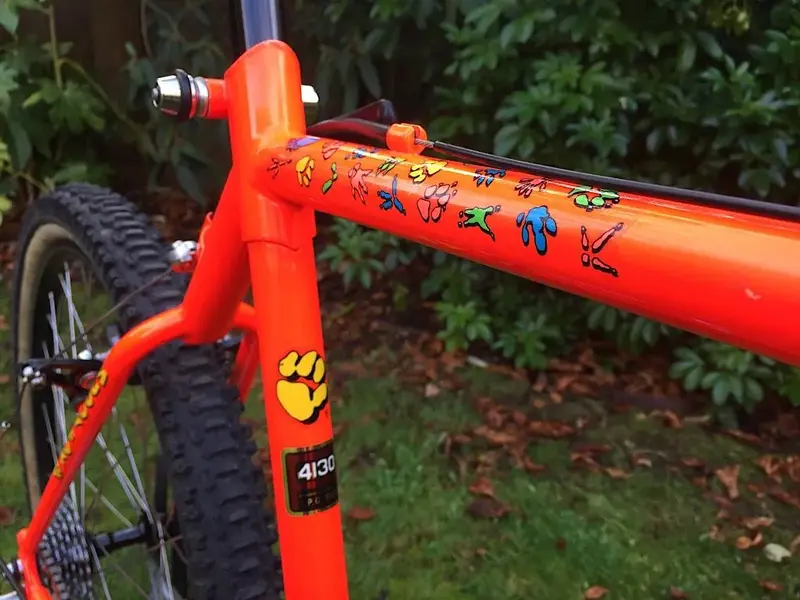

The finished pics


Attachments

  • IMG_2889 RS.jpg
    IMG_2889 RS.jpg
    230.2 KB · Views: 1,242
  • image.jpg
    209.9 KB · Views: 1,242
  • 24821865-55A1-4ABF-9ABA-BF58DD10701B.jpg
    199.5 KB · Views: 1,242
  • 905E8563-28F2-4A8B-99C6-C6AD9B656CBB.jpg
    211.9 KB · Views: 1,243
  • EEA1089A-E7BA-4BBC-9CCD-9003A943240C.jpg
    433.2 KB · Views: 1,243
  • 5ECDC915-3699-4DF0-9F08-08D6596555EA.jpg
    452.5 KB · Views: 1,243
  • 00000000-0000-0000-0000-000000001200.jpg
    152.3 KB · Views: 1,242
  • 00000000-0000-0000-0000-000000001212.jpg
    162.4 KB · Views: 1,242

mk one

Old School GrandMaster
Retrobike Rider
BoTM Winner
Gold Trader
Kona Fan
Feedback
View
Very nice, and a good choice going with the black components Really makes the frame stand out


Once A Hero

Senior Retro Guru
Feedback
View
Re:

Like most MFs of the time, it's brighter in real life! My iPhone couldn't capture the fluorescent as I'd hoped!


Attachments

  • DE01ECF8-CA9F-49AF-9FFD-A3F673A90EF6.jpeg
    189 KB · Views: 1,415
  • 82688850-C403-4984-9146-5DEF0BD18A55.jpeg
    202.2 KB · Views: 1,415
  • 20E2B2A8-C0E1-4B52-ADD3-1256248831E4.jpg
    245.4 KB · Views: 1,244
  • D3F1EF4E-D710-4744-BC11-35DACC1048F1.jpg
    365 KB · Views: 1,244

mynchiboy

Gold Trader
Feedback
View
Re:

Really cool build, very nice! Components look almost NOS :shock:

A XT headset would finish this off very nicely :cool:


Once A Hero

Senior Retro Guru
Feedback
View
Re: Re:

mynchiboy":lkifbh0u said:
Really cool build, very nice! Components look almost NOS :shock:

A XT headset would finish this off very nicely :cool:

Chainset, BB and chain are the only NOS parts, everything else is just very low mileage.

Maybe over time I'll track down a suitable XT headset, seatpost and pedals (a pair from my Stumpjumper fitted for the photos), plus it could do with better bars but I'm not really sure what make/brand to look for.


Attachments

  • 08300F0F-C0DC-4CCA-AD82-349BE4860E1F.jpeg
    399.6 KB · Views: 1,415
  • 21F035F1-B48A-42A8-852C-503FE88AC3DF.jpeg
    377 KB · Views: 1,415
