The GT STS Thread Members Bikes and Tech Info

[RubberDucky]

You can find a lot of info here if you have facebook; GT LTS and STS Owners Club

Log into Facebook

Log into Facebook to start sharing and connecting with your friends, family, and people you know.

www.facebook.com

and here: The Vintage Downhill MTB page Group

Log into Facebook

Log into Facebook to start sharing and connecting with your friends, family, and people you know.

www.facebook.com

I have a STS DH also. A 1997

Thank you for this.. Not sure why I didn’t think to look at Facebook tbh! Just from what I’ve seen around the internet so far, I have a feeling this might also be a 97 frame. What’s your current setup looking like?



[mk one]

GT catalogues here for original specs

Catalogues | GT Archive | Retrobike



[RubberDucky]

Looks great. Doesn’t look like you are missing anything important. No seat post clamp but that’s an easy buy. If the original bushings are smooth, I’d leave them. Bearing upgrade is sweet but a PITA to fit.
Looks like it already has a bolt on disc adapter, just in 22(?) mm Hayes size. Personally I’d leave it V brake.

Cable routing is “fun”. If you can help it, don’t remove any that are there and tape the ends so they don’t pull back through. When it’s time to fit the new one, tape them together and gently pull the new one through. If you don’t have a cable in place there are a few methods.
My technique was to use modelling wire. It’s stiff and can be straightened. Push though from the rear holes then guide out the front holes via the head tube space. Tape the new cable on and carefully pull through. Make sure its threaded through the shifter and front portion of outer first though. Don’t ask why I’m mentioning that obvious point

Looks like a great project, enjoy!

Haha yeah I noticed the seat post clamp, the bike was stripped down for storage many moons ago. we recently cleared out our old family home, so I’m praying to find a box somewhere full off all the missing bits, I’m not holding my breath tho.

Yeah both rims have 6-bolt holes to fit a disc, hence my curiosity.. but if it’s a real pain then I’ll stick with Vbrakes.

Thank you very much for the cabling tips, this kind of ‘voice of experience’ stuff really is golden.



[clubby]

Yeah both rims have 6-bolt holes to fit a disc, hence my curiosity.. but if it’s a real pain then I’ll stick with Vbrakes.

Wouldn’t say it’s a pain, you just need the right caliper to fit the 22mm mount or the correct adapter to fit an IS caliper. Also no neat way to attach rear hose, I ended up zip tying it to the top tube when I ran disks.
If you are just cruising, V’s will be fine anyway.

Here’s my build thread if you’re interested.

XTR'd 1997 GT STS 2

In the beginning (1997), there was God (hello). On the first day, God created the 1997 GT STS 2...... And it was good. On the second day, God decided Rockshox were wrong and that even in 1997 despite their claims, 80mm forks could not be considered "long travel". So he created 100mm...

www.retrobike.co.uk



[RubberDucky]

Wouldn’t say it’s a pain, you just need the right caliper to fit the 22mm mount or the correct adapter to fit an IS caliper. Also no neat way to attach rear hose, I ended up zip tying it to the top tube when I ran disks.
If you are just cruising, V’s will be fine anyway.

Here’s my build thread if you’re interested.

XTR'd 1997 GT STS 2

In the beginning (1997), there was God (hello). On the first day, God created the 1997 GT STS 2...... And it was good. On the second day, God decided Rockshox were wrong and that even in 1997 despite their claims, 80mm forks could not be considered "long travel". So he created 100mm...

www.retrobike.co.uk

Great thread that, bike looks mint as well. Nice job



[DesertRyder]

Thank you for this.. Not sure why I didn’t think to look at Facebook tbh! Just from what I’ve seen around the internet so far, I have a feeling this might also be a 97 frame. What’s your current setup looking like?

Here's mine. As far as I can tell, All original except for the saddle and seatpost



[RubberDucky]

Here's mine. As far as I can tell, All original except for the saddle and seatpost
View attachment 701465View attachment 701466

Very nice! Seen a couple photos floating around with that AC chainring and it looks really smart, is it an American company cos I’ve not seen any going in the uk? nice car as well btw



[DesertRyder]

AC stood for Adventure Components. An American company known for BMX, DH, MTB bike parts in the 80-90's.
The AC crankset and chain guide tensioner are factory original.



[Mofofo]

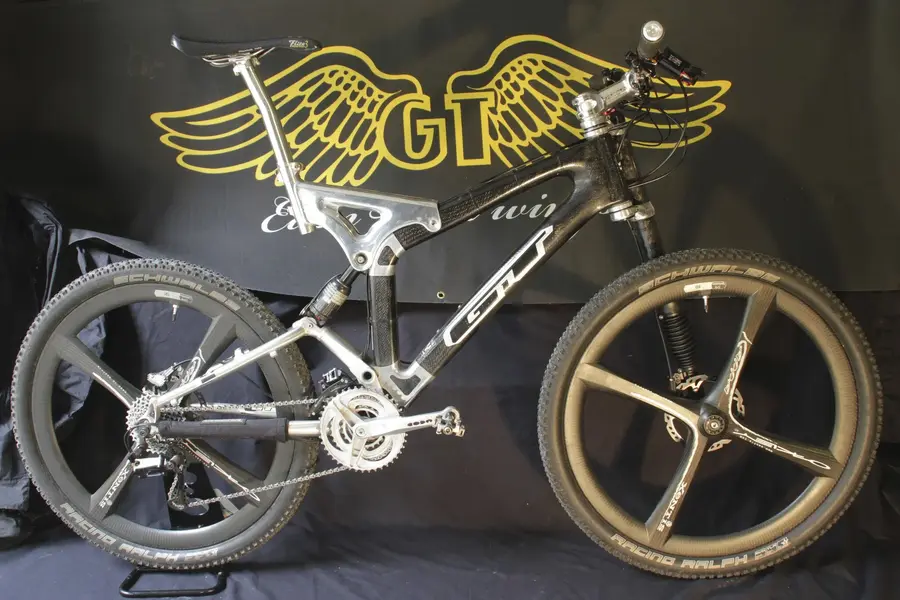

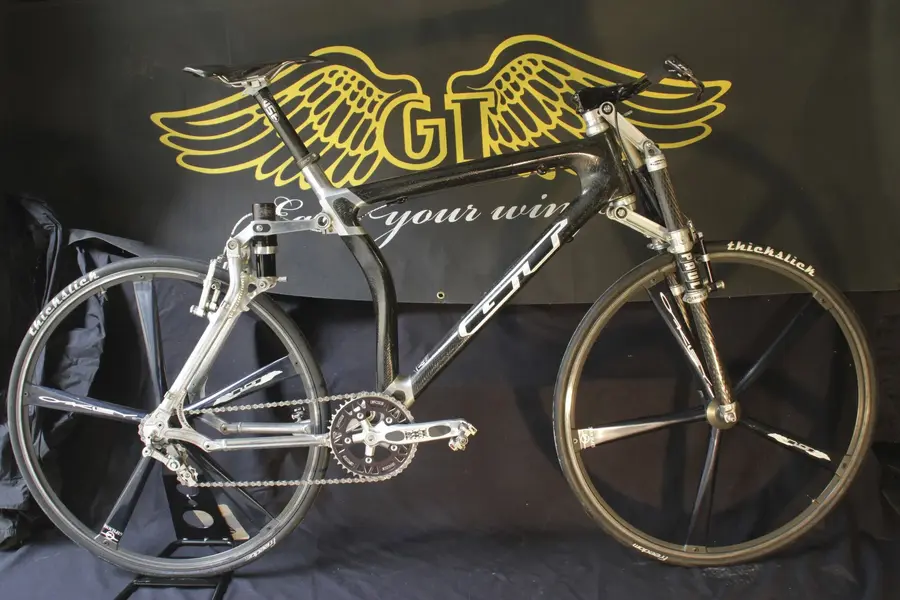

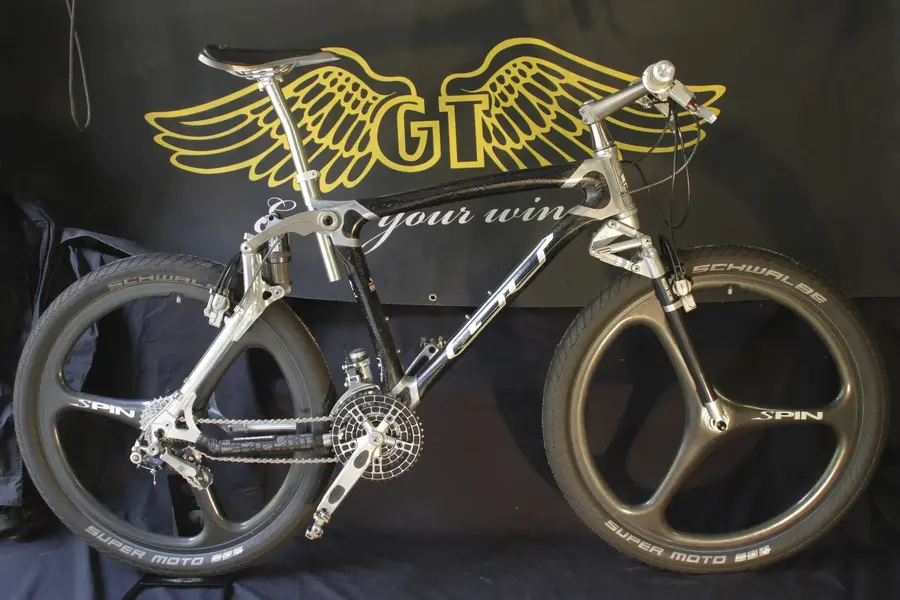

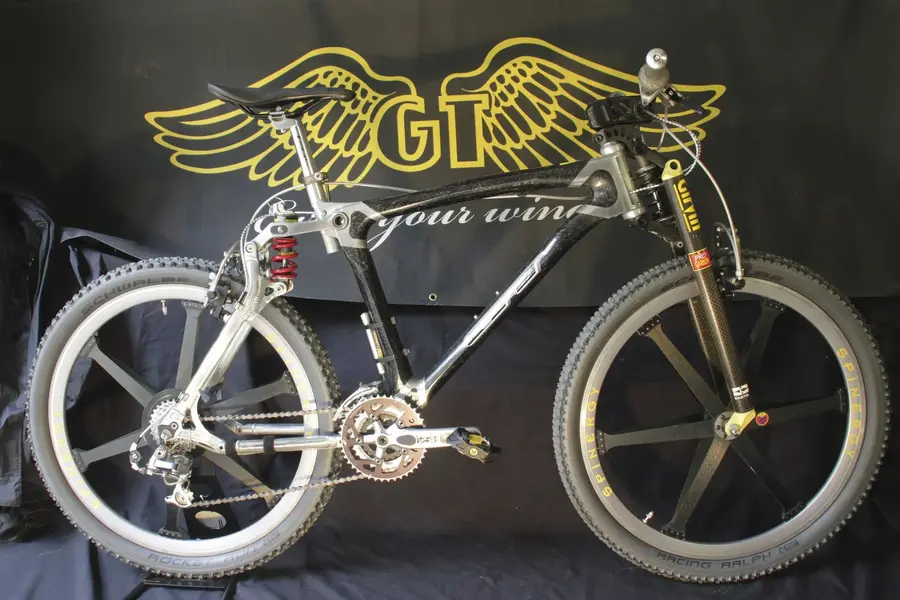

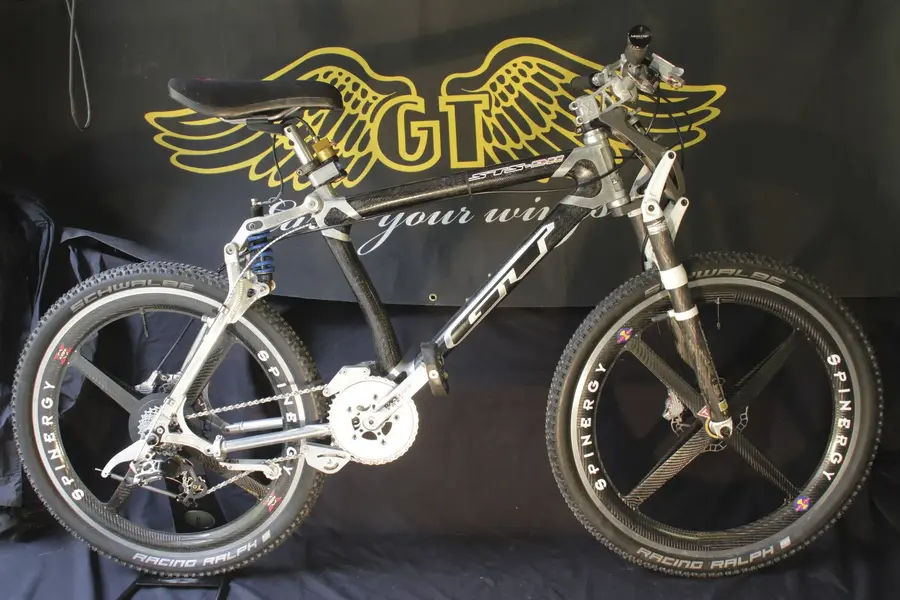

Hi all. Very happy to share my STS family, now completed, from 1996 to 2000 :
