Substitutions for a pace brake rocker

[Mod-Master]

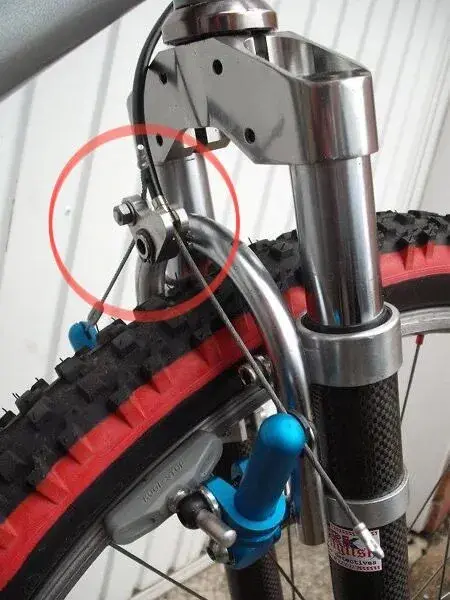

I’ve looked pretty much everywhere but can’t really find one that looks like it’ll fit? Most of them are the bolt through ones intended to work like the cannondale force 40. However I need one that looks like this


Slides onto a boss on the steel arch with a spring behind and used a circlip to hold in place.

Anyone have a spare tucked away or some way of fashioning one?

No response as of yet from pace cycles as I’ve emailed them

Any help appreciated

Thanks



[Bcxbcx]

I've used a tektro one. Admittedly on a later RC35 mxcd bridge, so I'm not sure of the differences. It only needed minor work to fit, in the form of a shorter bolt, i think.
It only cost a few quid.

TEKTRO CANTI-LEVER BRAKE POWER BOOSTER FOR FRONT FORK MOUNTAIN BIKE ETC SILVER | eBay

INNOTIVE BRAKE BOOSTER FOR CANTI-LEVER STYLE BRAKES. THIS IS COMPATIBLE WITH A STANDARD FRONT FORK AS FOUND ON EARLY MTB & ATB OR OTHER BIKES WITH CANTI-BRAKE SYSTEMS. SIMPLY BOLTS TO FRONT FORKS TO INCREASE THE RIGIDITY OF THE BRAKE SYSTEM TO BOOST BRAKE POWER OPERATION.

www.ebay.co.uk



[FluffyChicken]

V-brakes ;-)

I think a few have used the tektro ones, but check.



[Mod-Master]

I've used a tektro one. Admittedly on a later RC35 mxcd bridge, so I'm not sure of the differences. It only needed minor work to fit, in the form of a shorter bolt, i think.
It only cost a few quid.

TEKTRO CANTI-LEVER BRAKE POWER BOOSTER FOR FRONT FORK MOUNTAIN BIKE ETC SILVER | eBay

INNOTIVE BRAKE BOOSTER FOR CANTI-LEVER STYLE BRAKES. THIS IS COMPATIBLE WITH A STANDARD FRONT FORK AS FOUND ON EARLY MTB & ATB OR OTHER BIKES WITH CANTI-BRAKE SYSTEMS. SIMPLY BOLTS TO FRONT FORKS TO INCREASE THE RIGIDITY OF THE BRAKE SYSTEM TO BOOST BRAKE POWER OPERATION.

www.ebay.co.uk

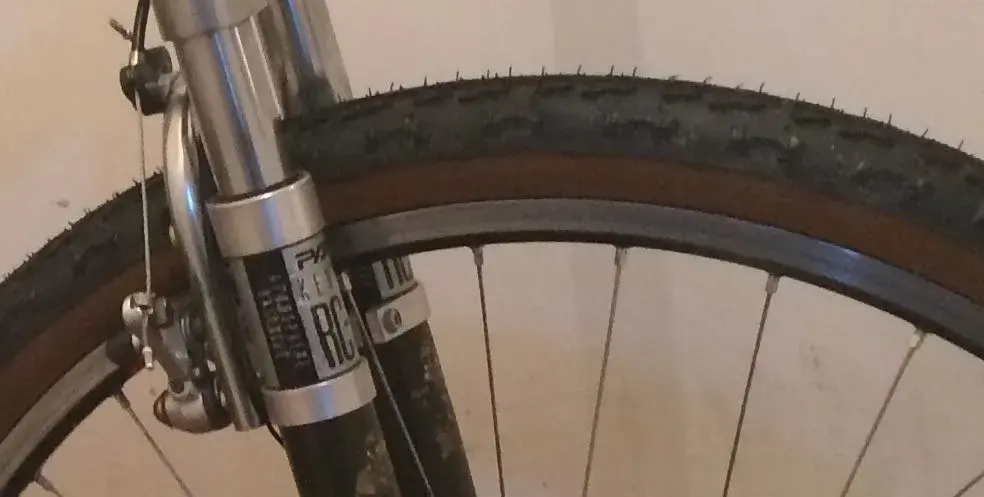

Yeah the later ones were screw on, but this wouldn’t work, the hole is too small, I’ll get some pictures of how it’s supposed to work. This doesn’t screw on, it pushes on, then secured with a circlip.

I’m not sure, quite confusing.



[Mod-Master]

V-brakes ;-)

I think a few have used the tektro ones, but check.

Yep the person before used v brakes, so removed the rocker.. but I need it..



[mk one]

Rockshox



[Guinessisgoodforyou]

Yeah the later ones were screw on, but this wouldn’t work, the hole is too small, I’ll get some pictures of how it’s supposed to work. This doesn’t screw on, it pushes on, then secured with a circlip.

I’m not sure, quite confusing.

Is there enough material to drill and ream the hole to size? Do that if there is.



[ishaw]

Suntour power hanger?



[My_Teenage_Self]

They're only alloy so super easy to drill through.



[stefanano57]

I have used an M-Wave rocker in the past with relative success. From memory, I just took the insert out of the rocker and literally tapped it home with a rubber mallet and not much effort. Fitted a circlip and had no issues with it.
