For Sale Stronglight 49D 170mm, with TA rings...

LikeClockwork

Gold Trader
Kona Fan
Feedback
View

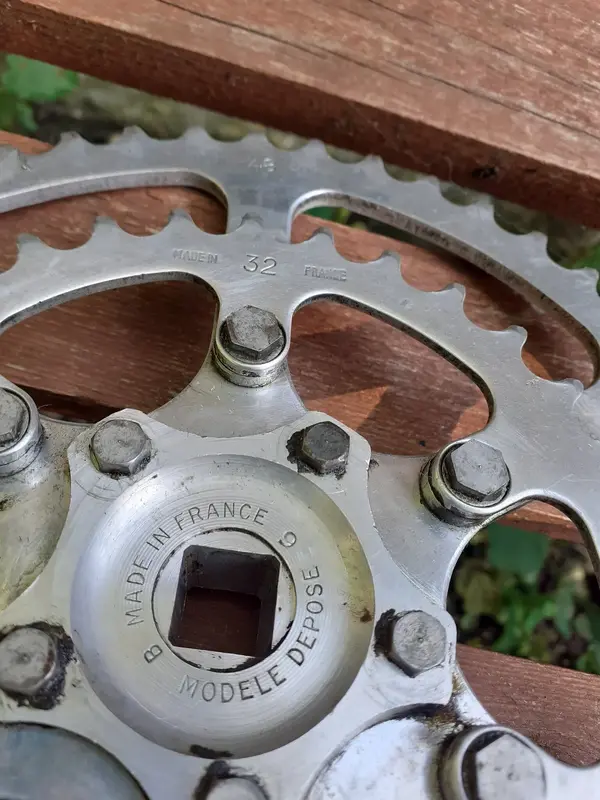

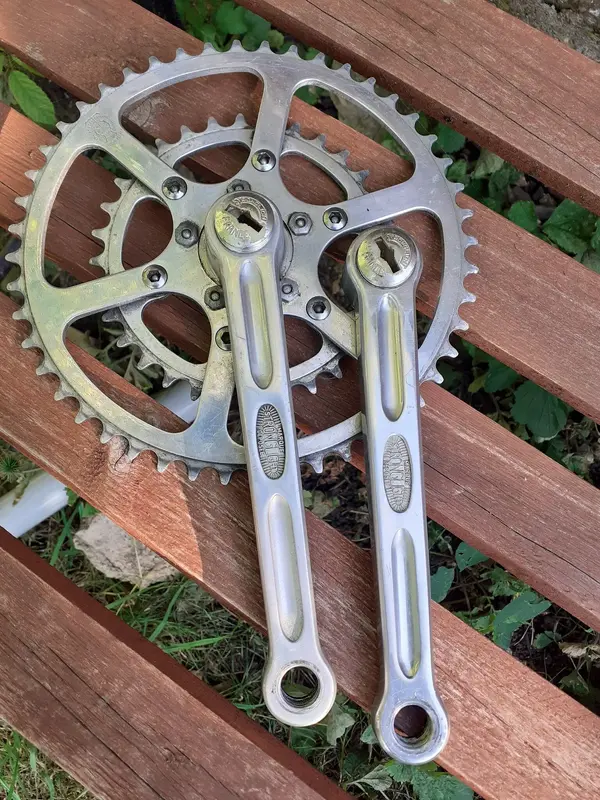

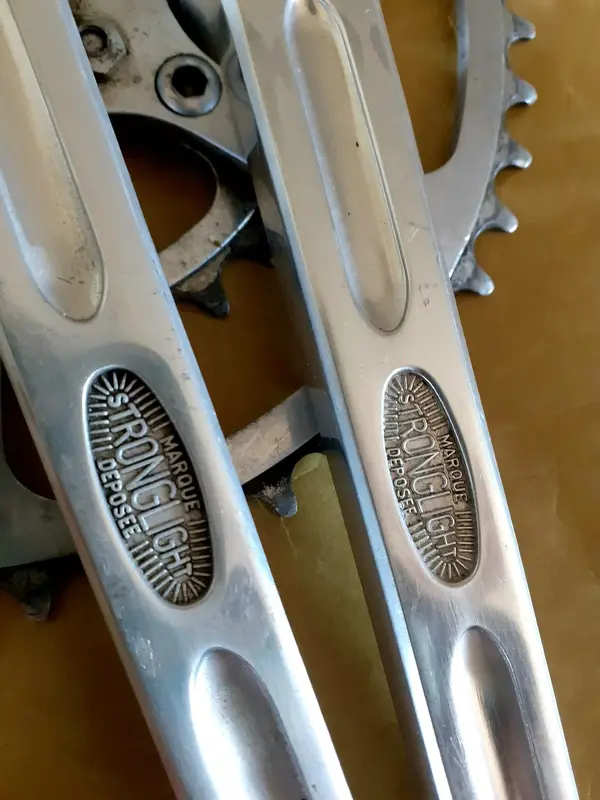

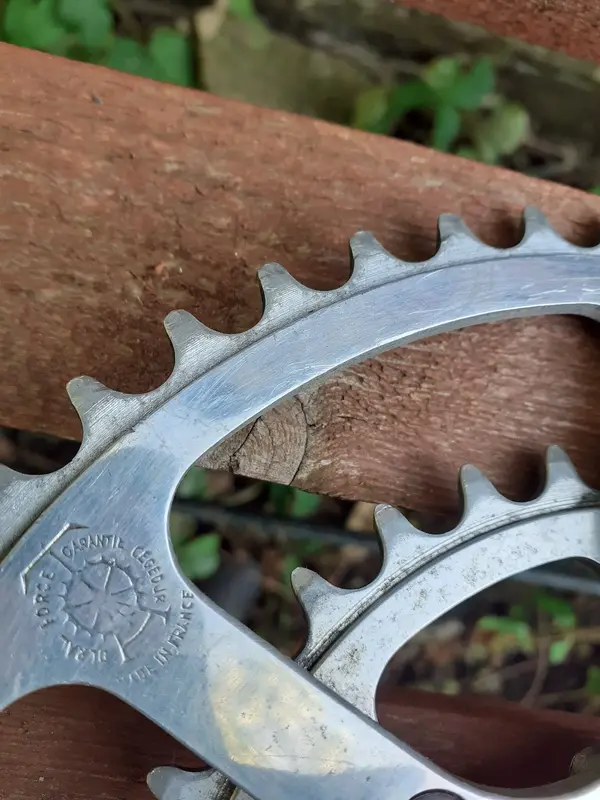

Selling for my Dad, it's off his Claud Butler...
Can get more pics. Includes correct crank caps.
£75 posted


Attachments

  • 20220806_182923.jpg
    733 KB · Views: 39
  • 20220805_095727.jpg
    331.9 KB · Views: 47
  • 20220806_183024.jpg
    366.4 KB · Views: 35
  • 20220806_183037.jpg
    350.5 KB · Views: 35
  • 20220806_183045.jpg
    419.5 KB · Views: 24
  • 20220806_183009.jpg
    376.3 KB · Views: 25
  • 20220806_182955.jpg
    419.9 KB · Views: 40

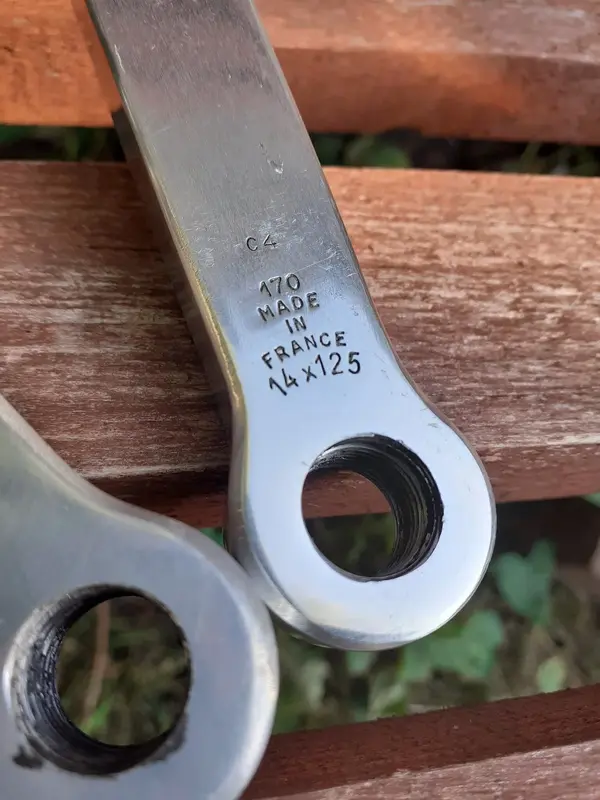

14 x 125 (1.25m pitch) is French threads although they can be successfully retapped to accept 9/16" pedals and this was common practice.
49Ds were made in both French and English threads but not always stamped with which thread they are.

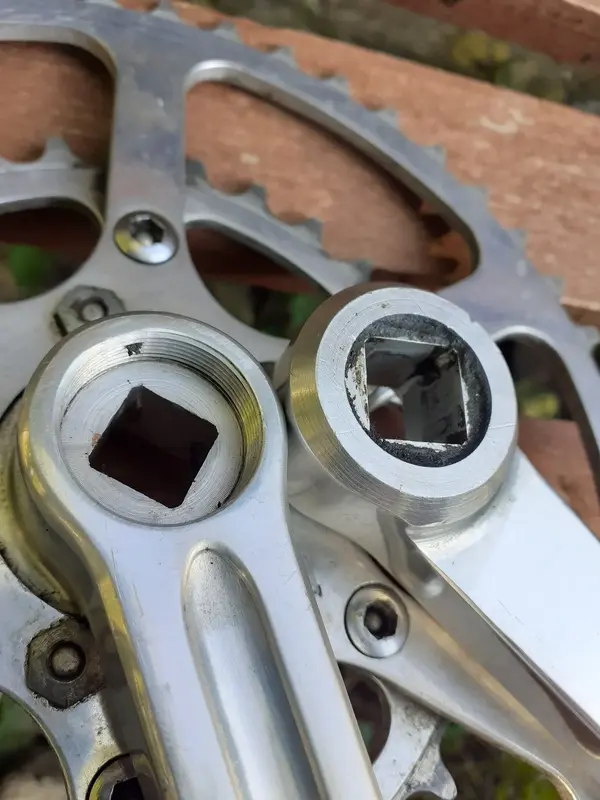

Early Stronglights, including the 49D, require a 23.35mm extractor not the common 22mm one or the TA 23.3mm one (which might work but will be a loose fit and risk stripping the threads).
