Any chance you could post the Service Sheet for the FD651 that's on my 1992 Panasonic? That's front deraileur.

Use the FD-M901/M900 one and it's notes. They are the same design mech pretty much.

Actually, I already looked at that one and it does not have the flat tension adjusting screw I mentioned in the other thread.

http://www.retrobike.co.uk/forum/viewtopic.php?t=104492

That is why it is best to have the genuine Shimano Data sheets posted.

Anychance you can post the FD-M651 data sheet?



[misterfixit]

Cheers for the replys peeps.

Im a newbie here, but you'll find my handle elsewhere the net (galantvr4.org). I like fixing things and am a habitual womble when collecting useful techy information.

I've scanned all the service sheets I have in my possesion, so whats there is there. (So anyone reading this with a cupboard full, or even a couple in a drawer) if not in the archive then scan and post!, if you can't be bothered then if wanted, pm me and you can send them to scan and post up...

I have a box of catalogues too, but they are only useful to a point, and most are up already.

Rich



[gerryattrick]

Bump.

So I can refer to it. :roll:



[FluffyChicken]

bump.

Anyone with any more service sheets, please help add to the collection

(suntour etc as well)



[FluffyChicken]

bumperoonie



[misterfixit]

bumperoonie

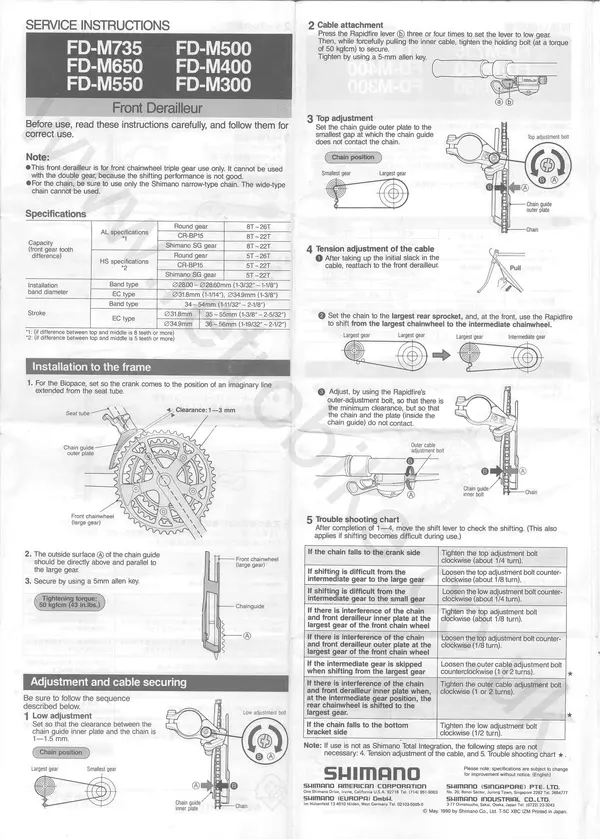

Just got a hold of this. FD-M735 M650 M550 M500 M400 M300: 1990/1991, covers all the common FD retro models, and nowhere to be found on shimano's site. Has M071/M091/M092 levers in it, and interestingly no tension adjust on the mech spring, so I guess that was '91 on right?



[FluffyChicken]

Printed in mid 1990, so 1991 models

If if get time i'll add it to https://www.retrobike.co.uk/gallery2/v/Manufacturer+Archive/Shimano+Archive/Service+Manuals/



[misterfixit]

Printed in mid 1990, so 1991 models

If if get time i'll add it to https://www.retrobike.co.uk/gallery2/v/Manufacturer+Archive/Shimano+Archive/Service+Manuals/

Possible, but its early ‘90 print so could be a rev date. The shifter pic has parallel adjusters so points to 90. ‘91s came with egg shaped adjusters.



[FluffyChicken]

egg shaped? what adjuster are we looking at ?

For reference the 1991 catalogue was August 1990.

and as you said though I'm not sure what you're referring too, there was not M092 (ServoWave) version in 1990. I think I've missed something



[misterfixit]

Ok.. 1991.. But it doesn't figure it hasn't got the tension adjust in. That's confusing me. The egg vs. parallel is these adjusters. It looks like that I thought was 1990 only, applies to 1991 too. I was sure I'd seen the egg ones before that though.
