Litespeed Ocoee 1995 - Gravel conversion.

[pietromx]

In the picture you could see the clearance with a 35c tyre. With Pirelli 40c gravel M tyre (that measures 42 on my rims) it’s about 6mm on top and 14mm on every side.



[Tinc]

Ooh! That's plenty.
Looked closer than that.
I tried a similar idea with 650bx47's & it was really tight.



[lemachado.rj]

In the picture you could see the clearance with a 35c tyre. With Pirelli 40c gravel M tyre (that measures 42 on my rims) it’s about 6mm on top and 14mm on every side.

View attachment 617235

Hello my friend, beautiful construction. What adapter you used for rear brake? I have a Litespeed Obed 1998 and I want use my bicycle for gravel to. Thanks



[pietromx]

would be very interested if you thought about selling this ?

for now I don't want to sell it. but just in case ...



[pietromx]

Hello my friend, beautiful construction. What adapter you used for rear brake? I have a Litespeed Obed 1998 and I want use my bicycle for gravel to. Thanks

this one:

Adapter for Flat Mount Caliper on IS Mount Frame - A.S. Solutions

Adapter for using a Flat Mount brake caliper on a frame or fork with IS Mounts

www.assolutions.ca

I saw that it's out of stock, but if you want I may have one more...



[lemachado.rj]

this one:

Adapter for Flat Mount Caliper on IS Mount Frame - A.S. Solutions

Adapter for using a Flat Mount brake caliper on a frame or fork with IS Mounts

www.assolutions.ca

I saw that it's out of stock, but if you want I may have one more...

Did you weld an adapter for the brake to the frame and use this flat mount adapter to use the disc brake?

Thanks for reply my friend.



[pietromx]

Welded... about 13-14 years ago by a titanium bike builder (Rewel)



[wam6187]

Here is my fool Gravel conversion of a Litespeed Ocoee I bought in december '94.
In 2018 I destroyed my last suspension fork (an old sid modified to have 60mm travel).
And so fork has been replaced with a Whisky part n°9 Cx carbon fork. and the 26' wheels with new 700c Mavic wheels...
After all, I'm happy with this new old bike.

View attachment 616901
View attachment 616902

Spec:

Frame	Litespeed Ocoee Titanium 1995
Fork	Whisky no.9 CX Disc 12 Fork
Stem	Moots RSL Ti 120mm 0°
Headset	Chris King NoThreadset 1 1/8" purple (1995)
Handlebar	3T Superghiaia 440mm
Grip/tape	Bike Ribbon cork gel
Seatpost	PMP Titanium 27.2 Purple (1995)
Saddle	Fizik Aliante R3 Kium Open regular
Brakes	Shimano BR-8070 Hydraulic Flat Mount Disc (Rear with A.S. Solutions IS-FM 160mm adapter)
Disc Rotor	Shimano RT86 Ice-Tech 160mm
Bottom Brakets	Rotor BSA30
Crankset	Rotor Vegast 175mm - Offset axle - 46/30 Direct Mount chainrings
Rear Derailleur	Shimano Ultegra RX800 11V Shadow+ with 14t-12t jockey wheels
Front Derailleur	Shimano CX70 Top Pull
Chain	Shimano CN-HG701 11 speed
Cassette	Shimano XTR CS-M9001 11-40 11 speed
Brakes Levers	Shimano Ultegra ST-R8020 STI - Hydraulic Disc Brake 2x11
Wheels	Mavic AllRoad Pro UST Disc
Tires	Pirelli Cinturato Gravel M 700x40
QR/axle	Rear: DT Swiss Thru Bolt 10x135 with Reverse Components 135mm 12 to 10mm reducer / Front: Whisky 12 mm NO.9 Thru Axle
Pedals	Xpedo CXR
Bottle Cages	King Cage Titani

Here is my fool Gravel conversion of a Litespeed Ocoee I bought in december '94.
In 2018 I destroyed my last suspension fork (an old sid modified to have 60mm travel).
And so fork has been replaced with a Whisky part n°9 Cx carbon fork. and the 26' wheels with new 700c Mavic wheels...
After all, I'm happy with this new old bike.

View attachment 616901
View attachment 616902

Spec:

Frame	Litespeed Ocoee Titanium 1995
Fork	Whisky no.9 CX Disc 12 Fork
Stem	Moots RSL Ti 120mm 0°
Headset	Chris King NoThreadset 1 1/8" purple (1995)
Handlebar	3T Superghiaia 440mm
Grip/tape	Bike Ribbon cork gel
Seatpost	PMP Titanium 27.2 Purple (1995)
Saddle	Fizik Aliante R3 Kium Open regular
Brakes	Shimano BR-8070 Hydraulic Flat Mount Disc (Rear with A.S. Solutions IS-FM 160mm adapter)
Disc Rotor	Shimano RT86 Ice-Tech 160mm
Bottom Brakets	Rotor BSA30
Crankset	Rotor Vegast 175mm - Offset axle - 46/30 Direct Mount chainrings
Rear Derailleur	Shimano Ultegra RX800 11V Shadow+ with 14t-12t jockey wheels
Front Derailleur	Shimano CX70 Top Pull
Chain	Shimano CN-HG701 11 speed
Cassette	Shimano XTR CS-M9001 11-40 11 speed
Brakes Levers	Shimano Ultegra ST-R8020 STI - Hydraulic Disc Brake 2x11
Wheels	Mavic AllRoad Pro UST Disc
Tires	Pirelli Cinturato Gravel M 700x40
QR/axle	Rear: DT Swiss Thru Bolt 10x135 with Reverse Components 135mm 12 to 10mm reducer / Front: Whisky 12 mm NO.9 Thru Axle
Pedals	Xpedo CXR
Bottle Cages	King Cage Titanium

Did the frame come with a rear drop out setup for disk brakes? Reason I ask, I have a '94 Ocoee and would love to add front and rear disk but the frame isn't setup from the factory. :-(

Thanks ahead.



[pietromx]

Did the frame come with a rear drop out setup for disk brakes? Reason I ask, I have a '94 Ocoee and would love to add front and rear disk but the frame isn't setup from the factory. :-(

Thanks ahead.

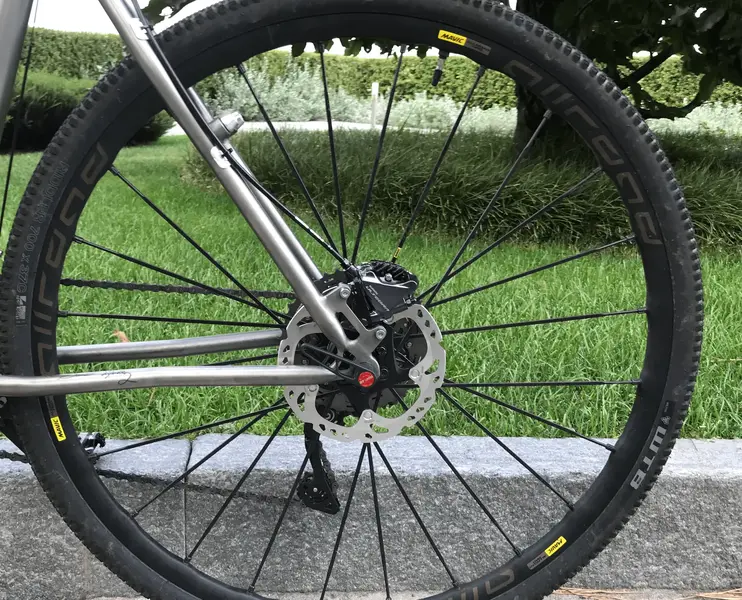

As you can see in my #18 post… I welded it… or better…. I asked to a Titanium bike welder (Rewel) to do it!
You could see the adapter welded to the frame in the picture. And he did a great job IMHO.
