Limit screws? Are they all the same?

[Spudalumps]

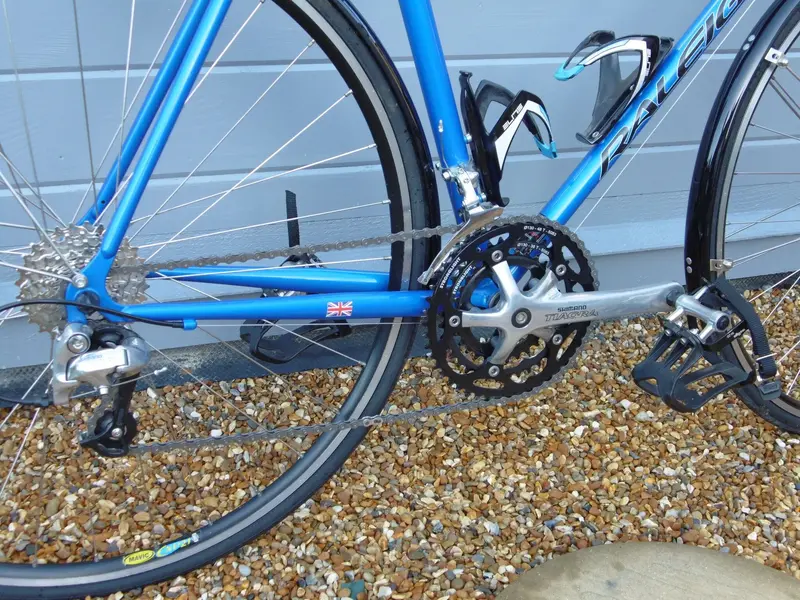

I have a scruffy sora rear mech and the limit screws are a bit rusty nothing major just surface to be honest.

Question! Are all limit screws the same can I just buy replacements?

Having a look on eBay it’s just ones really that have been dropped off donors it surprises me that we never saw aftermarket anodised ones etc… we seem to of had every other screw/ bolt in a different flavour xD

Much love as alway brothers and sisters <3



[Guinessisgoodforyou]

My Tiagra is M4, I put a stainless cap head in it. Rather than the screw made of cheese Shimano fit. PM your address I may have bought 50 by mistake



[Spudalumps]

Oooo you would be so kind! Thank you! I’ll PM you now



[novocaine]

I reduced the heads on a load of m4 cap heads so they fit in the hole. All of mine got replaced at ones.
If you don't have a lathe you can do it with a drill and a file in a couple of minutes.

Little touches. Lol
I also think that 50 coat something like 2.50 in screwfix.



[Guinessisgoodforyou]

I misread sorry. I replaced the d screw not the limit screws. Edit just checked M4 as Novo says. You could use M4 grub screws and the head size is no longer an issue. Don't have to be dog point if you can't get the length you want, a standard grub screw will do.

DOG POINT A2 STAINLESS STEEL METRIC SOCKET ALLEN GRUB SCREWS M3 M4 M5 M6 | eBay

MATERIAL- A2 STAINLESS STEEL. ALLEN KEY DRIVE. TYPE - DOG POINT STYLE. 4mm 12mm 2mm 2.25mm. 6mm 40mm 3mm 3.7mm. 6mm 35mm 3mm 3.7mm. 6mm 30mm 3mm 3.7mm. 6mm 25mm 3mm 3.7mm.

www.ebay.co.uk



[Lucidone]

I've used standard metric (M4?) stainless grub screws in some of mine - work well.



[ishaw]

As above. You can bling up a mech with some anno bolts the right size, and I find the hex heads better to adjust than the often fitted Philips head og ones.



[Woz]

As above. You can bling up a mech with some anno bolts the right size, and I find the hex heads better to adjust than the often fitted Philips head og ones.

Aren't the Shimano cross-point heads actually JIS? Not that I own a JIS screw-driver or ever tried ....



[Spudalumps]

Thank you all for your replies never cesses to amaze to knowledge you all have, keep up the work lads and ladies you all rock



[2manyoranges]

It is absolutely the case that my knowledge pool is a cesspit
