Concorde Flies Again...

[jackosbournesnr]

Re: Concorde Flies Again... soon

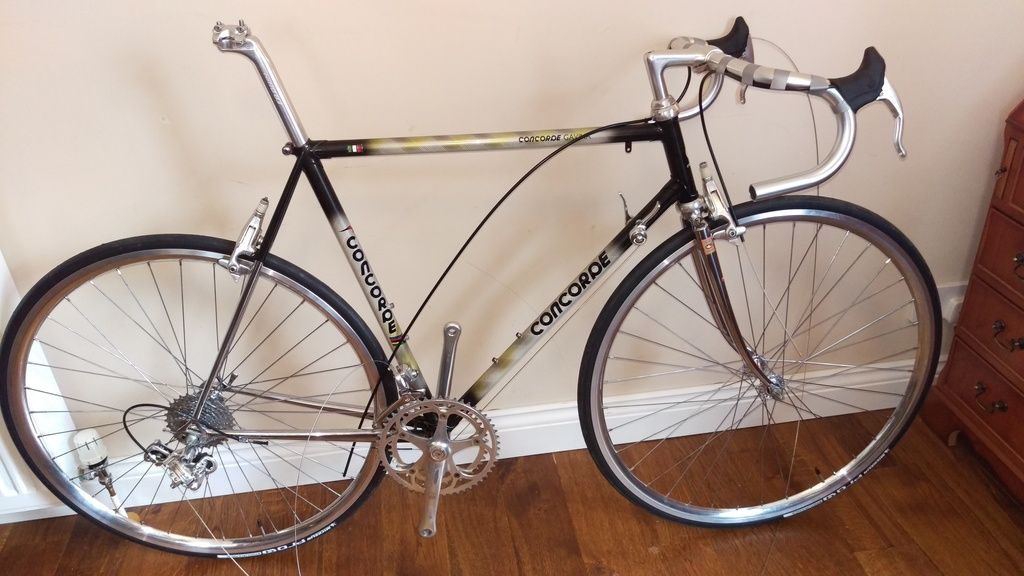

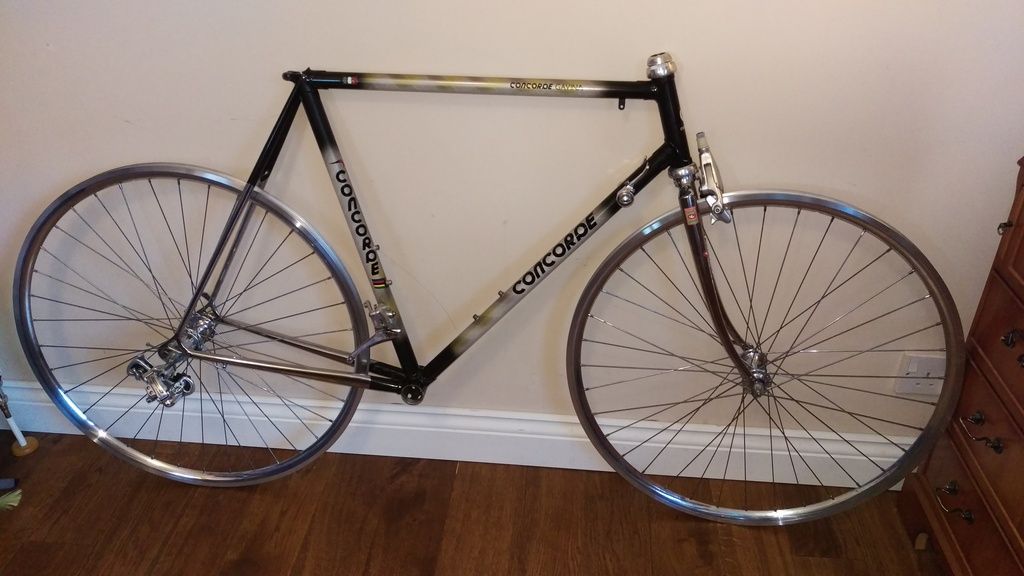

Woke up a bit early this morning, so just got started. Will do the hard bits when I get back.



[jackosbournesnr]

Re: Concorde Flies Again... soon

Time to head to the shed and finish off in the workstand.



[jackosbournesnr]

Re: Concorde Flies Again... soon

I can confirm that setting up Delta brakes is a faff.

Taking a break to watch some football.



[jackosbournesnr]

Re: Concorde Flies Again... soon

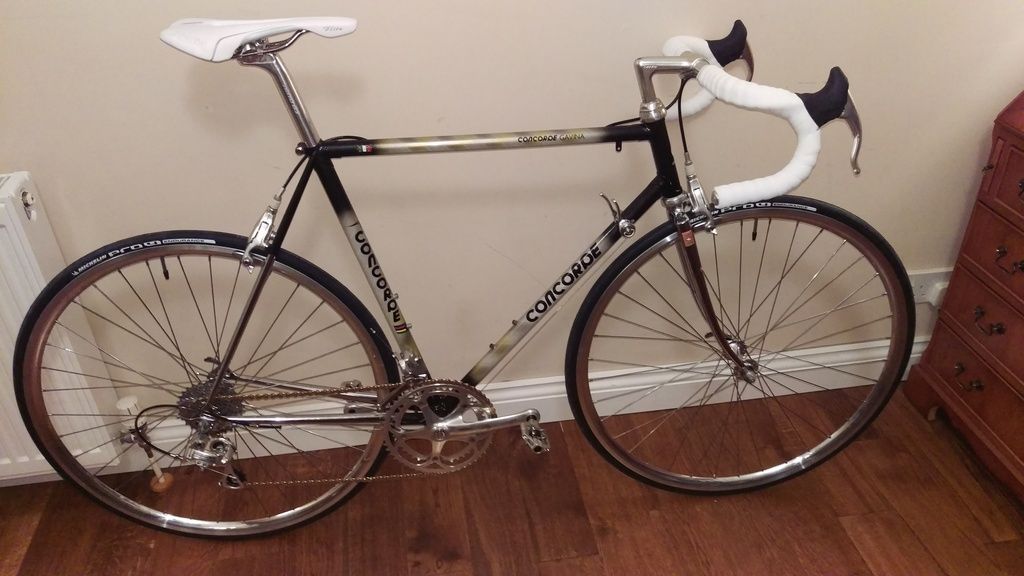

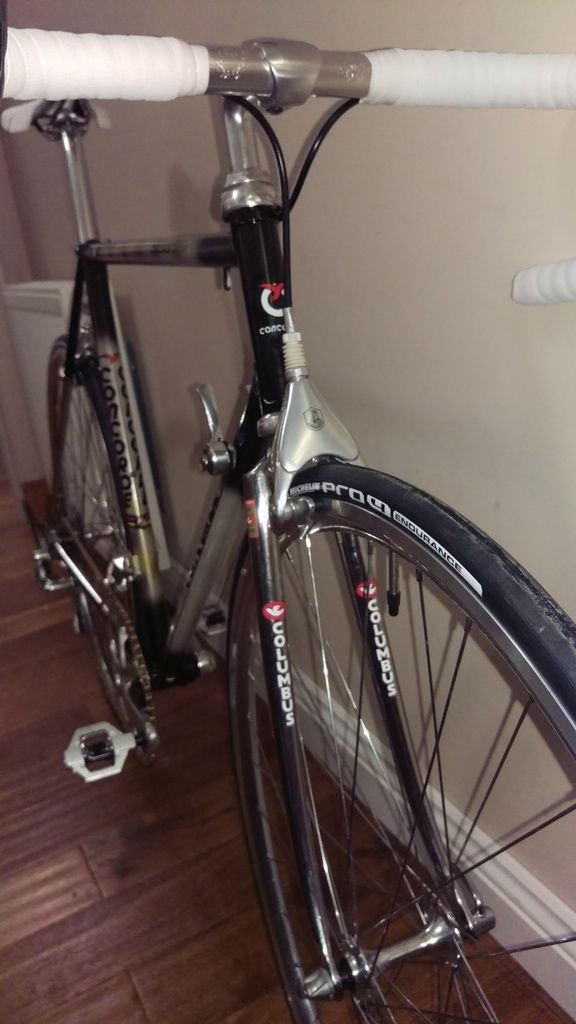

And we're done!

The 10 speed indexed shifting from the down tube levers works well and feels great on the stand. Might be a few days until it's gets a test drive.



[NeilM]

Re:

Wow, that looks great.

Also, I like your choice of tyres, I have them on a lot of my bikes.



[jackosbournesnr]

Re: Concorde Flies Again... soon

And so... the spec sheet:

Frame: Columbus SL tubing with Columbus dropouts c. 1989

Fork: Columbus chrome

Headset: Campagnolo Chorus
Stem: Nitto Dynamic
Handlebar: Nito B105
Bar Tape: Charge U Bend (£1.99 a pack!)

Brake Levers: Campagnolo Chorus
Brake Calipers:Campagnolo Delta 2nd Generation
Brake Pads:Campagnolo in pre-2000 shoes
Brake Cables: Campagnolo ultra shift

Shifters: Campagnolo Record downtube converted to 10 speed
Front Derailleur: Campagnolo Chorus 1st generation
Rear Derailleur: Campagnolo Chorus 10 Speed (early model)
Derailleur Cables: Campagnolo
Cassette: Campagnolo 12-29
Chain: KMC X10L Ti-N
Cranks: Campagnolo Chorus 1st Generation
Chainrings: Campagnolo 52/42
Bottom Bracket: Campagnolo Centaur square taper 111mm
Pedals: Crank Bros. Candy 2

Wheels Handbuilt by Jackosbournesnr
Rims: H Plus Son Archetype (debadged) 36/36
Hubs: Campagnolo Athena
Hub Skewers:Campagnolo Athena
Nipples: DT Swiss 12 & 14mm
Spokes: ACI Alpina DB 2/1.7/2
Tyres: Michelin Pro 4 Endurance 23mm
Tubes: Michelin Ultra Light (came free with the tyres)

Saddle: Selle Italia Flite Flow
Seatpost: Nitto S83
Seatpost Binder: Campagnolo


Weight: 10.00 kg



[jackosbournesnr]

Re: Re:

Wow, that looks great.

Also, I like your choice of tyres, I have them on a lot of my bikes.

Cheers Neil.

Pro 4 's are great all round road tyres and because of the deals available on them they're also brilliant value for money.



[kingbling]

Re: Concorde Flies Again... soon

Cracking Job Ken nice job on the polishing it's brought the paint out lovely



[jackosbournesnr]

Re: Concorde Flies Again... soon

Cheers Clive.

There's still more polishing to do. Its nearly there though!

I also forgot about the seatstay decals and the Columbus SL sticker. The Go-faster stripes suggested by NeilM arrived in the post today, so I now have everything I need.

I'm thinking I'll ride this down on the April run as it looks like it should take a 25mm tyre and I can probably bung a triple on it with about 10 minutes work. I don't think my knees would be too happy riding loaded up Lake District climbs on a 42 chainring.

Theoretically, all it needs is a 1mm spacer under the drive side BB cup and assuming the front mech can cope capacity-wise, a quick tweak of the limit screws. I'll give it a full test ride with both setups at the weekend.



[Happy Tom]

Re: Concorde Flies Again... soon

Congrats, it looks boss, jackosbournesnr.
Is the front shifting indexed or friction?
