Avid Speed Dial Brake Levers - V/Canti?

[sam_white]

Afternoon all. Is there a quick and easy way to tell if a set of Avid Speed Dial brake levers are designed for cantilever or V-Brake?

Must be possible from the model number? Lots of different versions out there.

I'm looking for a set of canti levers for a build, and Avids are a possibility. Going to be using XT 737 cantilevers.



[hamster]

For canti you have to twirl the adjuster with the cable barrel holder as close to the pivot as possible. IIRC that puts it about 30mm off the pivot.



[ishaw]

Canti versions have a longer, flatter lever then the v brake ones iirc



[Prodigal Son]

Afternoon all. Is there a quick and easy way to tell if a set of Avid Speed Dial brake levers are designed for cantilever or V-Brake?

Must be possible from the model number? Lots of different versions out there.

I'm looking for a set of canti levers for a build, and Avids are a possibility. Going to be using XT 737 cantilevers.

I would go w/ shimano slr levers. M 733 or m735



[joglo]

Hi, to my knowledge, only the "Ultimate" lever came designed for Cantilever brakes. That was roughly in 1995.
There was a later version for V-Brakes. They do have different so-called chips. Those are replaceable but hard to get (info and pictures to differentiate somewhere here in the forum).

Ordinary Speed Dial lever have been since ever designed for V-Brakes.

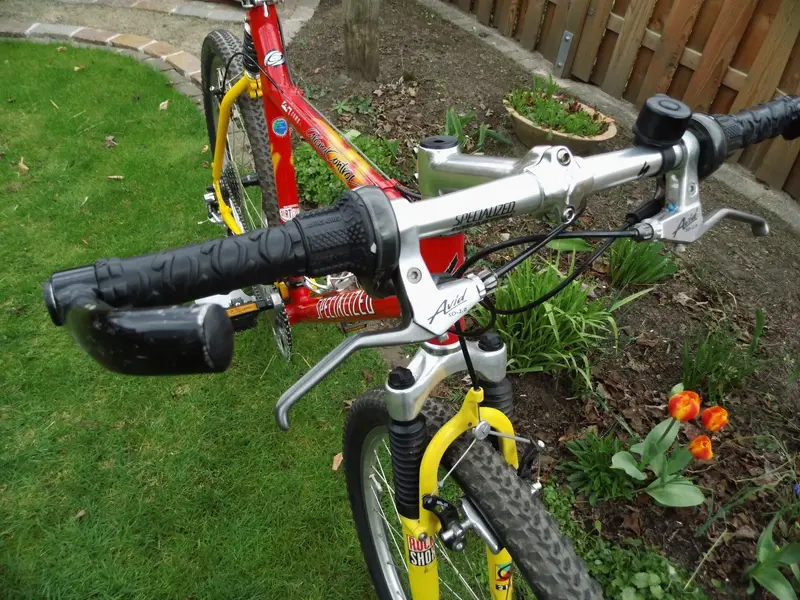

However as said from Hamster above already, in general due to the adjustable cable pull, most user are fine, so am I, when combining V-Brakes Speed Dial lever also with canti brakes but having the speed dial adjusted to reduce cable pull.

Edit: adding pictures

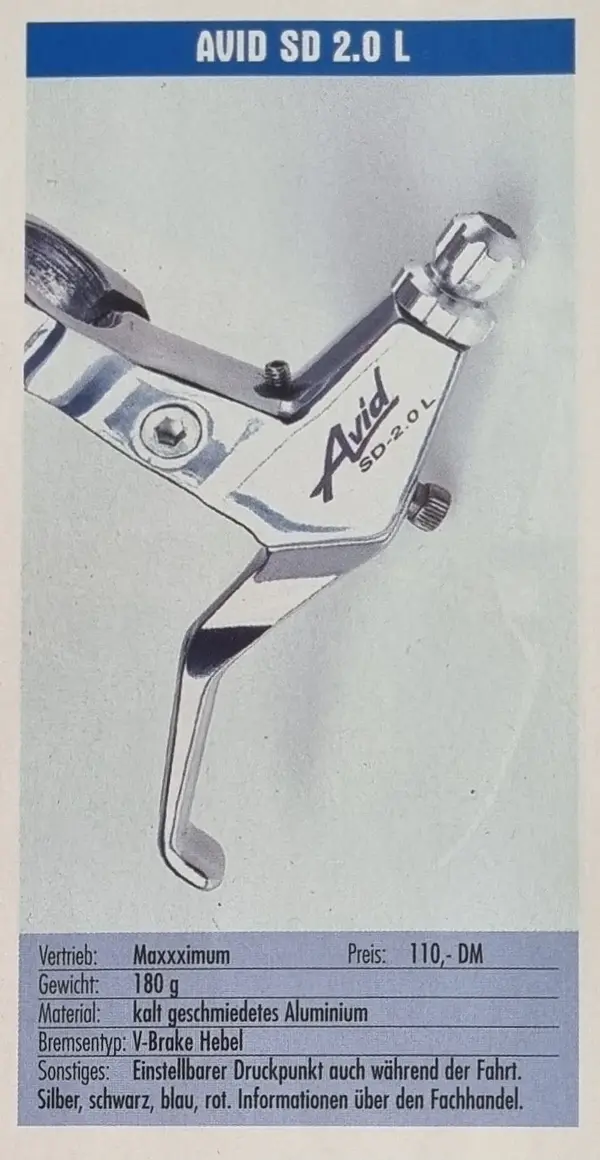

Avid Ultimate presentation on a show End of 1994

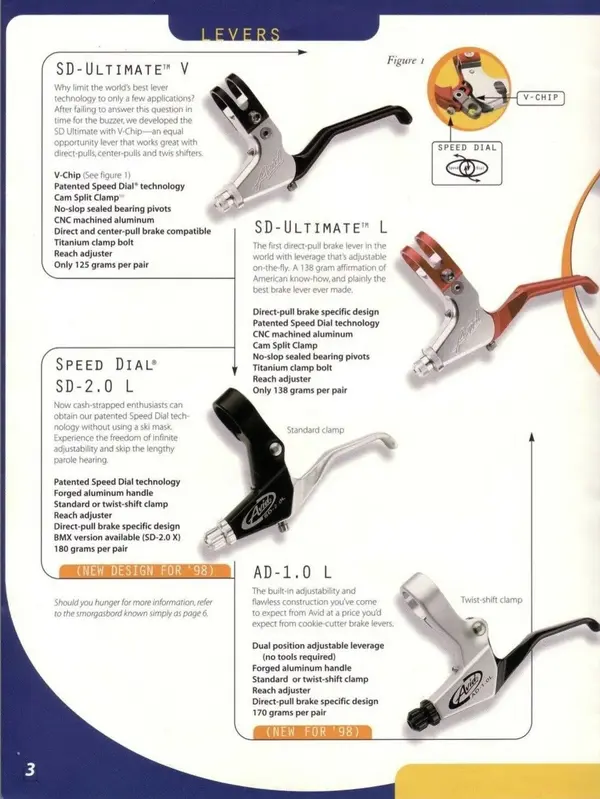

1998 borchures showing Ultimate with both variants (chips) and SD 1.0 and 2.0



Link to a picture of the V-Chip vs L(Cantilever)-Chip

what lever to use whit Avid arch supreme v brakes?

Re: Re: Regarding those slightly-newer ones with the different lever: Since the body of the brake appears to be exactly the same, I wouldn't be at all surprised if they actually DO have a V-chip - or at least an exact equivalent leverage ratio to them. It looks to me as if these were really...

www.retrobike.co.uk

2005 brochures



[danc]

Seconding what people have said above, I've used speed dials with disc, v, canti and side pull brakes by using the dial to adjust cable pull. Picked up another set recently from wiggle specifically because they're useable on everything.
