Wanted Another longshot. Campag saddle clamp top plate??

[Sir Neil d'Menture]

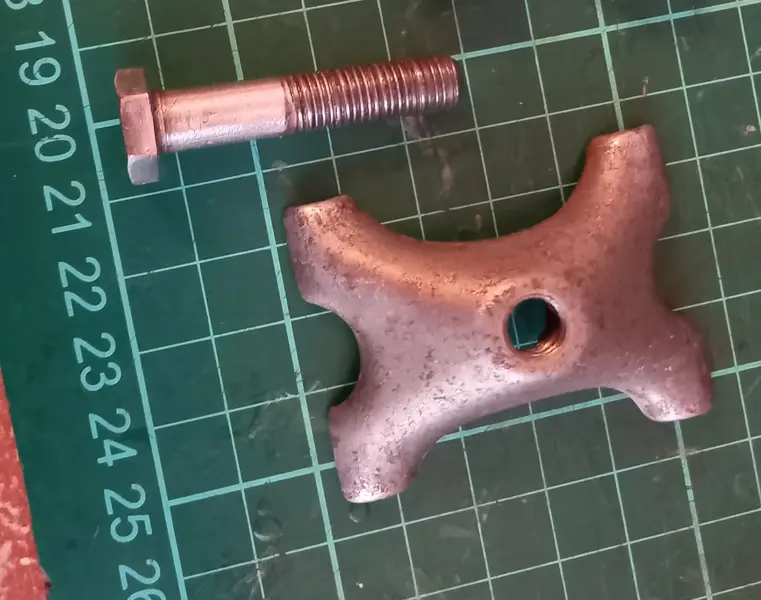

Anyone got one of these lying around?
Threads are fubared and it's marginal if a helicoil will hold.
Bolt is easy to get, just a standard M8 x 1.25 but the top plates are hard to find for steel seatpins.
Anyone?



[jim haseltine]

Rather than a helicoil I'd try a threadsert in that - I had a Super Record pin with light alloy plates, the top plate had a factory fitted hexagonal insert.

Self Tapping Inserts for Metal M8 x 15mm - Hardened Steel | Shop4Fasteners

<ul> <li>Internal thread size: M8 standard metric coarse</li> <li>External thread size: M12 x 1.5mm</li> <li>Recommended pilot hole size: 10.6 - 11.4mm</li> </ul>

shop4fasteners.co.uk



[Sir Neil d'Menture]

Thanks. I did look at those, but they need an obscure size pilot hole - 10.6 to 11.4mm. No idea how I can drill a hole of that size.
Unless you have some tips to pass on.



[Sir Neil d'Menture]

Also...I'm not sure if M8 x 1.25 counts as coarse. I thought that was medium.



[jim haseltine]

M8 coarse 1.25, fine 1.00, extra fine 0.75.



[Guinessisgoodforyou]

Dormer or Presto do fractional drills.



[fiveSixteenths]

Anyone got one of these lying around?
Threads are fubared and it's marginal if a helicoil will hold.
Bolt is easy to get, just a standard M8 x 1.25 but the top plates are hard to find for steel seatpins.
Anyone?View attachment 782590

I think I might, will pop into the garage and check



[Sir Neil d'Menture]

M8 coarse 1.25, fine 1.00, extra fine 0.75.

Thank you. My little knowledge is a dangerous thing.



[Sir Neil d'Menture]

Dormer or Presto do fractional drills.

Thank you. I will check them out. I have a query ongoing with the above suppliers.



[Sir Neil d'Menture]

Thank you. My little knowledge is a dangerous thing.

That would be excellent if you have. Even R J Chicken don't have them, and if its available they have it.
