AMP B5/F4 BLT/carbon/WI LDMS

[Swede]

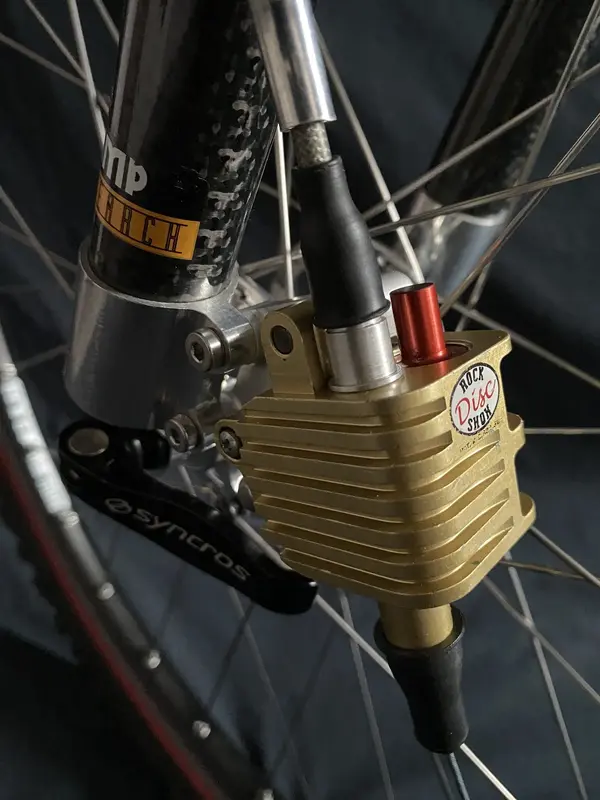

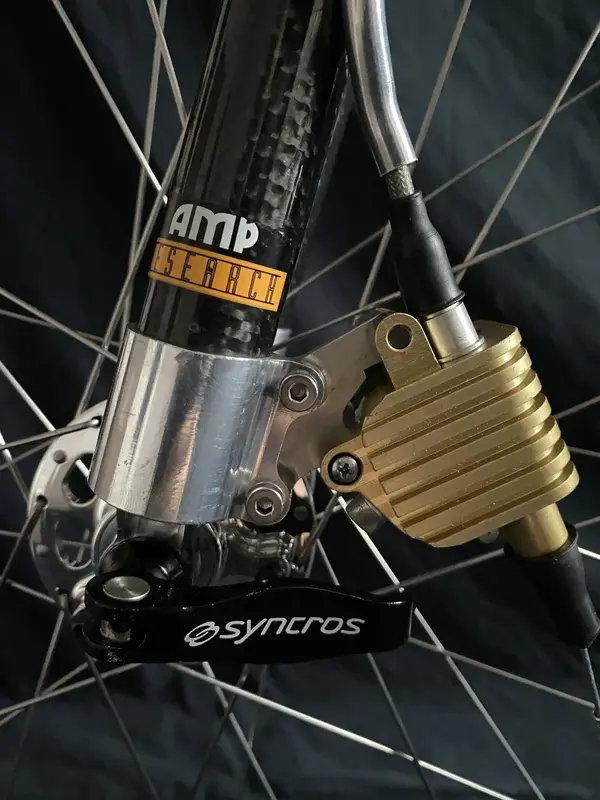

Had to take the rotor s to be able to fit the callipers.



[GCD]

Any chance to have a copy of the assembly drawings I see in the pictures ? I will start my B3/F3 building in the next months . I will appreciate your help ..
Thanks.
GC



[Swede]

Any chance to have a copy of the assembly drawings I see in the pictures ? I will start my B3/F3 building in the next months . I will appreciate your help ..
Thanks.
GC

I've uploaded them to the AMP Research manual section - just need to wait for the mods to approve.

AMP Research Manuals

www.retrobike.co.uk



[Swede]

Found these, but the resolution is too low to send to @gil_m



[gil_m]

Found these, but the resolution is too low to send to @gil_m View attachment 795813

I have most of them on file already



[Swede]

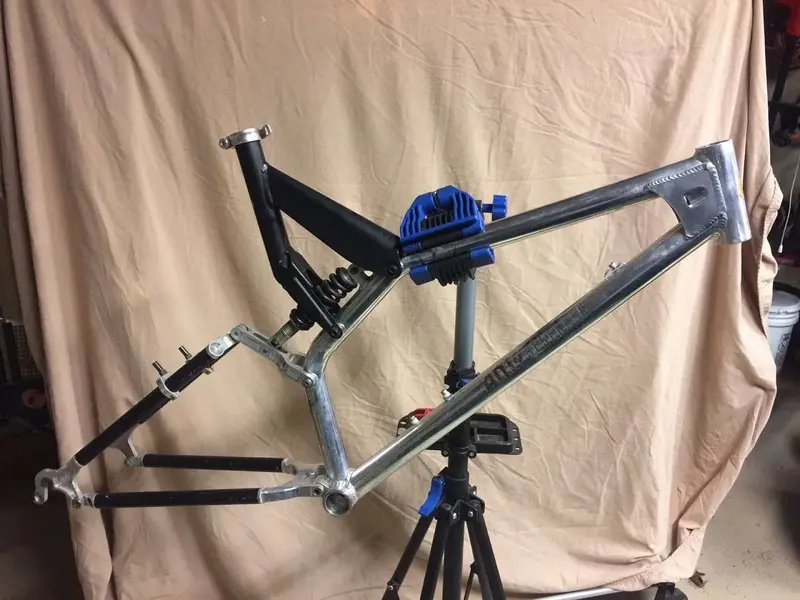

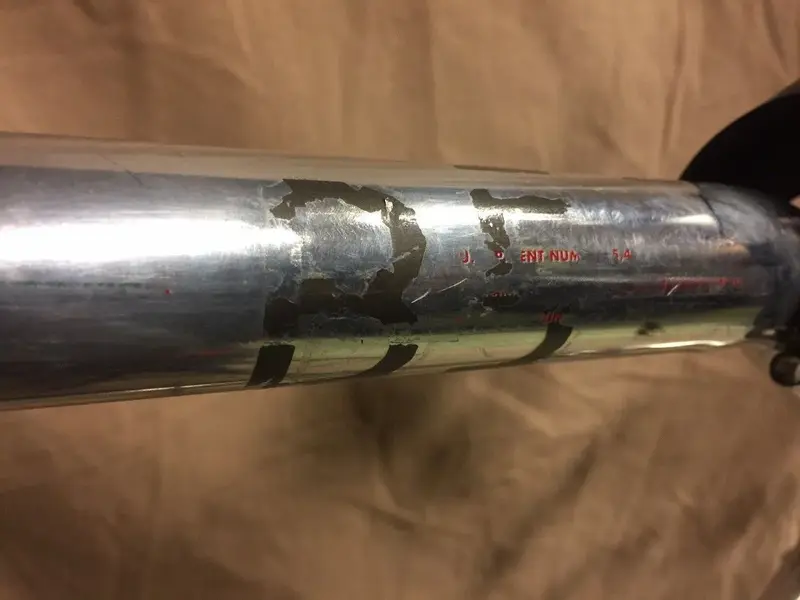

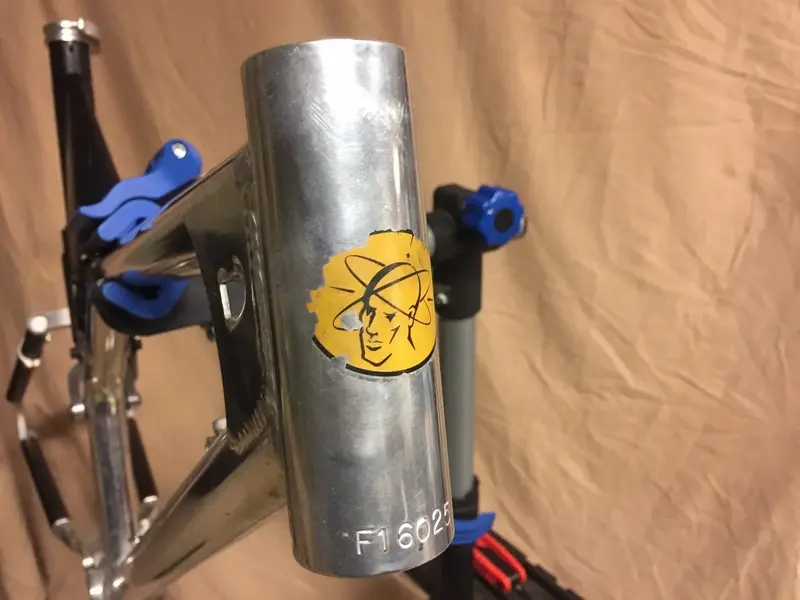

I found these images of a B5 with its decals. Do you have the top tube one? That seems to be the most challenging.

@B3 and @RockiMtn have an OEM set that the scan above is from.
