3, 4 & 5 Speed Sturmey Archer servicing

Re:

Does this mean that Peter has to put rims on to the hubs to get the end plate(s) off, or has he devised a special jig/tool that holds the hub shell?

I used to manage with a few loose spokes into an old rim for this, and to remove freewheels from hubs where spokes had been chopped out.

Personally I always preferred gears in direct drive. Some 20 years ago I did try a Shimano 4 speed, which was a revelation compared to the Sturmey Archers.

Keith

Don’t know, he didn’t mention the lack of rim being a problem, hopefully he will reply (unless it’s a trade secret) :p

Re:

I think my dislike of SA started when I was repairing mainly AW in the 50s. The ones I saw were always full of what looked like rusty mud, where water entered behind the cog. Many utility bikes were left out in the rain, but were essential transport.
These were often old roadster types with rear facing ends and rod brakes.

For a 2 mile commute the bike was cheaper than walking.

Just remembered, I did have a K5 in the mid 60s on a 1935 Grubb recumbent. I also once built a wheel on a Dursley Petersen large flange 3 speed, the spoke holes are only present around 70% of the flange perimeter.

Keith

PeachyPM":1wscrtn1 said:
Don’t know, he didn’t mention the lack of rim being a problem, hopefully he will reply (unless it’s a trade secret) :p

Having them laced into a wheel makes it slightly easier to remove the r.h. ball ring but if not I can usually remove them holding in one hand.
But yes, I do have a jig that can hold shells without damaging then. Had a few stubborn ones that required it but it's mostly used for removing l.h. ball cups on FM's and the like.

petermwilliamson":1fwph0kw said:
Will be happy to post some photos on here if people are interest. The 5 speed especially, it's an interesting bit of kit inside.

Yes please... package posted this morning so you should have it Wednesday/ Thursday.

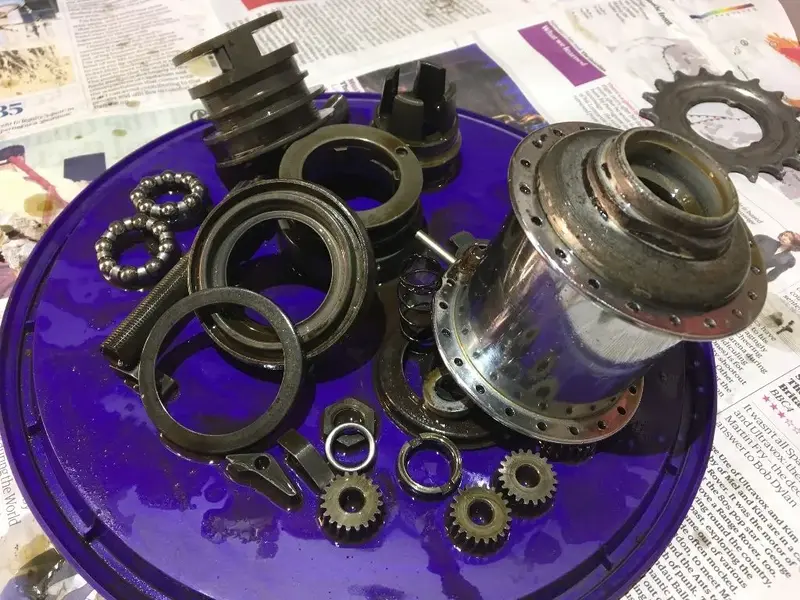

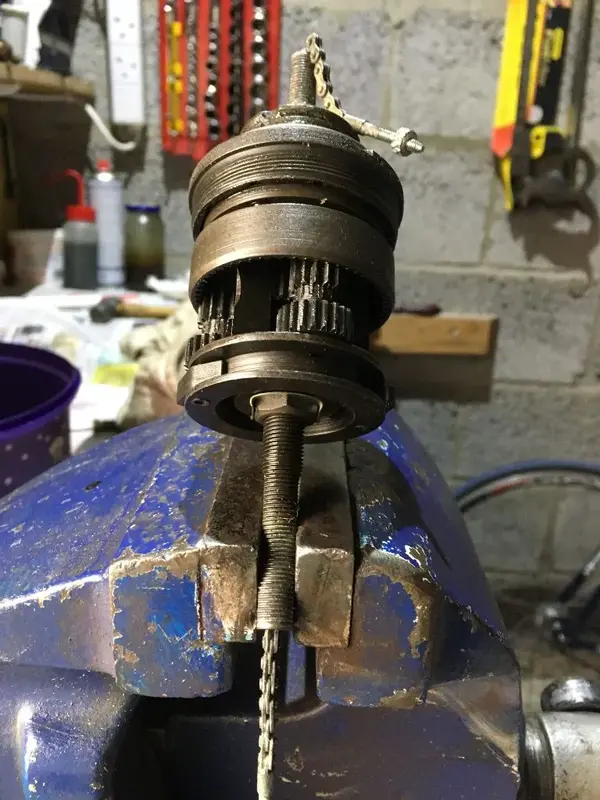

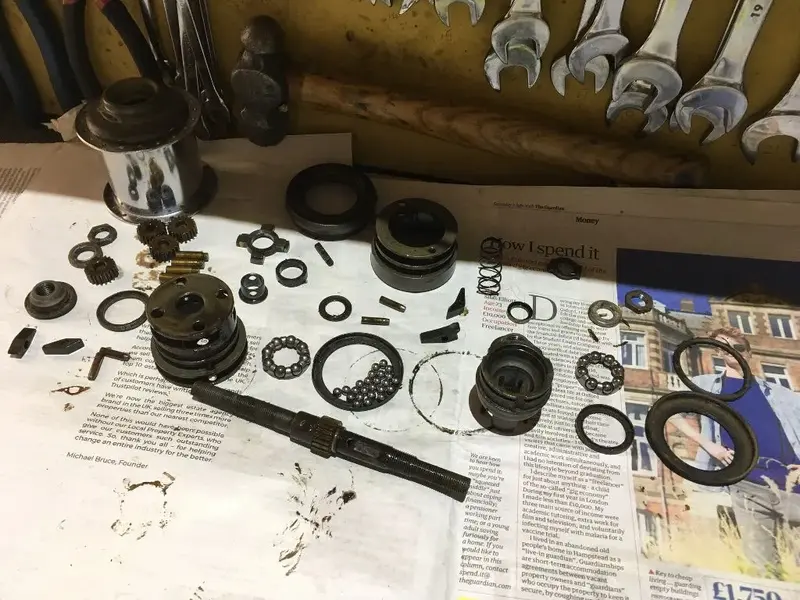

Just finished with the AW. Photos below.


Attachments

  • 2018-08-01 19.10.03.jpg
    2018-08-01 19.10.03.jpg
    137.6 KB · Views: 342
  • 2018-08-01 19.08.44.jpg
    2018-08-01 19.08.44.jpg
    139.6 KB · Views: 342
  • 2018-08-01 17.02.29.jpg
    2018-08-01 17.02.29.jpg
    129.6 KB · Views: 342
  • 2018-08-01 15.15.35.jpg
    2018-08-01 15.15.35.jpg
    157.9 KB · Views: 342
  • 2018-08-01 12.46.15.jpg
    2018-08-01 12.46.15.jpg
    146.5 KB · Views: 342
:D Great stuff Peter, glad I spent the extra on posting the 61 unit now as a donor..... :D

Keep the photos and descriptions coming..... :cool:

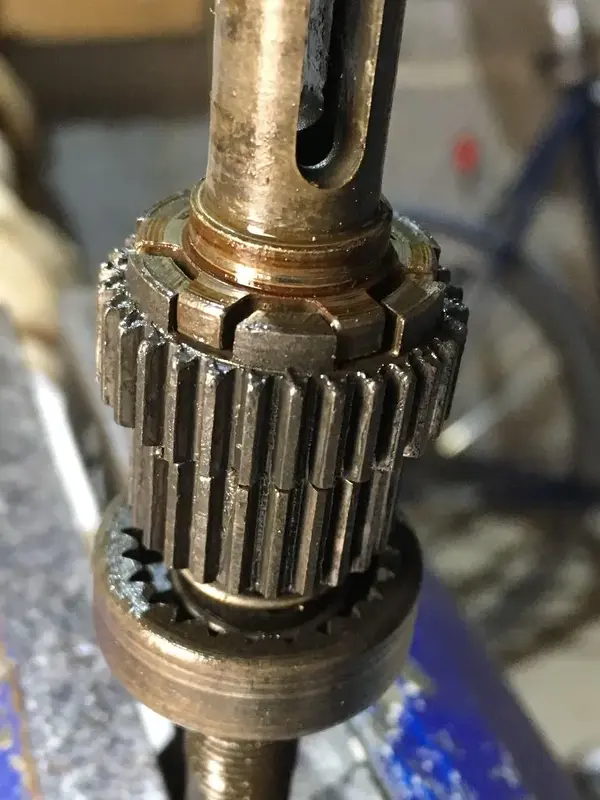

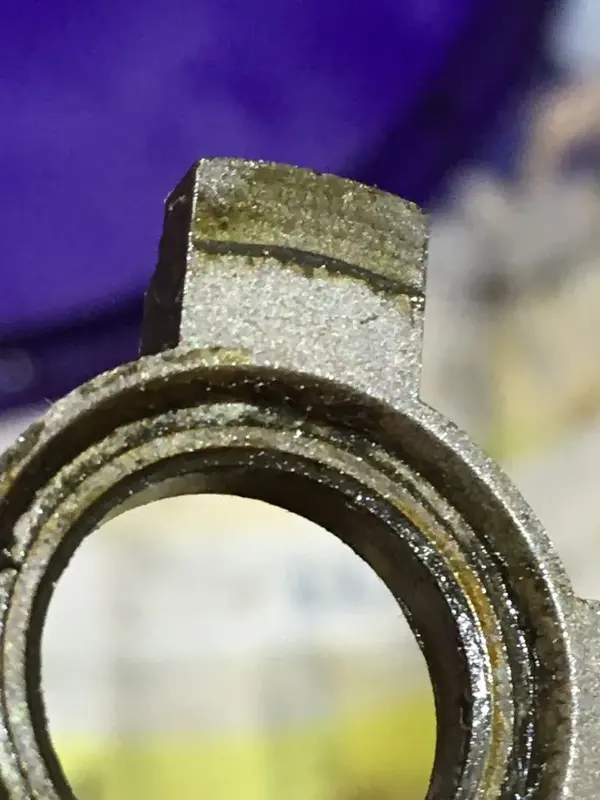

SA 1979 S5.1 five speed hub.


Attachments

  • 2018-08-02 11.01.45.jpg
    2018-08-02 11.01.45.jpg
    209.1 KB · Views: 305
  • 2018-08-02 10.29.45.jpg
    2018-08-02 10.29.45.jpg
    115.4 KB · Views: 305
  • 2018-08-02 10.26.57.jpg
    2018-08-02 10.26.57.jpg
    116 KB · Views: 305
  • 2018-08-02 10.26.08.jpg
    2018-08-02 10.26.08.jpg
    91.7 KB · Views: 305
  • 2018-08-02 10.17.23.jpg
    2018-08-02 10.17.23.jpg
    133.5 KB · Views: 305
  • 2018-08-02 10.10.58.jpg
    2018-08-02 10.10.58.jpg
    99.8 KB · Views: 305
