 Post subject: Dave Lloyd 753
PostPosted: Tue Oct 21, 2014 3:10 pm
BoTY Winner
BoTY Winner
User avatar

Joined: Mon Aug 10, 2009 6:20 pm
Posts: 4139
Location: Everywhere & Nowhere
Been waiting a long time to post this one up - and today is the day :D

Some of you might remember this one come up on the chat forum as somebody only bought it for some of the XT components on it :? I was an early bird and made an offer for the frame and forks if it ever came up for sale – I mean, when do you see a Lloyd 753 come up...

Anyway, the frame and forks ended up coming my way and it was full steam ahead on a full refurbishment. I got Argos on board as I thought they would be the best guys to implement what I wanted. I can say now that they aren't the cheapest but we worked together and produced and brought back to life what I think is a top notch frame.

It was in a very sorry state and after a initial check a few of the tubes needed replacing as they were just shot and then the paint work began...that was nearly a years ago now but it was well worth the wait :D :D :D

I'll let the pictures do the talking now....

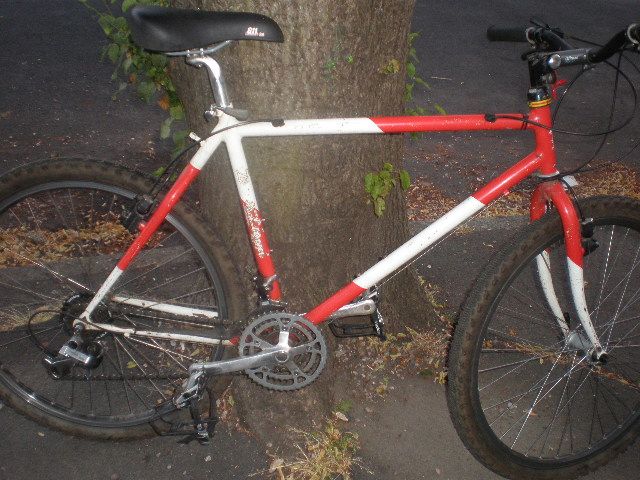

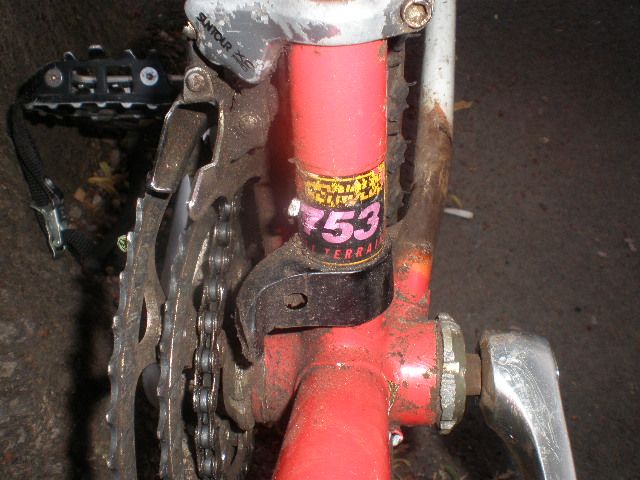

Before:

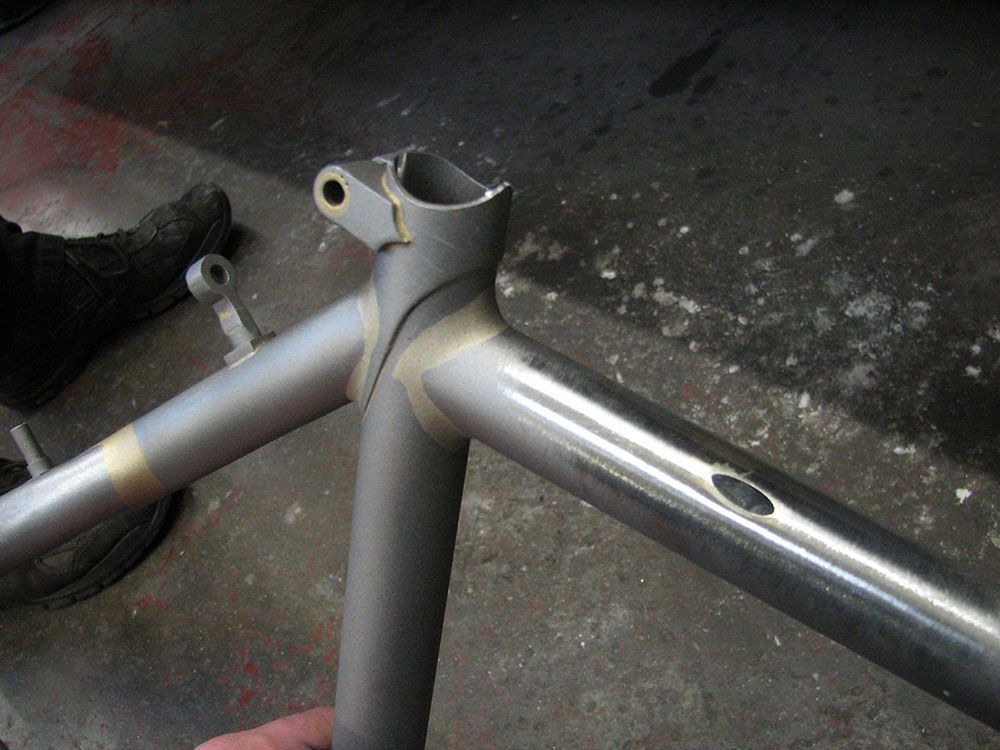

During:


Influence:


More later.... :wink:


Top
 Profile

 Post subject: Re:
PostPosted: Tue Oct 21, 2014 4:24 pm
Retro Guru

Joined: Sat May 07, 2011 4:09 pm
Posts: 798
Location: Devon
Yes! Sounds like you are staring at the finished article?! What did you have to replace?


Top
 Profile

 Post subject: Re: Re:
PostPosted: Tue Oct 21, 2014 4:29 pm
BoTY Winner
BoTY Winner
User avatar

Joined: Mon Aug 10, 2009 6:20 pm
Posts: 4139
Location: Everywhere & Nowhere
dnbmatt28 wrote:
Yes! Sounds like you are staring at the finished article?! What did you have to replace?

What didn't :? ...

Top tube was shot because the internal cabling had started to corrode around the edges and water was sitting inside the top tube, seat tube had to go because there were a few holes near the bottom bracket and both rear stays had to be changed as they had been repaired before, had new holes in and were too thin :oops:

Not much left after that....

...but looking good as new now :) :D

I'll upload more pictures in a minute...


Top
 Profile

 Post subject: Re:
PostPosted: Tue Oct 21, 2014 4:37 pm
Retro Guru
User avatar

Joined: Mon Mar 24, 2008 12:17 pm
Posts: 641
Location: Camping,with Slade.
That Cats Wiskas is one of my all time favourite bikes.Ever.
Your bike is looking good too.


Top
 Profile

 Post subject: Re: Dave Lloyd 753
PostPosted: Tue Oct 21, 2014 4:42 pm
Gold Trader / MacRetro rider
Gold Trader / MacRetro rider

Joined: Sun Sep 04, 2011 11:33 am
Posts: 3178
Location: Riding my Woodsie.
:shock:

I certainly can't fault your dedication to the cause. :mrgreen:

At what point does a frame become 'not worth the effort' in your opinion?


Top
 Profile

 Post subject: Re: Dave Lloyd 753
PostPosted: Tue Oct 21, 2014 4:43 pm
Old School Grand Master

Joined: Tue Jul 05, 2011 8:42 pm
Posts: 3646
fantastic!

what a save


Top
 Profile

 Post subject: Re:
PostPosted: Tue Oct 21, 2014 4:44 pm
BoTY Winner
BoTY Winner
User avatar

Joined: Mon Aug 10, 2009 6:20 pm
Posts: 4139
Location: Everywhere & Nowhere
Right – paint!

I wanted to match the Cats above as closely as I could but because of the lack of any hi-res images of it, along with Argos, we matched the colours and used other references to copy the chevrons, chrome and decals.

The rear stays were chromed first and then the base undercoat of pearl silver. After that the graphite colour was added on the rear stays and the two base colours.


The chevrons were next to be added and there was a fair bit of discussion until we settle on the below :) We couldn't match the rear stays because of the poor quality of photo but definitely happy with what we came up with


Finished frame up soon...


Top
 Profile

 Post subject: Re: Dave Lloyd 753
PostPosted: Tue Oct 21, 2014 4:46 pm
BoTY Winner
BoTY Winner
User avatar

Joined: Mon Aug 10, 2009 6:20 pm
Posts: 4139
Location: Everywhere & Nowhere
firedfromthecircus wrote:
:shock:

I certainly can't fault your dedication to the cause. :mrgreen:

At what point does a frame become 'not worth the effort' in your opinion?

This one was definitely worth the effort.

Bit of a unicorn for me and how many do you see of these...?


Top
 Profile

 Post subject: Re:
PostPosted: Tue Oct 21, 2014 4:54 pm
Retro Guru

Joined: Sat May 07, 2011 4:09 pm
Posts: 798
Location: Devon
Wicked, those colours are right up my street, I would be 100% happy with the job they have done there, well done!


Top
 Profile

 Post subject: Re: Re:
PostPosted: Tue Oct 21, 2014 4:56 pm
BoTY Winner
BoTY Winner
User avatar

Joined: Mon Aug 10, 2009 6:20 pm
Posts: 4139
Location: Everywhere & Nowhere
dnbmatt28 wrote:
Wicked, those colours are right up my street, I would be 100% happy with the job they have done there, well done!

You should see the finished article in the flesh 8)
