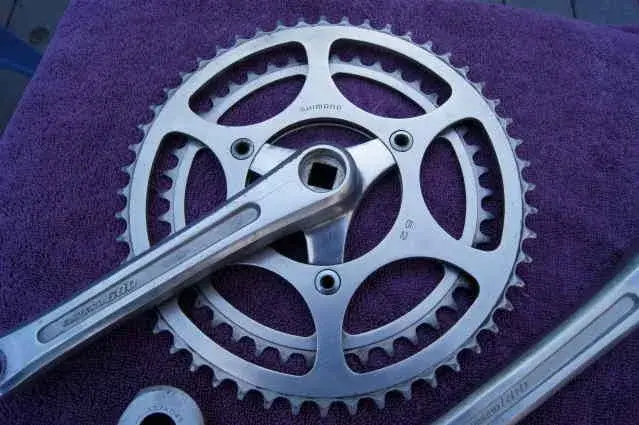

Unusual Shimano 600 crank, three arm?
- Thread starter drpaddle
- Start date
one-eyed_jim
Old School Grand Master
1976 sounds about right. They're in the 1975 catalogue:
http://www.therecyclers.ch/pdf/shim75anglais.pdf
and they feature in a number of print ads from 1976:
http://www.velo-pages.com/main.php?g2_itemId=6568
but they're gone by 1978. Velobase has a little information:
http://www.velobase.com/ViewComponent.a ... 2&Enum=115
The bolt circle diameter is about 95mm, with spare rings available down to 30t. I don't know of any compatible rings: the more common 3-arm cranks used 116mm bcd.
http://www.therecyclers.ch/pdf/shim75anglais.pdf
and they feature in a number of print ads from 1976:
http://www.velo-pages.com/main.php?g2_itemId=6568
but they're gone by 1978. Velobase has a little information:
http://www.velobase.com/ViewComponent.a ... 2&Enum=115
The bolt circle diameter is about 95mm, with spare rings available down to 30t. I don't know of any compatible rings: the more common 3-arm cranks used 116mm bcd.
