Threading Cable into a XT-739 Shifter

[Venturestein]

Started my first "from scratch" build a few weeks ago. Its a 1996 Iboc zero-G SX, my first bike I bought was a 96 hilltopper that I thrashed, so I always wanted another mongoose from that era. I've done pleanty of work on my bikes, but never really got into the re-cabling at any point.

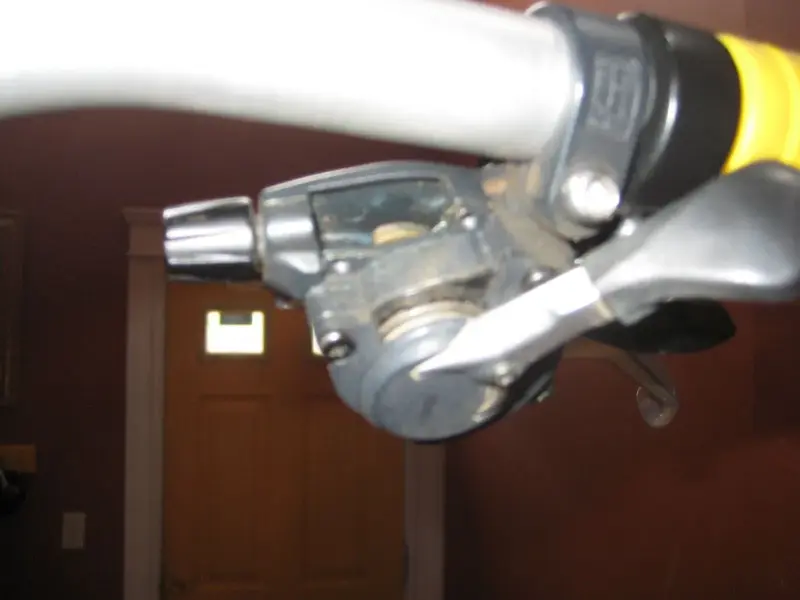

So sorry for the nube question, and I have goggled ant looked for manuals, but I've had no luck. I've have other shifters with a hole to put it through, but the xt-739's I assume you need to take it apart? Maybe I just blind and can't see the damn thing! I took off the small panel (shown in the picture) but no obvious place to thread it.. I figured I'd ask here before I start fiddling with it and possibly break it. So any sage advice is welcomed.



[FluffyChicken]

Re:

Click the shifter till the hook part appears.
Twist the barrel adjuster to line up the slots.
Hook onto hanger, then push through slots.

Job done.



[Venturestein]

Yes!! Thanks. Pretty easy once you know what to look for. Thanks again!

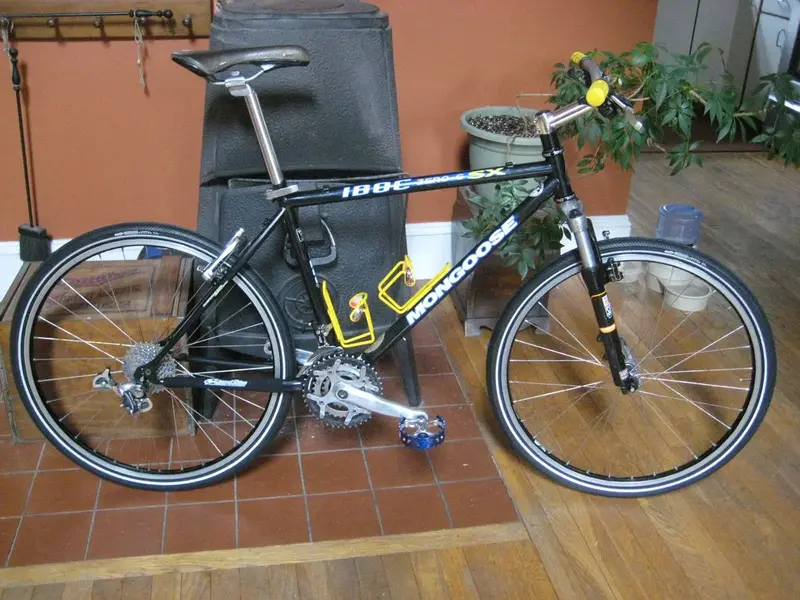

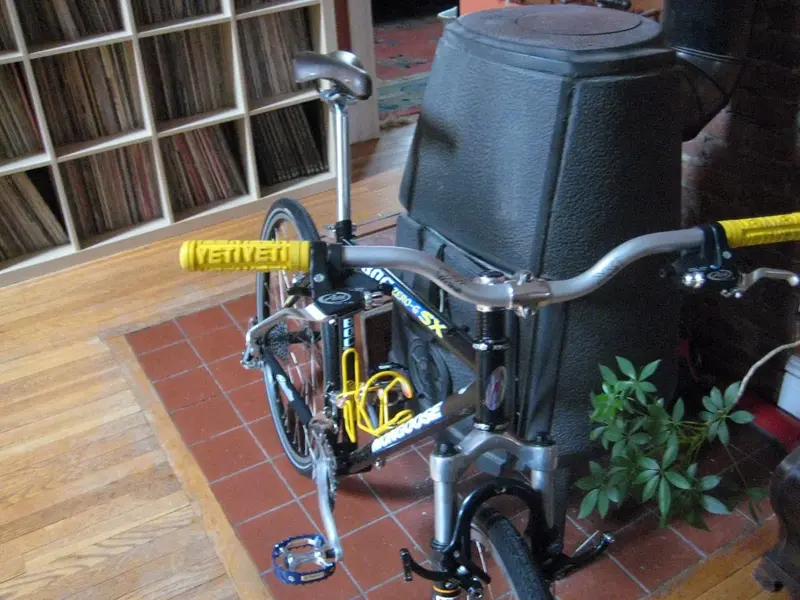

pics of the bike for good measure.



[RockiMtn]

your set of shifters did come with the cover and two small screws right? if you haven't taken them off yourself then those are missing on your set it looks.



[Venturestein]

Yea thanks, I did take it apart, so no problem.



[The History Man]

Loving the Vinyl
