Shimano DA 7402 Freehub Alen Key Size

[rusty bodie]

I thought that it was a 10mm allen key to remove the freehub body
off of the hub - NOPE! Does anyone know better?!

:?



[Mike Muz]

Re:

I'ts not uniglide, is it?

Mike



[jm]

They were different,Rich at work will know.I will ask him in the morning pm me to remind me.Think I've got two new free hub bodys with instructions will look.jm.



[one-eyed_jim]

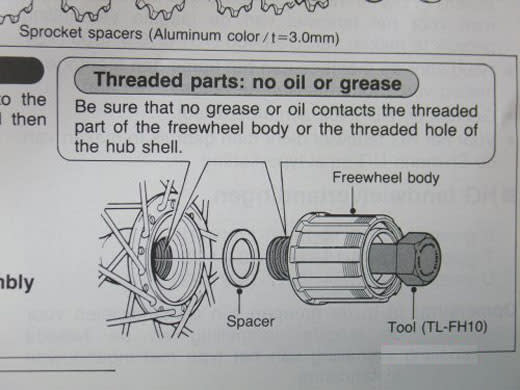

You need a TL-FH10:

http://velobase.com/ViewTool.aspx?ID=79 ... 2109b124aa

http://tinyurl.com/p9m7vn4



[kingbling]

TL-FH10's are hard to come by I had to make a tool used mastic to make a template of the spline pattern then got creative with a M12 bolt and a angle grinder



[rusty bodie]

Re:

God, this tool rings a bell now - I'm sure I had to take it to the bike shop to have removed last time!!



[kingbling]

http://www.ebay.co.uk/itm/TL-FH10-Tool- ... SwA4dWGBr8
not cheap but make an offer



[bigpantswheels]

Re:

There is one on e-bay from a seller in Germany. He want's $53 US dollars, ouch!



[rusty bodie]

Re:

Jeez, that's a fortune - for all the times that I have to remove it, I think I'll just take it to the bike shop - he leant me the tool last time and I returned it when the job was done. Thanks for the links tho'.



[Ian Raleigh]

I reckon I need a replacement free hub for my bike! When really pressing hard on the pedals, the freewheel makes an horrible 'clunk' as if the chain has jumped.

So one of these 'things' are needed to remove the hub ? I also wondered how too.
